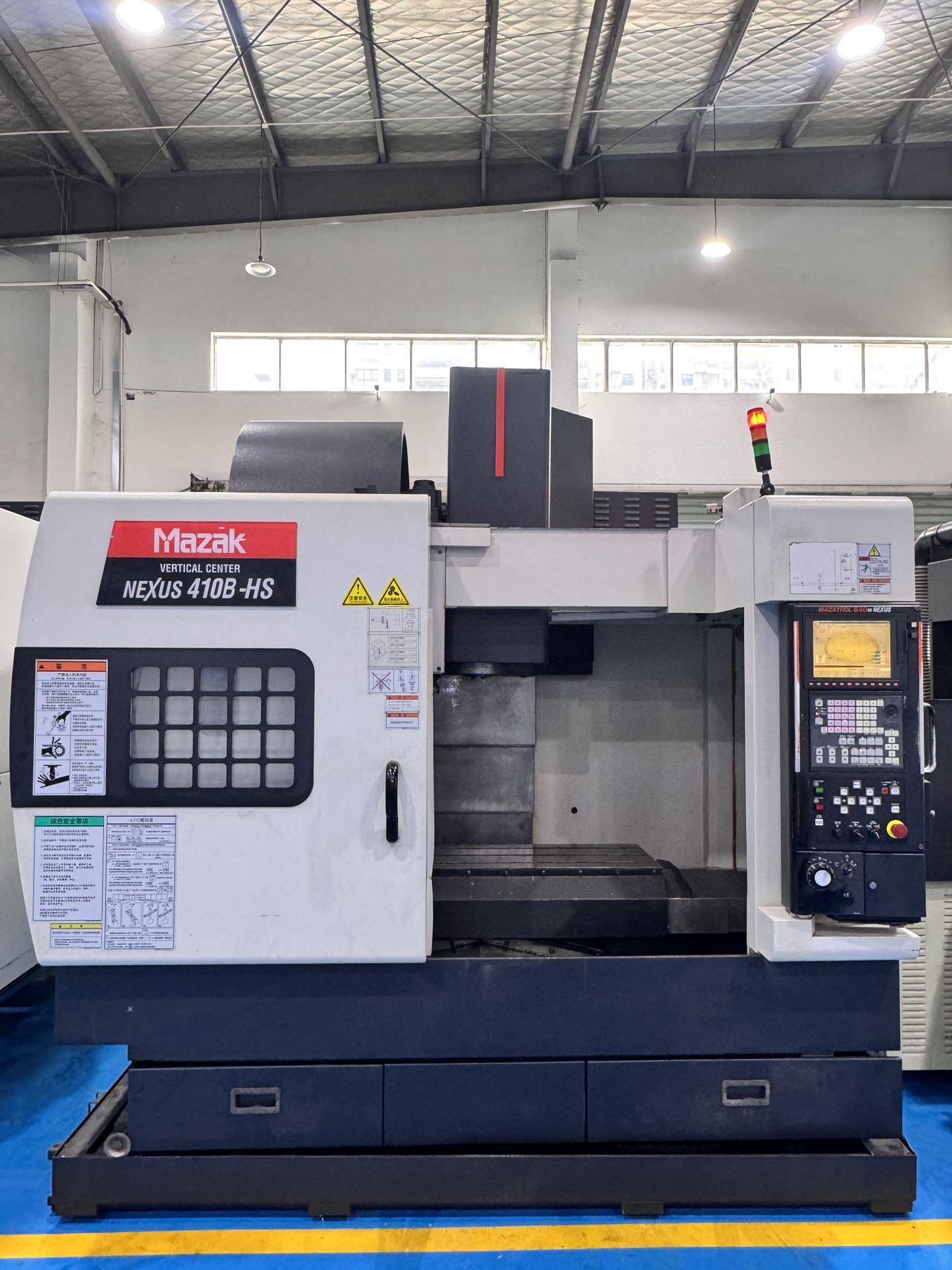

MAZAK NEXUS-410B-HS Machining centre

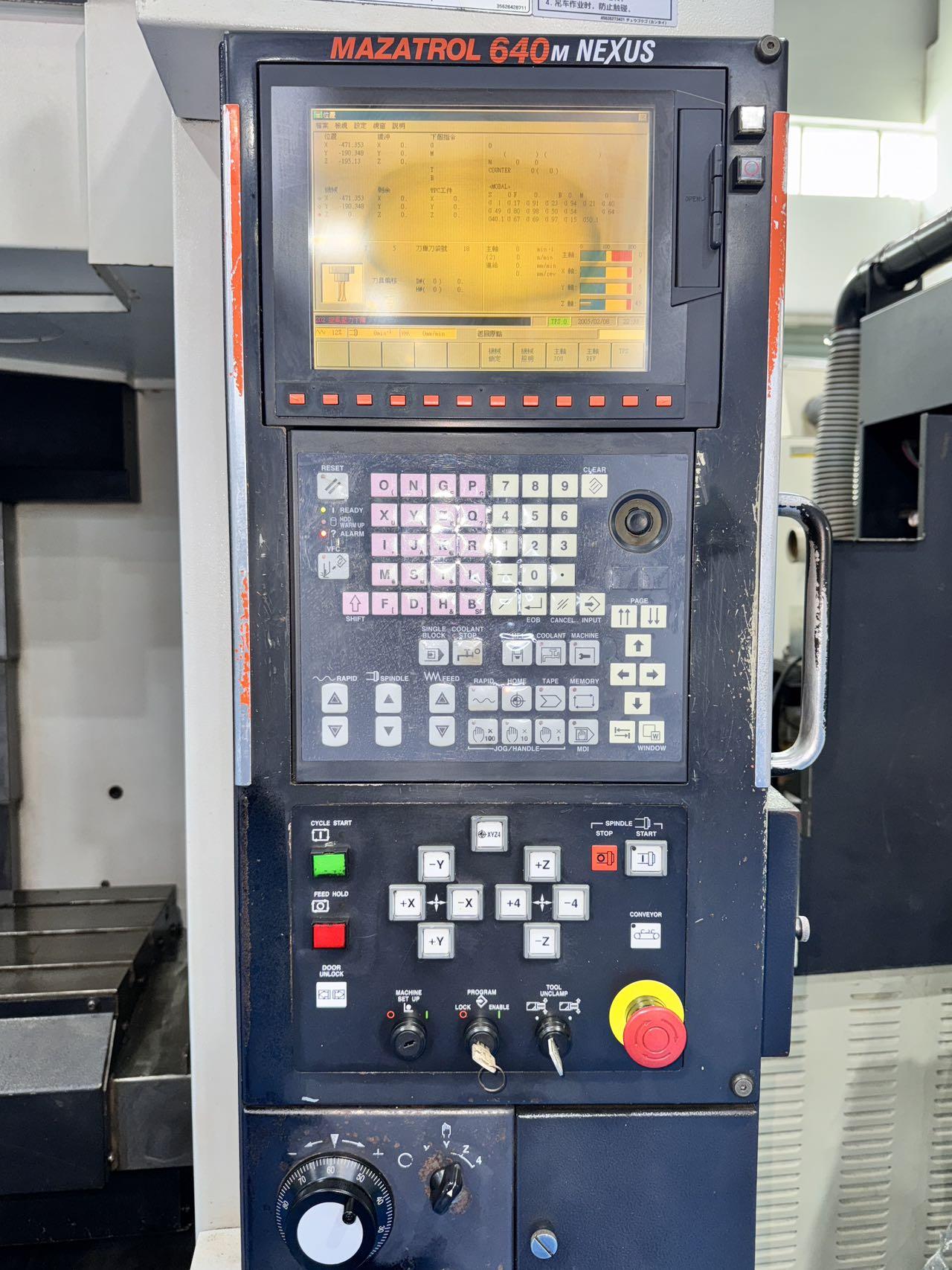

CNC CNC System: 640M-NEXUS

three-axis travel: 763*410*510mm

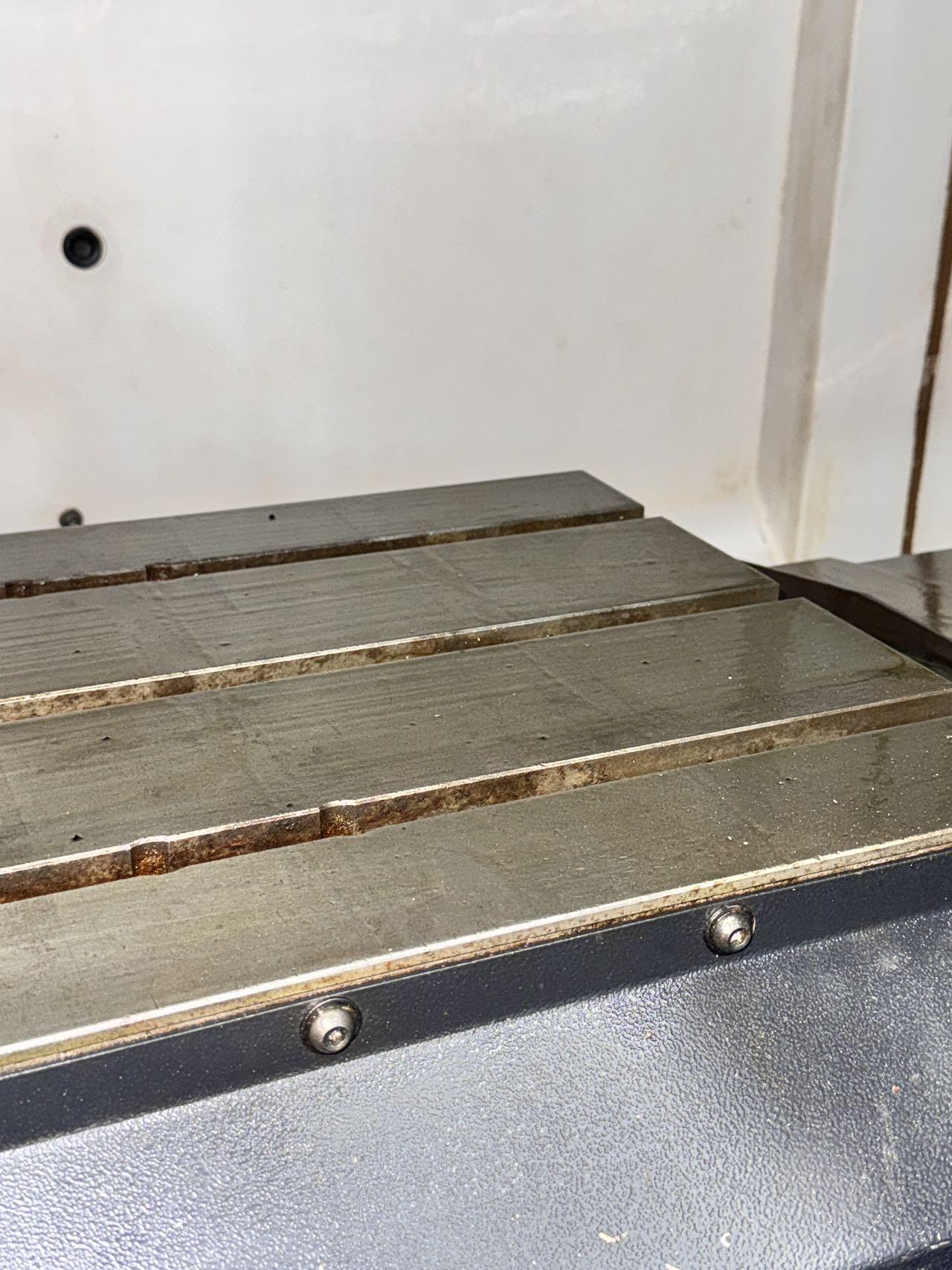

WorkWorktable size: 1100*410mm

3 axes fast shift: 36*36*36m/min

Distance from spindle nose to workWorktable surface: 650mm

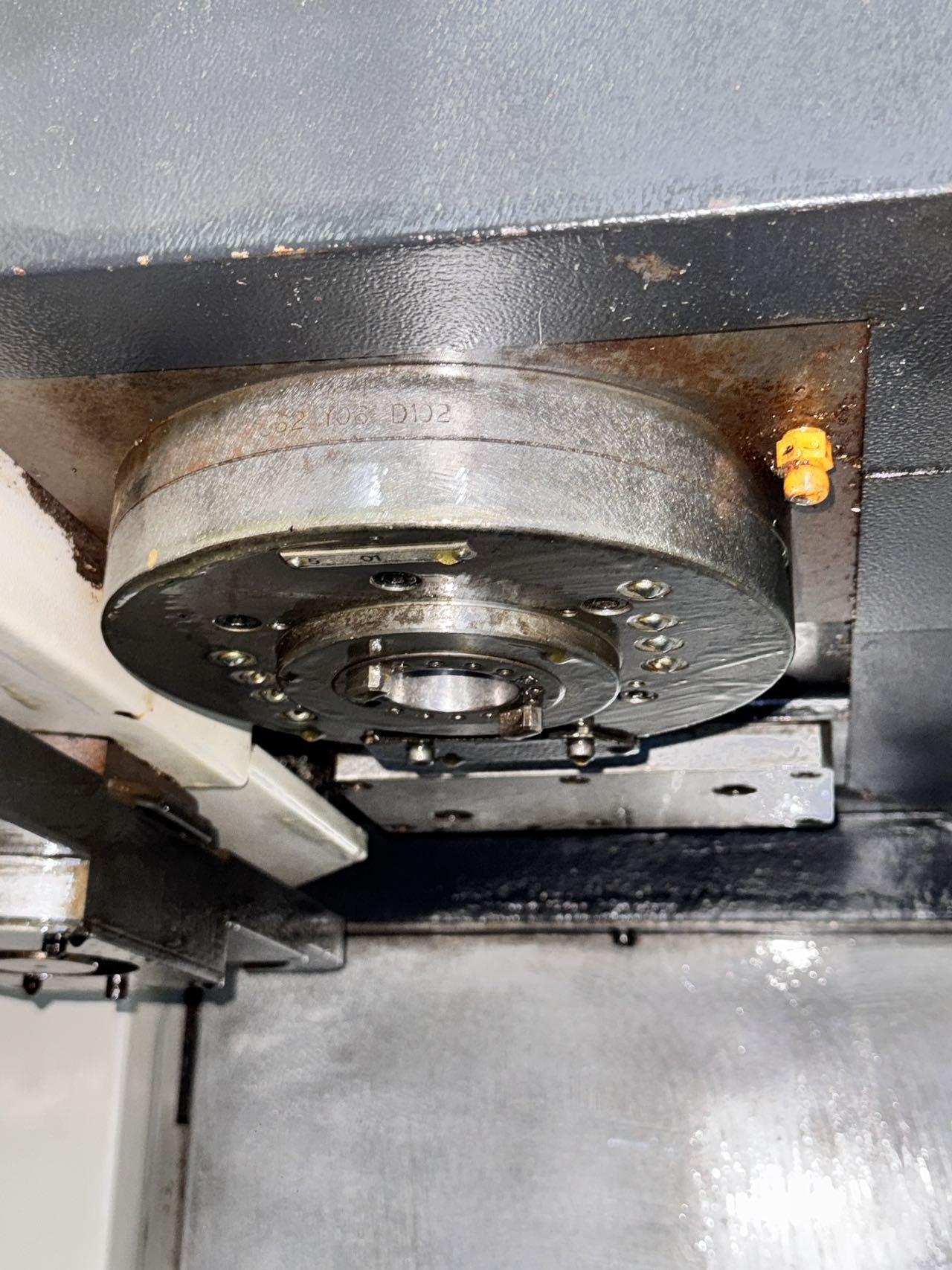

Spindle speed: 15,000 RPM, electric spindle

spindle: BT40

spindle motor: 22KW

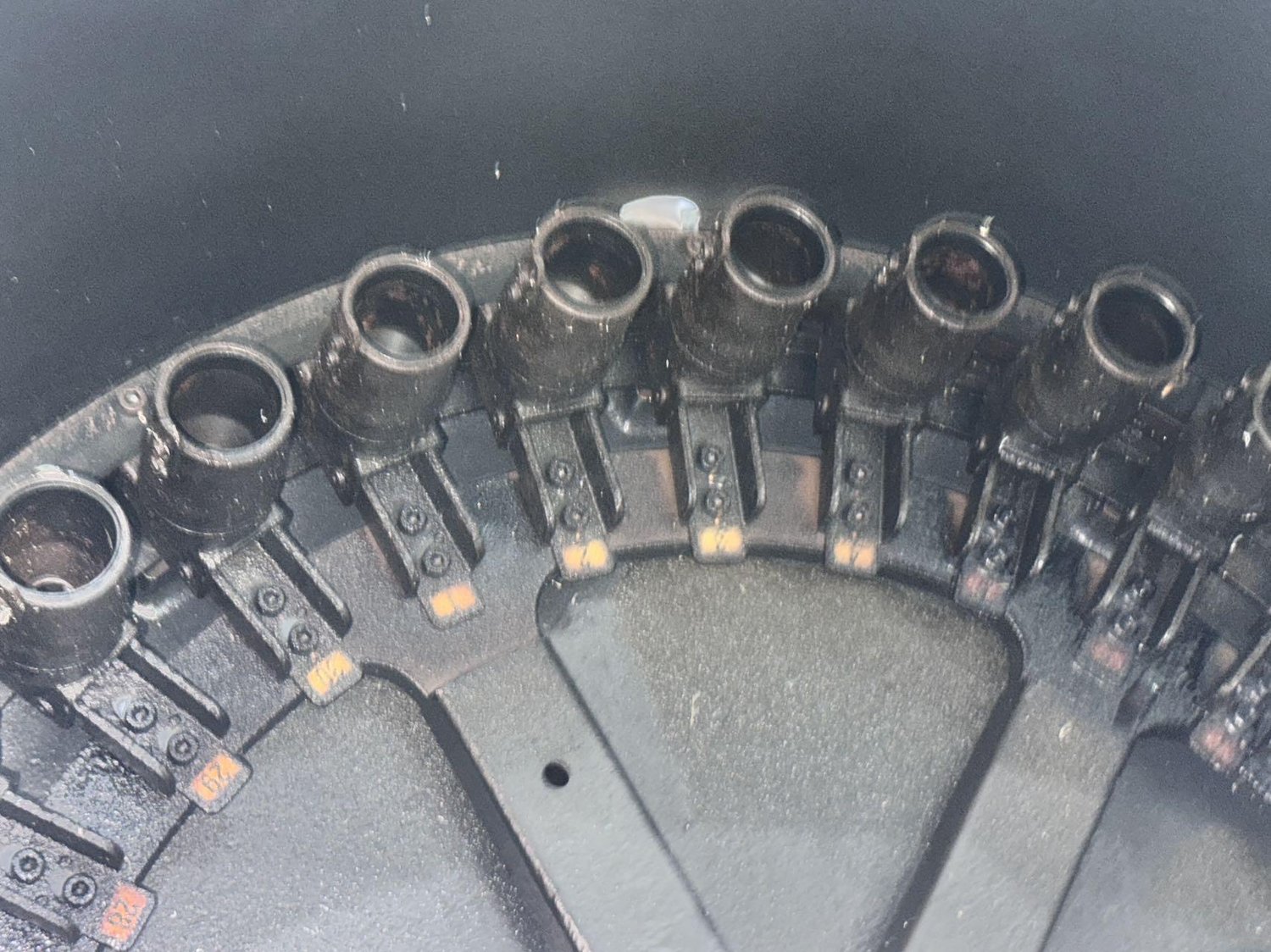

magazine capacity: 30, servo

Three-axis rail

Overall Footage: 2500*2700*2700mm

Configuration

With spindle oil chiller

The center of the lead screw is oil-cooled

Watch precision

spindle runout: 300≤0.01

Positive busbar 300: Length ≤0.02

Side busbar 300: Length ≤0.02

3 axes repetitive Positioning: ≤0.005
