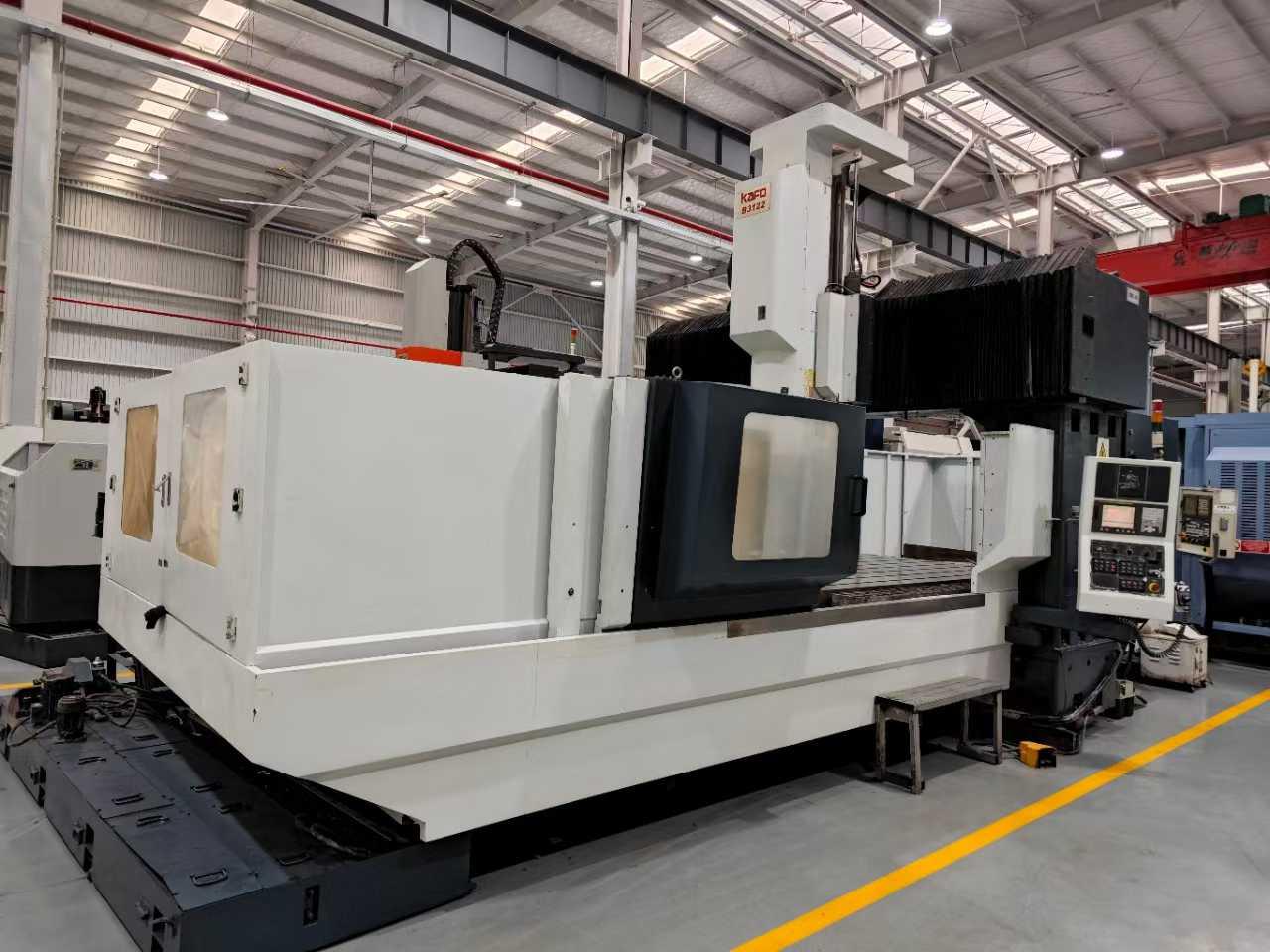

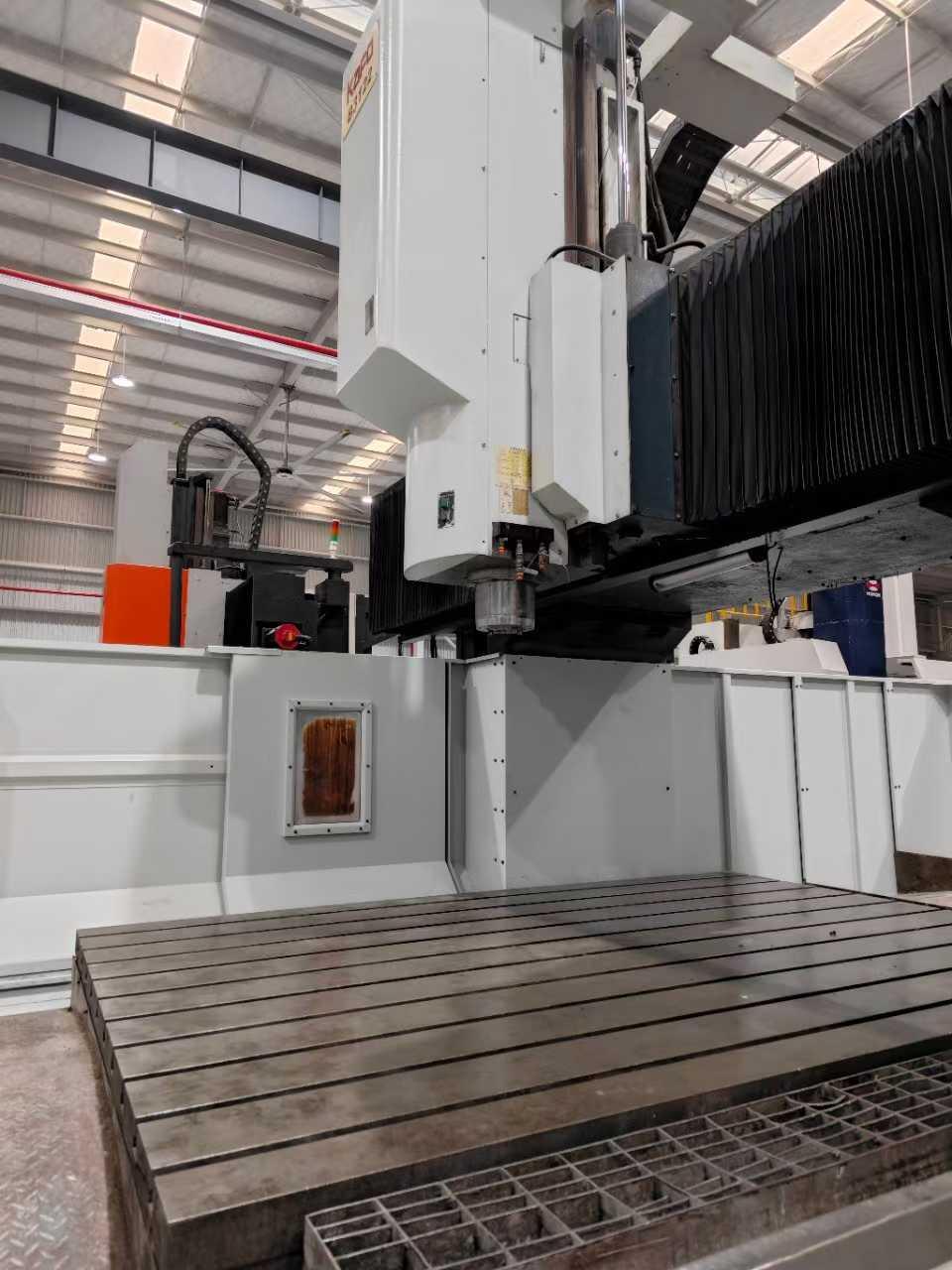

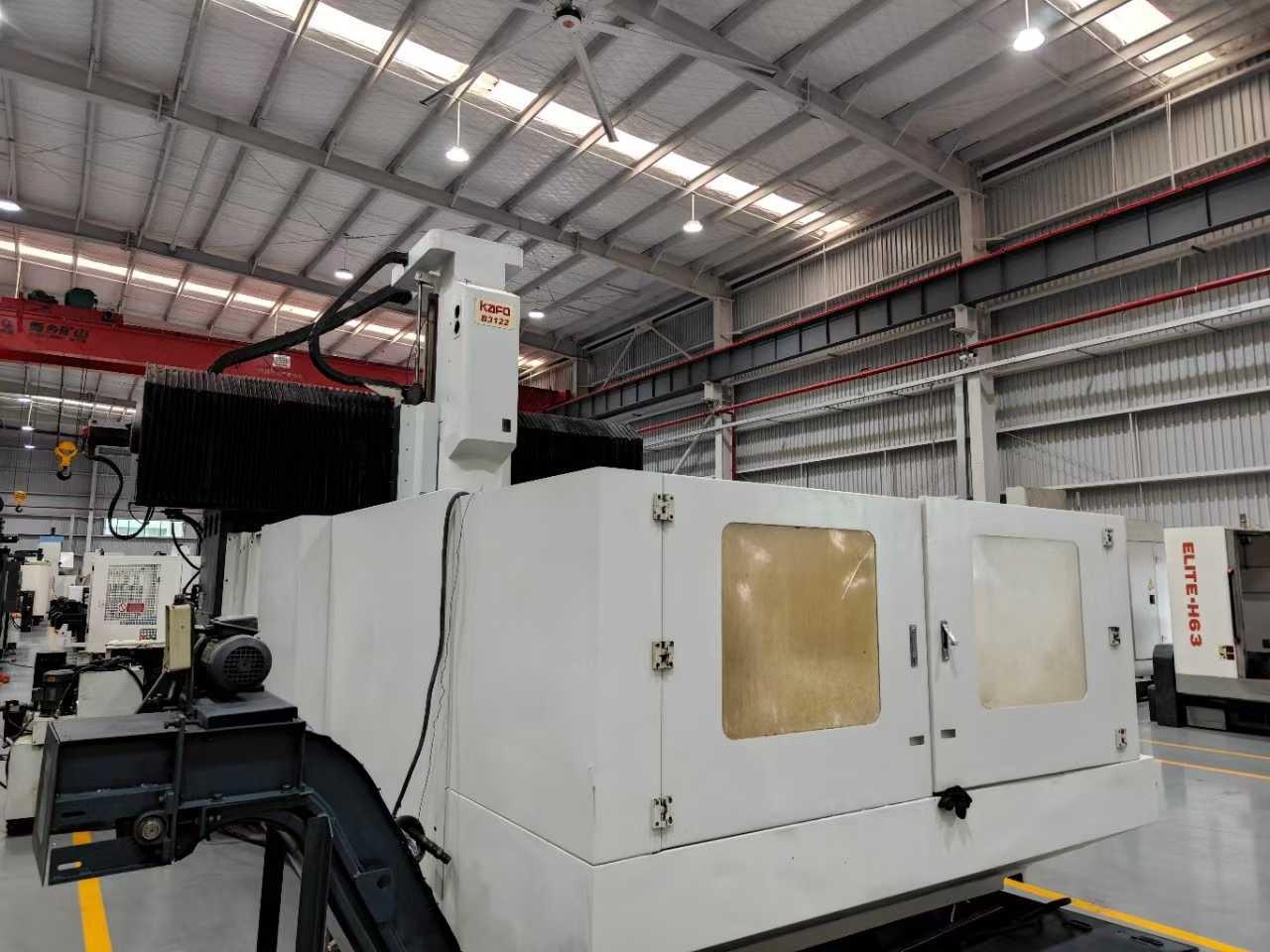

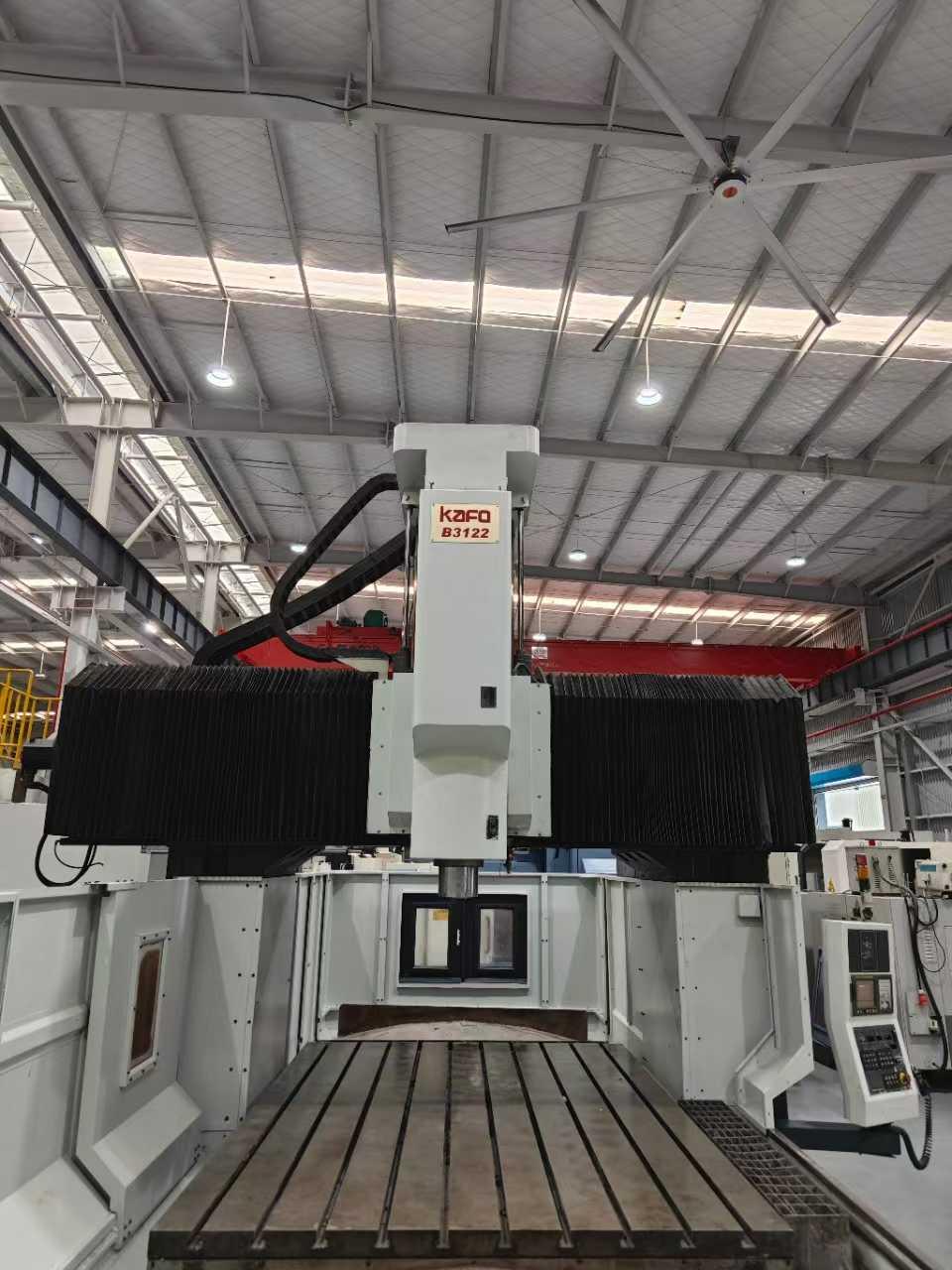

KAFO B3122 Gantry machining centre

[Product Information]:

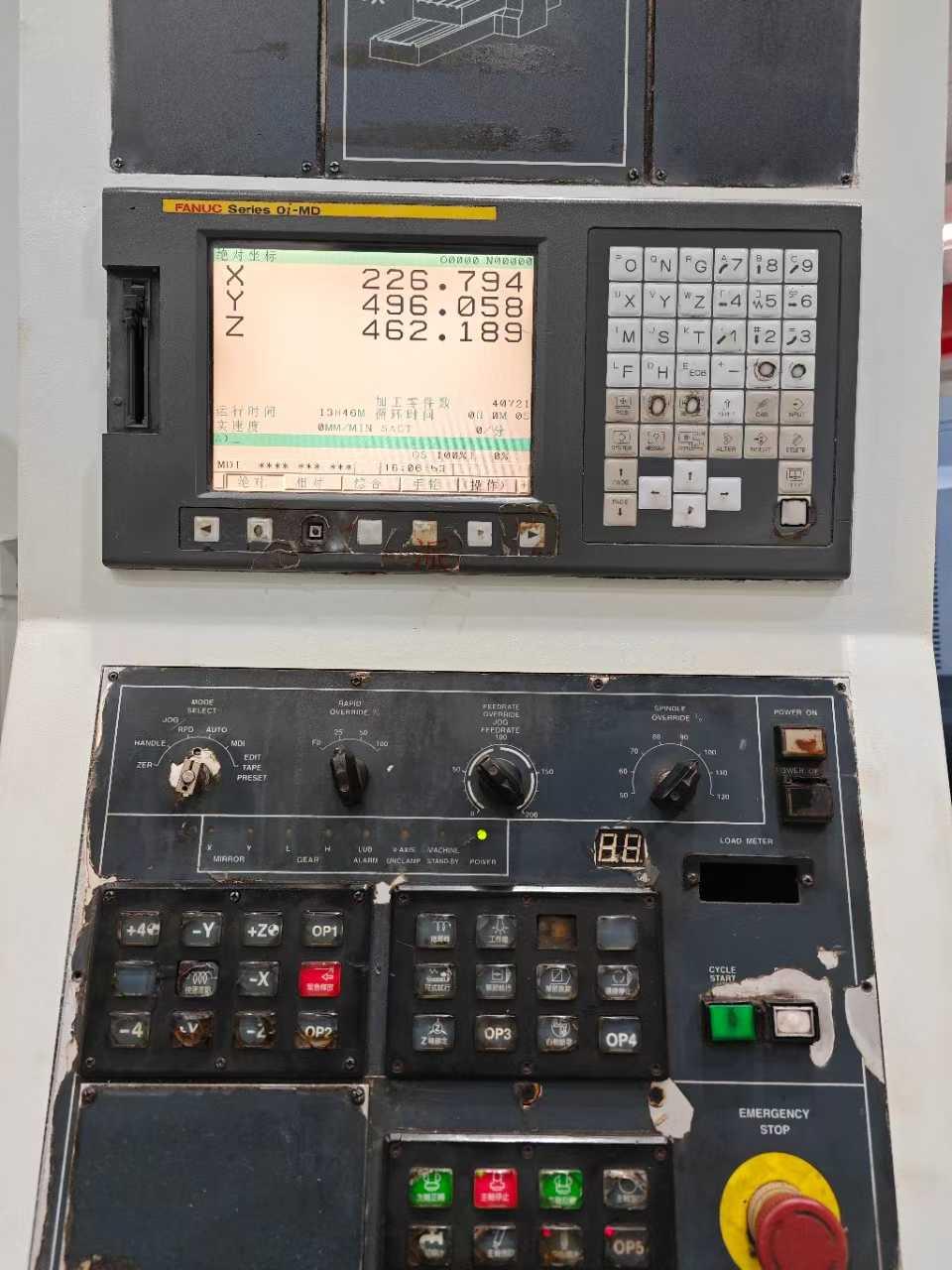

CNC CNC System: FANUC MD

three-axis travel: 3100*2200*850mm

WorkWorktable size: 3000*2100mm

The maximum load of workWorktable is 14,000 kg

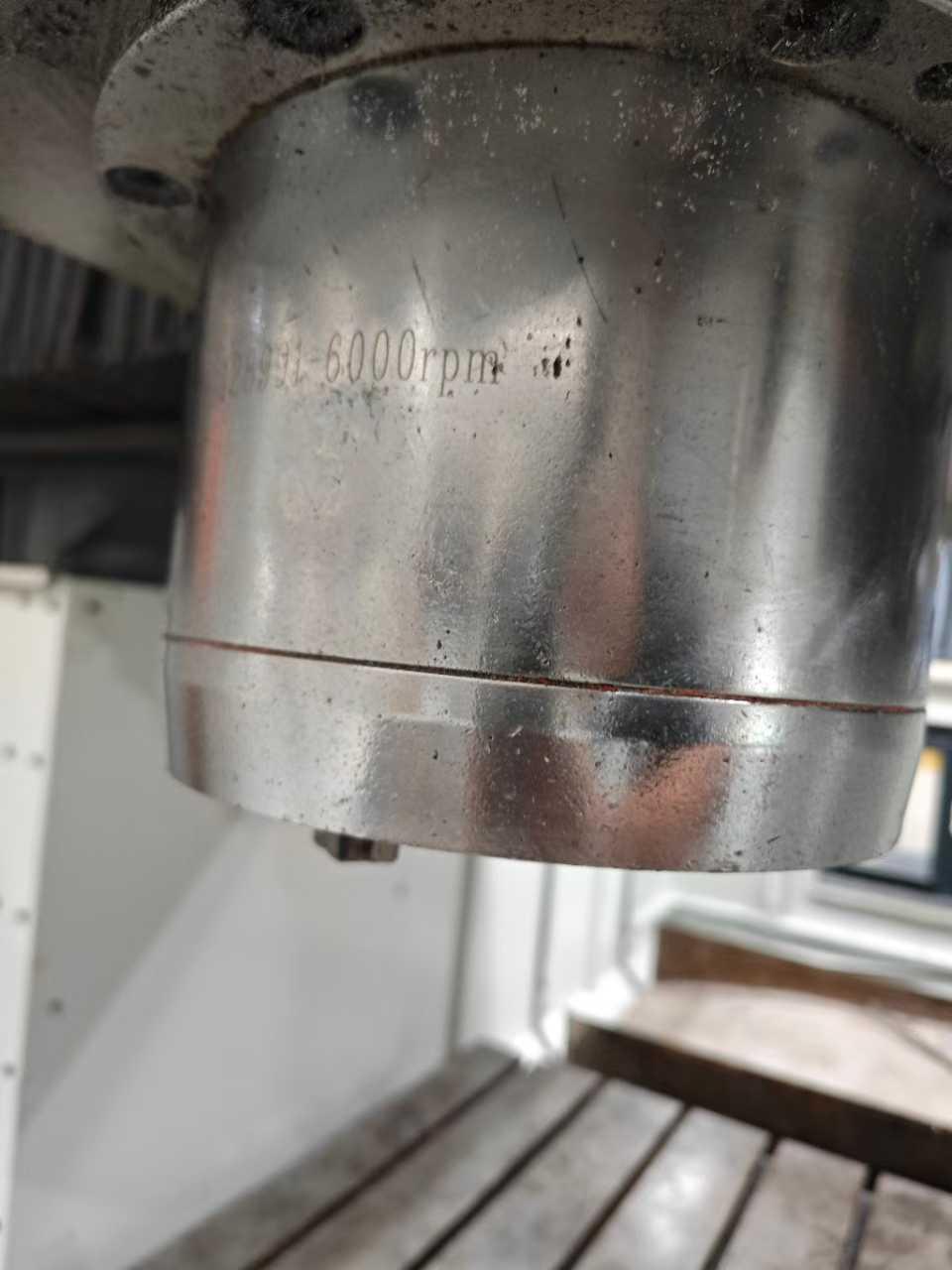

Spindle speed: 6000rpm

spindle: BT50

Main motor power: 22/26 kW

Gantry width: 2200mm

Height of the gantry: 1300mm

Optional:

Right-angle head

universal joint
