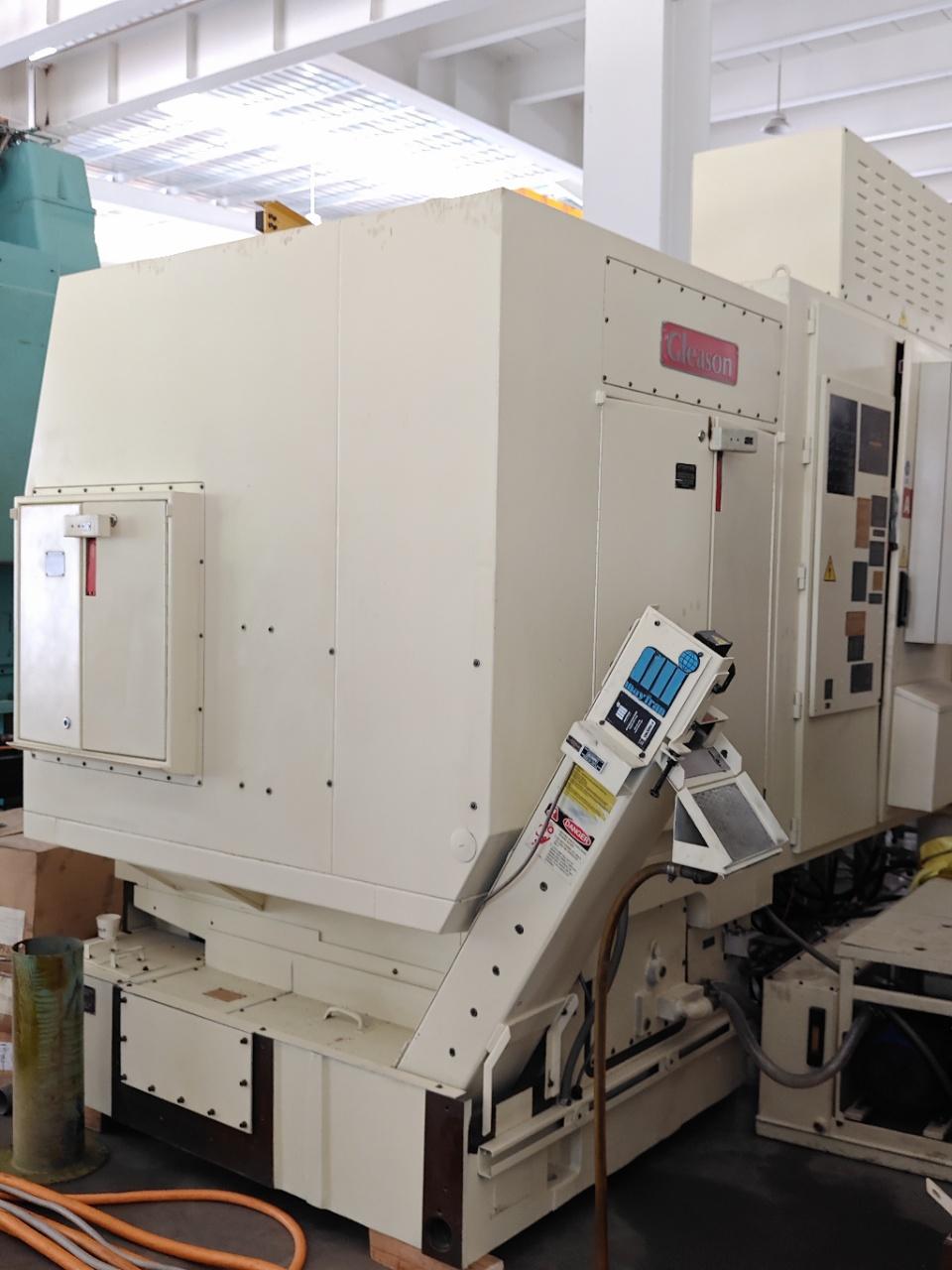

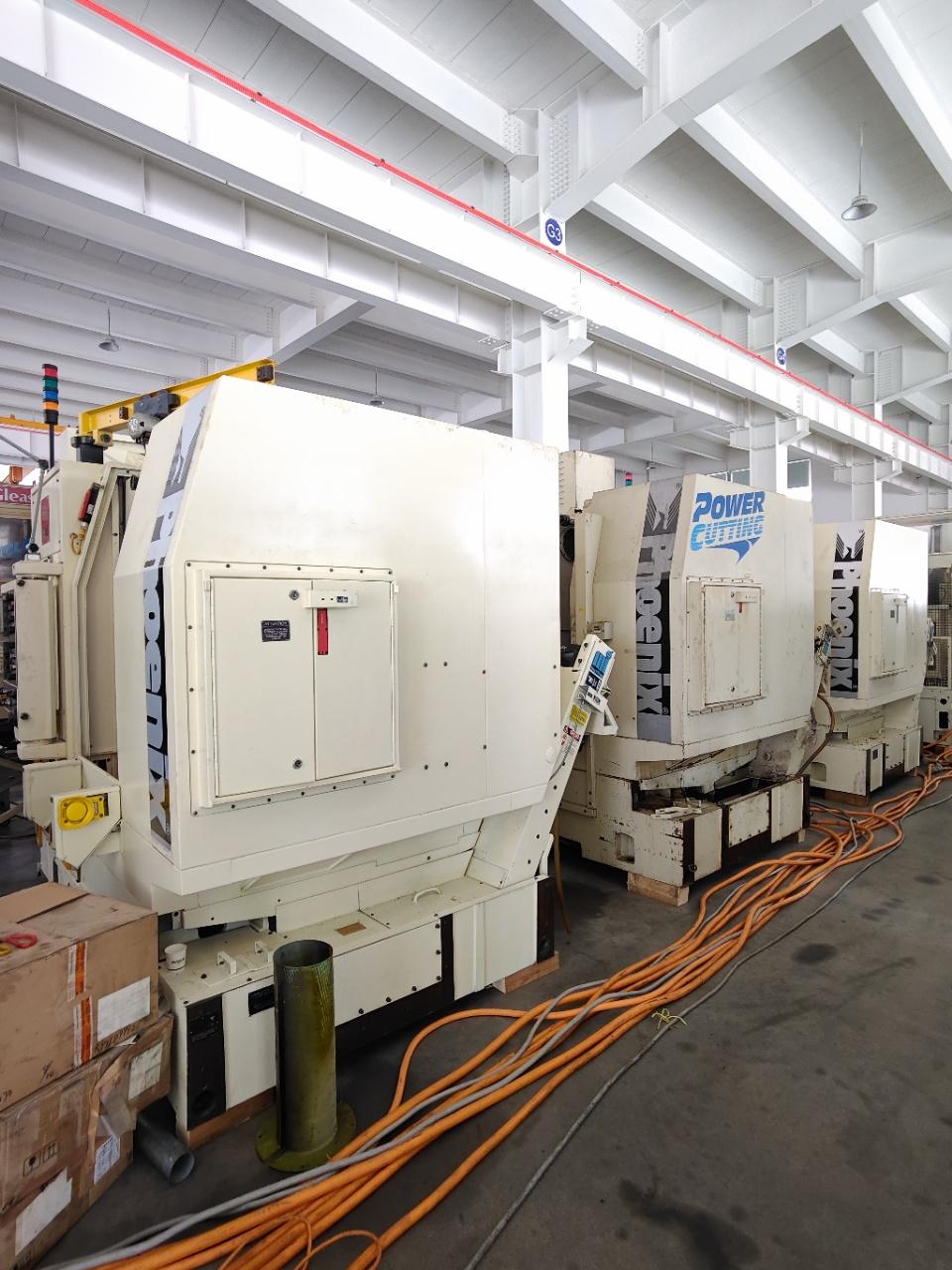

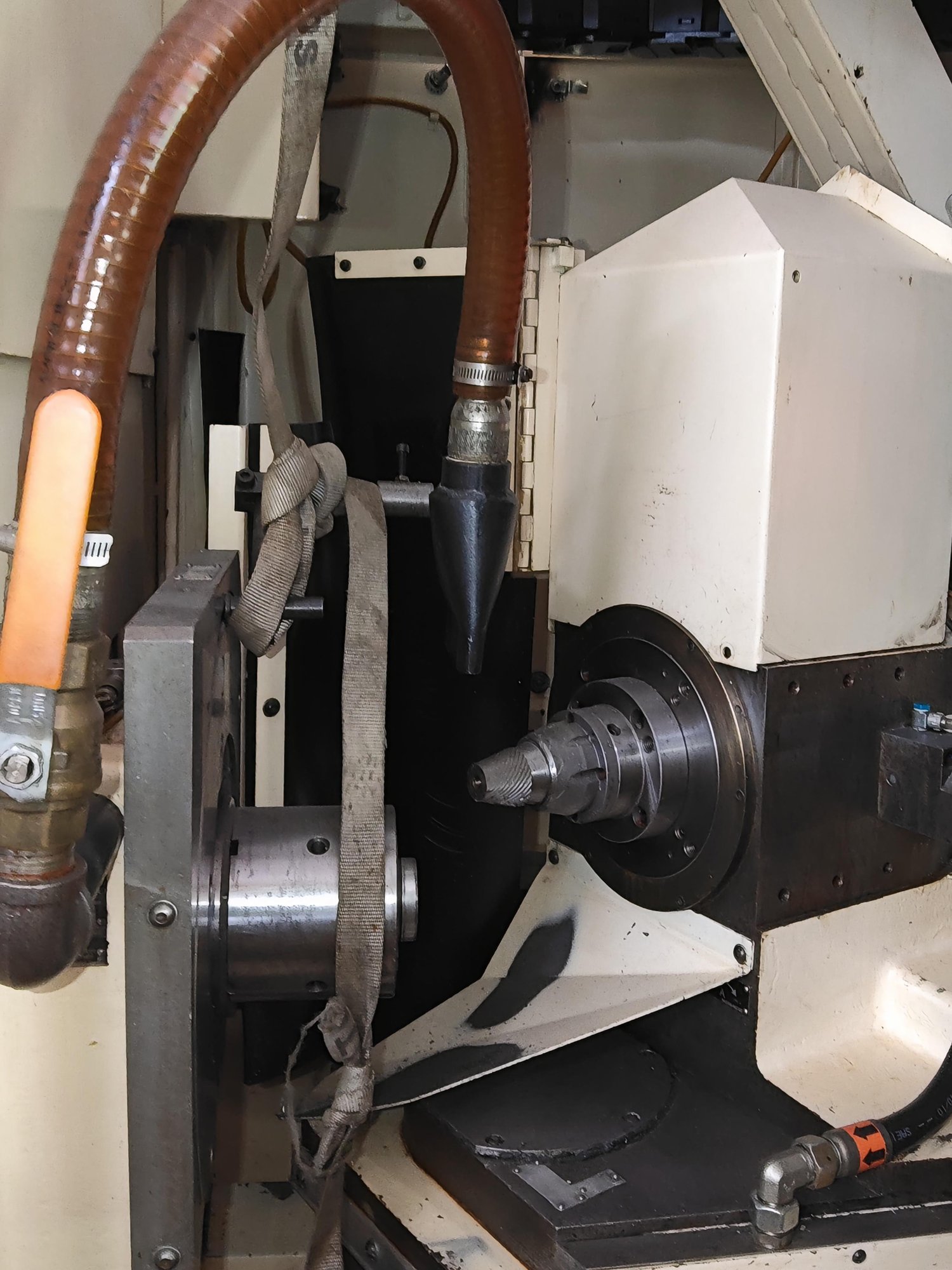

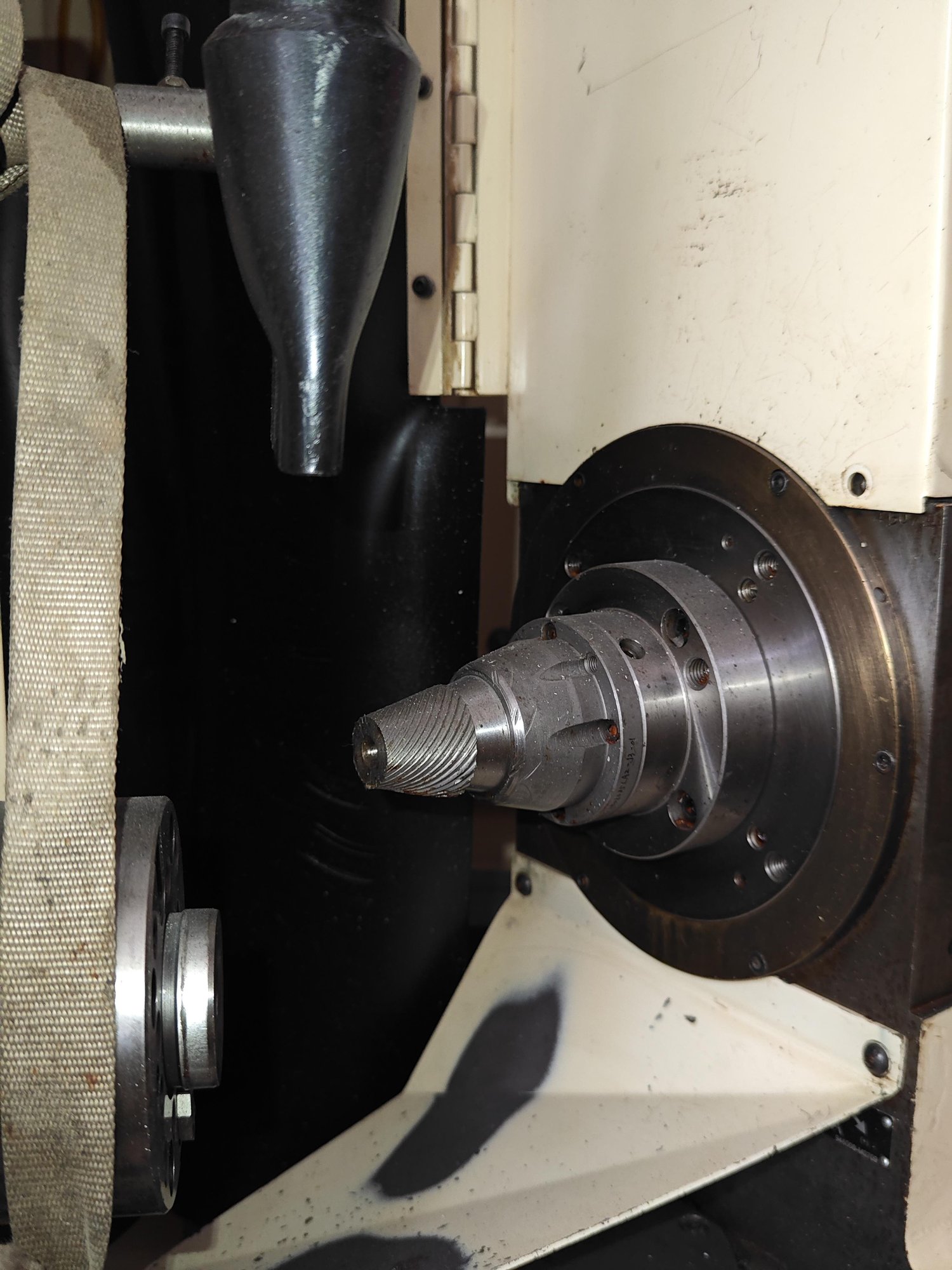

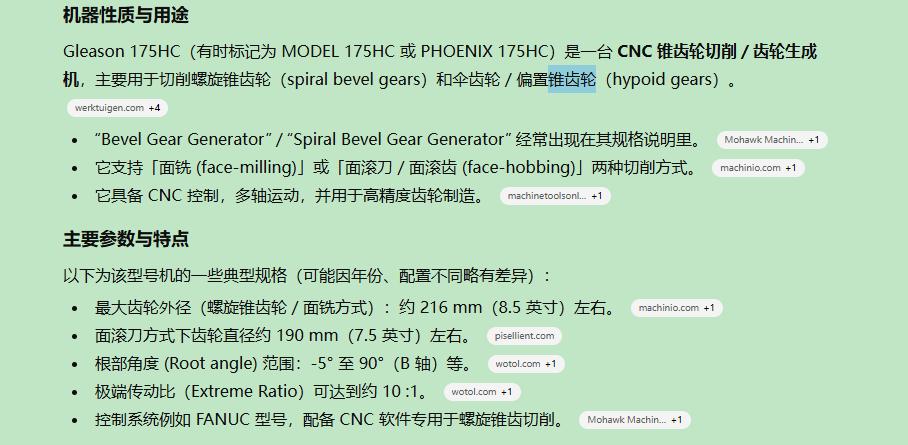

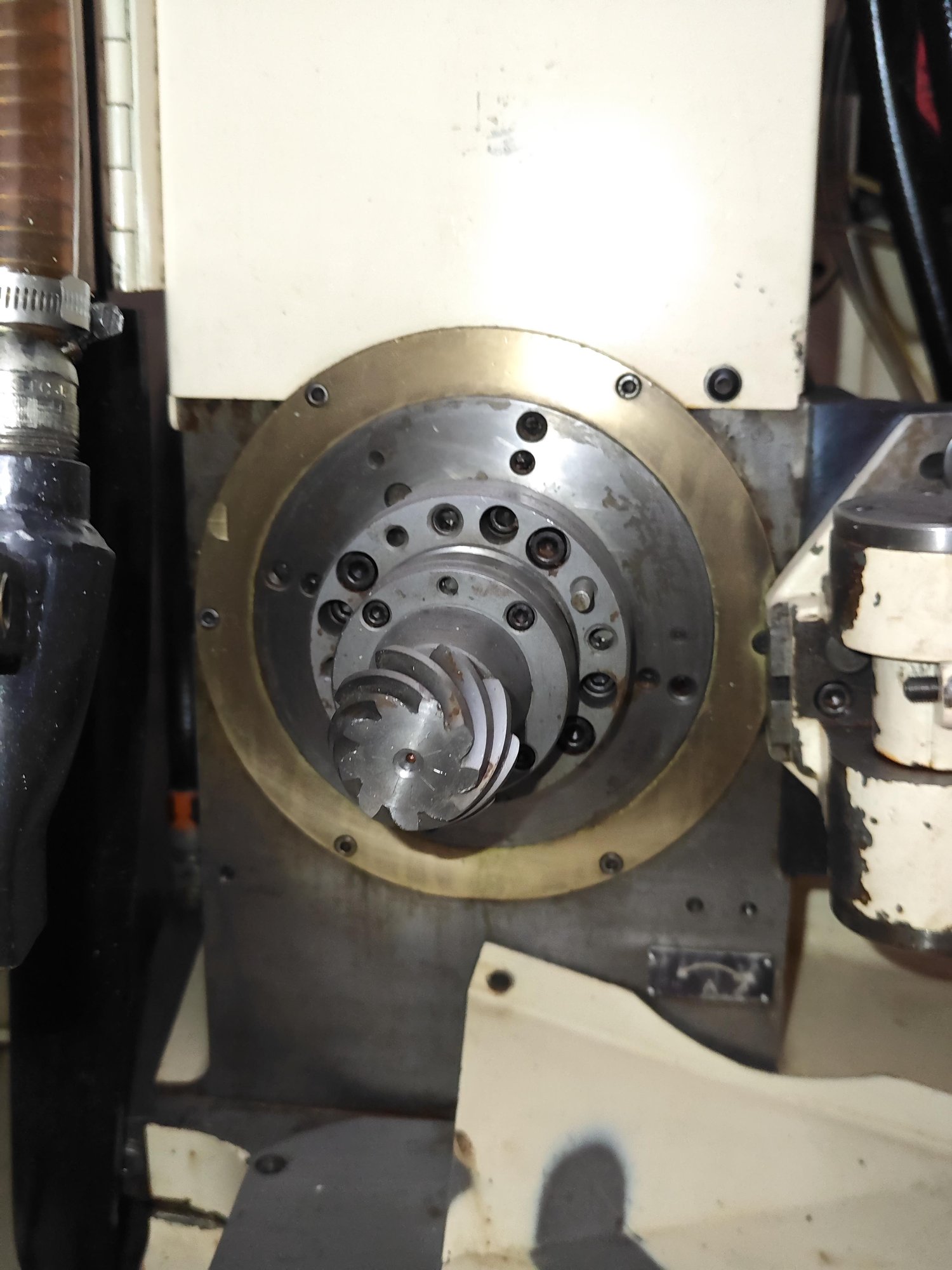

GLEASON 175HC Machining centre

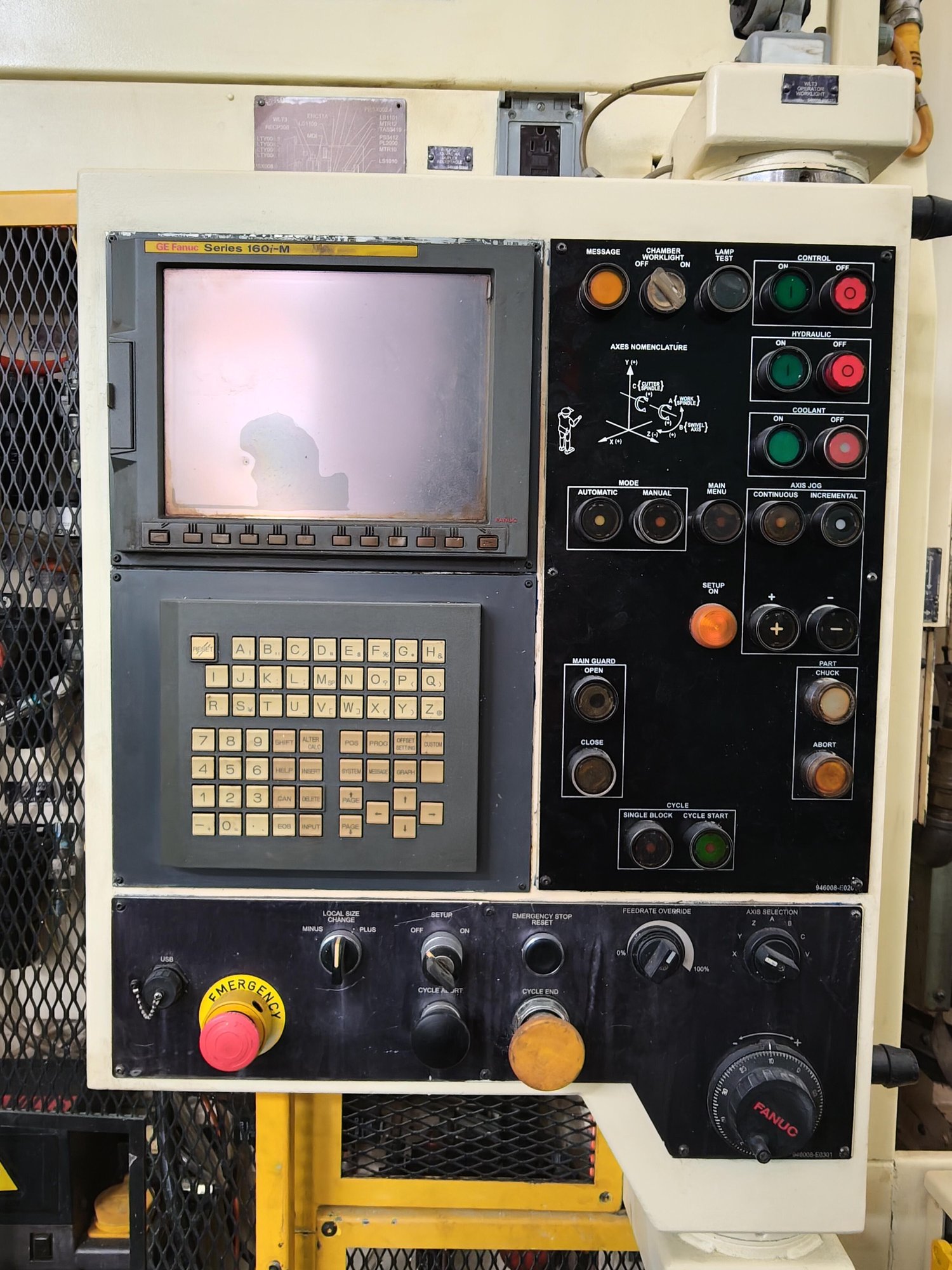

CNC CNC System: FANUC

Maximum gear external diameter (helix bevel gear/face milling method) : approximately 216 mm

The diameter of the gear in the face gear cutting mode is approximately 190 mm

Ultimate transmission ratio: 10:1

Root taper angle range: -5° to 90°

gear pitch circle diameter: 190.5mm

The maximum speed of the Tool spindle is 800 RPM

The maximum speed of the workpiece spindle is 750 RPM

The diameter of the large end taper (#39 taper) : approximately 98.44mm

Taper (per foot) : 39/64

taper depth: 76.2mm
