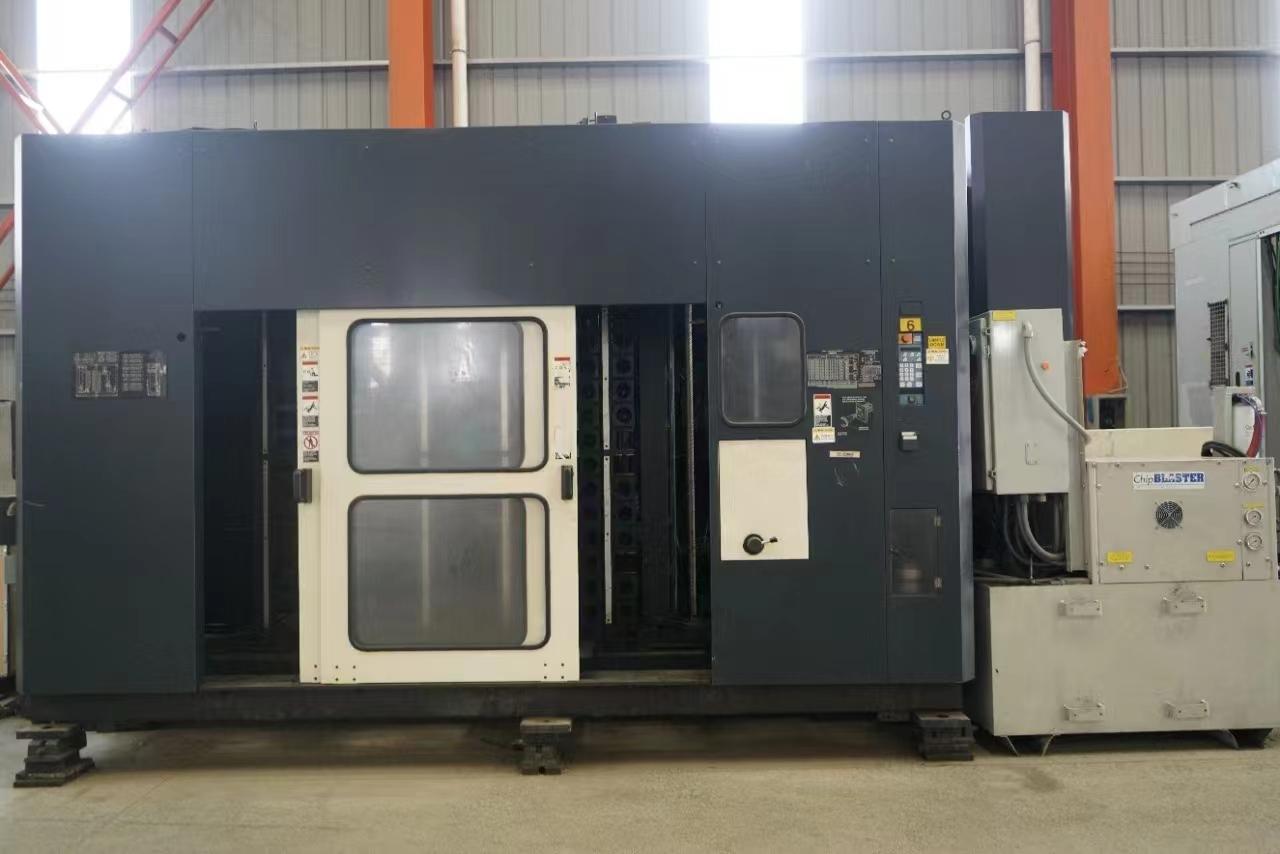

Tongtai TMH-400 Horizontal Machining centre
[Product Information]:
- Inventory number：44488404
- Brand：Tongtai
- Model：TMH-400
- Origin：Taiwan, China
- Location：China
- Year：2019
- Create Time：2025-11-08
Specifications:

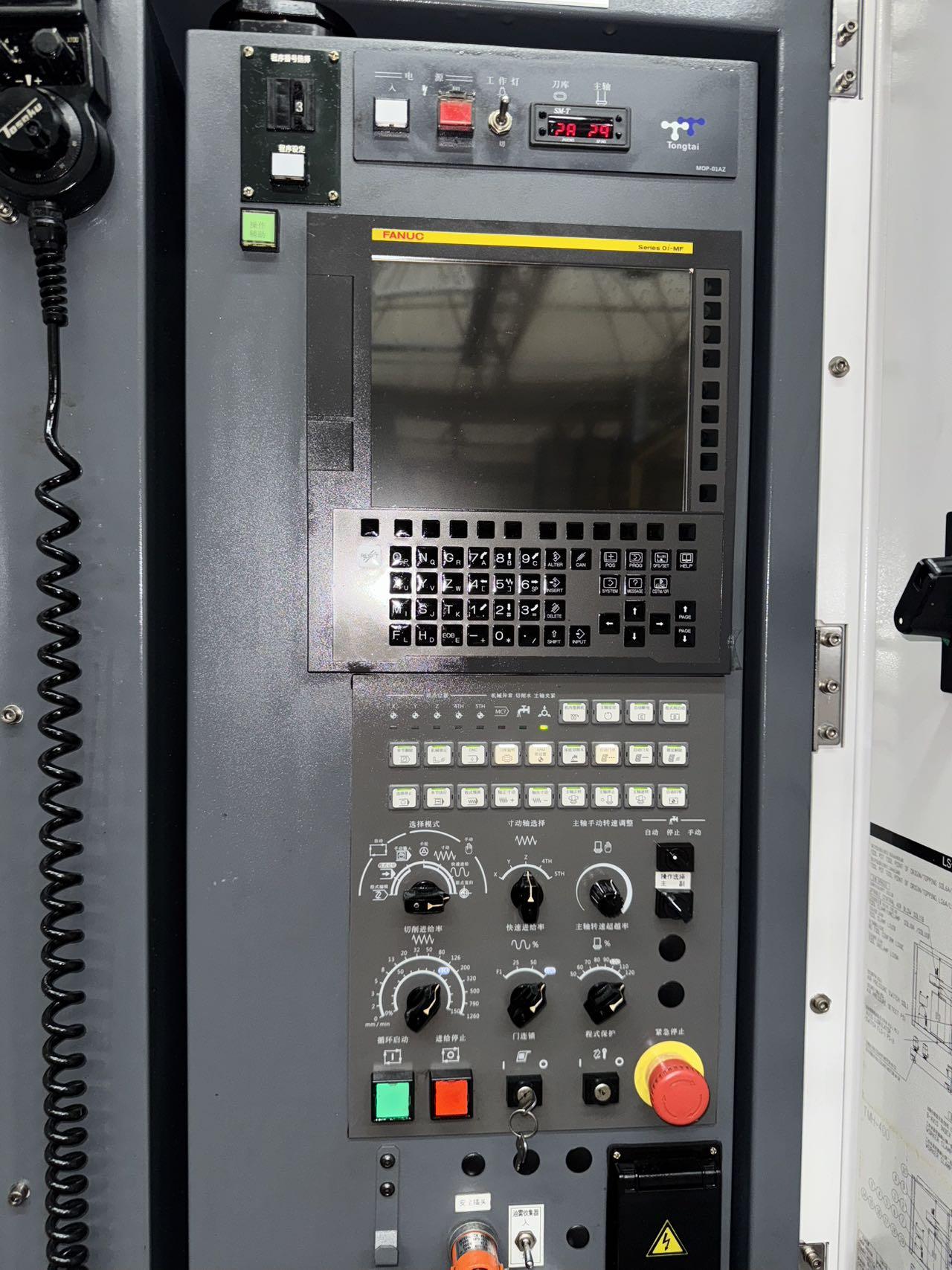

CNC CNC System: FANUC Oi-MF
three-axis travel: 510*510*510mm
Spindle speed: 8000rpm
From the center of workWorktable to spindle nose: 50 to 560mm
From the end face of workWorktable to the center of spindle: 80 to 590mm
Height from workWorktable to the ground: 1150mm
WorkWorktable size: 400mm
Maximum load: 350kg
Maximum workpiece size: 510*630mm(diameter/height)
Minimum Indexing Angle: 0.001deg
The taper of spindle through hole: 7/24
Taper: NT40
3 axes rapid feed (X*Y*Z) : 36/36/36m/min
3 axes cutting feed (X*Y*Z) : 1- 10,000 mm/min
Tool storage quantity: 24
Overall Footage: 1700*3200*2690mm
Weight: 6,500 kg
