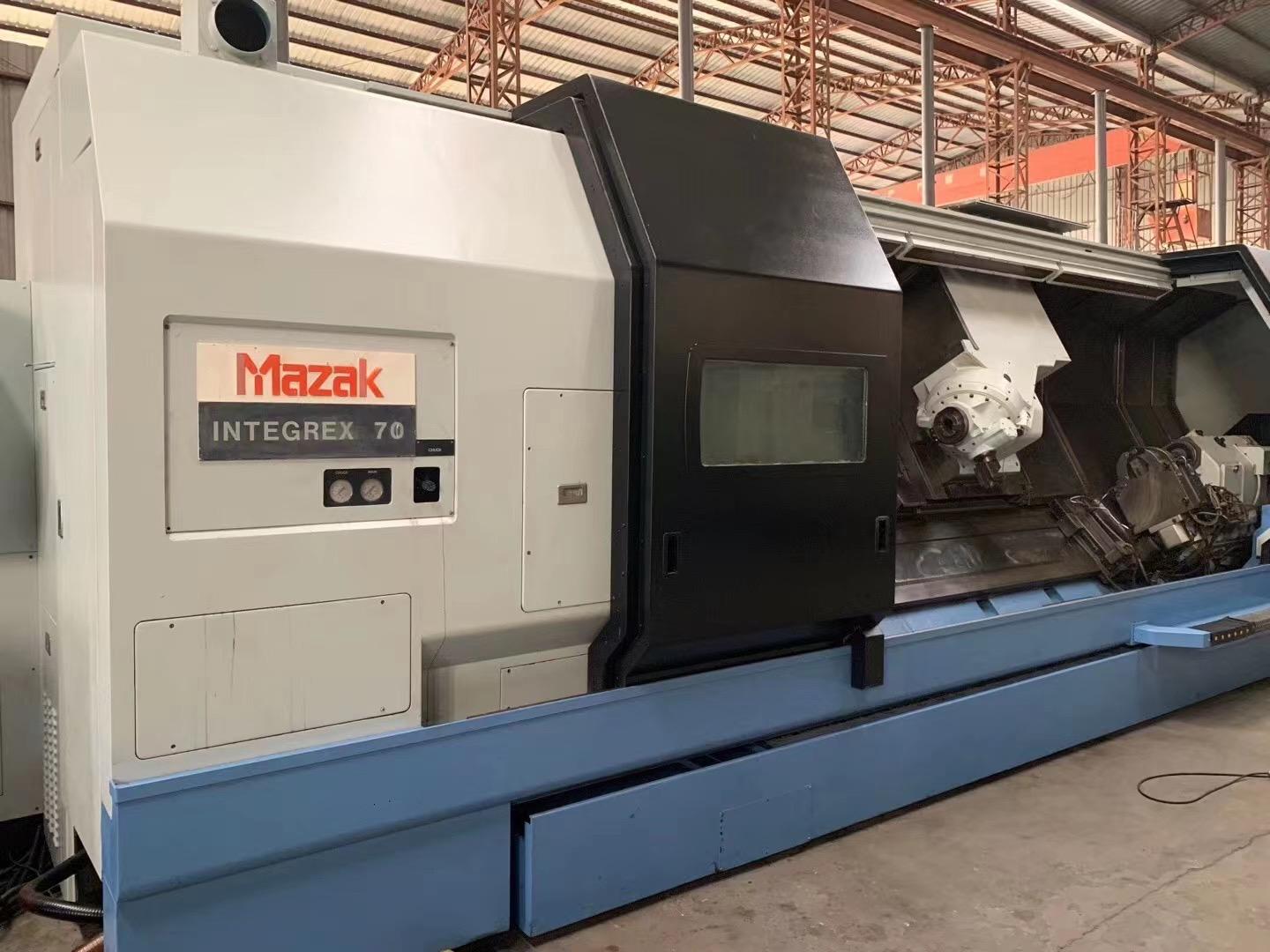

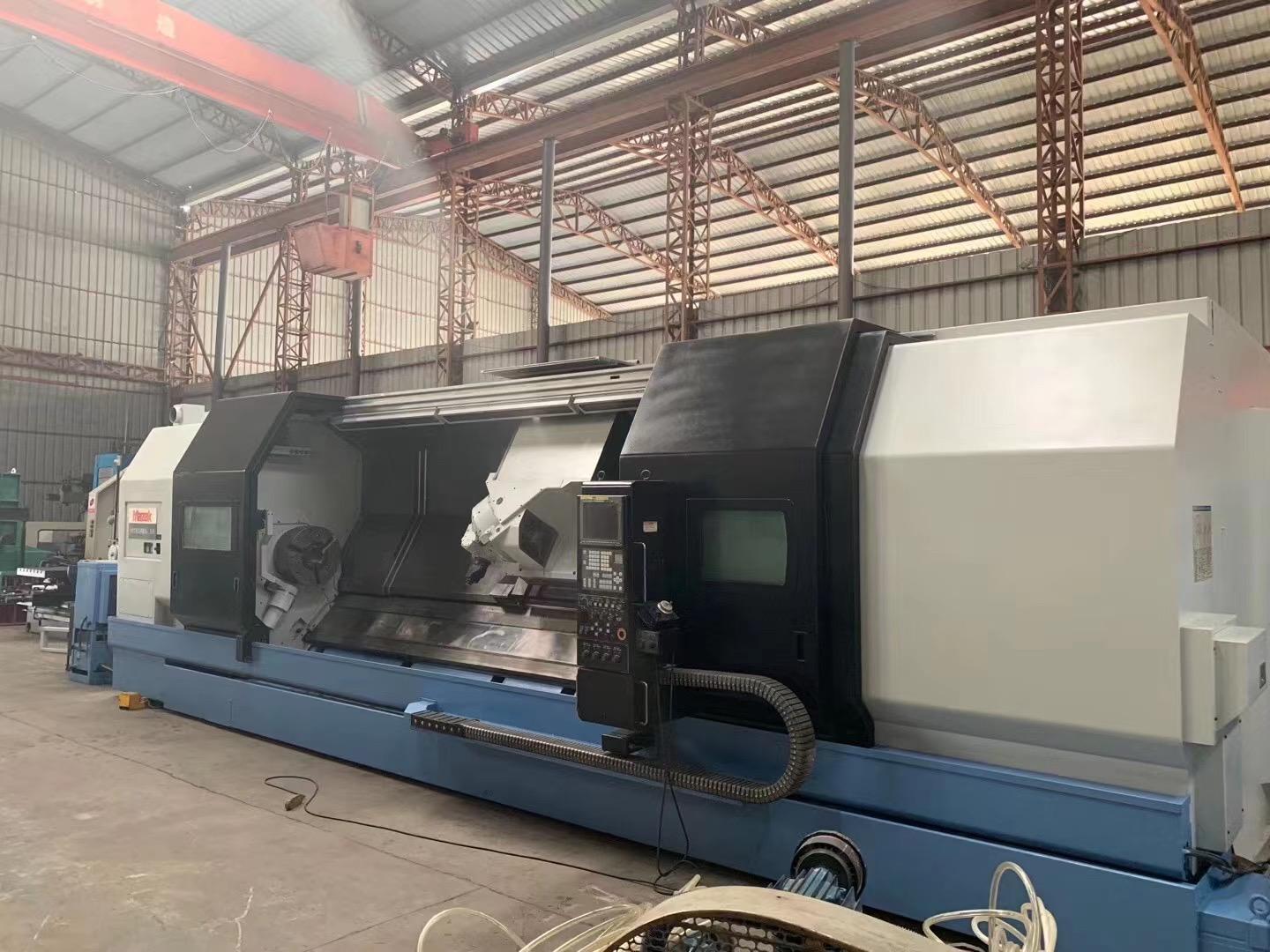

MAZAK Integrex 70/4000 Turn Mill Machining Centre
[Product Information]:
- Inventory number：89331
- Brand：MAZAK
- Model：Integrex 70/4000
- Origin："Japan
- Location：China
- Year：2006
- Create Time：2025-11-04
Specifications:
Swing: 914.4mm
Distance between centers: 2204.72mm-701.04mm
Y-axis travel: ±150.14mm
Z-axis travel: 4000mm
Spindle through hole: 118.11mm
Spindle speed: 1300rpm
spindle front end: JIS A-100
milling Tool Spindle speed: 2000rpm
milling spindle taper: BT50
Turret location: 2
Tool diameter (radiation-free tool) :160.02mm
Tool diameter (radiating tool) :101.6mm
Tool length: 459.74mm
Tool weight: 19.97kg

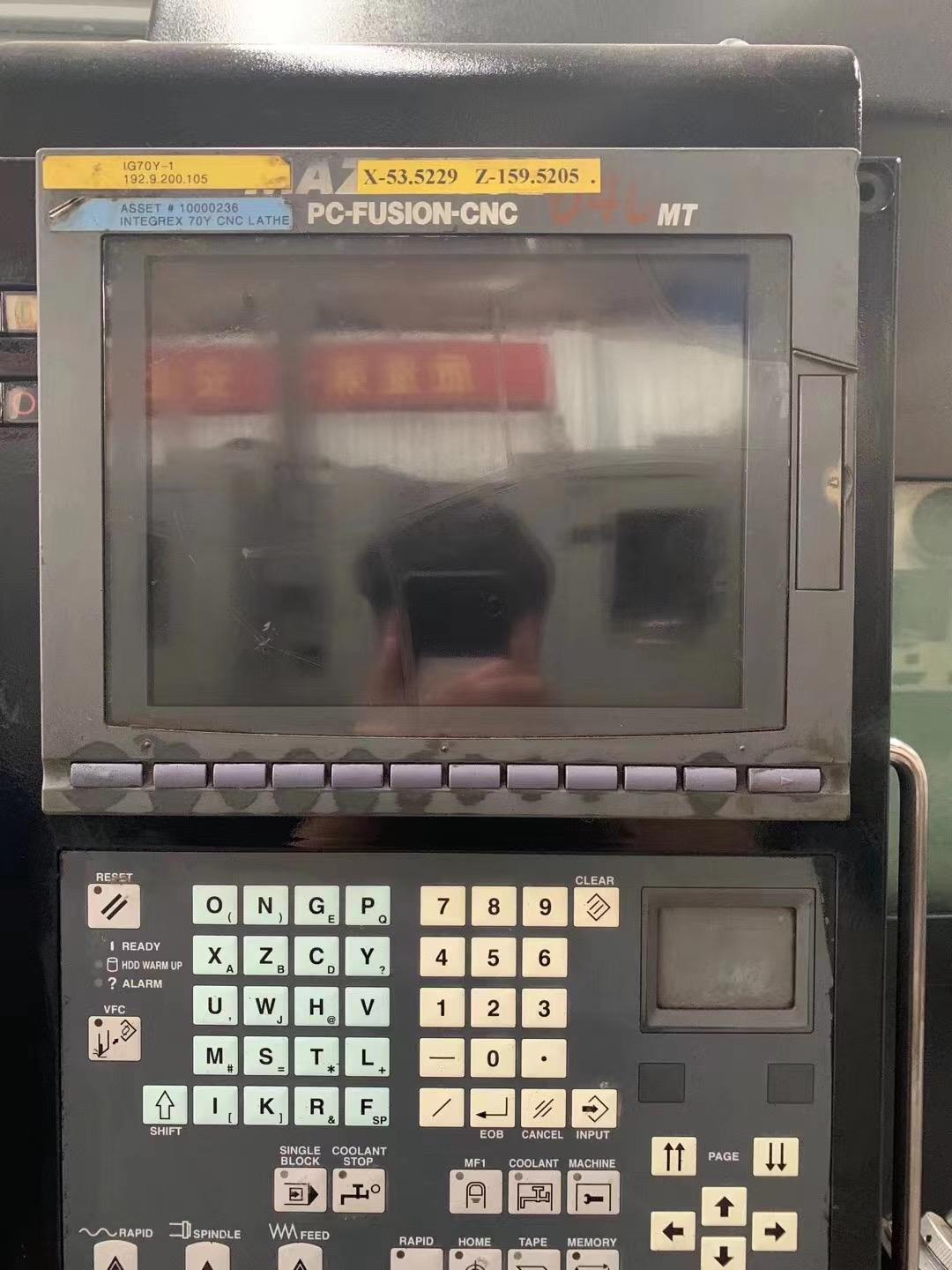

CNC CNC System: Mazatrol PC-Fusion 64MT
