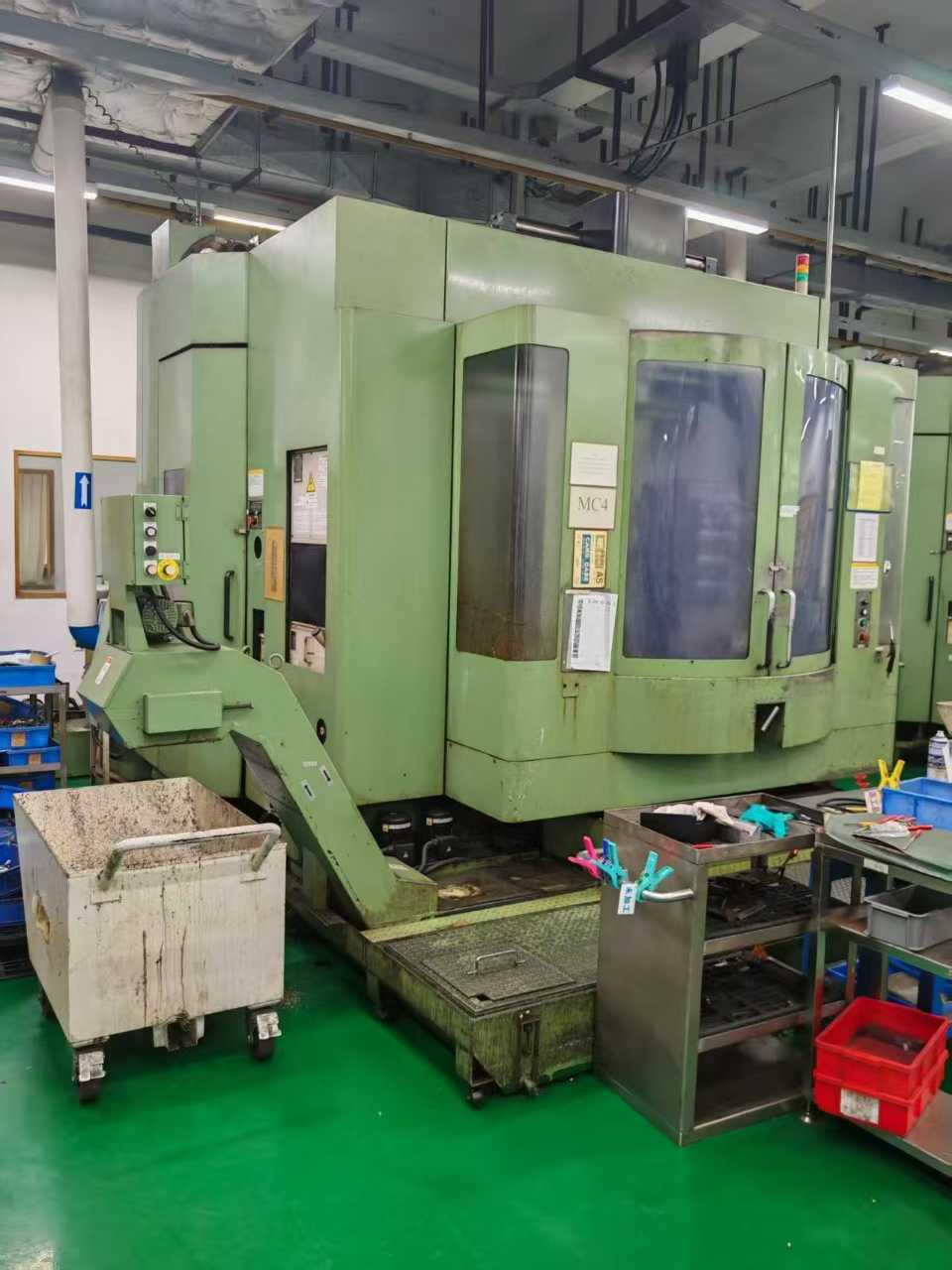

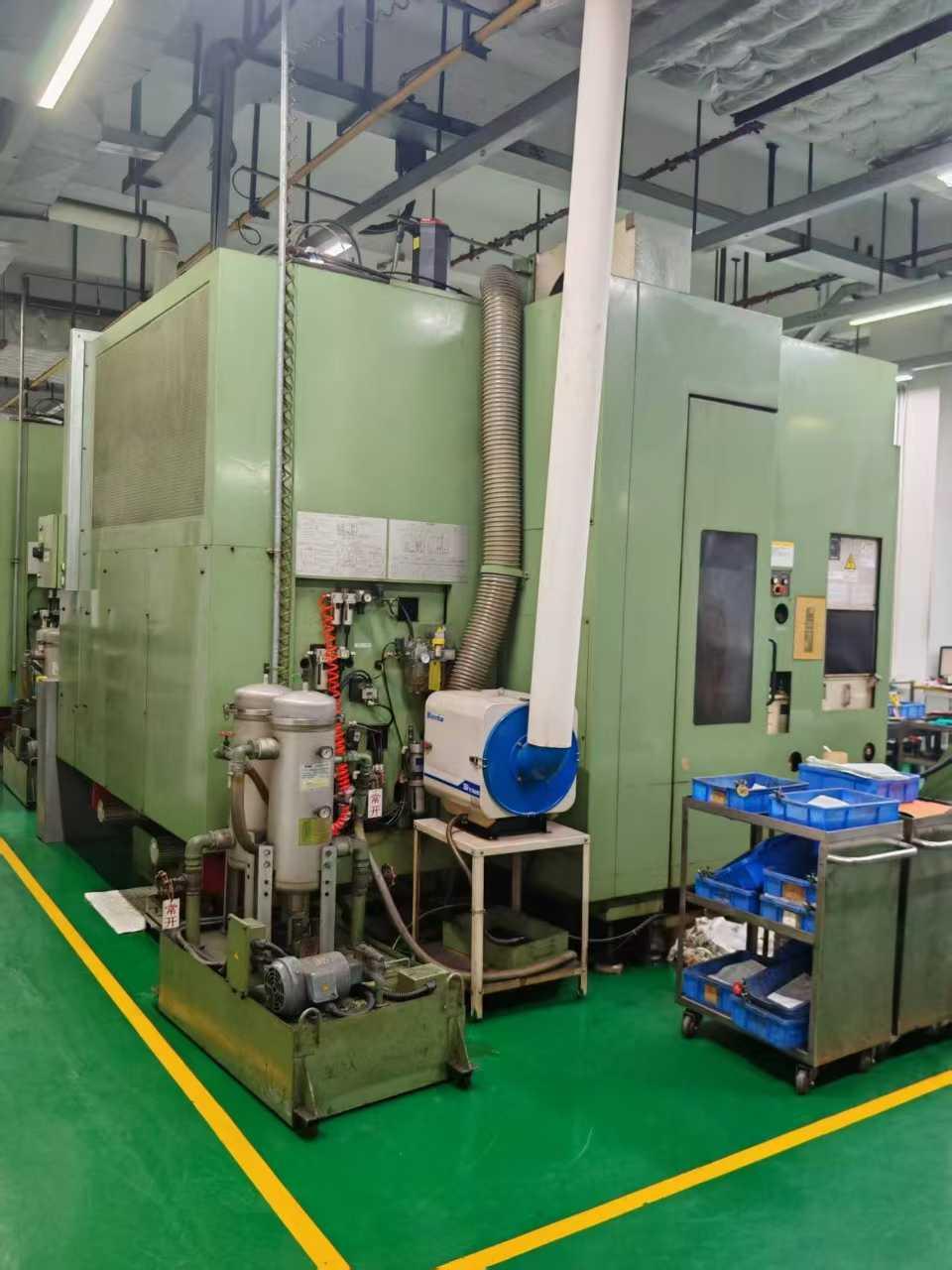

OKUMA & HOWA MILLAC 550H Horizontal Machining centre

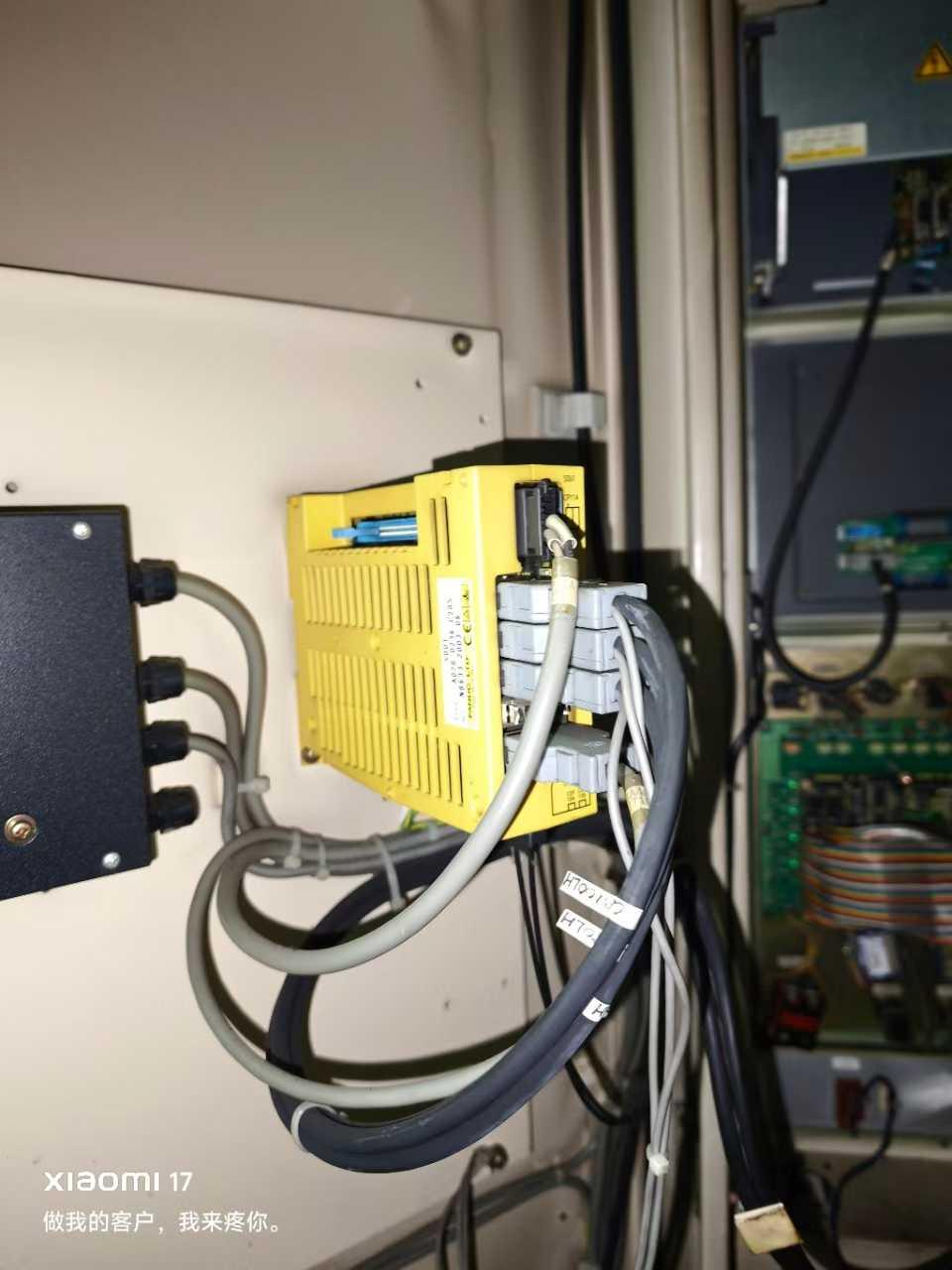

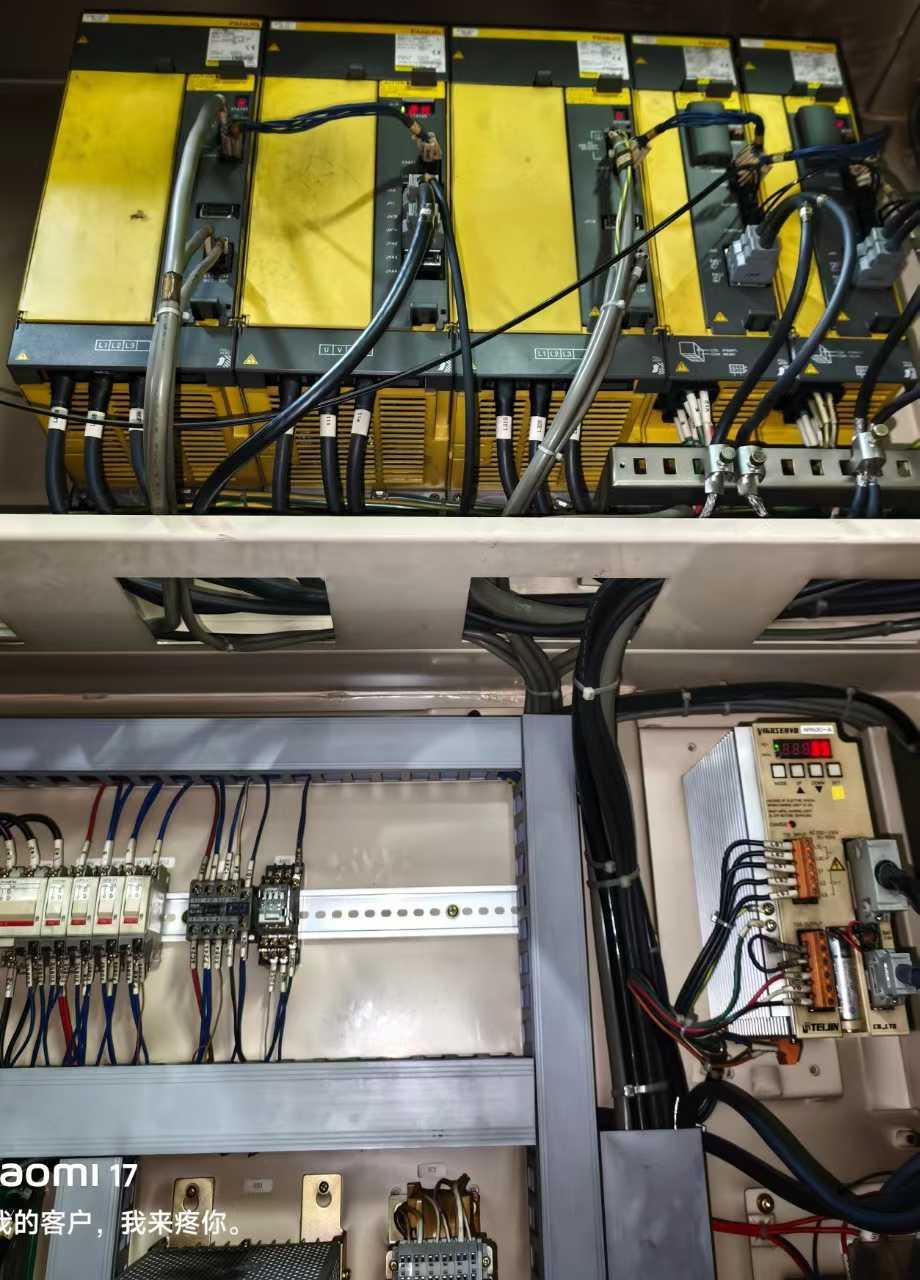

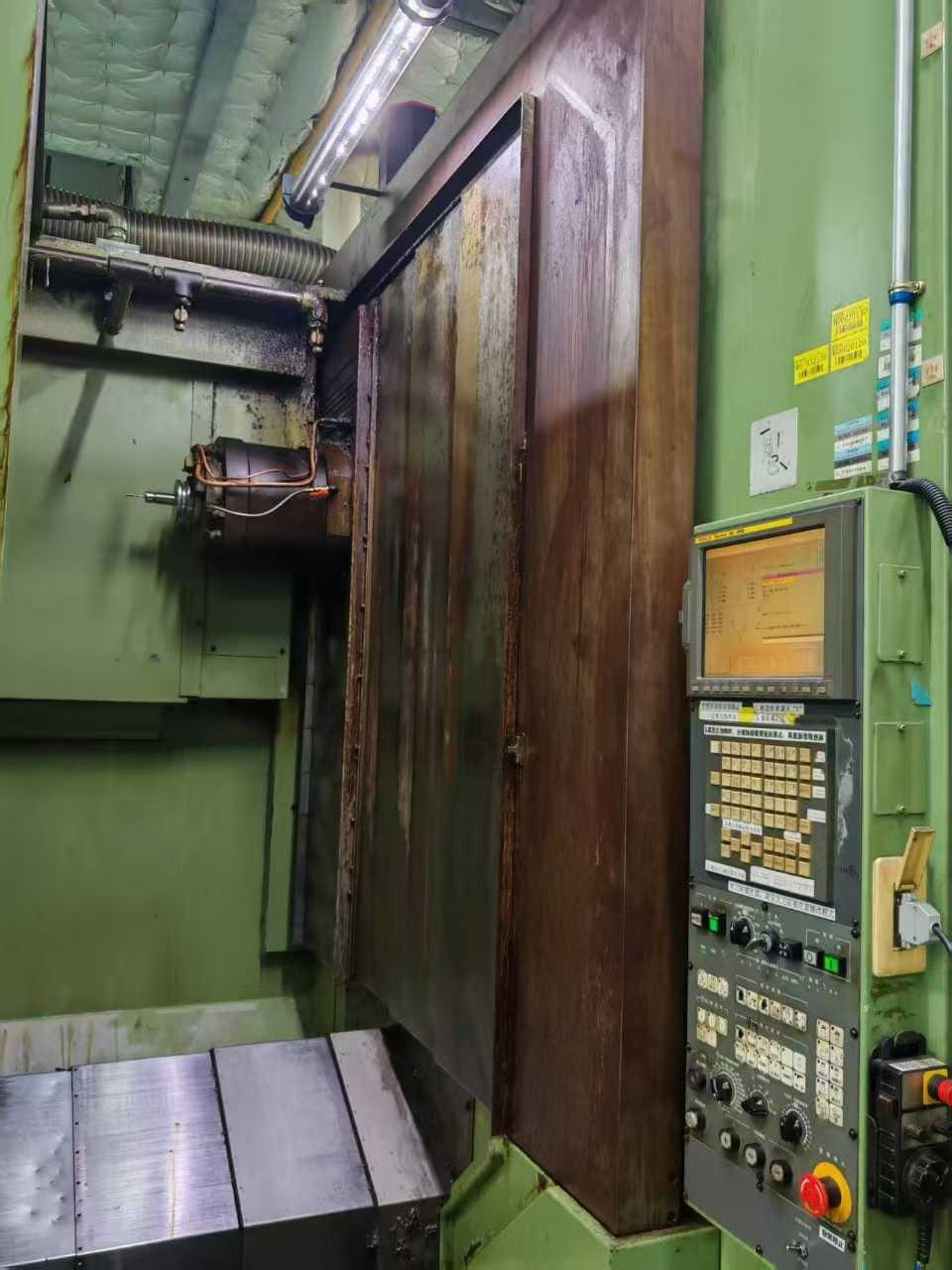

CNC CNC System: FANUC 16iMB, AFA driver

three-axis travel: 800*800*700mm

Maximum workpiece diameter: 800mm

Maximum workpiece height: 900mm

Spindle speed: 60- 10,000 RPM

Tool holder: BT50

fast movement rate: 40m/min

Cutting feed rate: 1-32mm/min

Rotation Angle of B-axis: 360°

B-axis degree precision: 0.001°

B-axis fast movement: 3600rpm

spindle power: 25/30kW

magazine capacity: 40

Tool changing time: 2.6 seconds

Full close loop with glass scale

Distance from workWorktable surface to spindle centerline: 100-900mm

Distance from the center of workWorktable to spindle nose: 180-880mm
