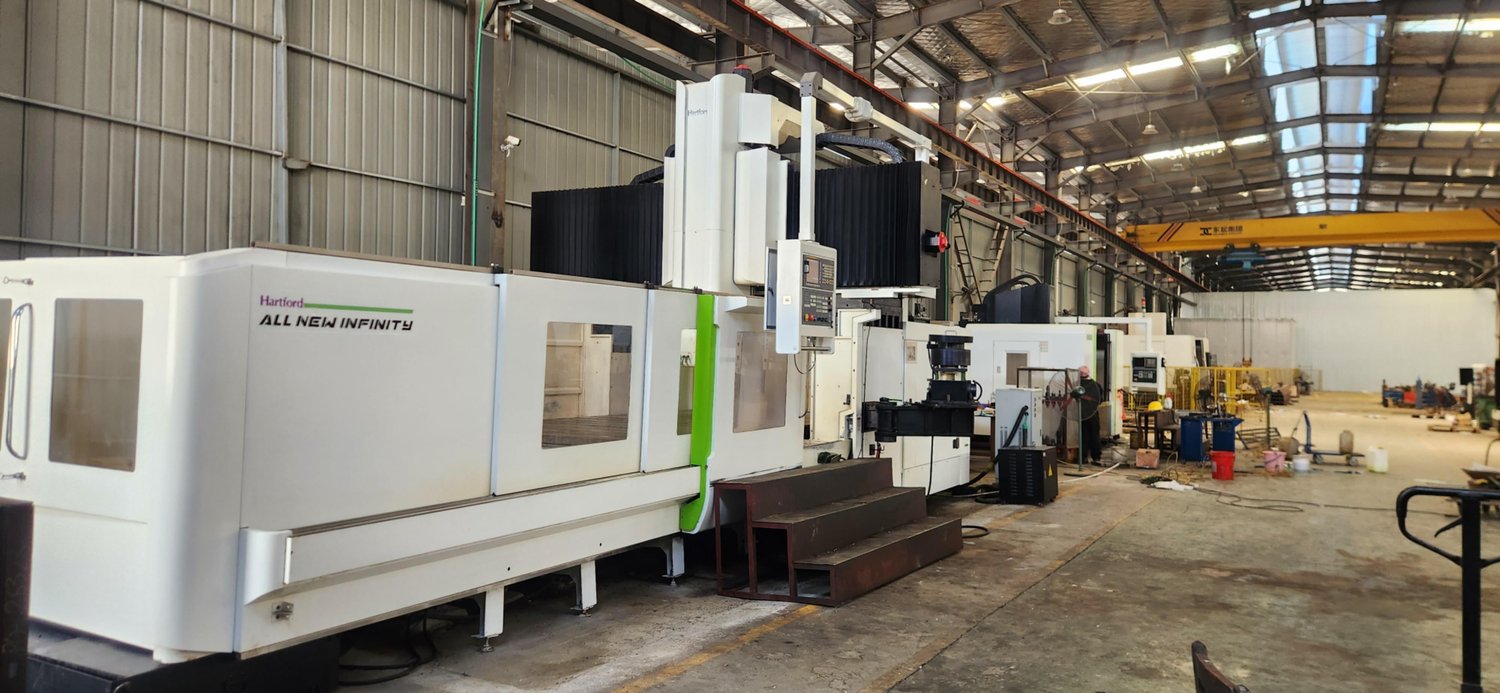

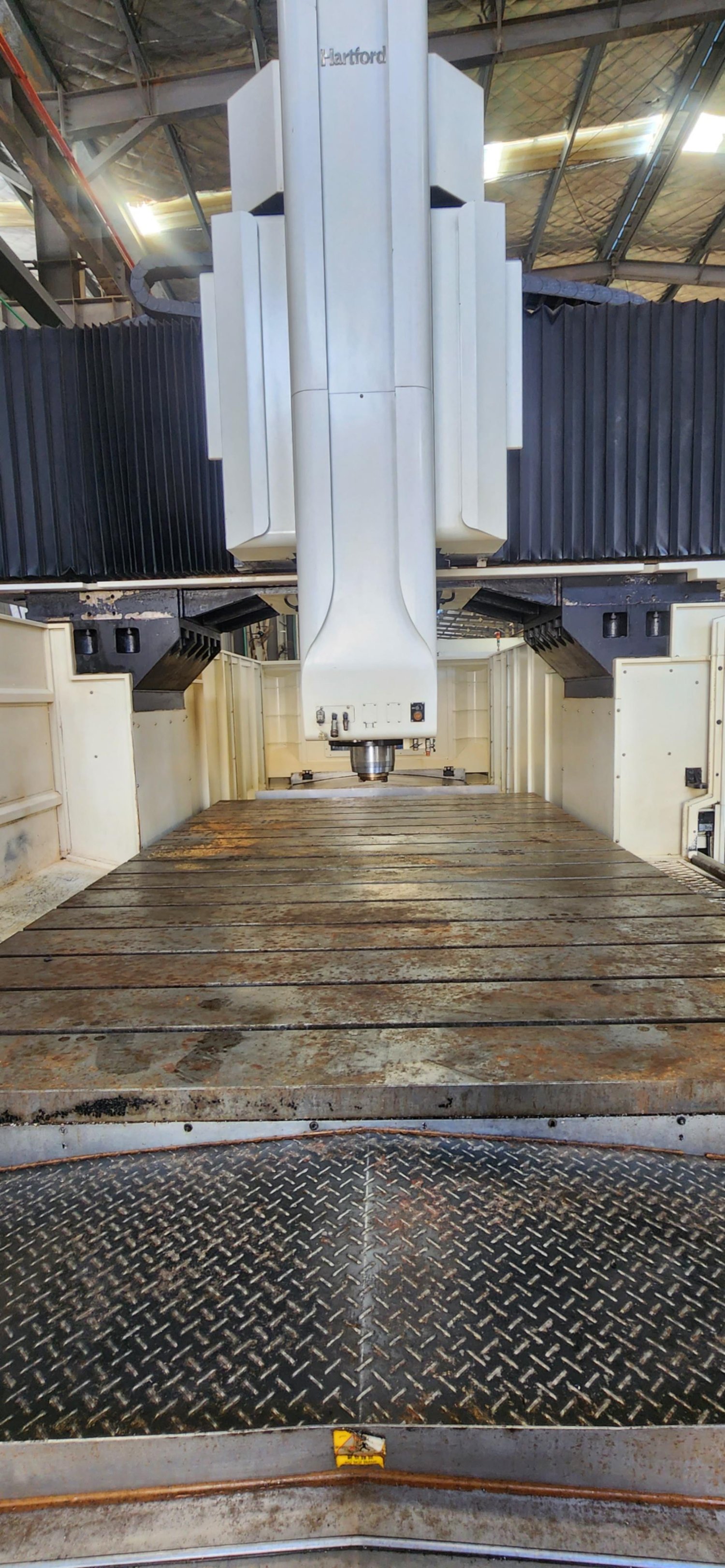

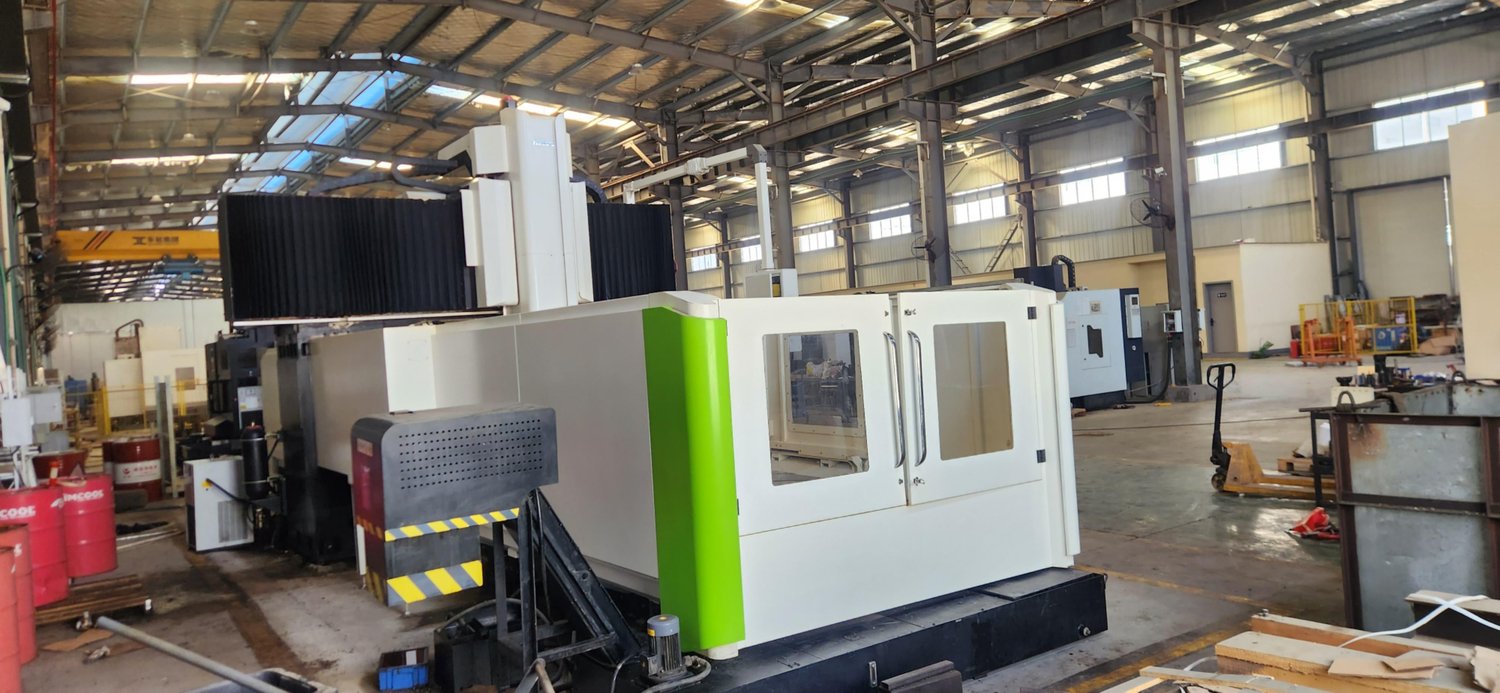

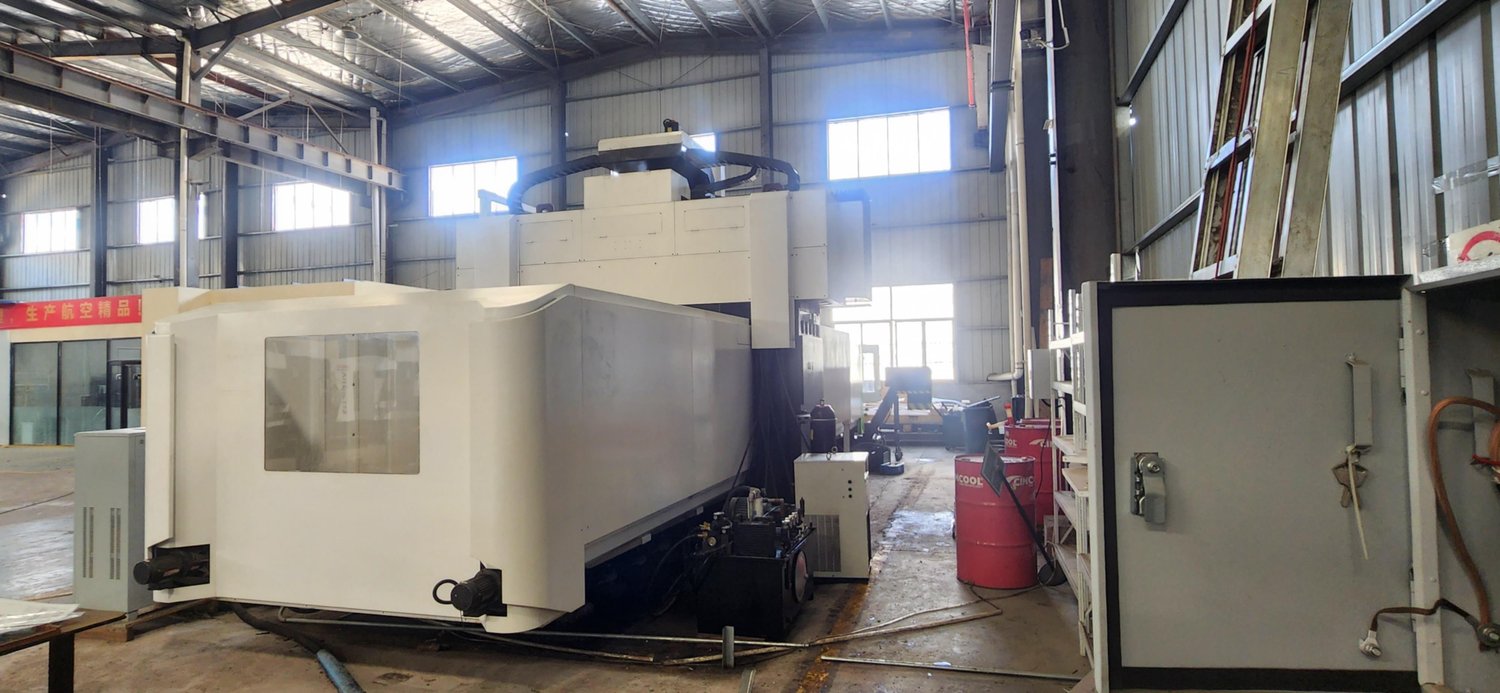

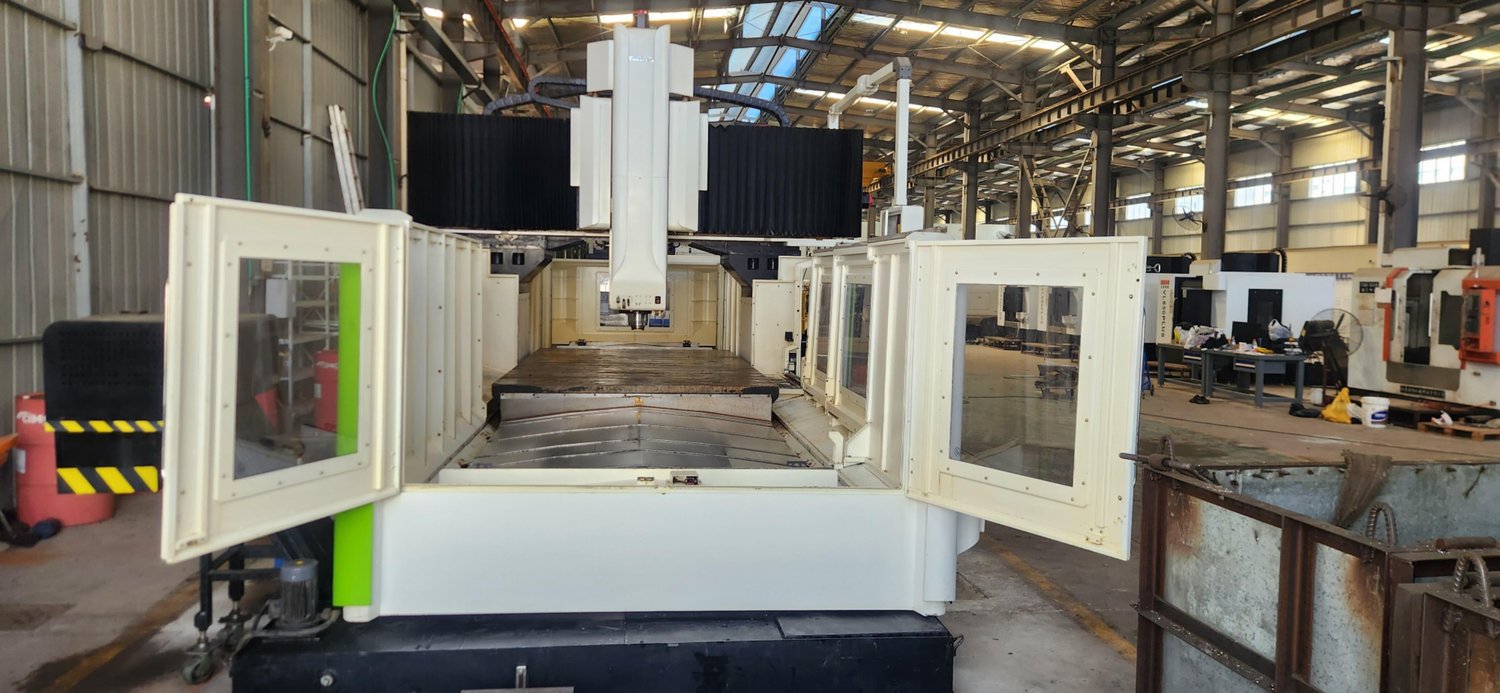

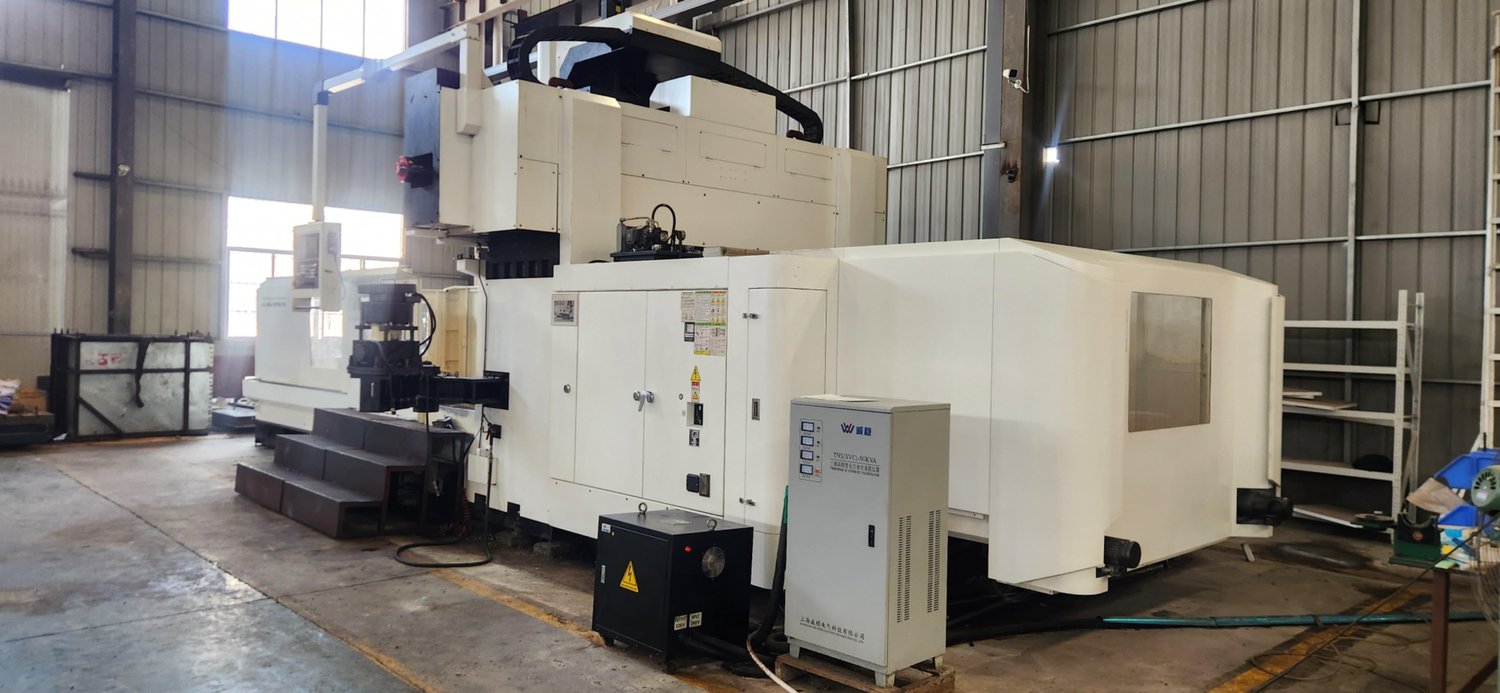

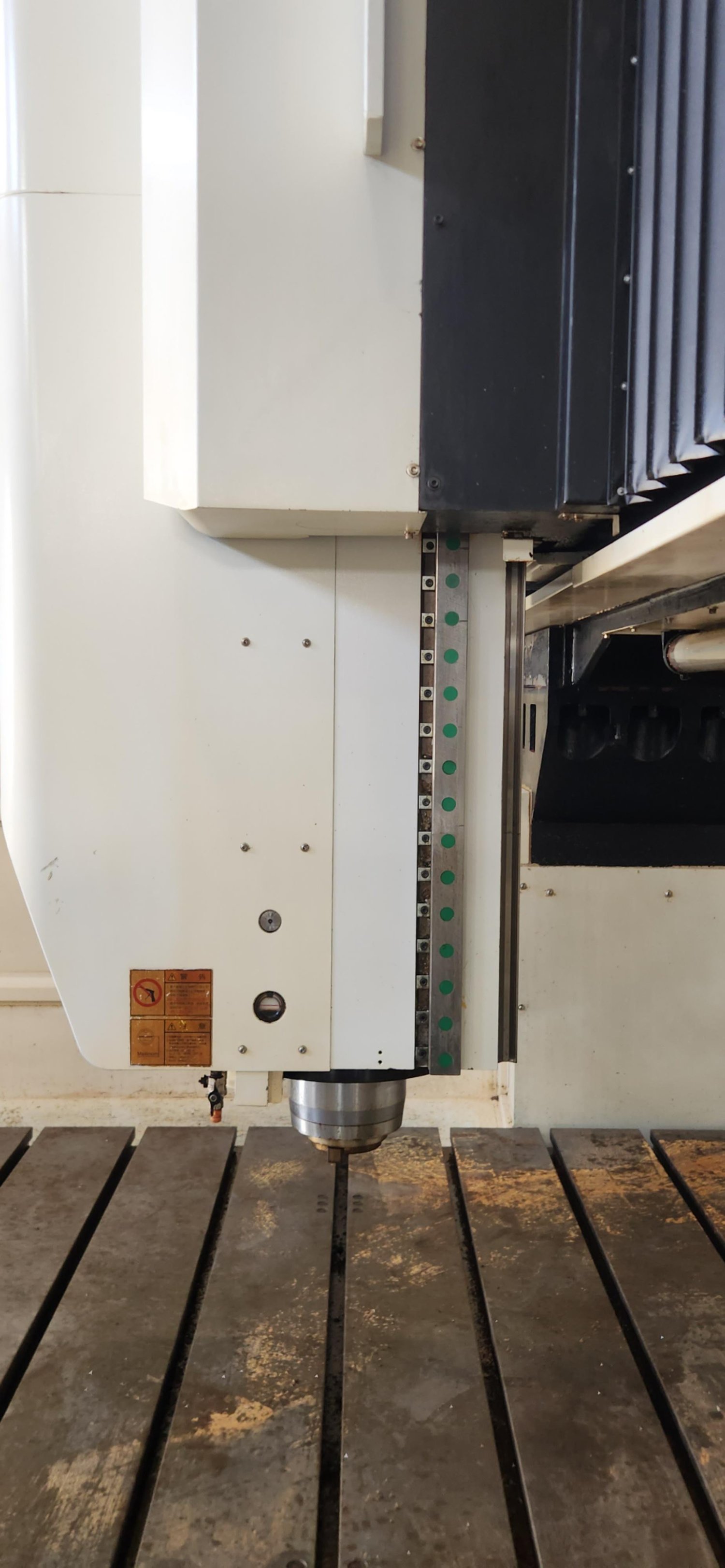

Hartford CNC-423L Gantry milling machine

CNC CNC System: FANUC MF-Plus

machining  range: 4000*2300*1080mm

three-axis travel: 3988*2612*768mm

Three-axis rail

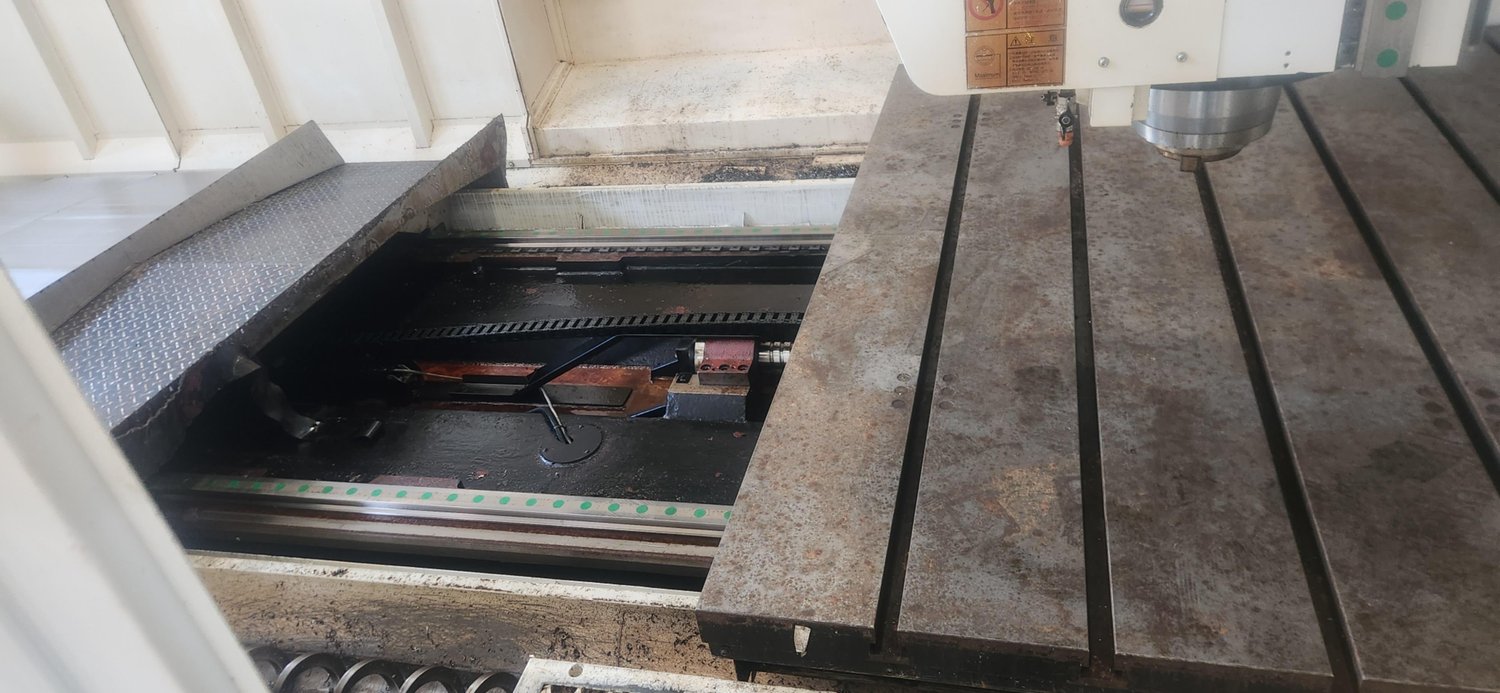

WorkWorktable size: 2200*4000mm

The maximum load of workWorktable is 12,000 kg

Gantry width: 2340mm

Gantry height: 1200mm

Overall Footage: 11000*4400*4500mm

Spindle speed: 8000rpm

spindle: BT50

No tools magazine

Configuration

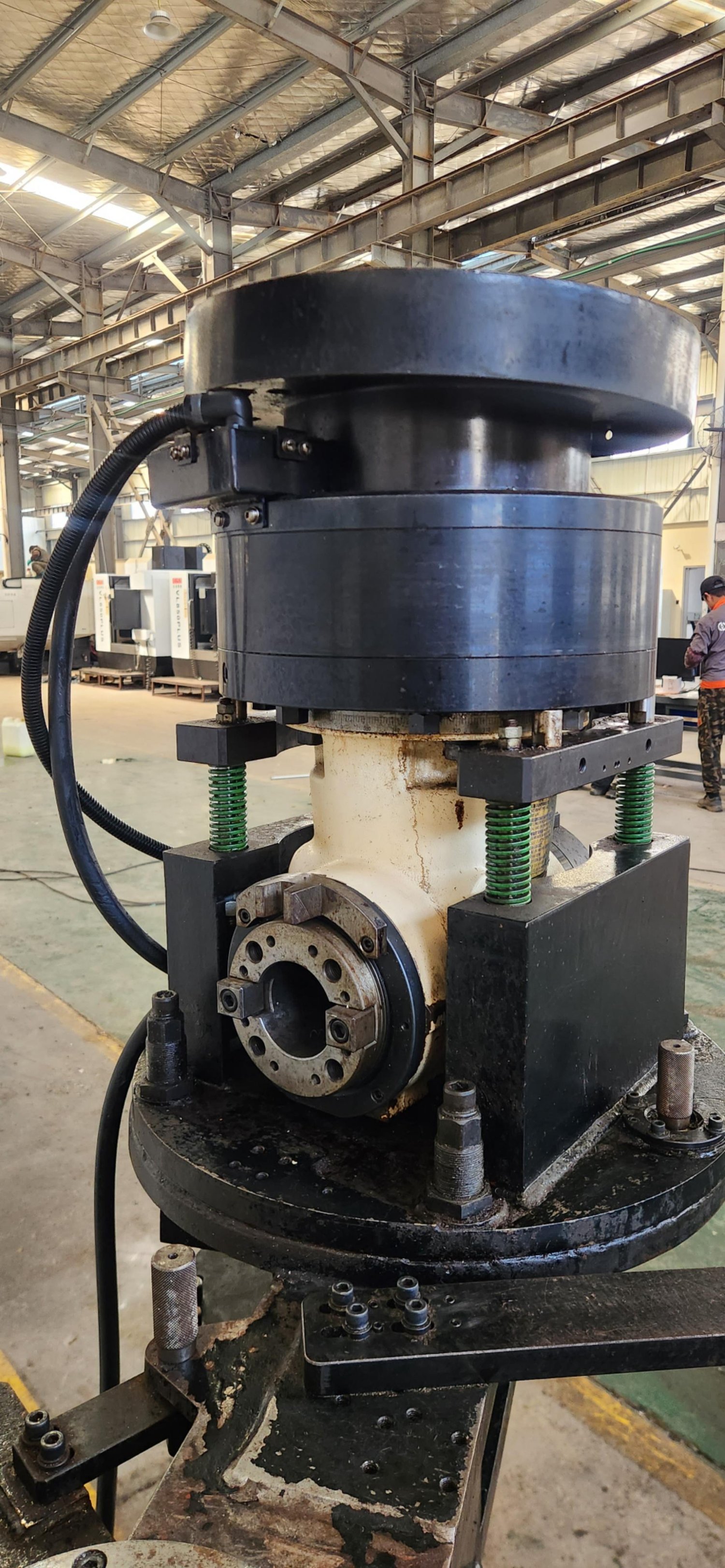

Equipped with a five-degree indexing 90° side milling head

Equipped with spindle oil-cooled hydraulic tool feeding

CNC CNC System: FANUC MF

three-axis travel: 4000*2300*1100mm

WorkWorktable :4000*2200mm

Height of the gantry :1400mm

Spindle speed: 8000rpm

One three-track rail unit

One three-rigid guideway

Dual automatic chip removal
