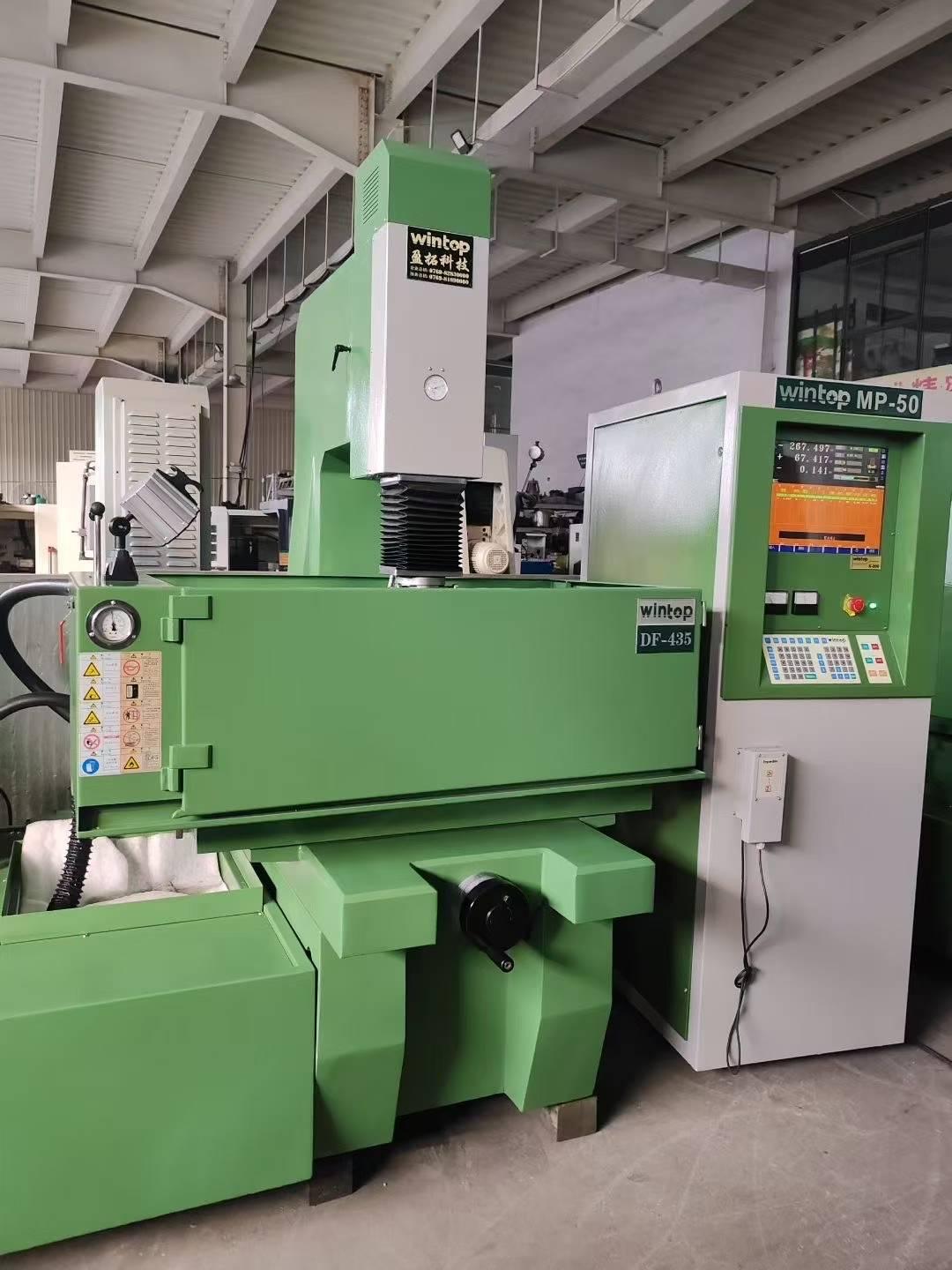

Wintop DF-435 Spark eroder

WorkWorktable size: 700*400mm

Working oil trough size: 1080*660*350mm

three-axis travel: 400*350*200mm

Maximum load: 900kg

Main unit weight: 1300kg

The Footage of the mainframe box are: 1440*1420*2100mm

Maximum machining  speed: 400 (mm/min)

Maximum machining  current: 50 (A)

Minimum electrode consumption ratio: 0.1%

Surface roughness: 1.0 (um)

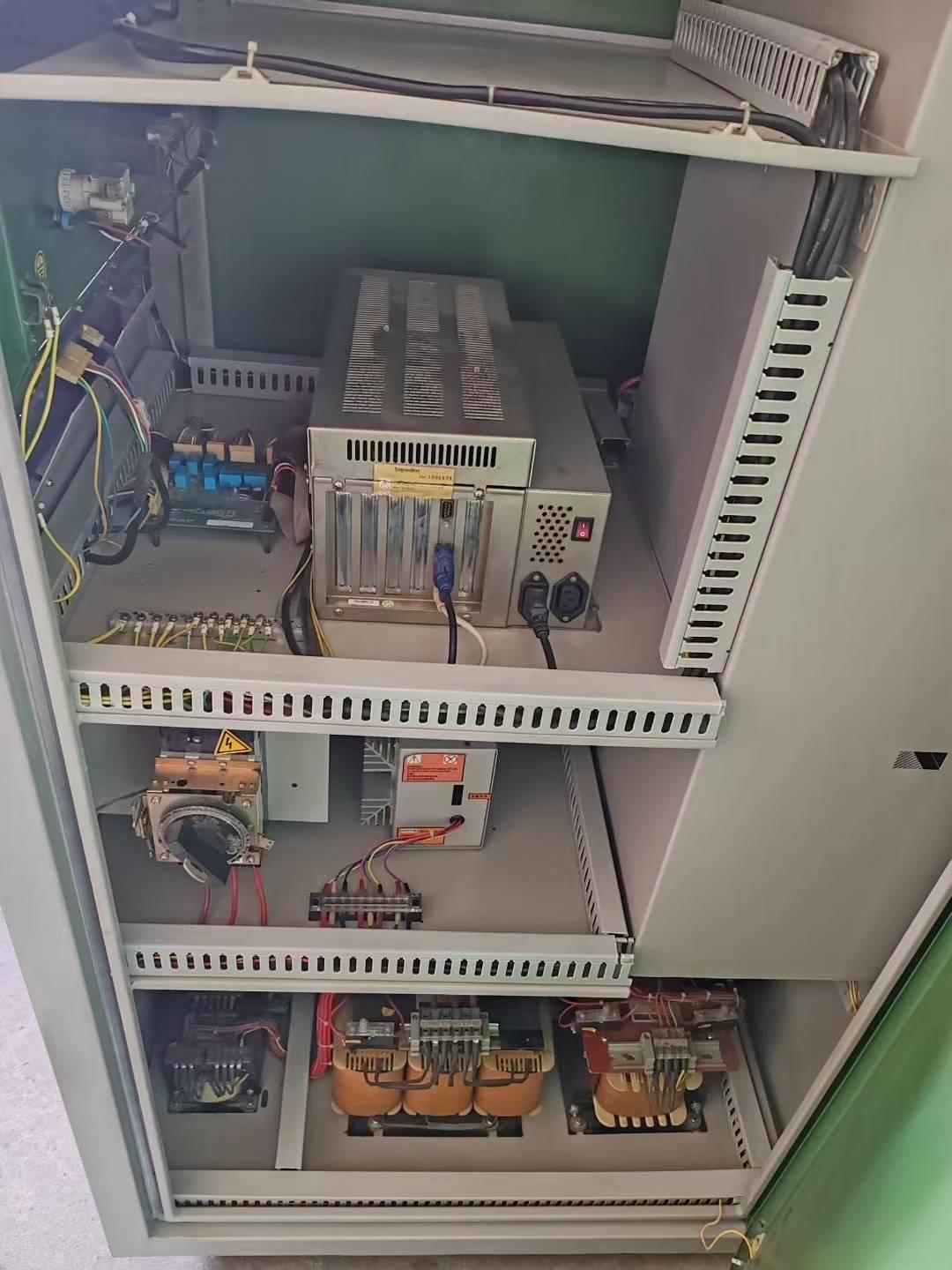

The weight of the control box is 260kg

The packing size of the control box is 650*1020*1800mm
