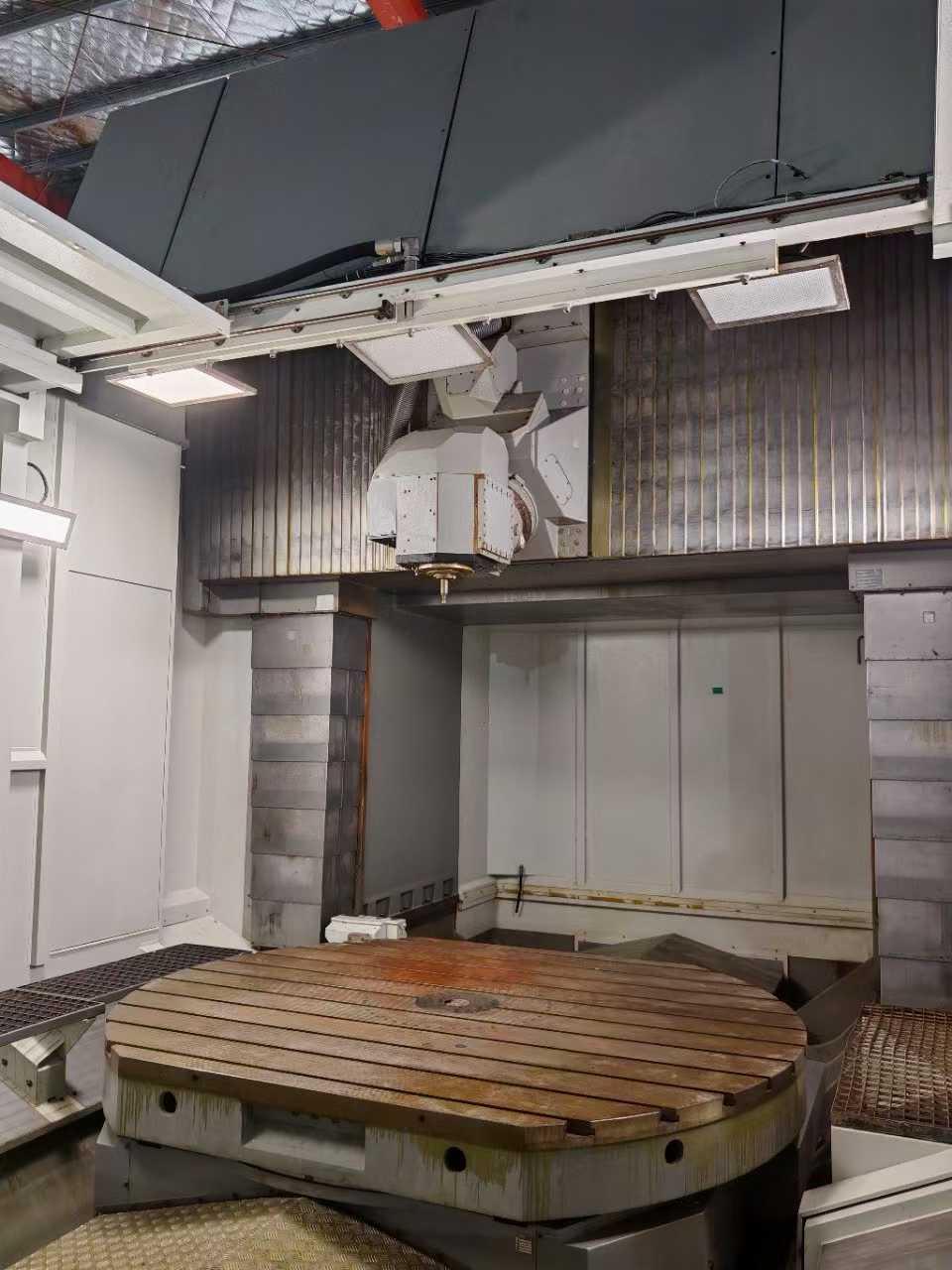

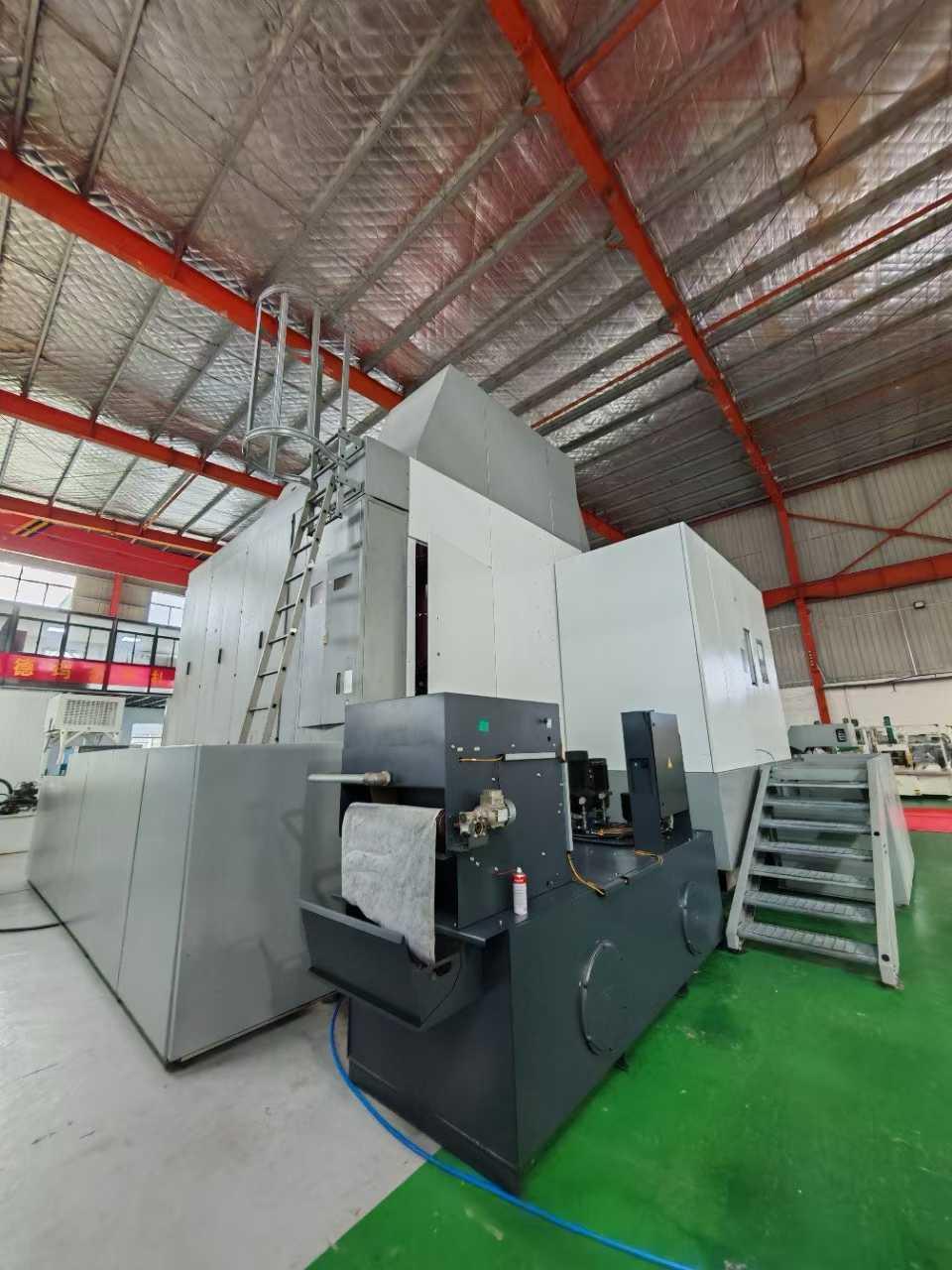

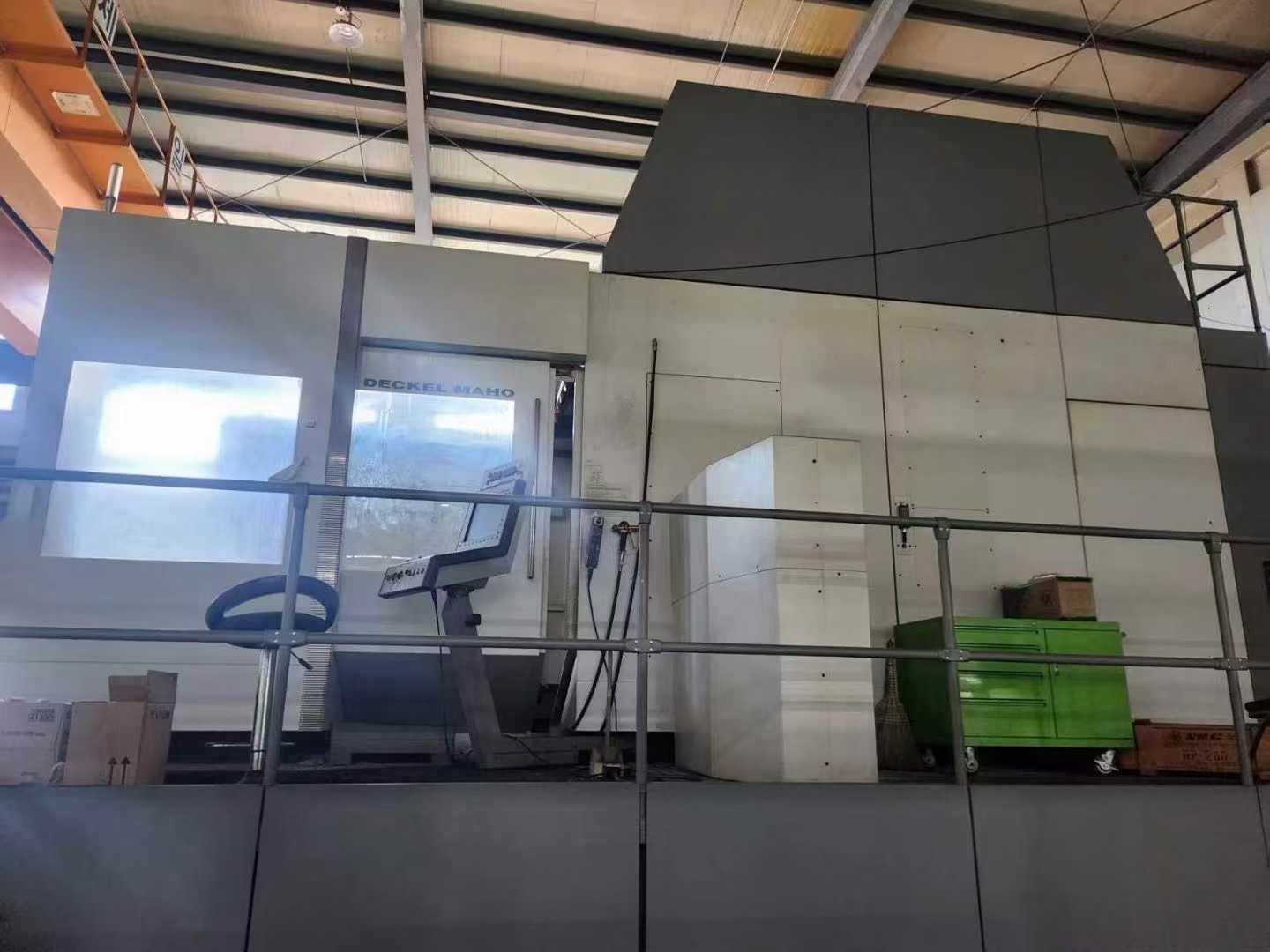

DMG DMU340P 5 axis machining centre
[Product Information]:
- Inventory number：66149
- Brand：DMG
- Model： DMU340P
- Origin：Germany
- Location：China
- Year：To be supplemented
- Create Time：2025-10-24
Specifications:

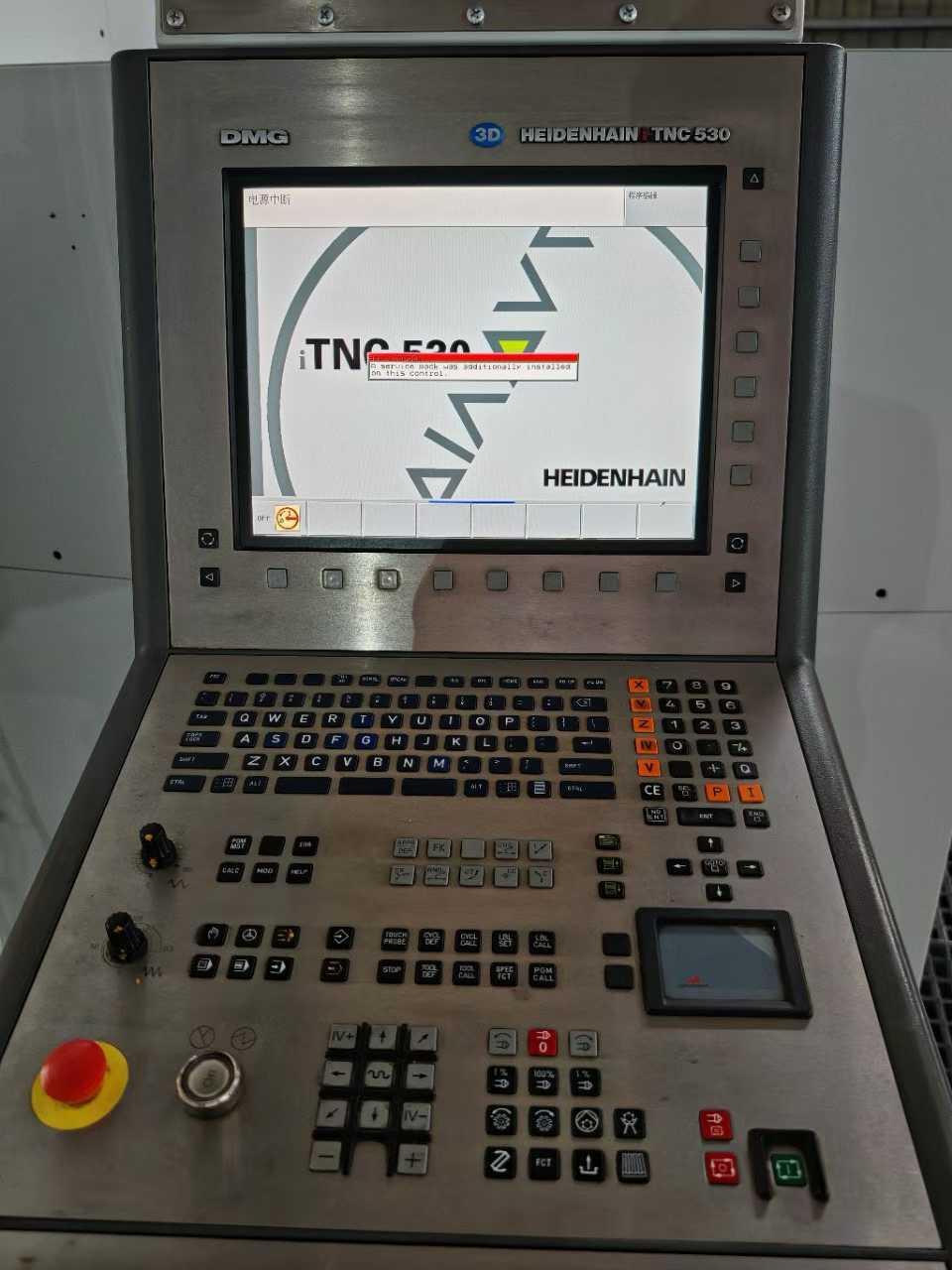

CNC CNC System: Heidenhain ITNC 530 HSCI

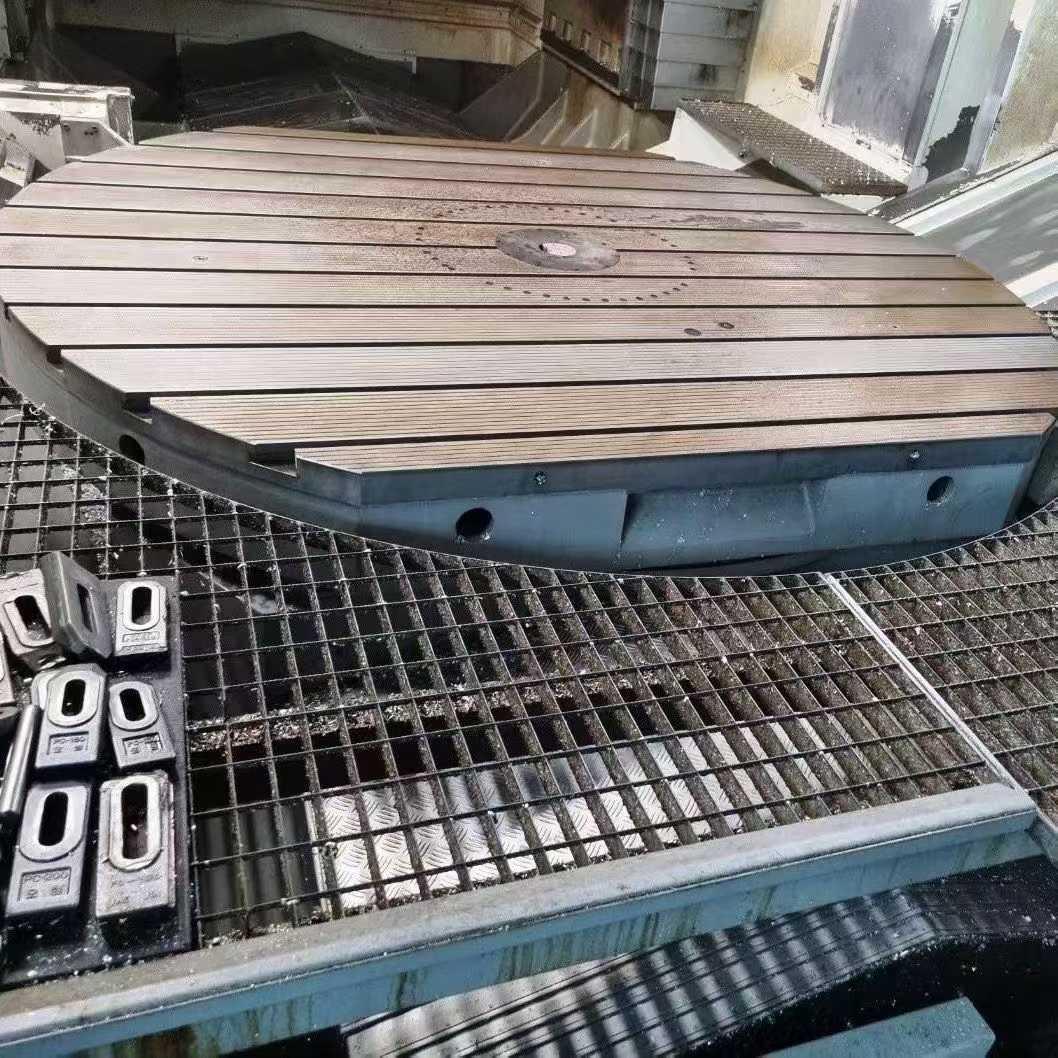

WorkWorktable size: 2600×2200mm
Maximum workpiece: 3500×2500mm
Gantry Width: 2860mm
three-axis travel: 2800×3400×1600mm
B axis: -30º to +180º
C-axis: 360º
spindle: SK50
Spindle speed: 6300rpm
Electric spindle power: 20/16 kW
Electric spindle torque: 33 Nm
tools magazine: 120
power: 44/32 kW
Torque: 1550Nm
Configuration
Universal milling head for controlled B-axis
The coolant Water tank is 2,500 liters
The internal coolant supply through spindle is 40 bar
Infrared probe
In-machine Tool Aligner Blum
3D quickSET toolkit
Tool damage detection
Flushing gun with pump
oil mist collector with mechanical filter
Coolant unit
The appVertical machining centertion adjustment cycle ATC
Power-off protection
