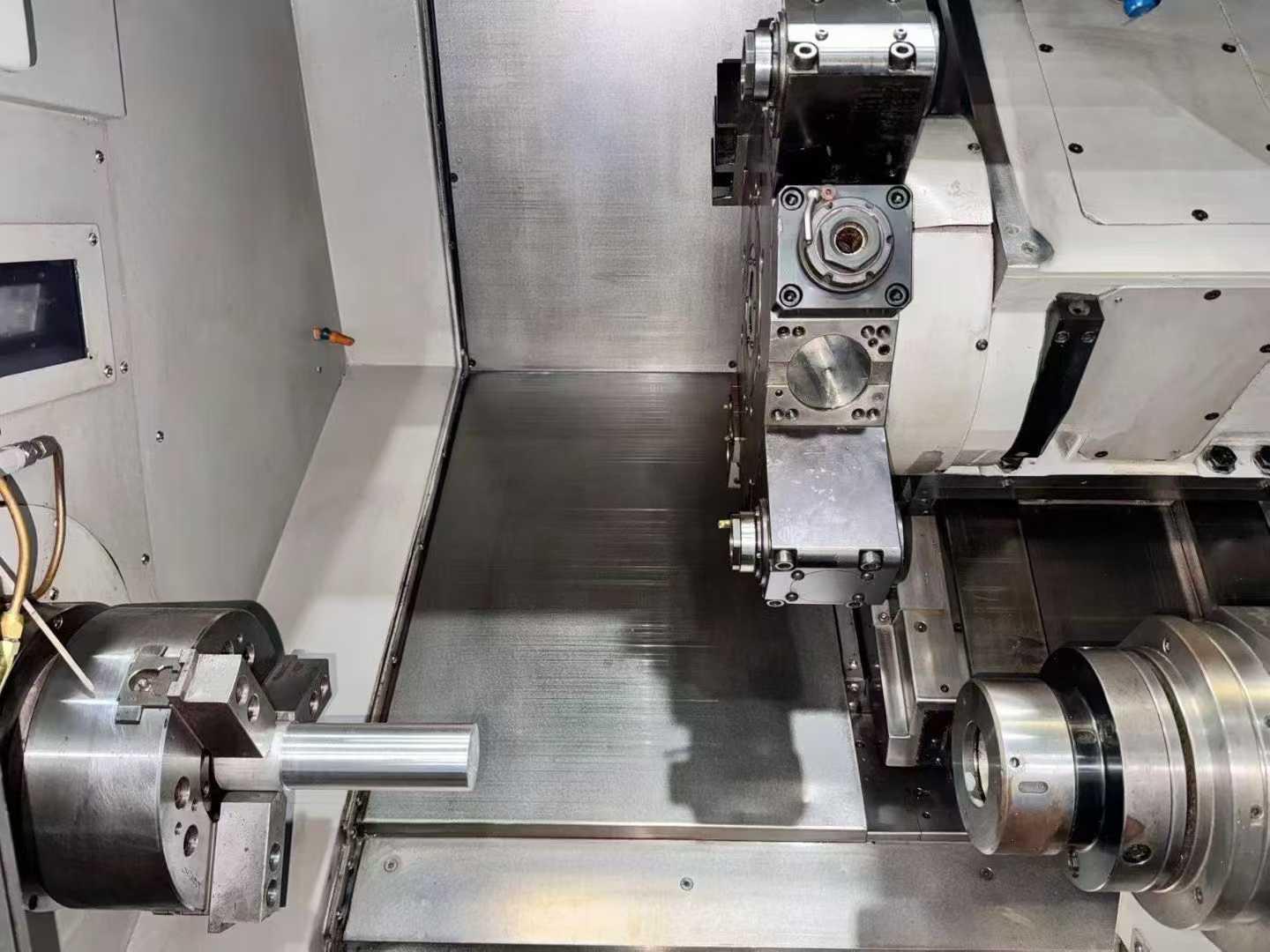

Tsugami M08SY-II Turn Mill Machining Centre

CNC CNC System: FANUC Oi-TF  plus

travel of X*Z*A*Y axis: 221*400*506*±50mm

The Fast moving rate of the X*Z*A*Y axis: 24*27*30*12m/min

Through hole diameter: 65mm

spindle motor: 7.5/11kw

Spindle speed: 4500rpm

Through hole diameter: 59mm

Subspindle motor: 5.5/7.5kw

Secondary Spindle speed: 4500rpm

12-position servo tool turret

Number of tools turret faces: 12

Turret speed: 5000rpm

external diameter Tool holder: 25mm

Maximum machining  diameter: 280mm

Maximum machining  length: 380mm
