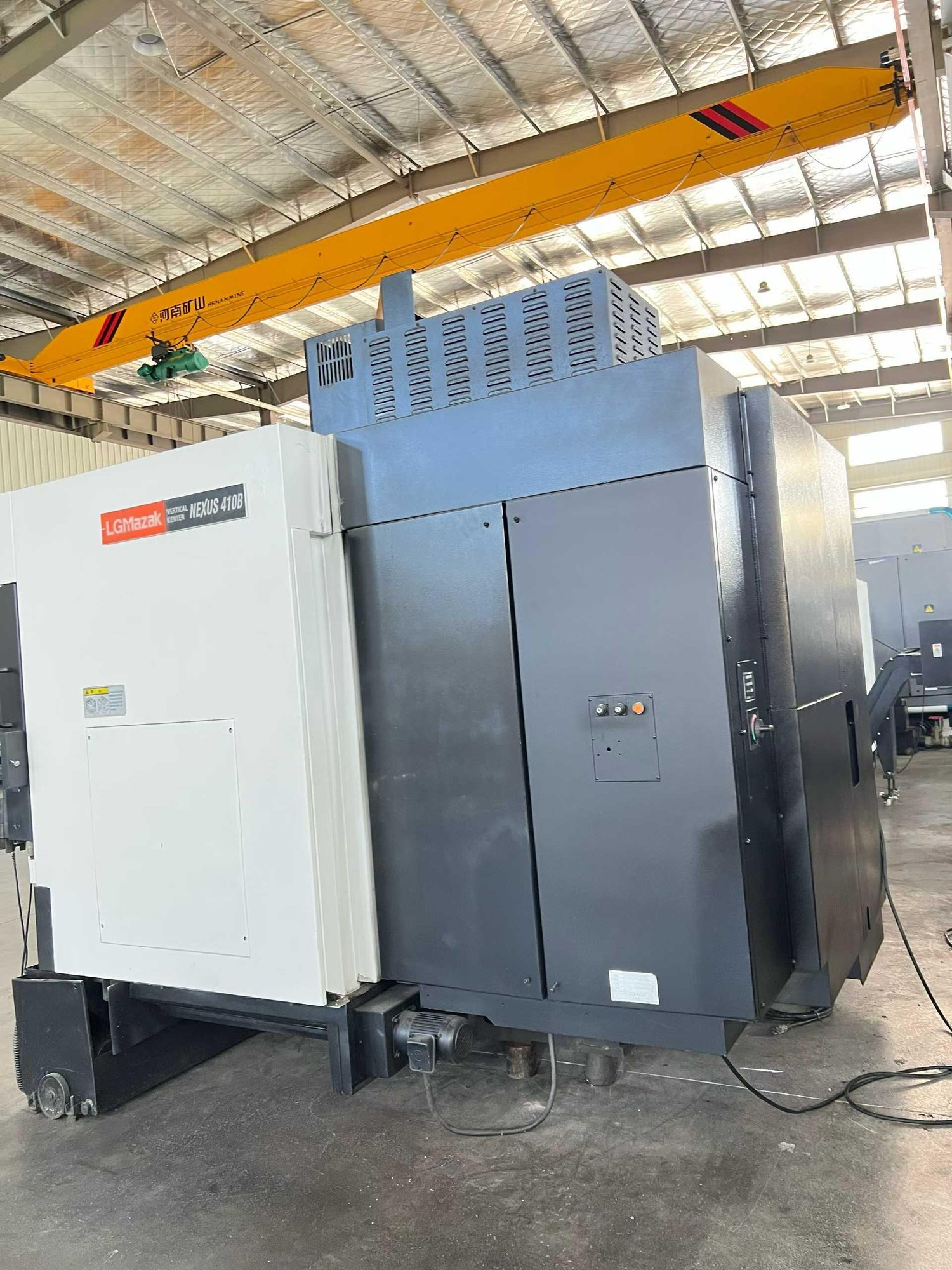

MAZAK NEXUS 410B Vertical Machining centre

[Product Information]:

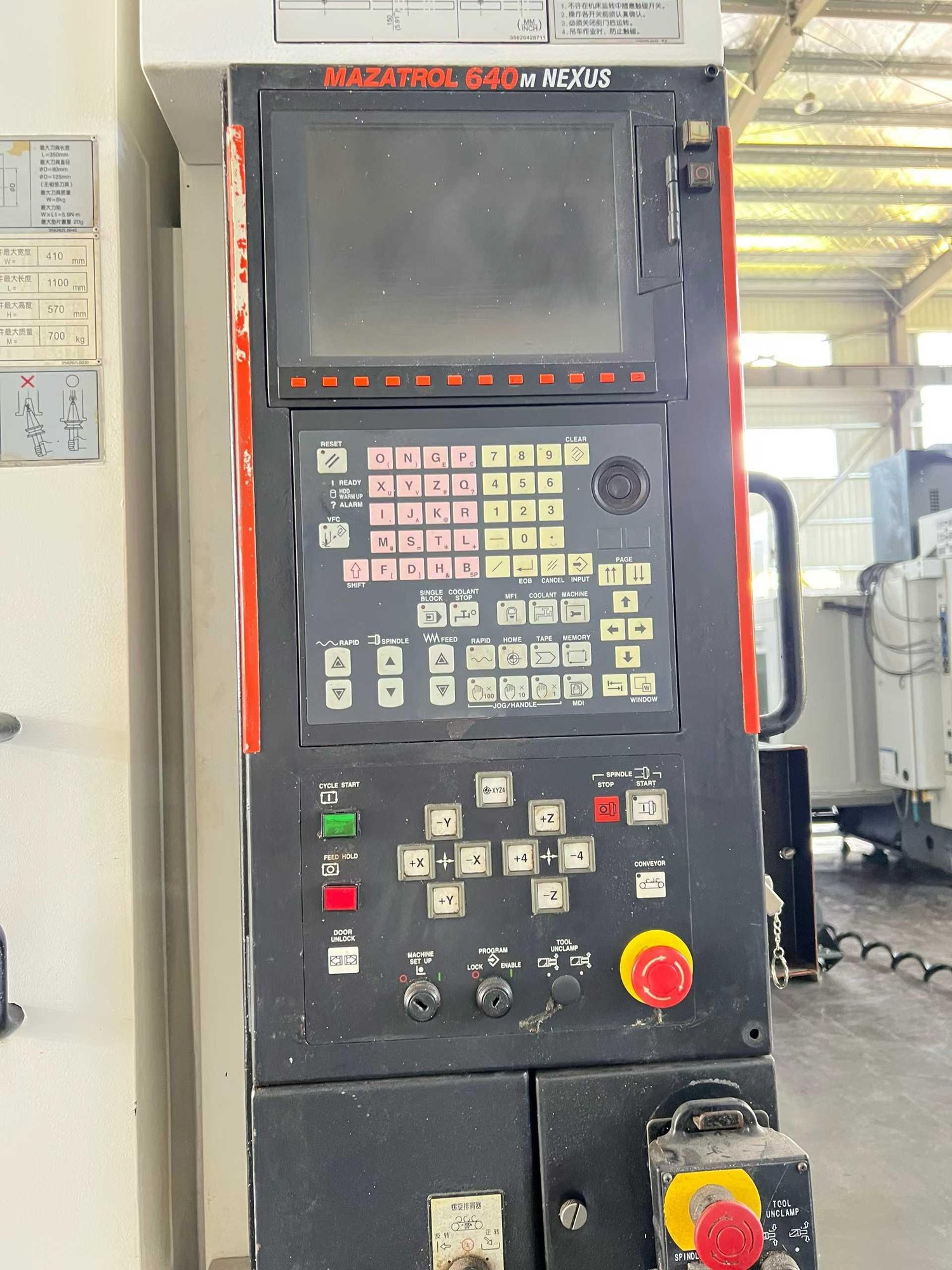

CNC CNC System :640M

three-axis travel :762*410*510mm

Distance from workWorktable to spindle nose :150-660mm

Distance from the front of the column to the center of spindle is 504mm

WorkWorkWorktable size :1100*410mm

WorkWorktable load :700kg

WorkWorktable T-slot :3*18-125mm

Spindle speed: 12,000 RPM

Rapid feed :36/50m/min

Cutting feed :8000mm/min

Tool changing time :2.9 seconds

spindle power :18.5kw

Overall Footage :2800*2480*2600mm

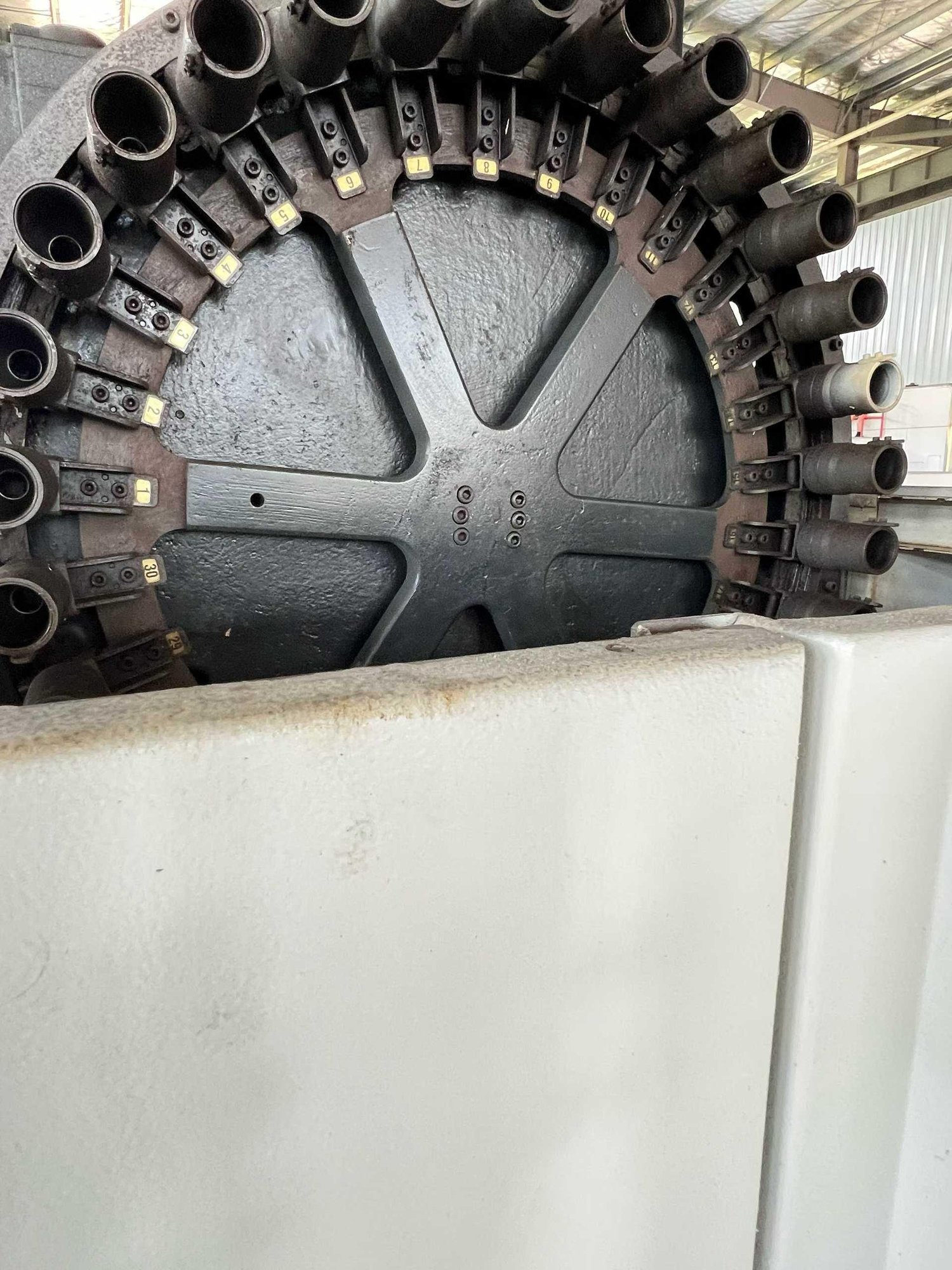

There are 30 tools magazine
