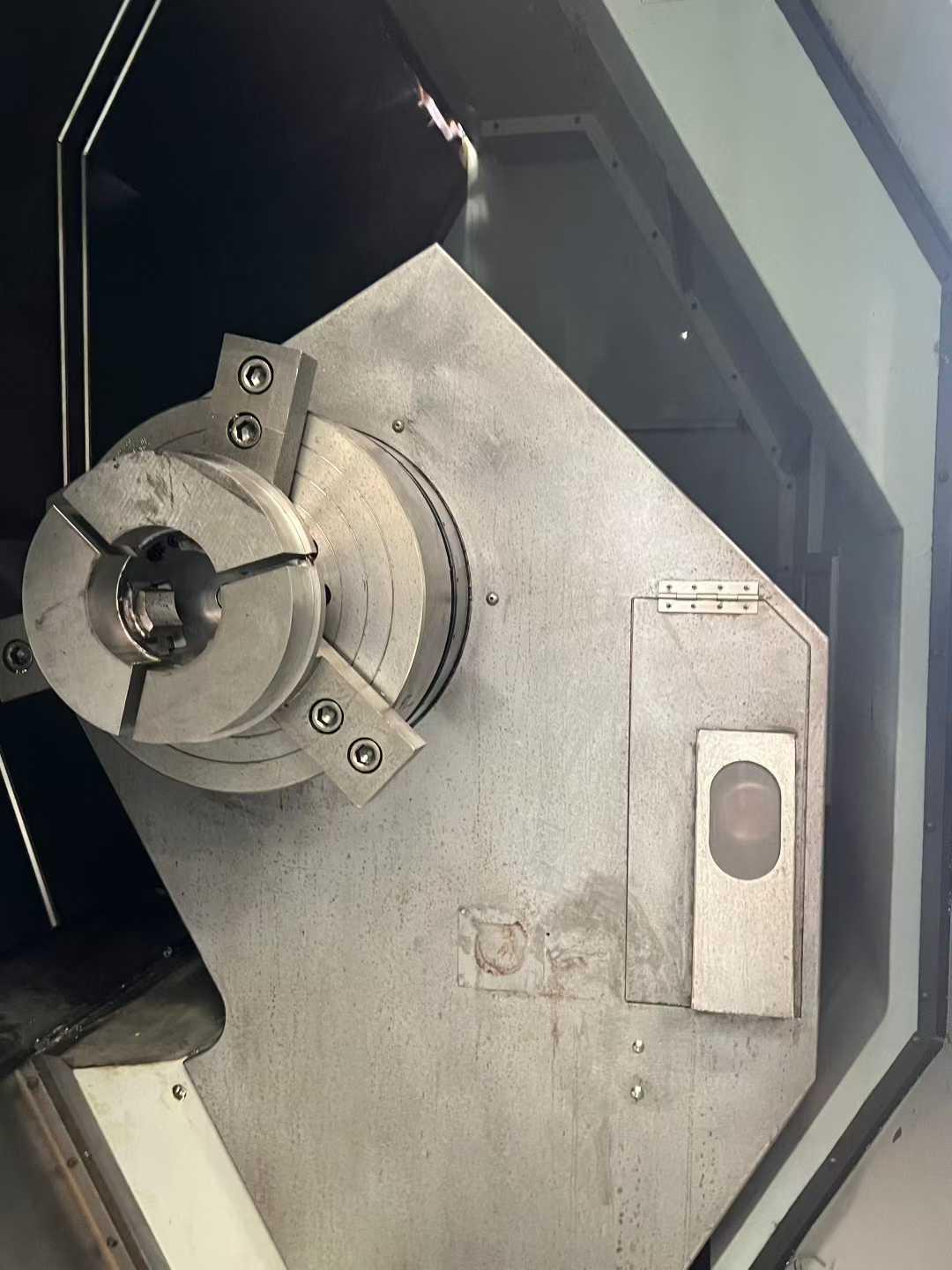

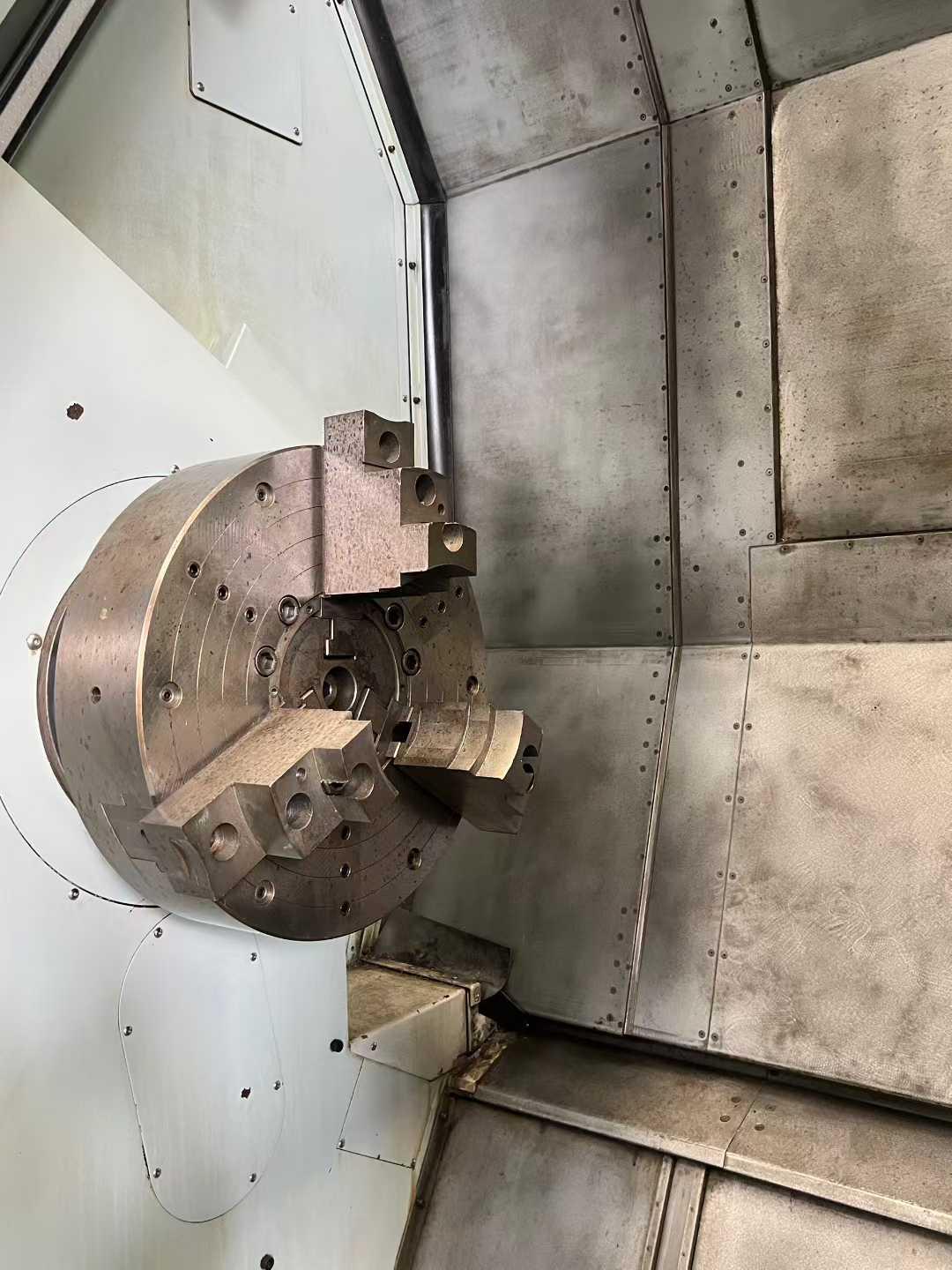

Mori Seiki MT4000SA/2000 Turn Mill Machining Centre

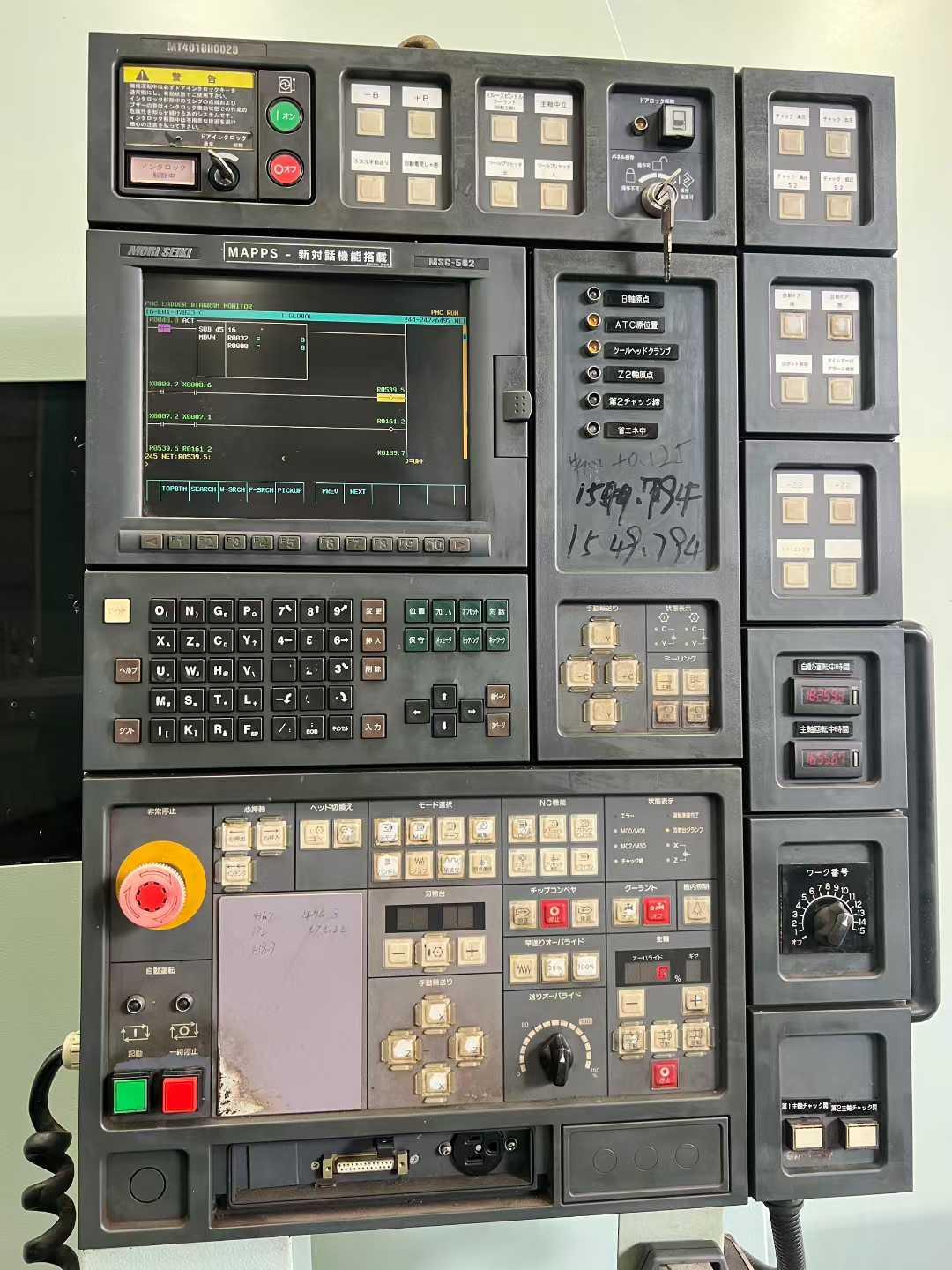

CNC CNC System: MAPPS IV

Mechanical mass: 36,500 kg

Maximum rotational diameter: 940mm

Maximum machining  diameter: 940mm

Maximum machining  length: 2071mm

Bar machining capacity: 117mm

The maximum distance between the two spindle is 2620mm

three-axis travel: 1008* (±150) *2150mm

B-axis travel: -120° to +105°

spindle nose specification: JIS A-11

Diameter of the through hole: 130mm

Maximum rotational speed: 2400 rpm

spindle nose specification: JIS A-15

Diameter of the through hole: 185mm

Maximum speed: 260 rpm

Main motor power: 160 kW

Minimum indexing Angle of spindle: 0.001°
