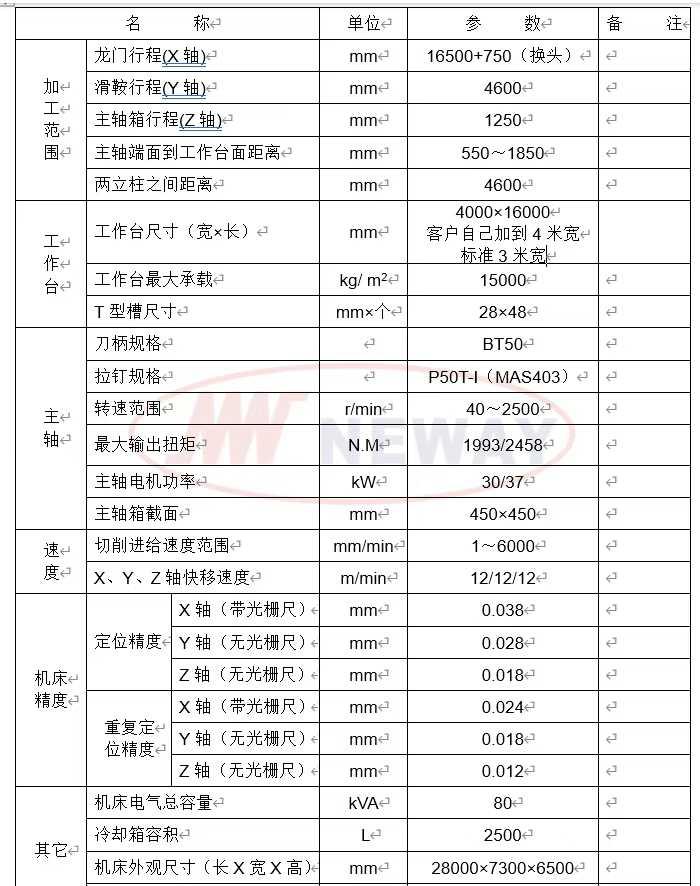

NEWAY PM35120MHZ Gantry machining centre

CNC CNC System: FANUC 0i-MF PLUS

three-axis travel: 16500*4600*1200mm

Distance from spindle nose to workWorktable surface: 550-1850mm

Distance between the two columns: 4600mm

WorkWorktable size: 4000*16000mm

The maximum load of workWorktable is 15,000 kg /m³

Tool holder specification: BT50

Spindle speed range: 40-2500rpm

3 axes Positioning precision: 0.038*0.028*0.018mm

3 axes repetitive Positioning precision: 0.024*0.028*0.012mm

The external Footage of machine tool (length * width * height) : 28,000 *7300*6500mm
