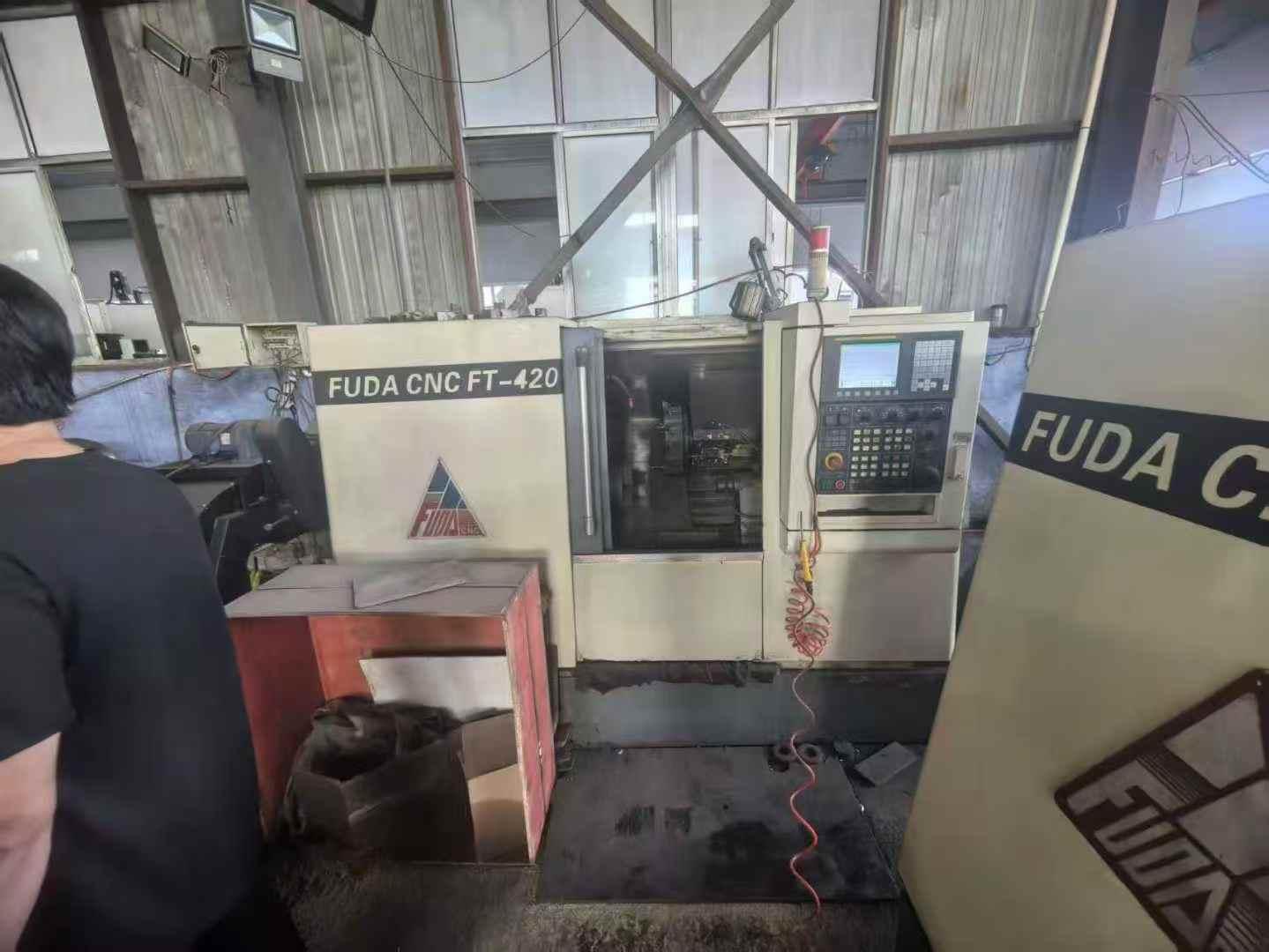

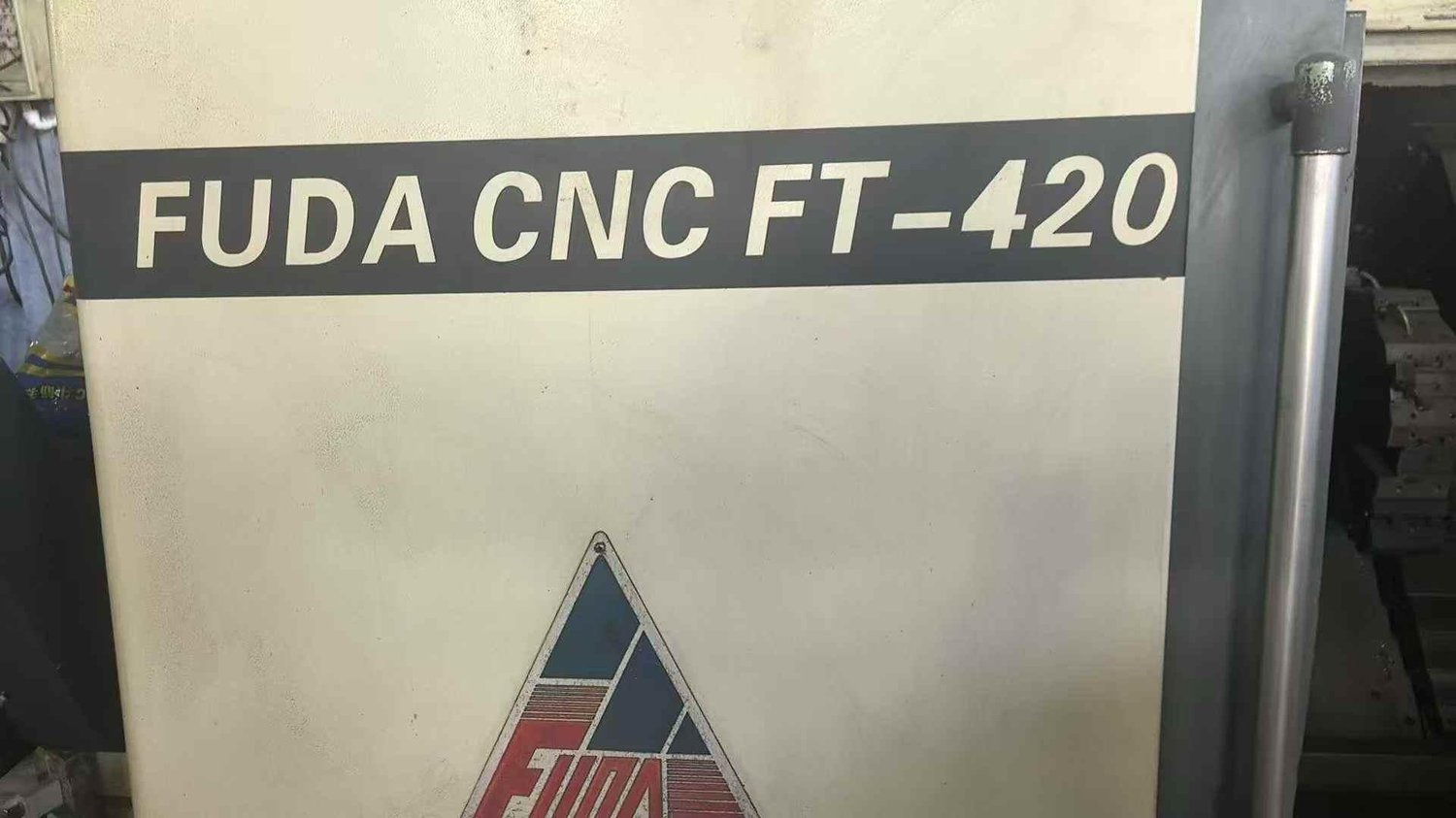

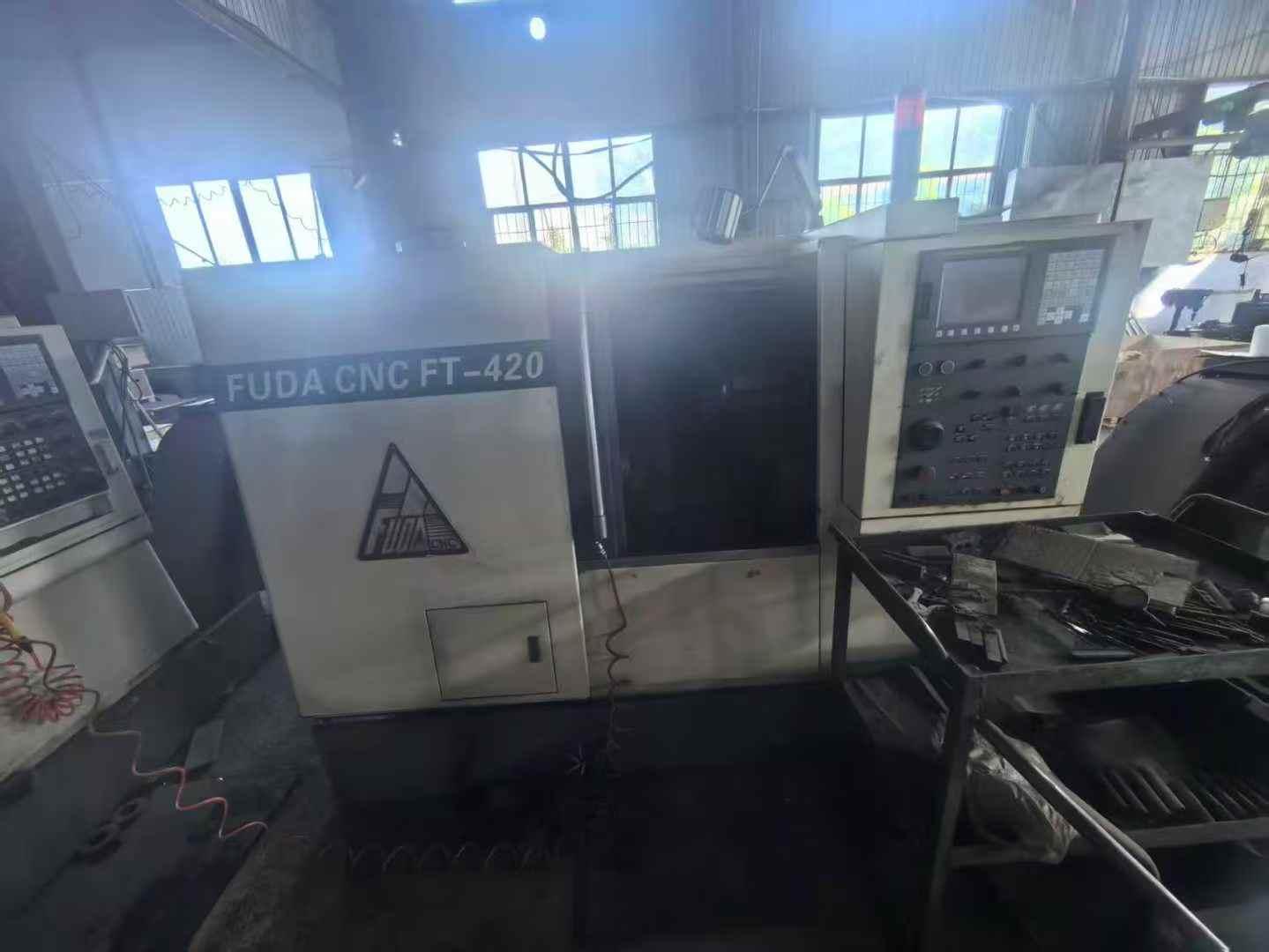

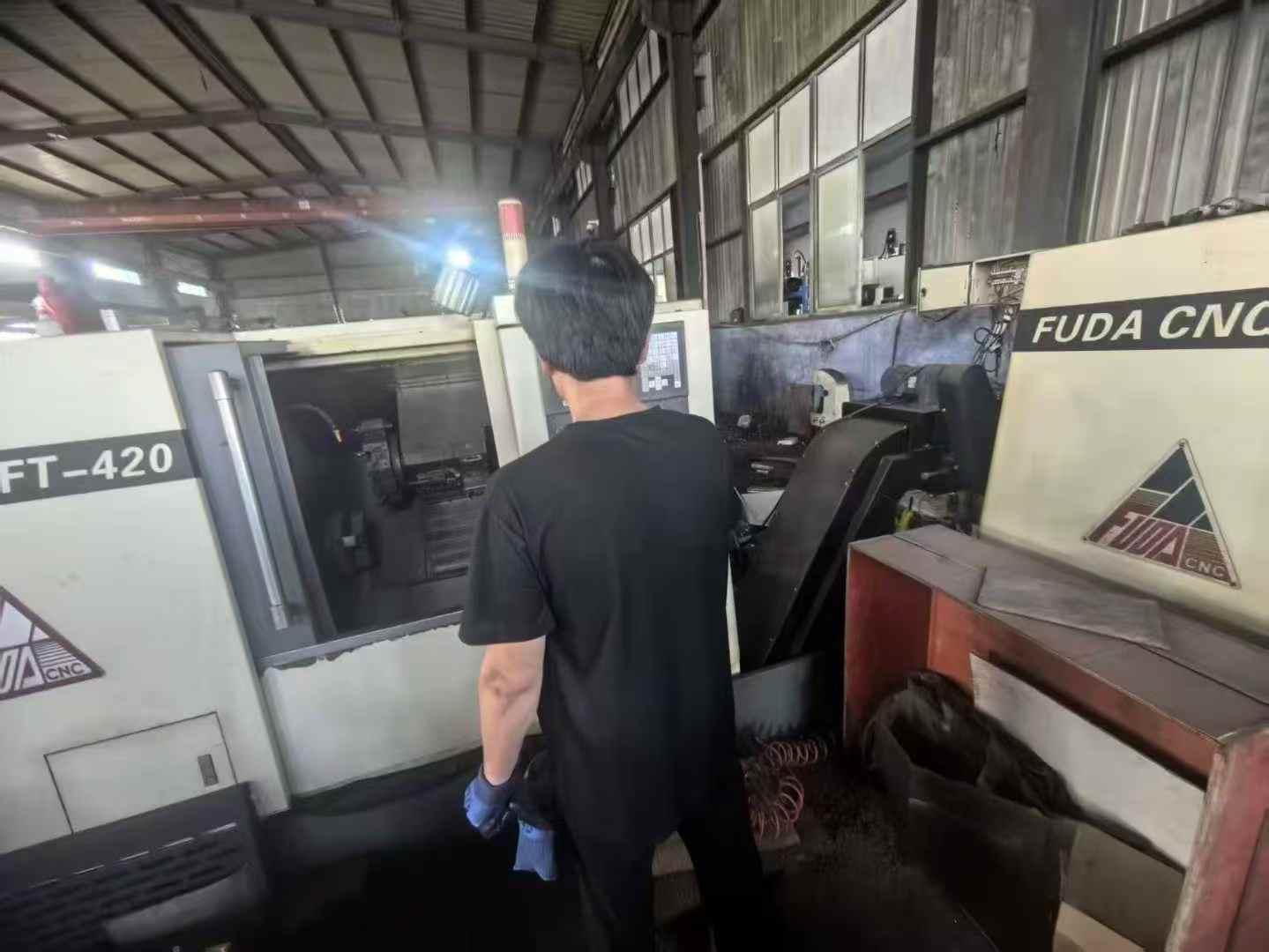

FUDA FT-420 other

spindle through hole diameter: Φ55mm

Height from spindle center to the ground: 940mm

Distance from spindle center to the front door: 420mm

Spindle speed: 6000rpm

Maximum bed rotation diameter: Φ438mm

Maximum machining  workpiece length: 280mm

Maximum machining  workpiece diameter: Φ300mm

The maximum diameter of the through hole in the bar: Φ42mm

10-station hydraulic tool turret

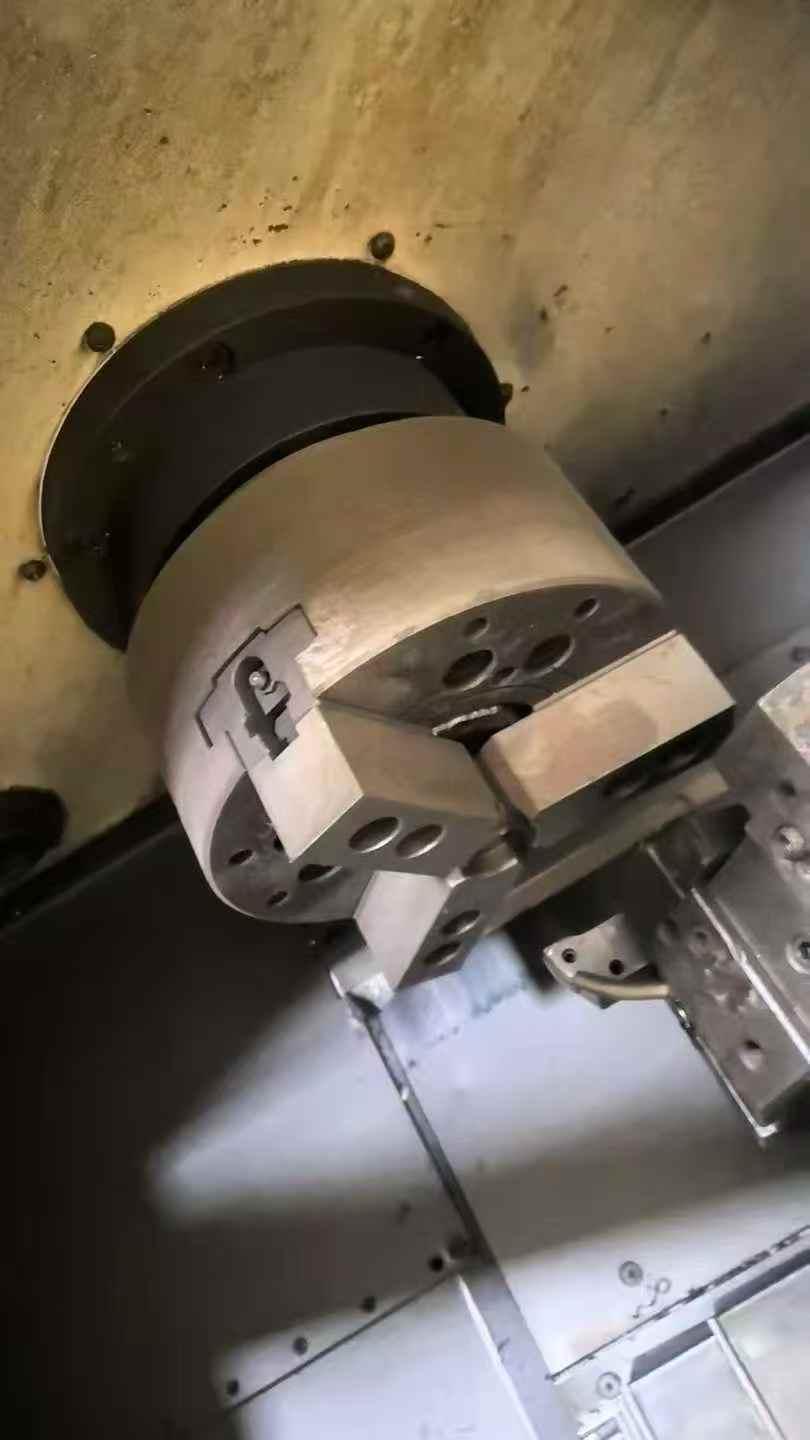

8-inch hollow hydraulic card

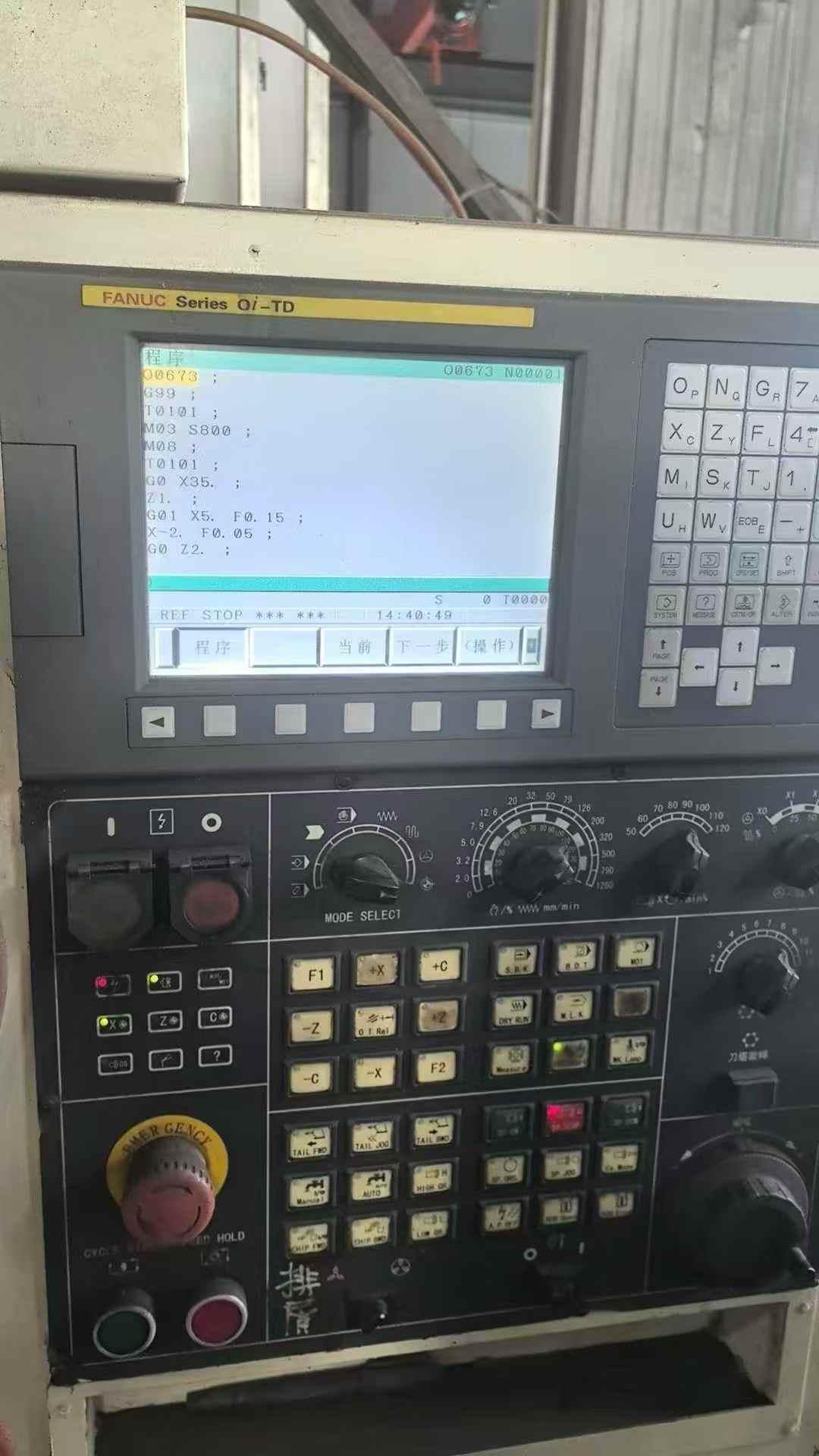

CNC System ‌ : FANUC
