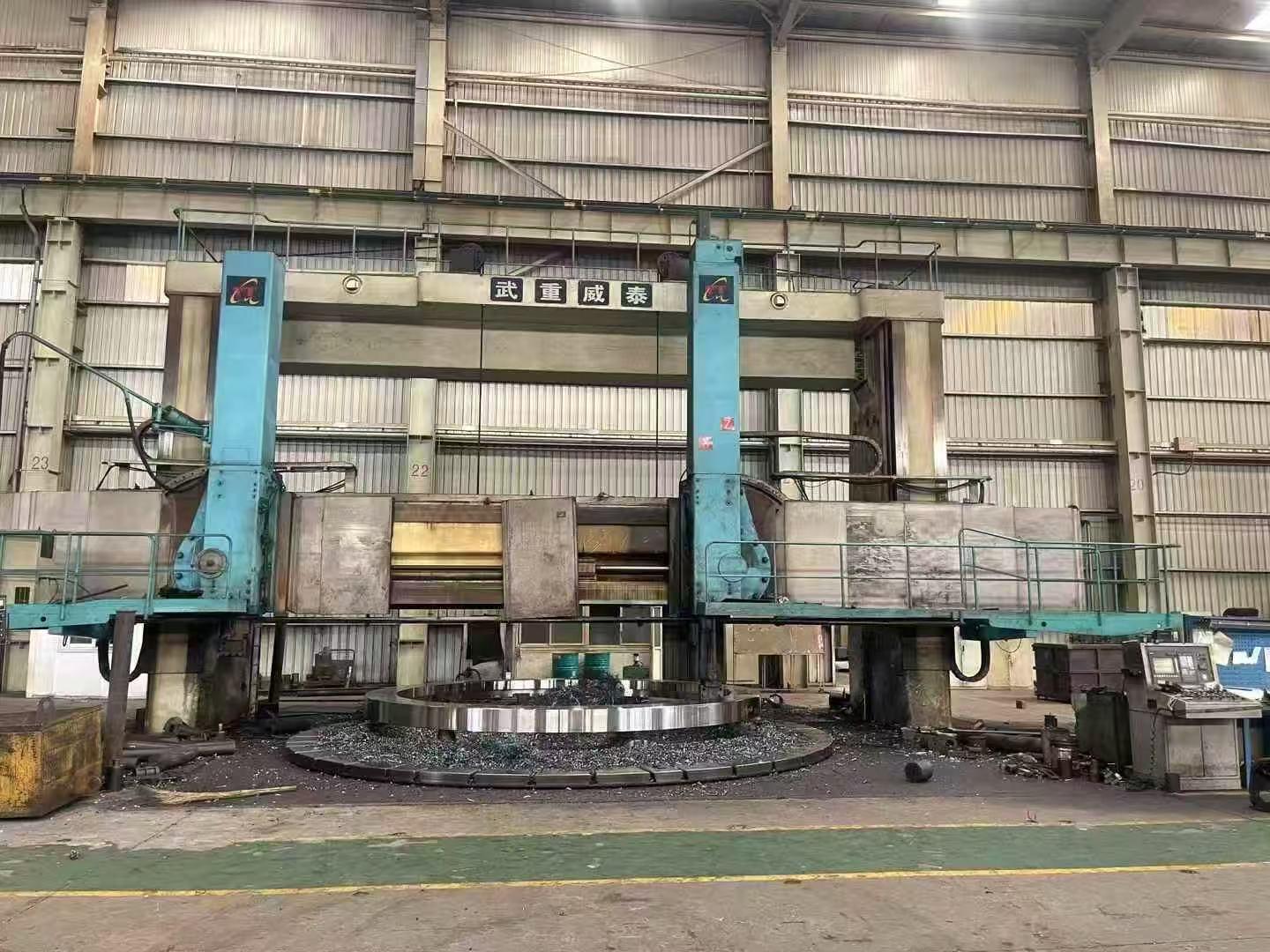

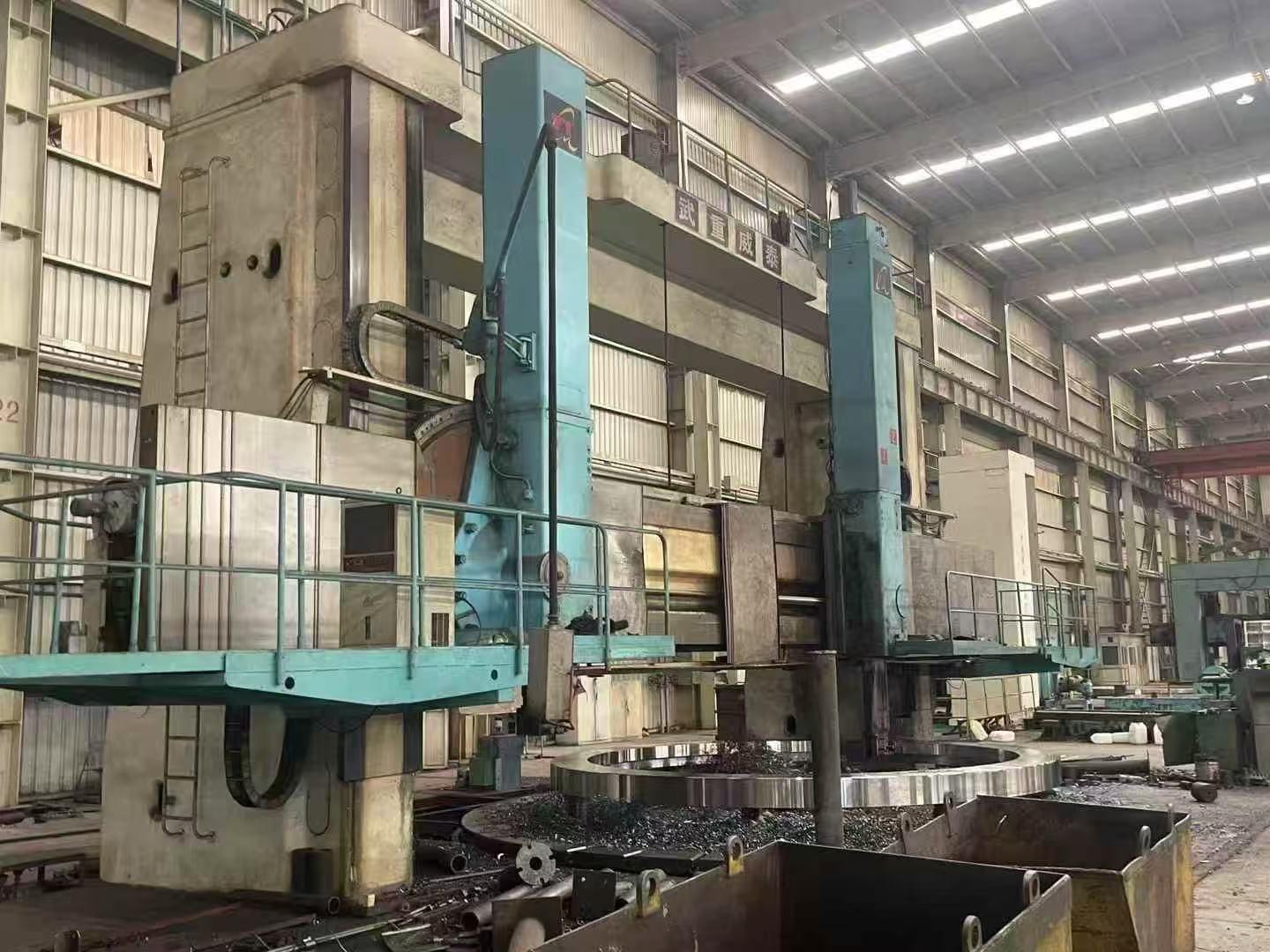

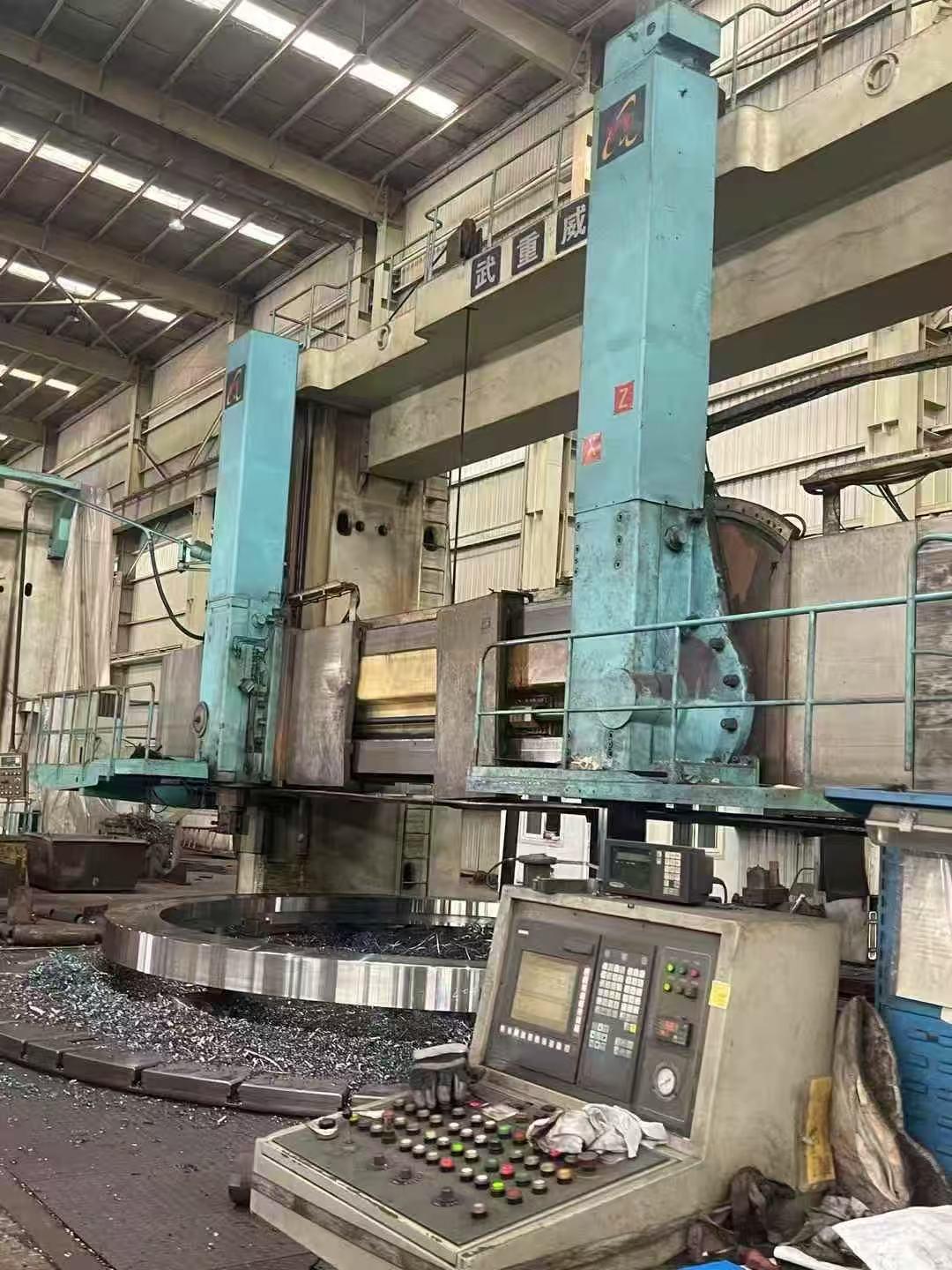

WUHAN HEAVY DUTY MACHINE TOOL CKJQ52100 CNC vertical lathe

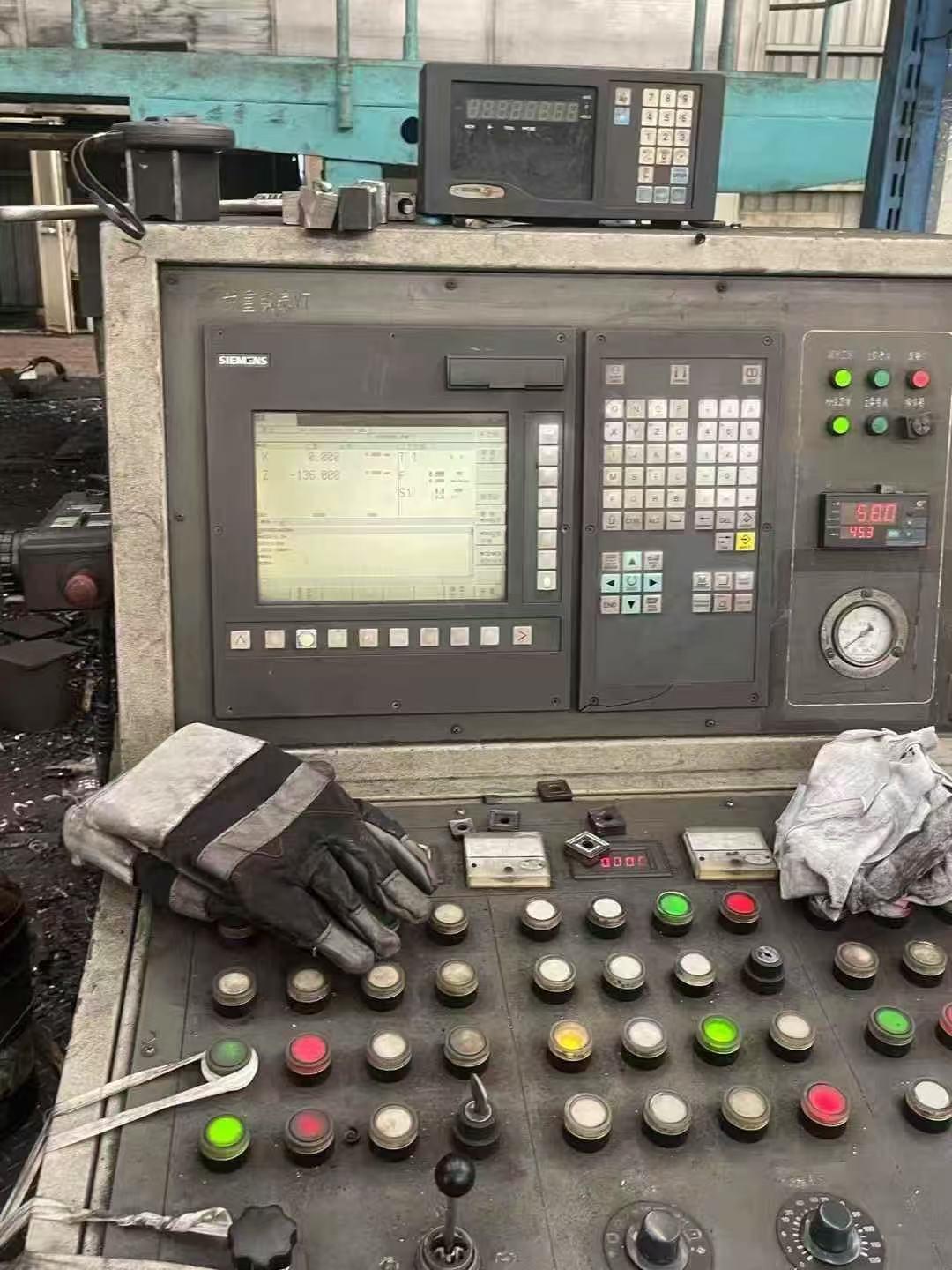

CNC CNC System: Siemens 802D

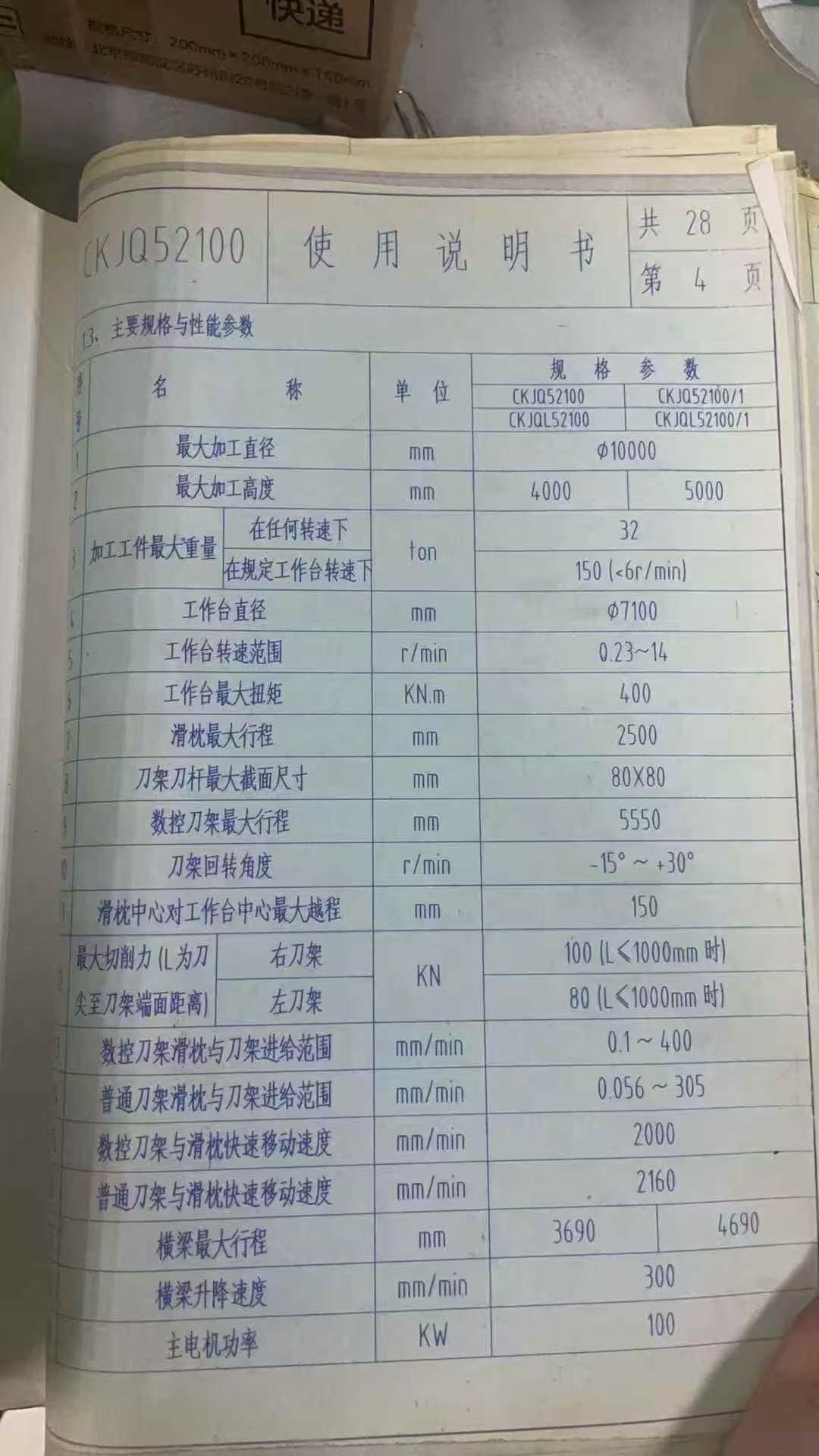

chuck  diameter: 7100mm

machining  height: 4000mm

machining  diameter: 10,000mm

The maximum travel of the ram is 2500mm

The maximum cross-sectional footage of the tool holder and tool holder is 80*80mm

The maximum travel of the CNC tool holder is 5550mm

The rotation Angle of the tool holder: -15° to 30°

WorkWorktable speed range: 0.23-14r/min

WorkWorktable load: 150 tons
