Takisawa CX-15 CNC turning lathe

CNC System: FANUC 0i-TF plus

Maximum machining  diameter: 220mm

Maximum machining  length: 185mm

The maximum rotation diameter of the bed: 400mm

The diameter of spindle through hole is 42mm

X* Z-axis travel: 150*185mm

Spindle speed: 6000 RPM

spindle motor power: 7.5/15 kW

External Footage: 2355*2581*2145mm

Machine weight: 6,900 kg

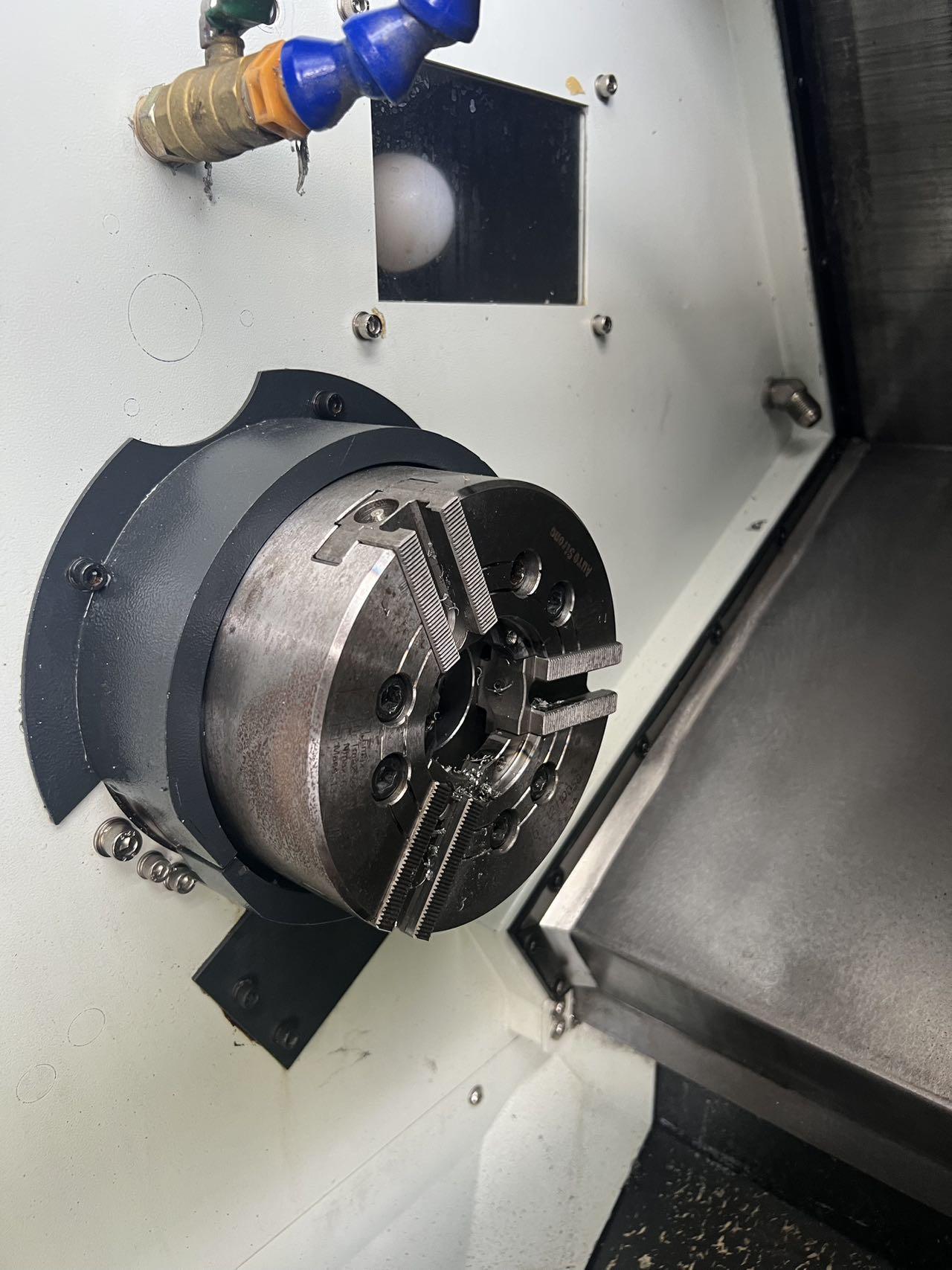

6-inch chuck

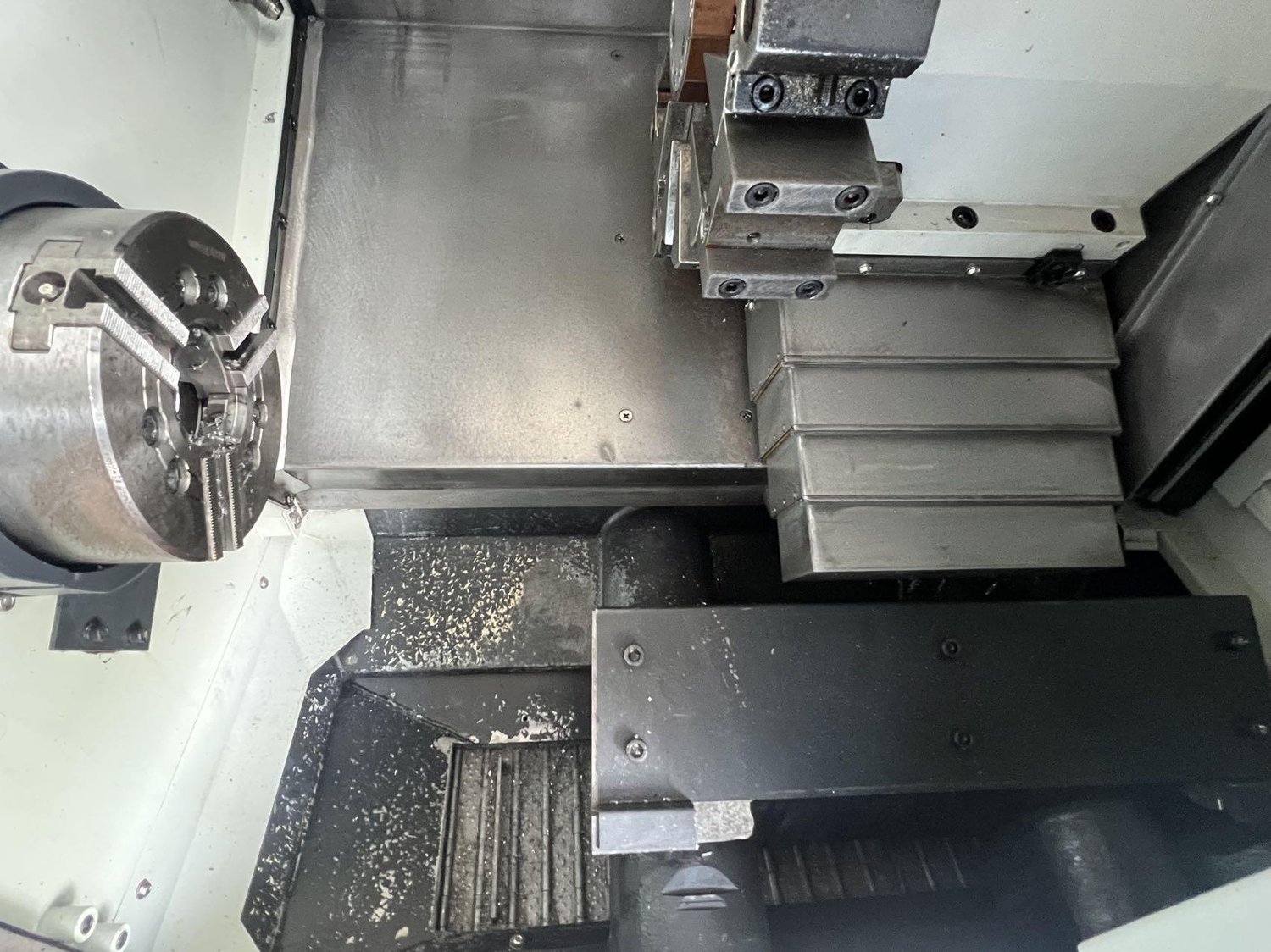

12-position tool turret

With a chip conveyor
