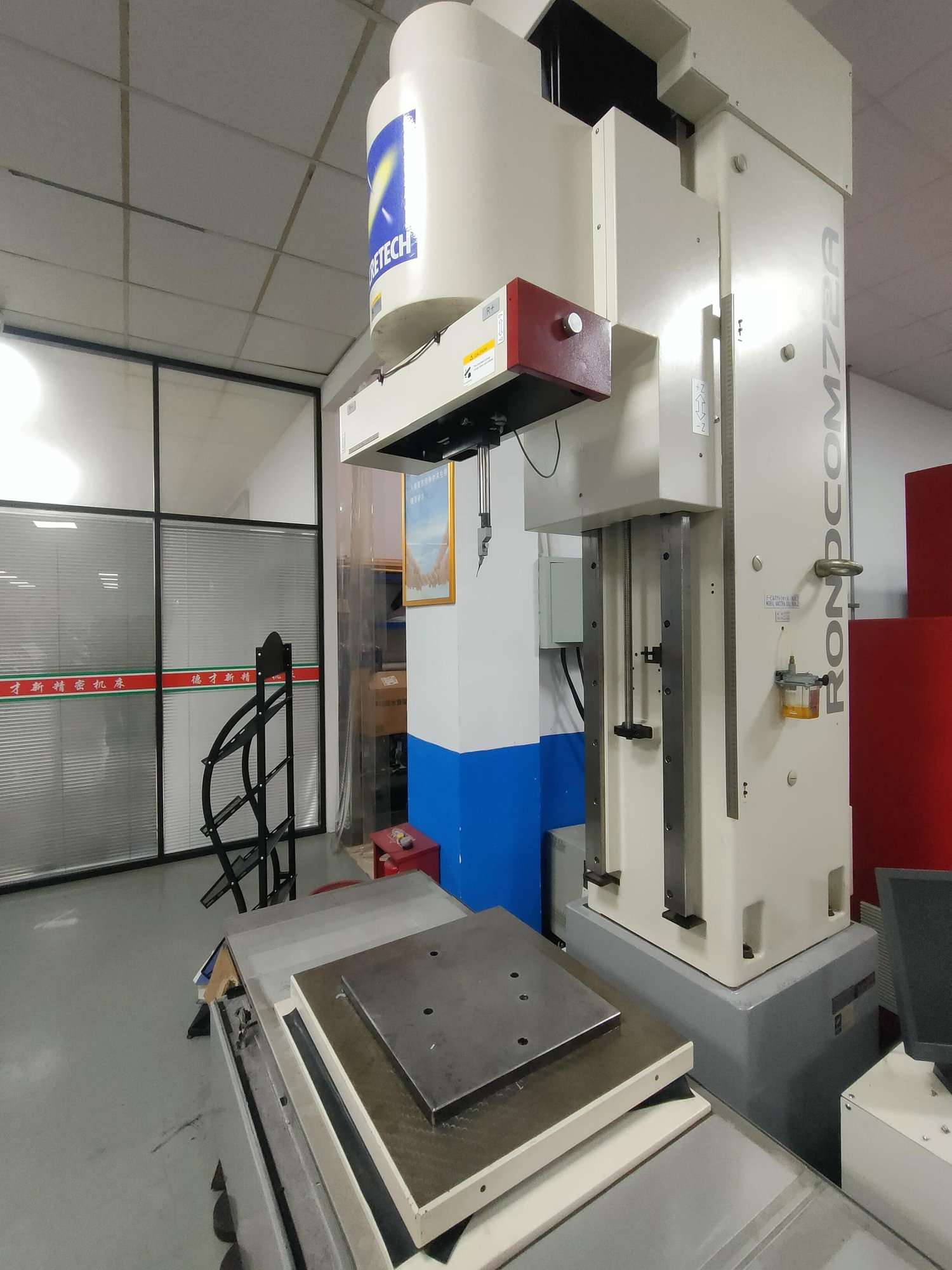

ACCRETECH RONDCOM 72A Roundness instrument
[Product Information]:
- Inventory number：465495
- Brand：ACCRETECH
- Model： RONDCOM 72A
- Origin："Japan
- Location：China
- Year：To be supplemented
- Create Time：2025-09-27
Specifications:
Maximum measured diameter: p450mm
left-right feed range (X-axis) : 600mm
Front desk feed range (Y-axis) : 50mm
Up and down feed range (Z-axis) : 1000mm
Maximum loading diameter: p900mm
Rotary precision (JIS B7451) : 0.06 μ m
When using the measuring arm: 0.08 μ m
Linear degree precision: 2um/200mm
Display: Color display (15 inches)
Power supply :AC220V, 50/60Hz.
Power consumption :3kVA
Air source :0.5-0.7MPa, 30L/min
Overall Footage :2850x3300x3000
Weight :3100kg
