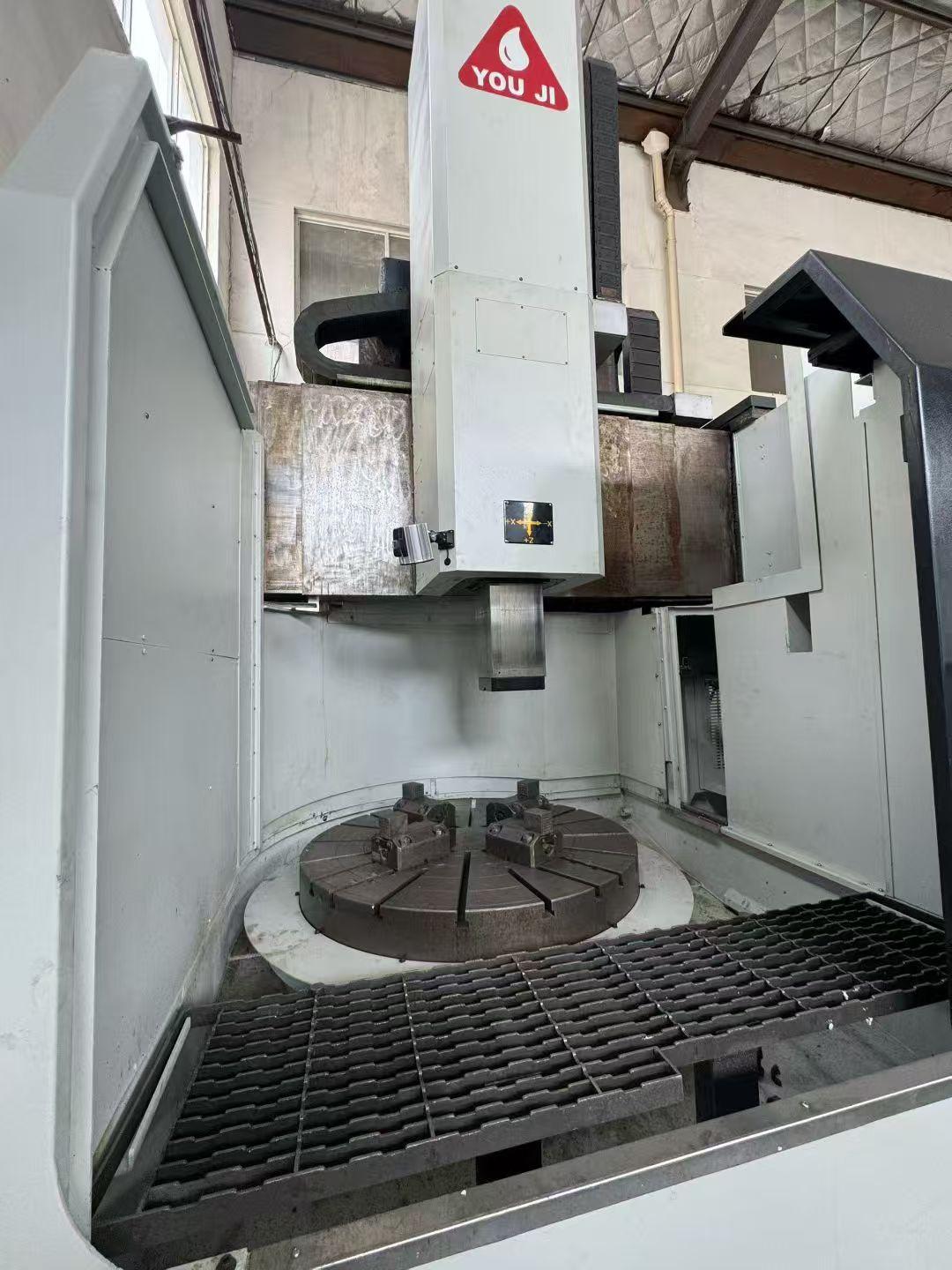

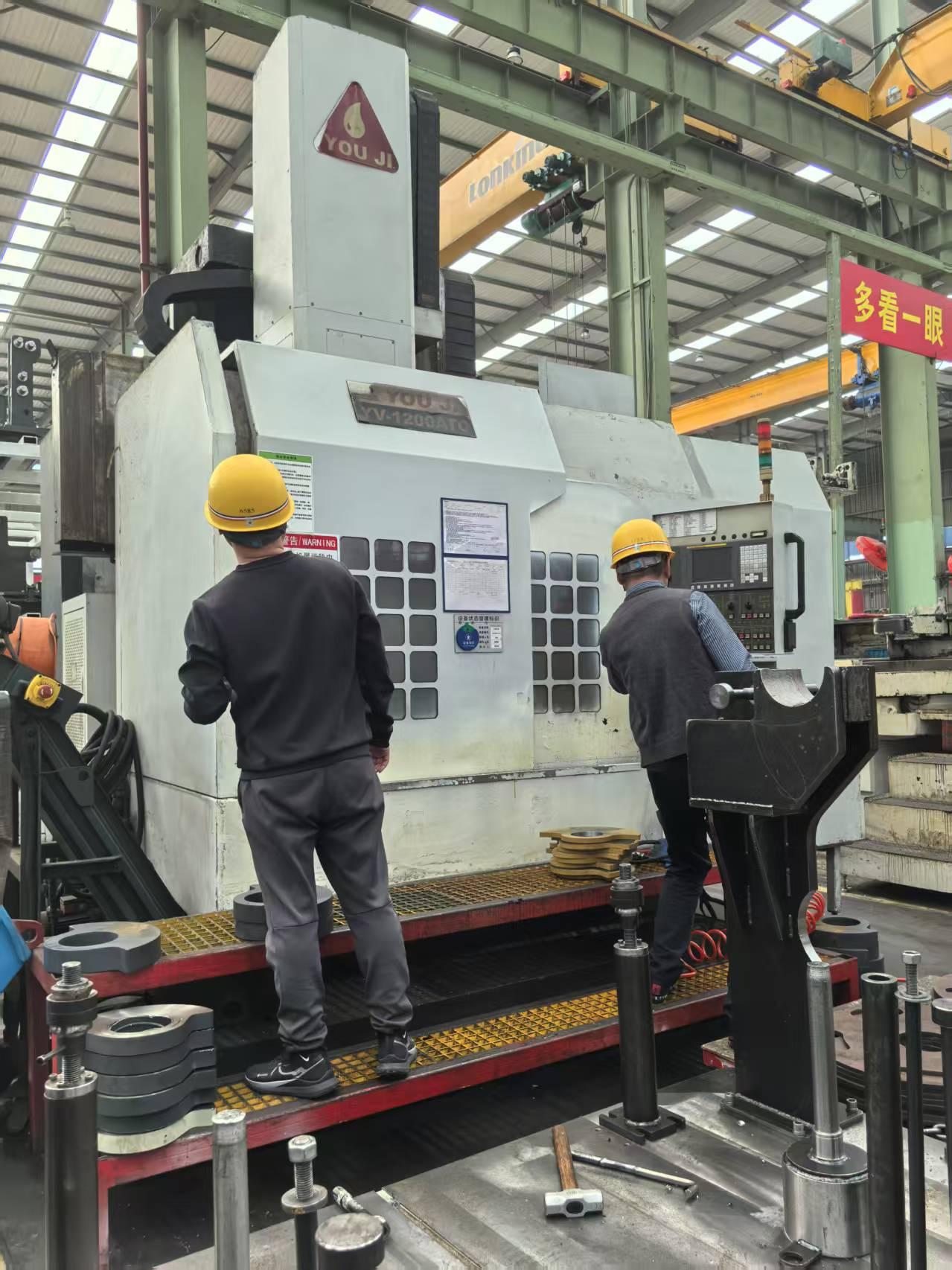

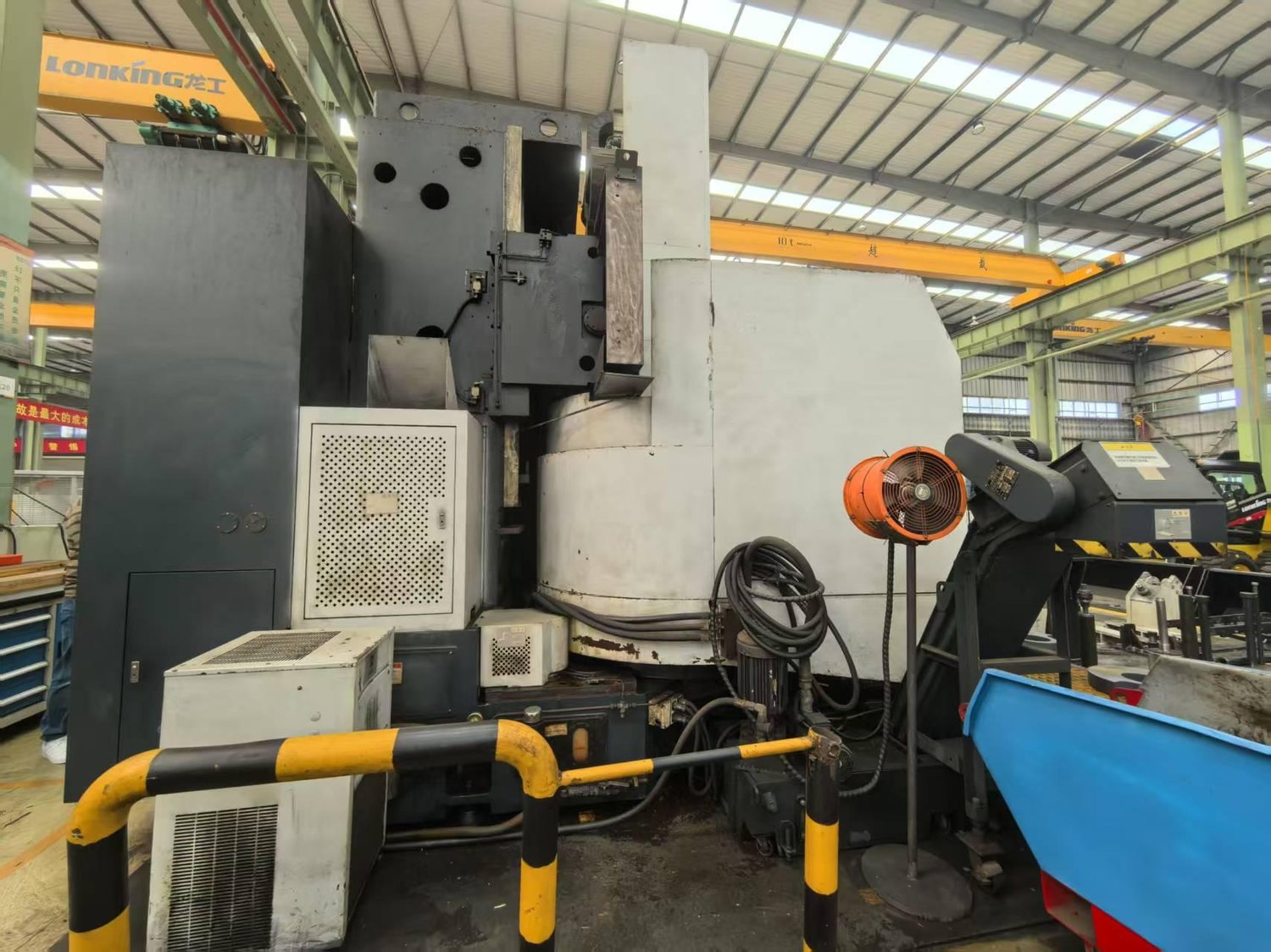

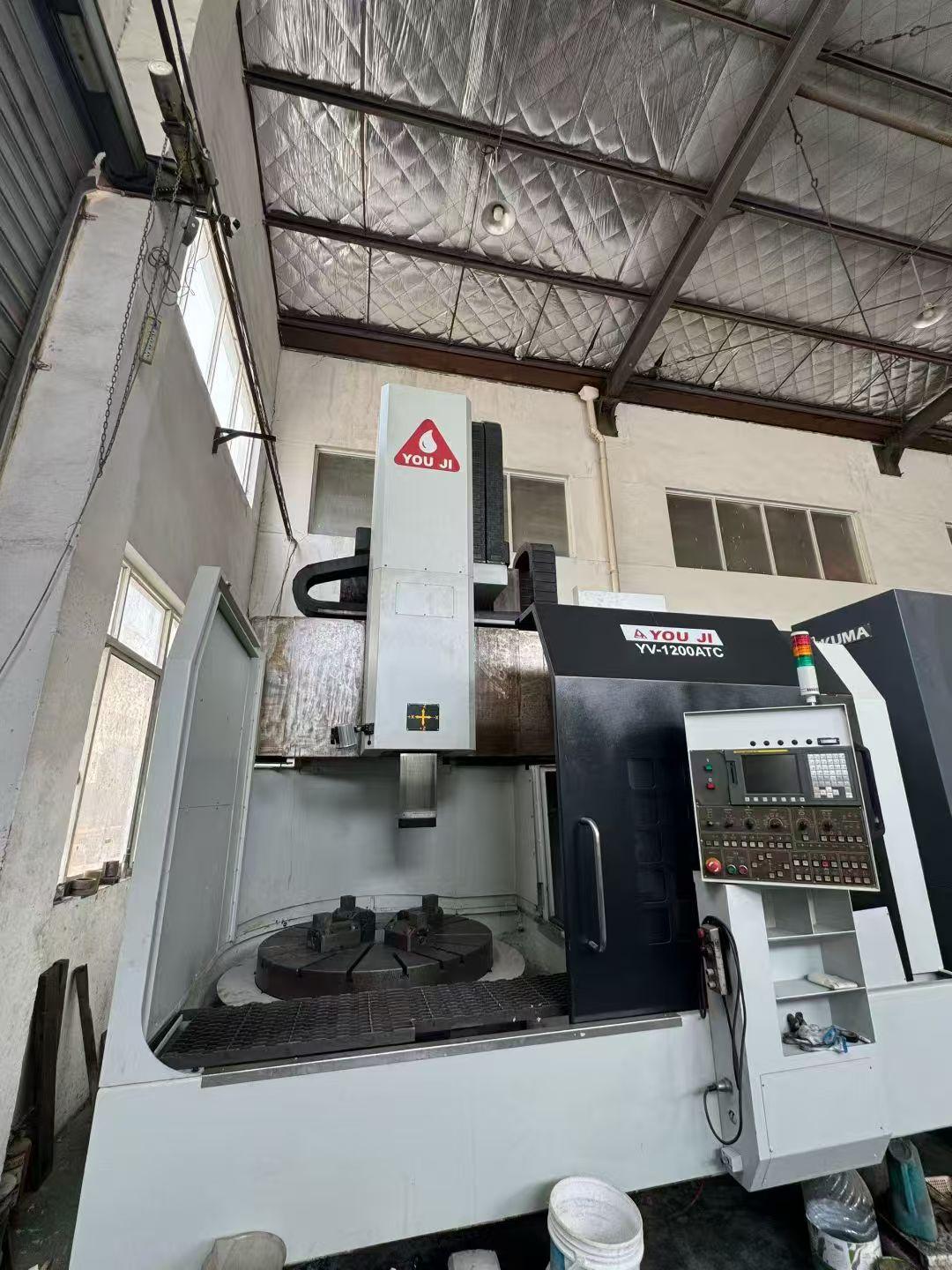

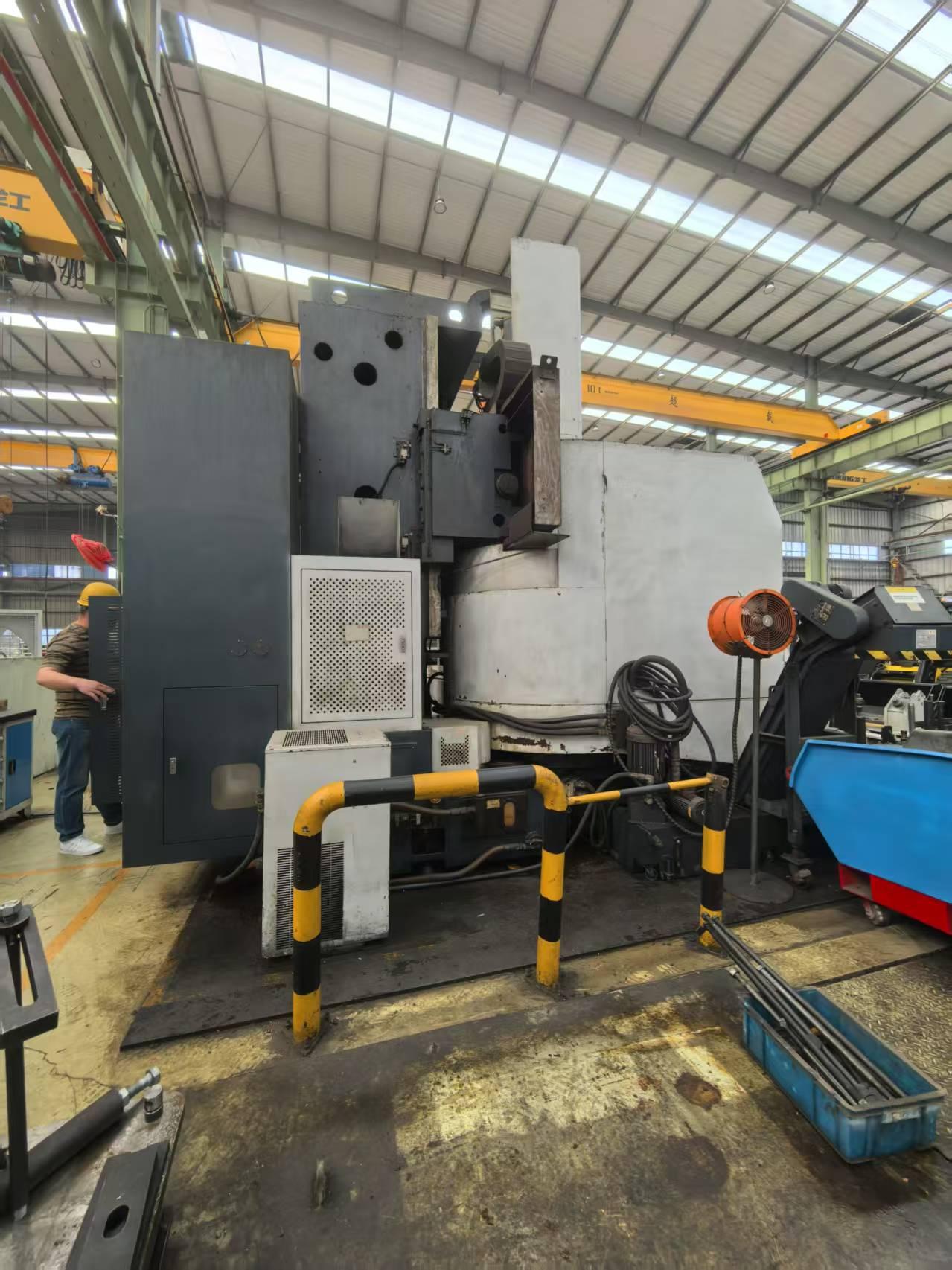

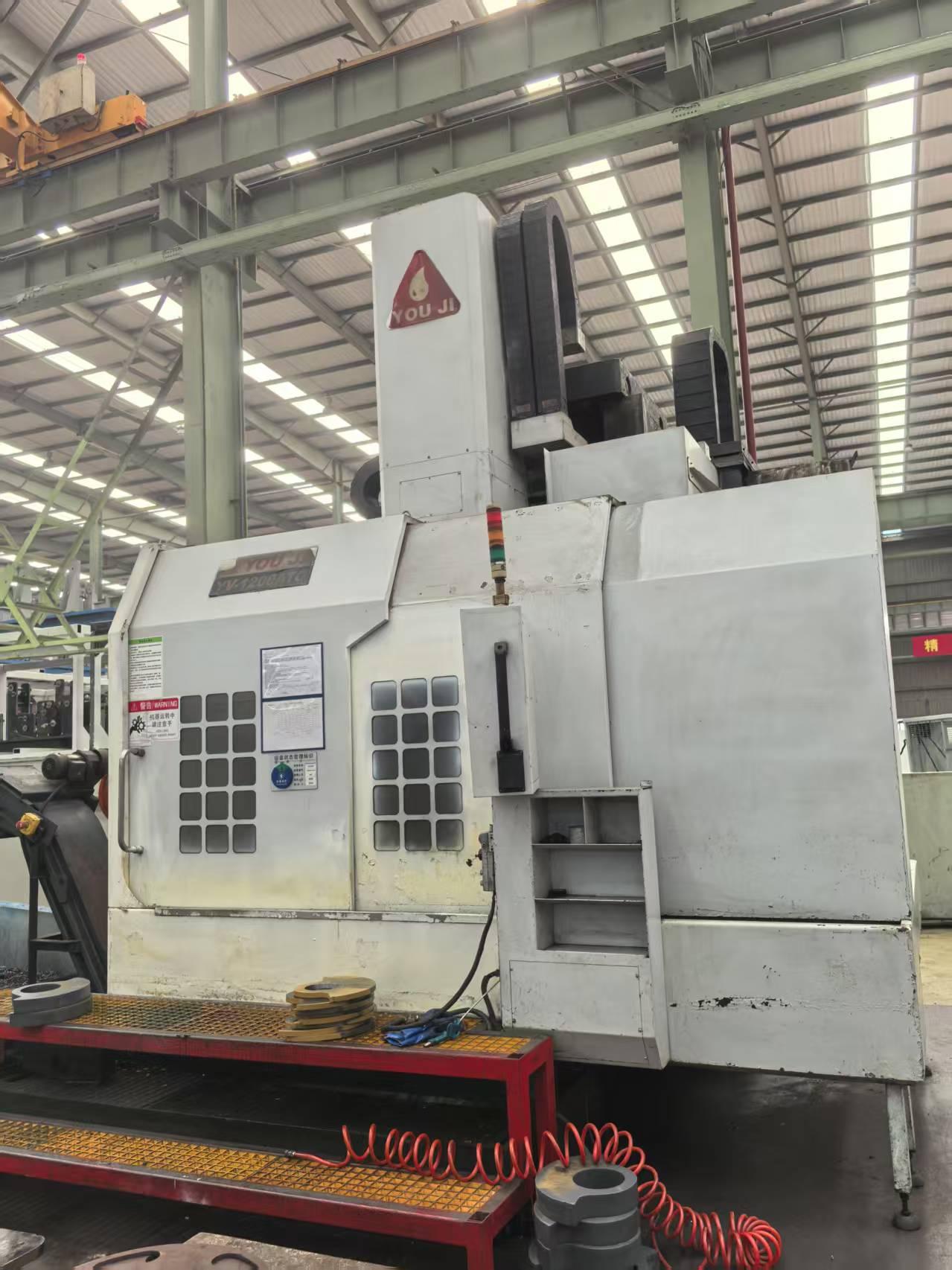

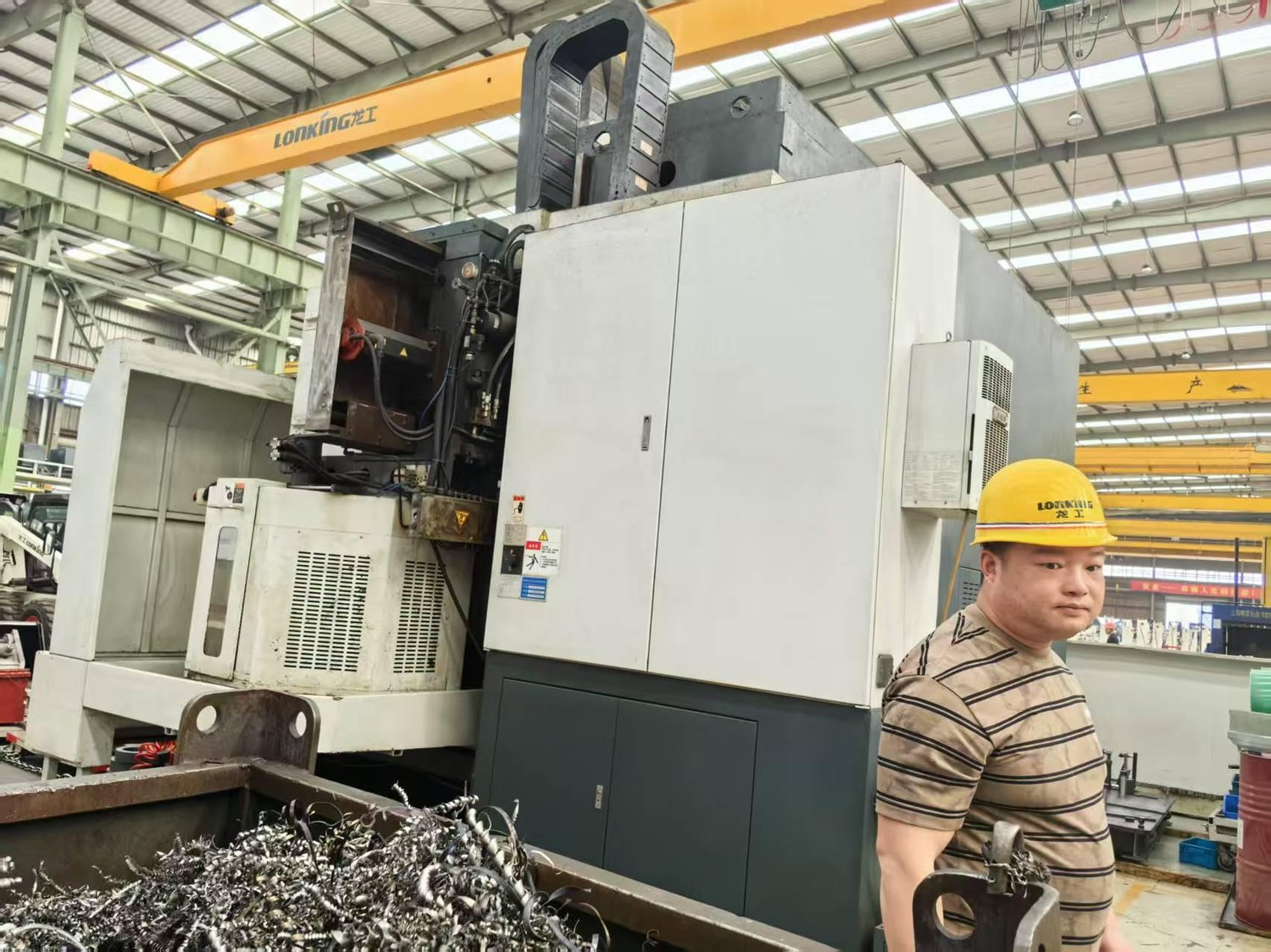

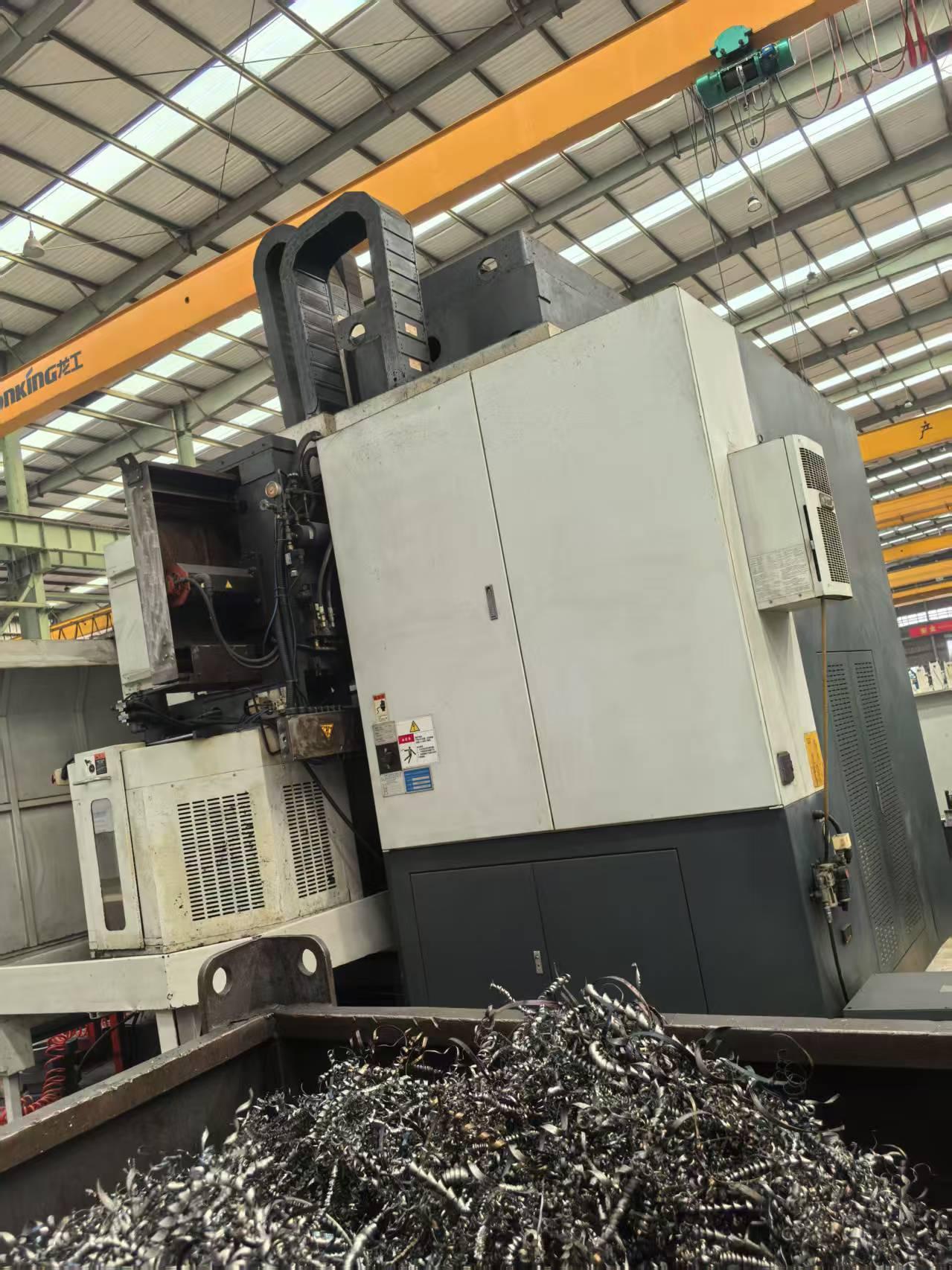

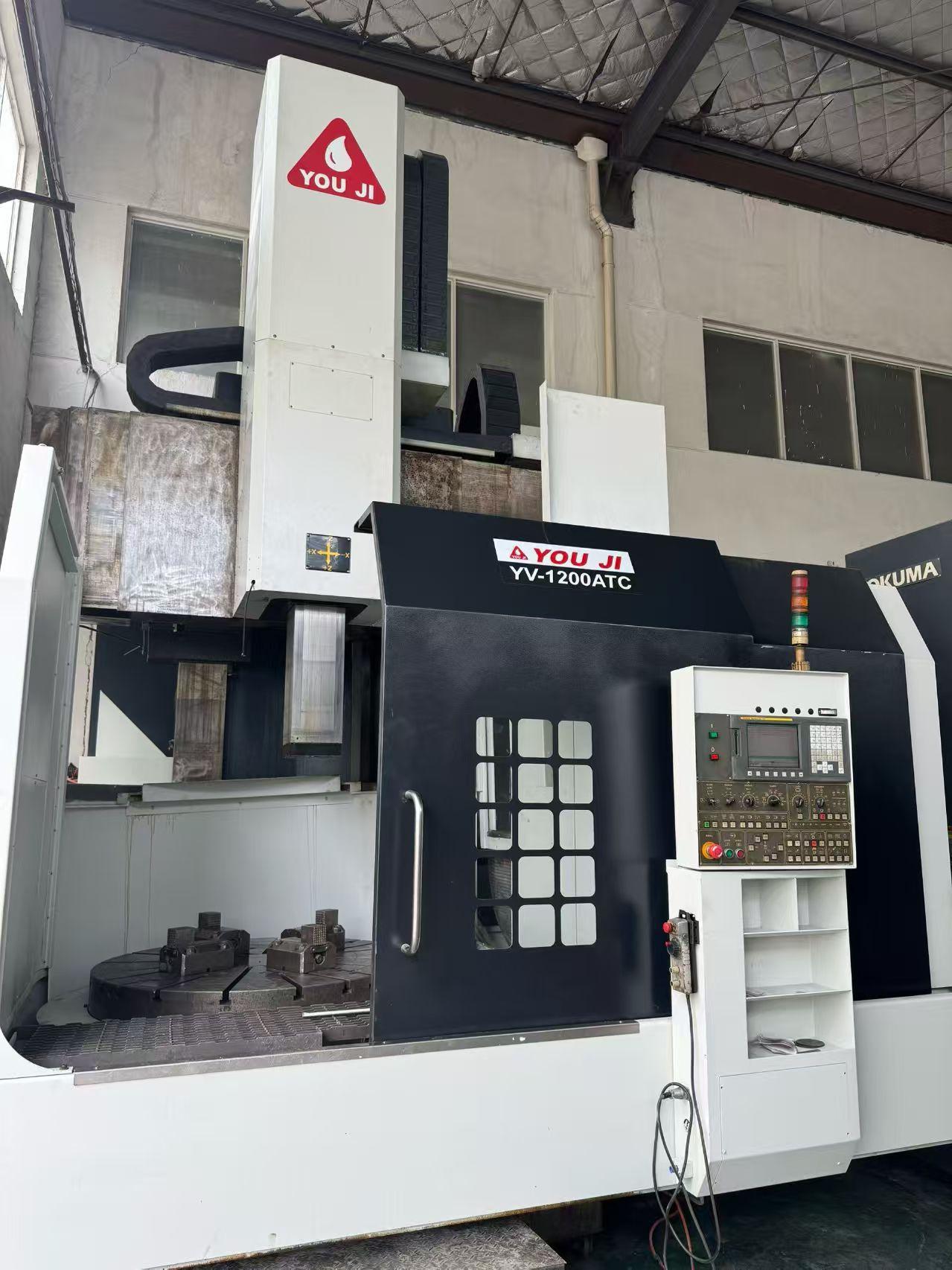

YouJi YV-1200ATC CNC vertical lathe
[Product Information]:
- Inventory number：65853
- Brand：YouJi
- Model：YV-1200ATC
- Origin：Taiwan, China
- Location：China
- Year：2010
- Create Time：2025-09-19
Specifications:
Countertop diameter : 1250mm
Youdaoplaceholder0 Rotational diameter : 1600mm
Youdaoplaceholder0 Cutting diameter : 1350mm
Cutting height : 1200mm
Weight of machining : 5000kg
X* z-axis travel : 935*900mm
The up and down travel of the crossbeam : 700mm
Spindle speed : 108-350rpm
spindle torsion: 8200nm
Rapid feed rate : 12m/min
cutting feed rate : 2000mm/min
Manual feed rate : 10m/min
spindle motor power: 37kW/45kW
Positioning precision: 0.005mm
Youdaoplaceholder0 floor area : 4000*4600mm

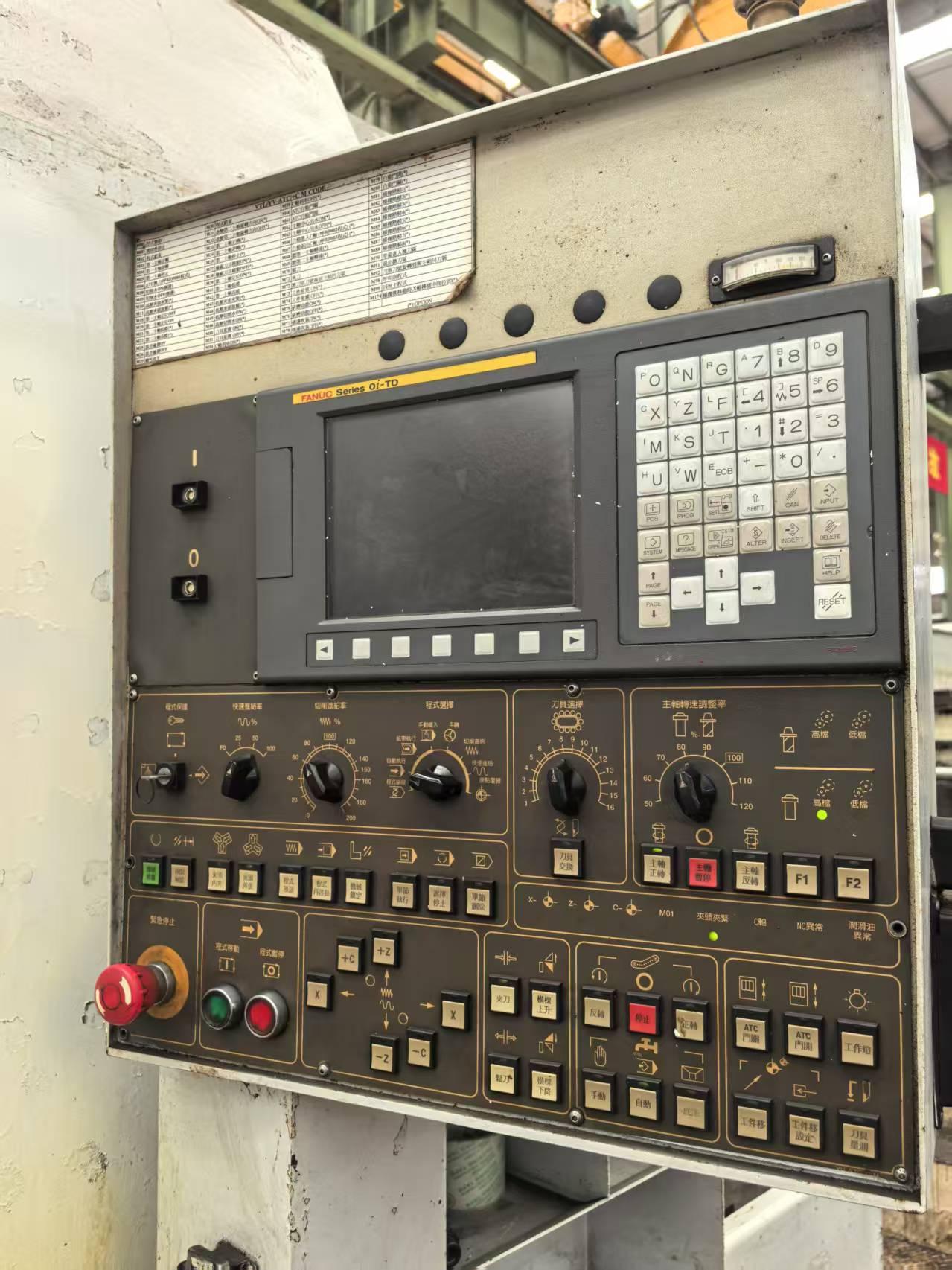

CNC System: FANUC 0i-TD
