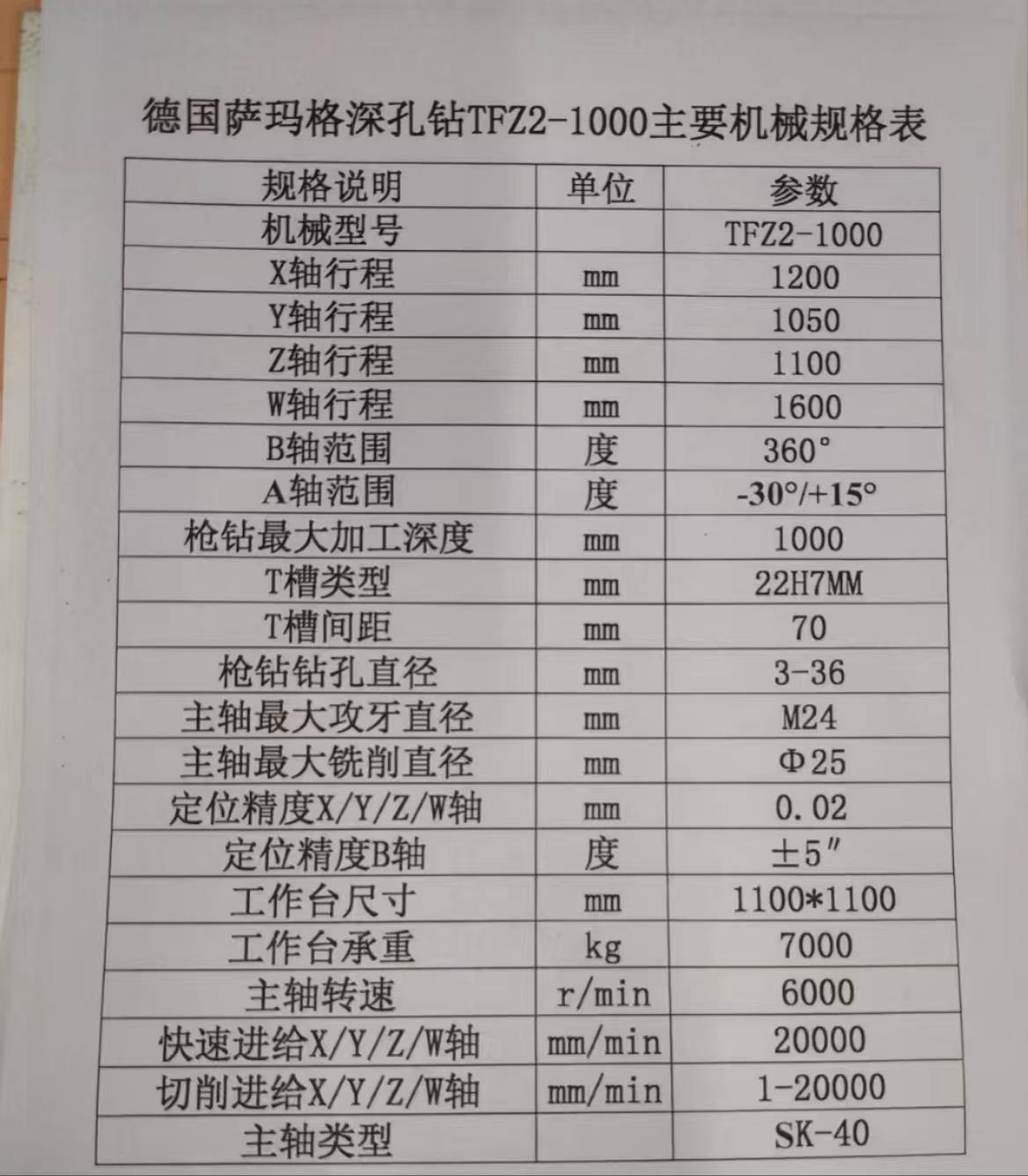

Samag TFZ2-1000 Deep-hole drilling machine

X-axis travel: 1200mm

Y-axis travel: 1050

Z-axis travel: 1100mm

W-axis travel: 1600mm

B-axis range: 360°

A-axis range: -30°/+15°

The maximum machining  depth of the gun drill is 1000mm

T-slot type: 22H7MM

T-slot spacing: 70mm

Gun drill hole diameter: 3-36mm

The maximum tapping diameter of spindle is 24mm

The maximum mill diameter of spindle: Φ25mm

Positioning precision for X/Y/Z/W axes: 0.02mm

Positioning precision for B-axis: ±5°

WorkWorktable size: 1100*1100mm

WorkWorktable load: 7000kg

Spindle speed: 6000rpm

Rapid feed X/Y/Z/W axes: 20,000 mm/min

Cutting feed for X/Y/Z/W axes: 1- 20,000 mm/min

spindle type: SK-40
