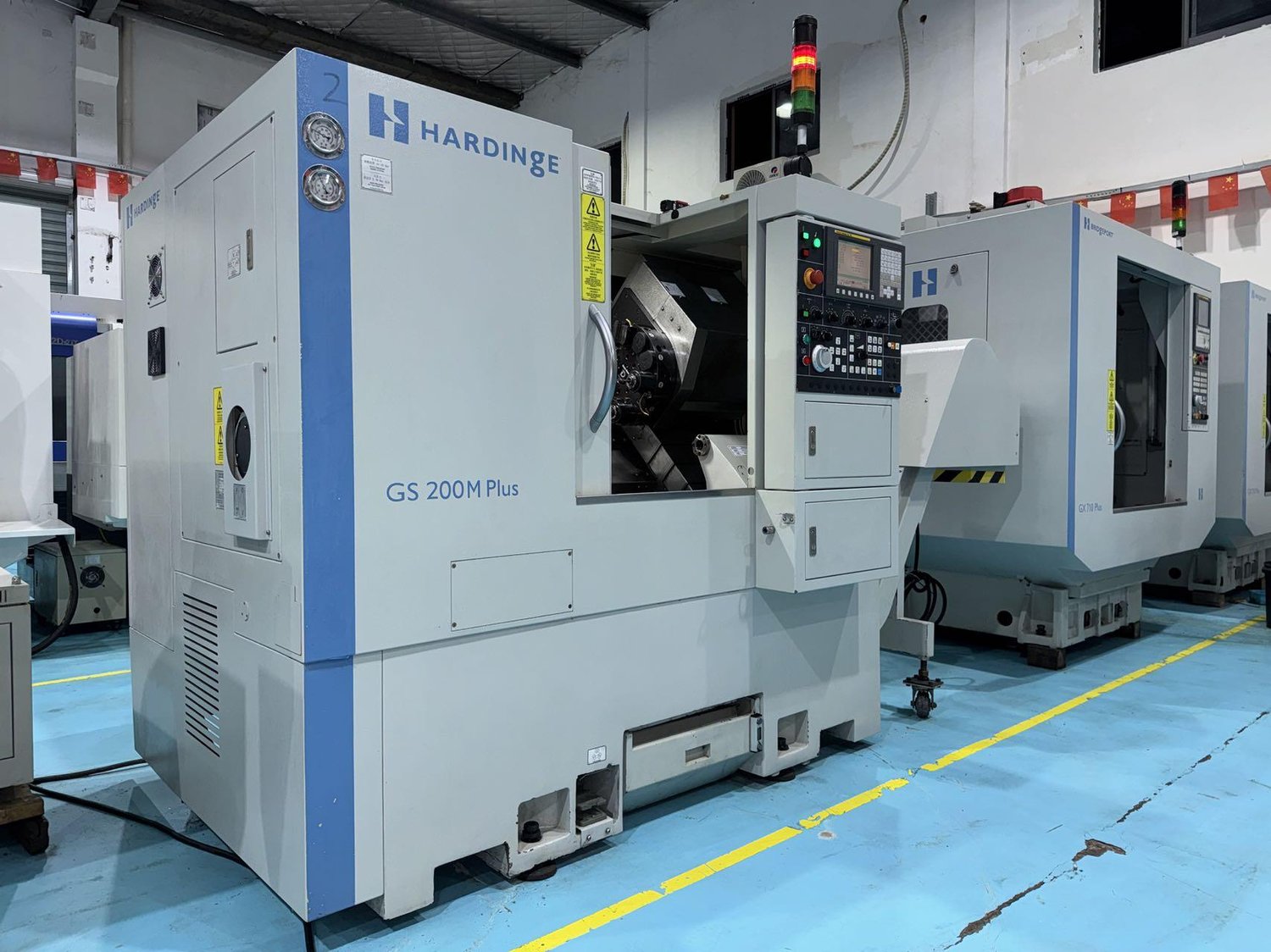

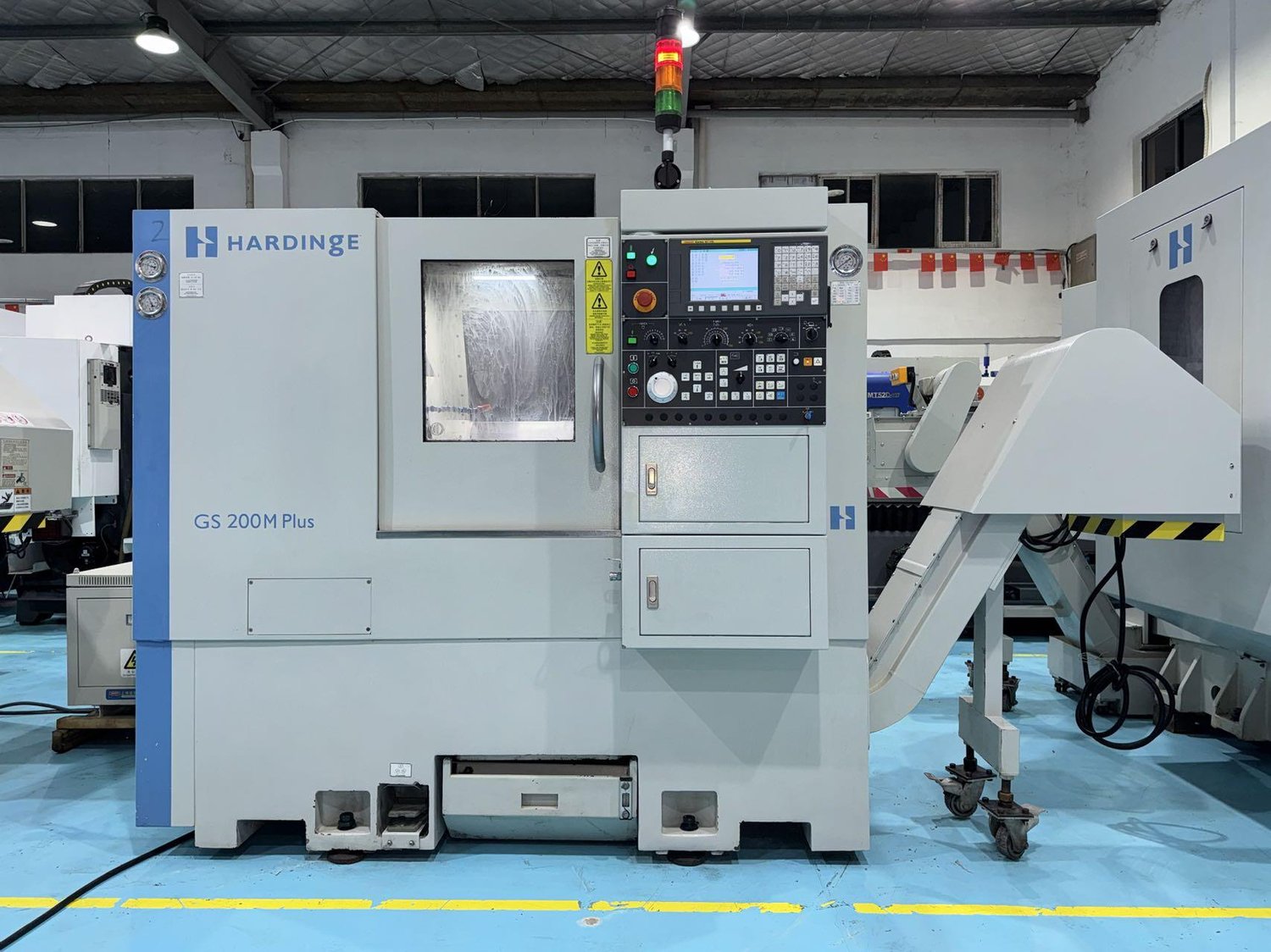

HARDINGE GS 200M plus Turn Mill Machining Centre

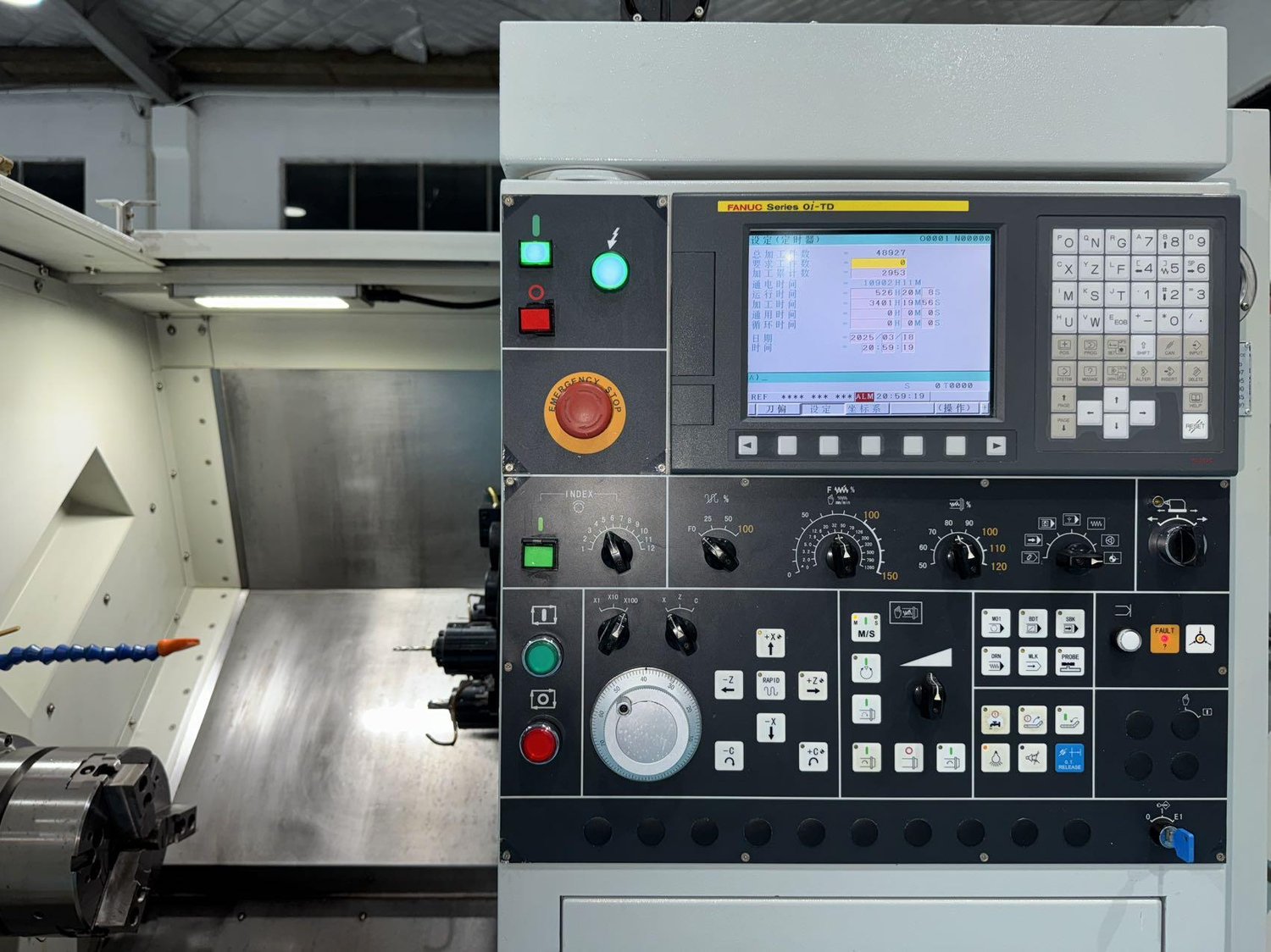

CNC CNC System: FANUC Oi-TD

Spindle speed: 5000 resolutions

X* Z-axis travel: 218*406mm

3 axes fast traverse speed: 30*30*30m/min

The diameter of the bed's rotation: 457mm

Maximum machining  diameter: 284mm

Maximum machining  length: 406mm

The diameter of spindle through hole is 62mm

Usage time: 3,400 hours

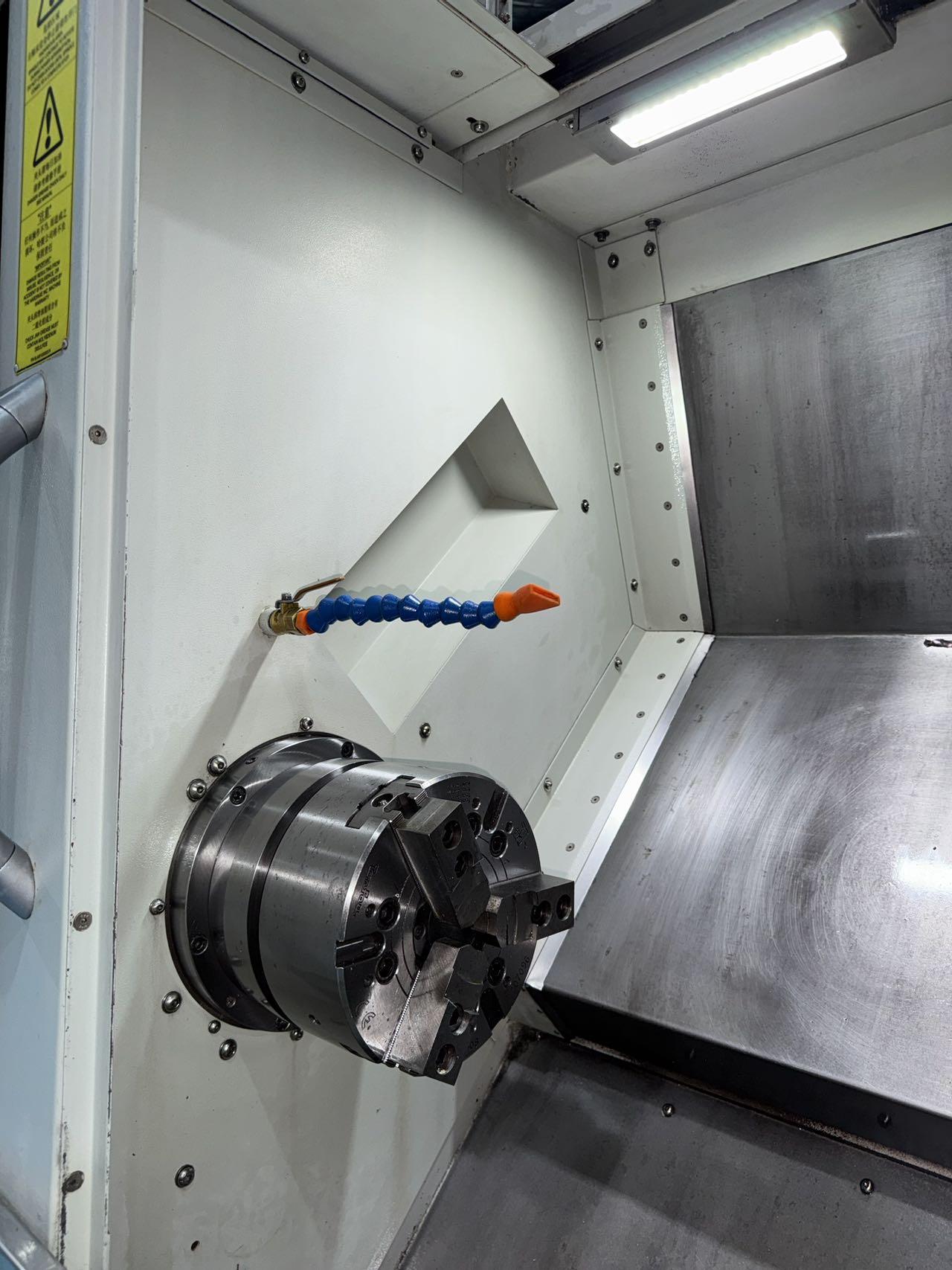

8-inch chuck

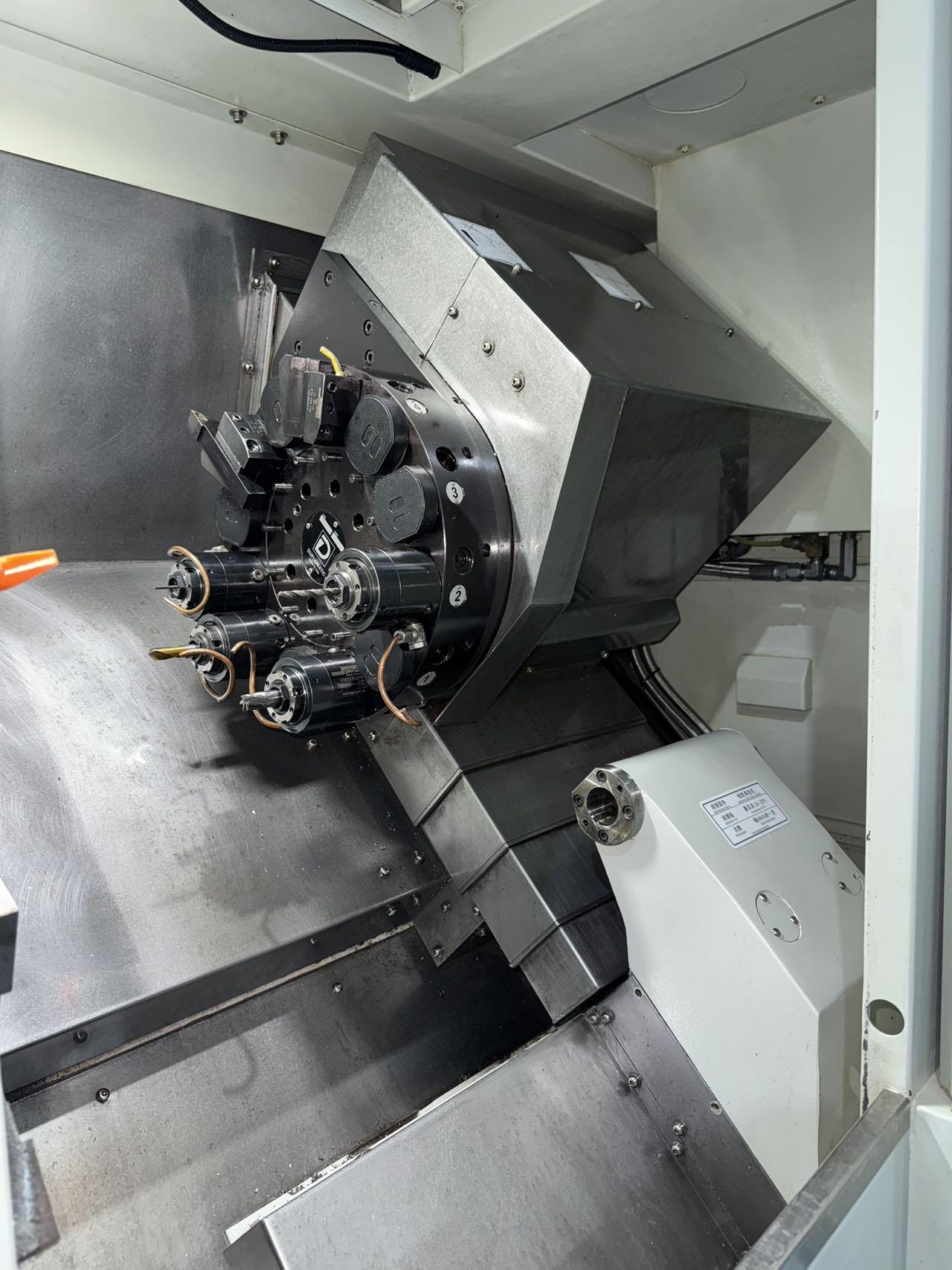

12-position tool turret

Three to four live tools

hydraulic tailstock

Faucet-type chip conveyor
