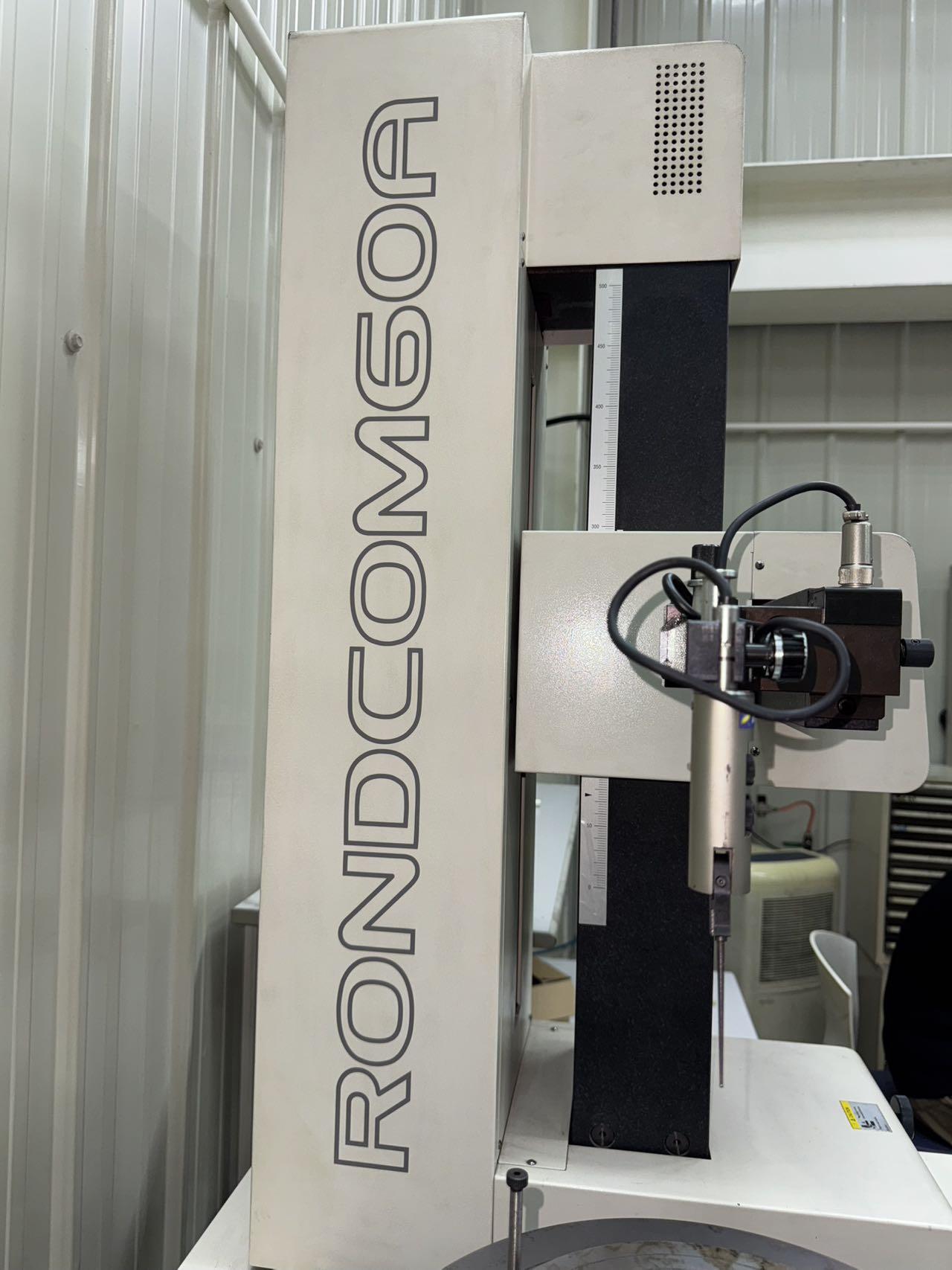

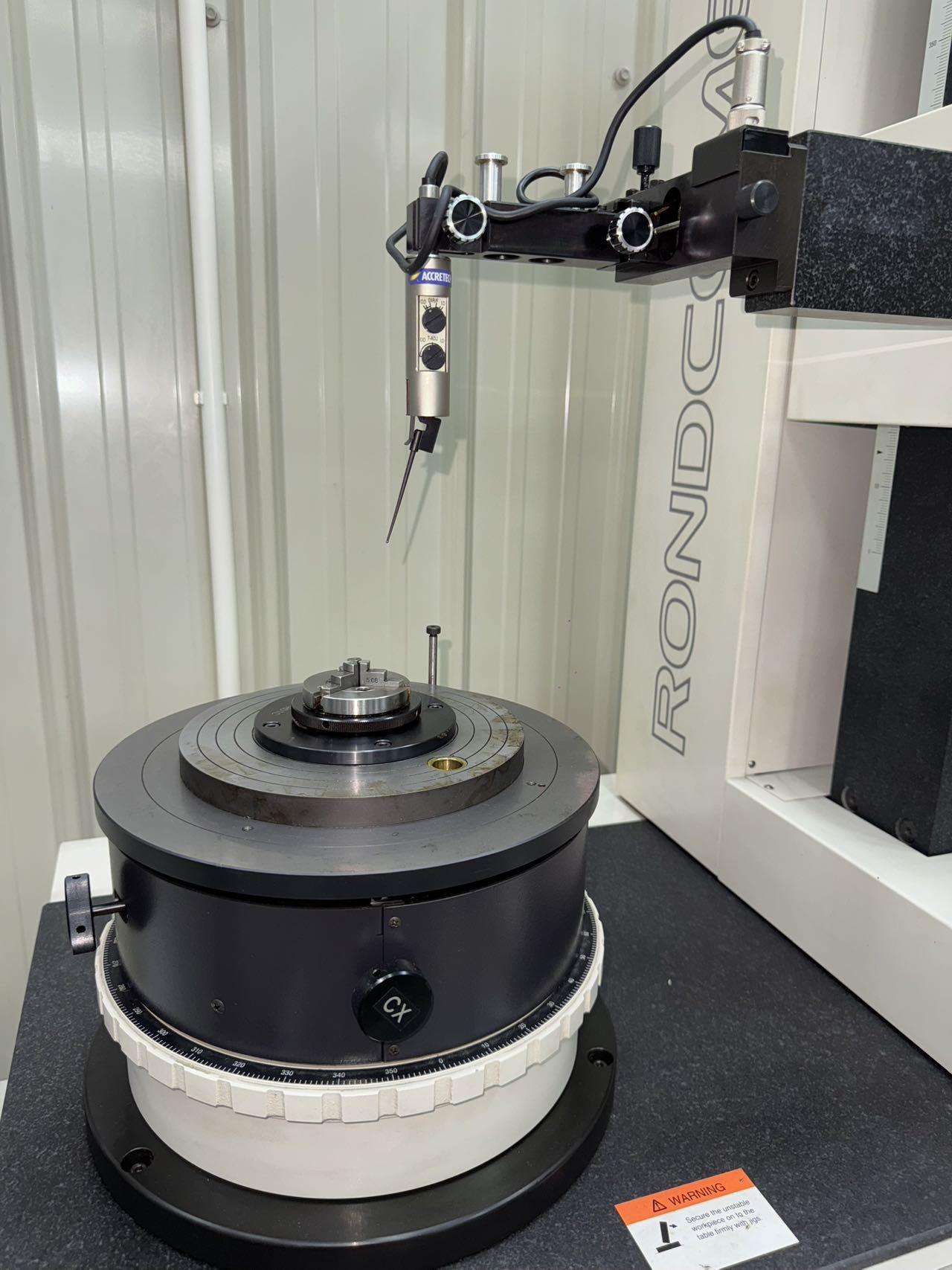

ACCRETECH RONDCOM60A Roundness instrument

Maximum measured diameter: φ420mm

(R axis) Conveying range: 220mm

moving rate: 0.6-6mm/s (maximum 20mm/s)

(Z-axis) Conveying range: 500mm

moving rate: 0.6-6mm/s (maximum 30mm/s)

Maximum loading diameter: φ680mm

Maximum measured height: 500mm

external diameter of workWorktable: φ290mm

Adjustment range: ±5mm/±1°

Loading capacity: 60KG

Linear degree precision (Z-axis): 0.1μm/100mm or 0.25μm/500mm

Radius direction (R-axis): 0.5μm/200mm

Parallelism degree precision (Z-axis): 1.5μm/500mm

Automatic stop precision for (Z-axis/R-axis) : ±5μm

Mechanical Footage: 2000*924*1950mm
