DAHLIH MCV-1020A Machining centre
[Product Information]:
- Inventory number：465195
- Brand：DAHLIH
- Model：MCV-1020A
- Origin：Taiwan, China
- Location：China
- Year：2014
- Create Time：2025-08-30
Specifications:
WorkWorktable size :1250x660mm
T-slot (width X number of slots):18X5mm
WorkWorktable load :1000/2200kg
XYZ axis travel :1020X520X560mm

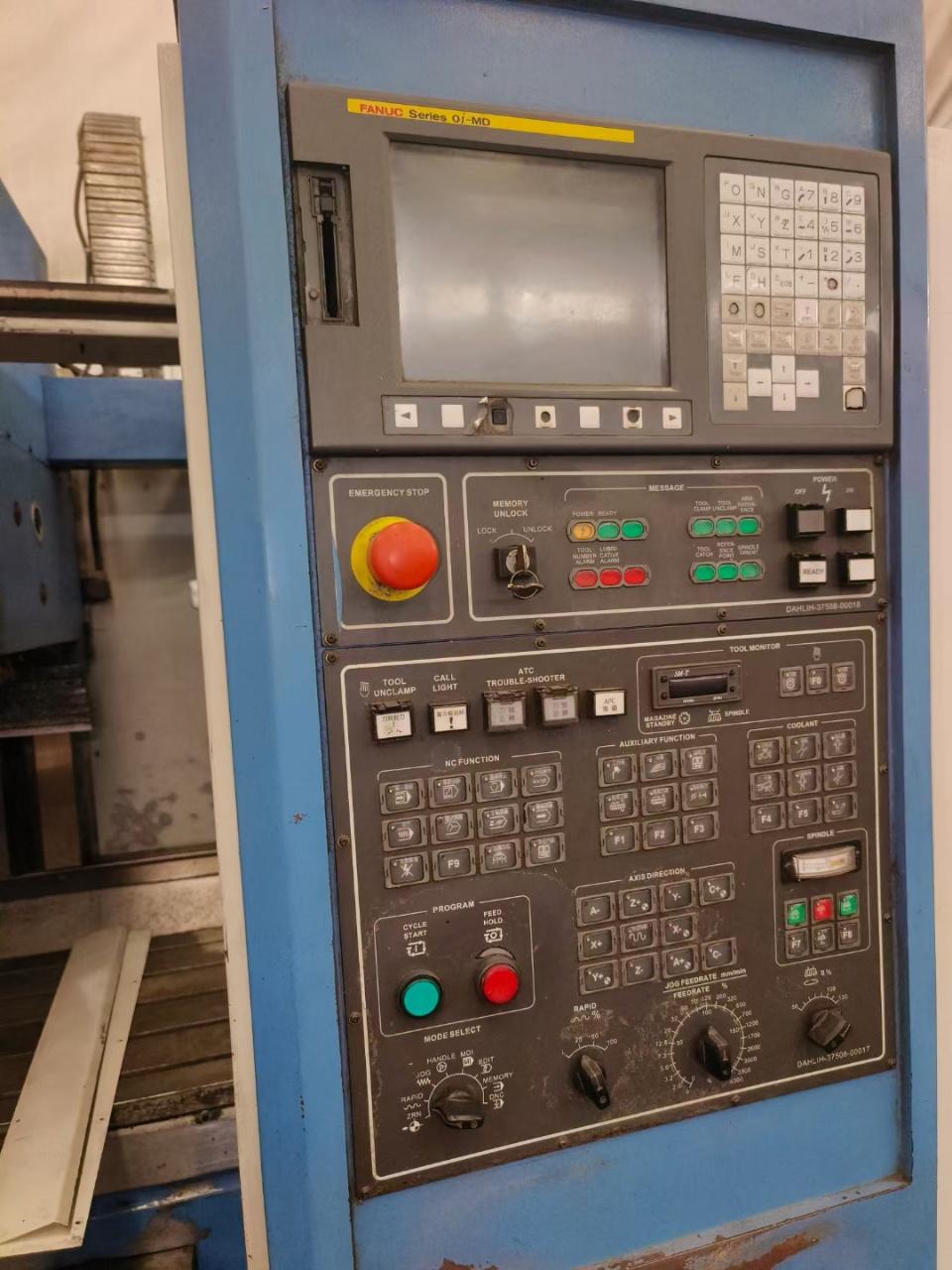

CNC System ioMD large screen with mold package

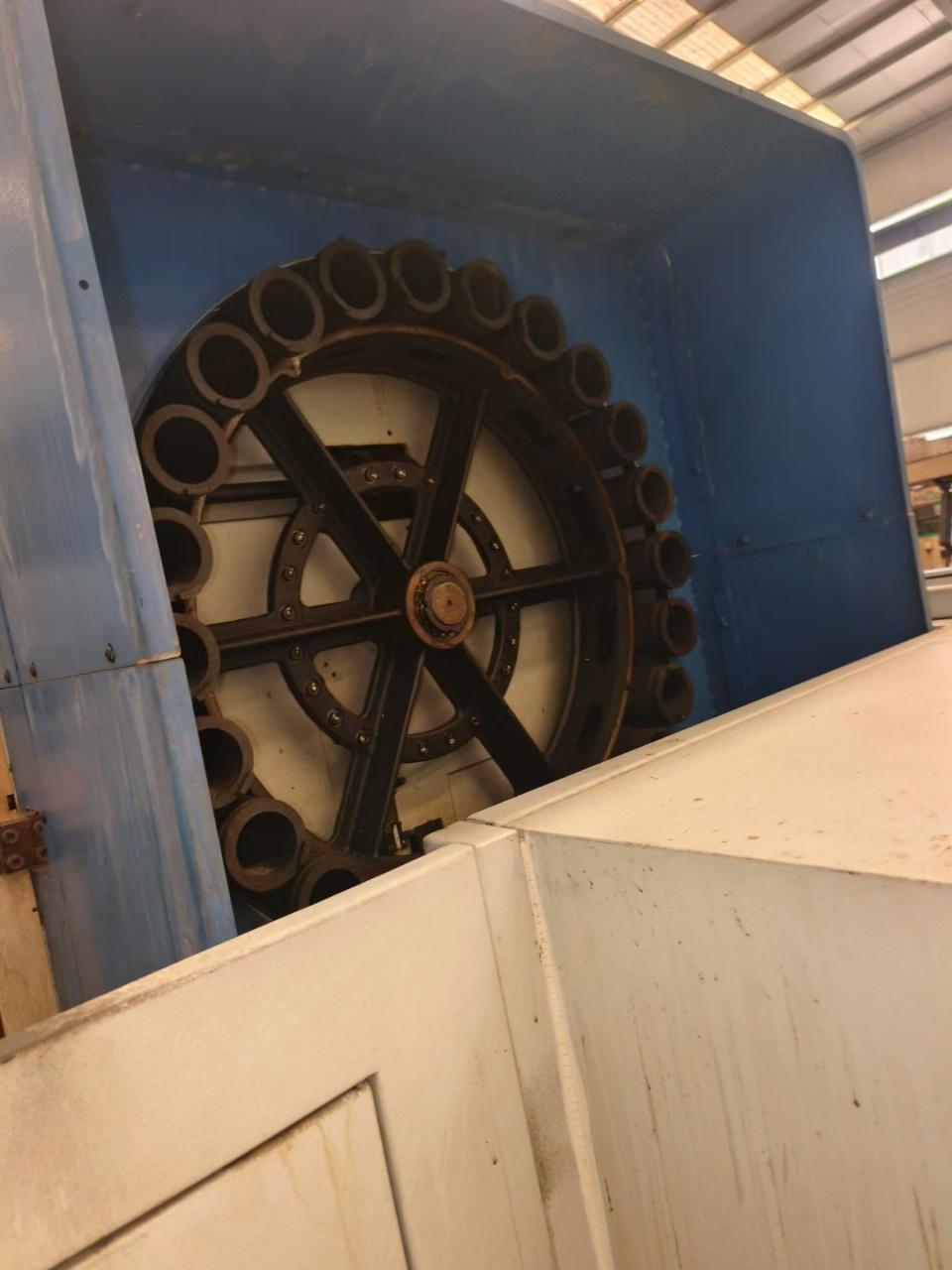

24 tools magazine
Distance from spindle nose to workWorktable surface :150-710mm
Distance from the shaft center to the front of machine column :600mm
Spindle speed :6000rpm
spindle motor :7.5kw
Floor area :4440X3575mm

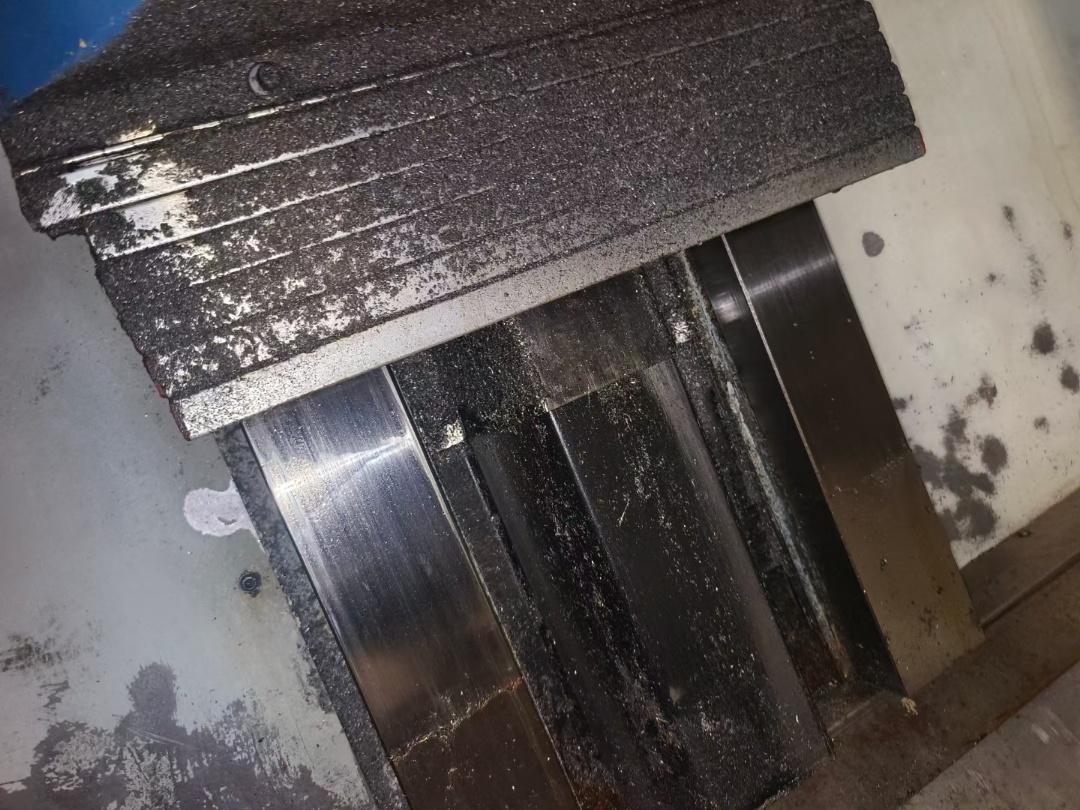

3 axes rigid guideway
BT50
gear spindle
Alpha motor, spindle power 11kw
Mold machining machine
Net weight: 8,000 kg
