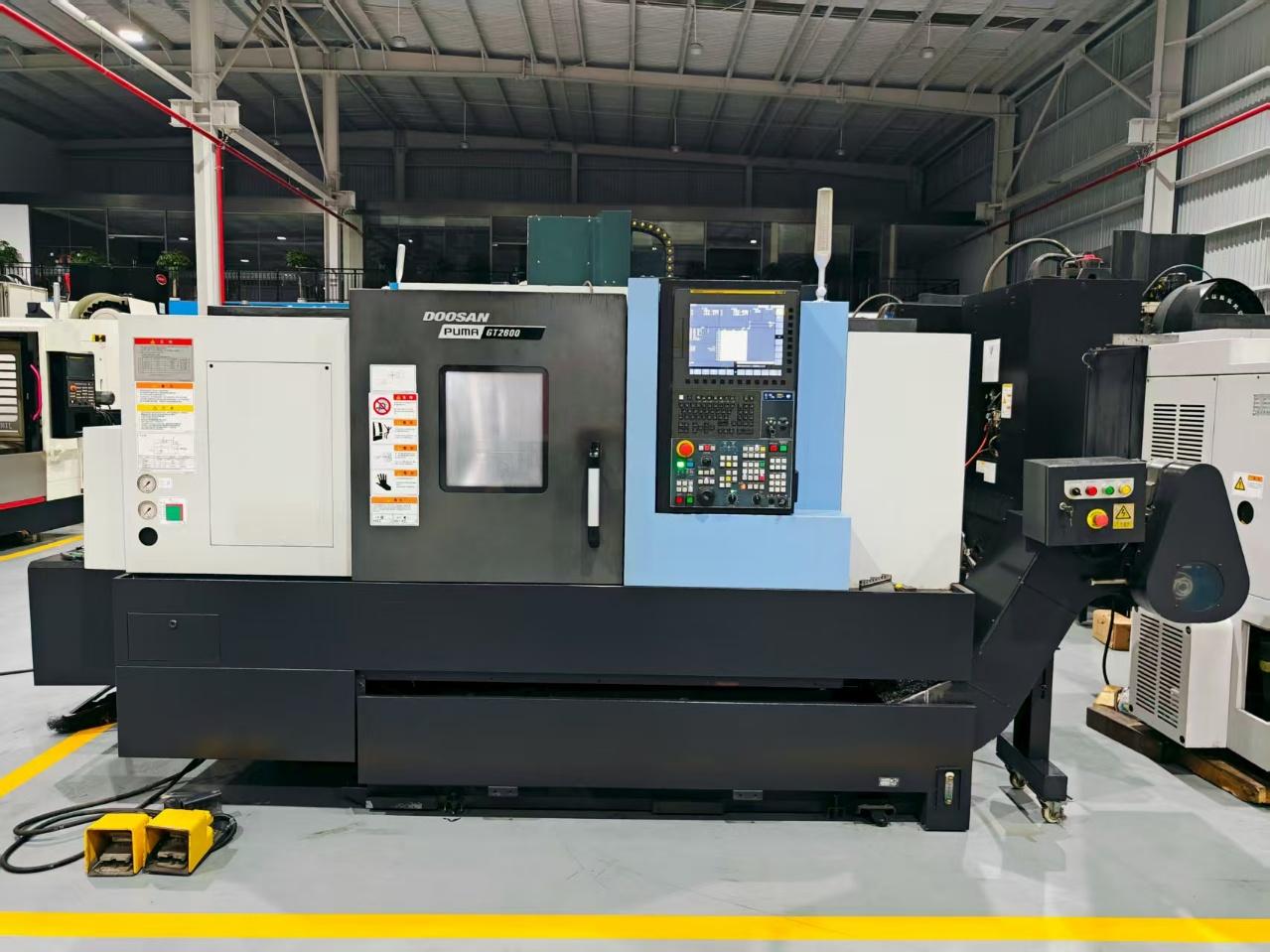

DOOSAN PUMA GT2600 CNC turning lathe

X* Z-axis travel: 265*680mm

Two-axis rigid guideway

spindle through hole diameter: 91mm

spindle nose: A2-8

Spindle speed: 3500rpm

workpiece rotary diameter: 600mm

machining  diameter: 410mm

machining  length: 610mm

Main motor power: 18.5/22 kW

Rotary diameter: 600mm

Spindle speed: 3500mm

spindle through hole: 76mm

Motor power: 15/18.5

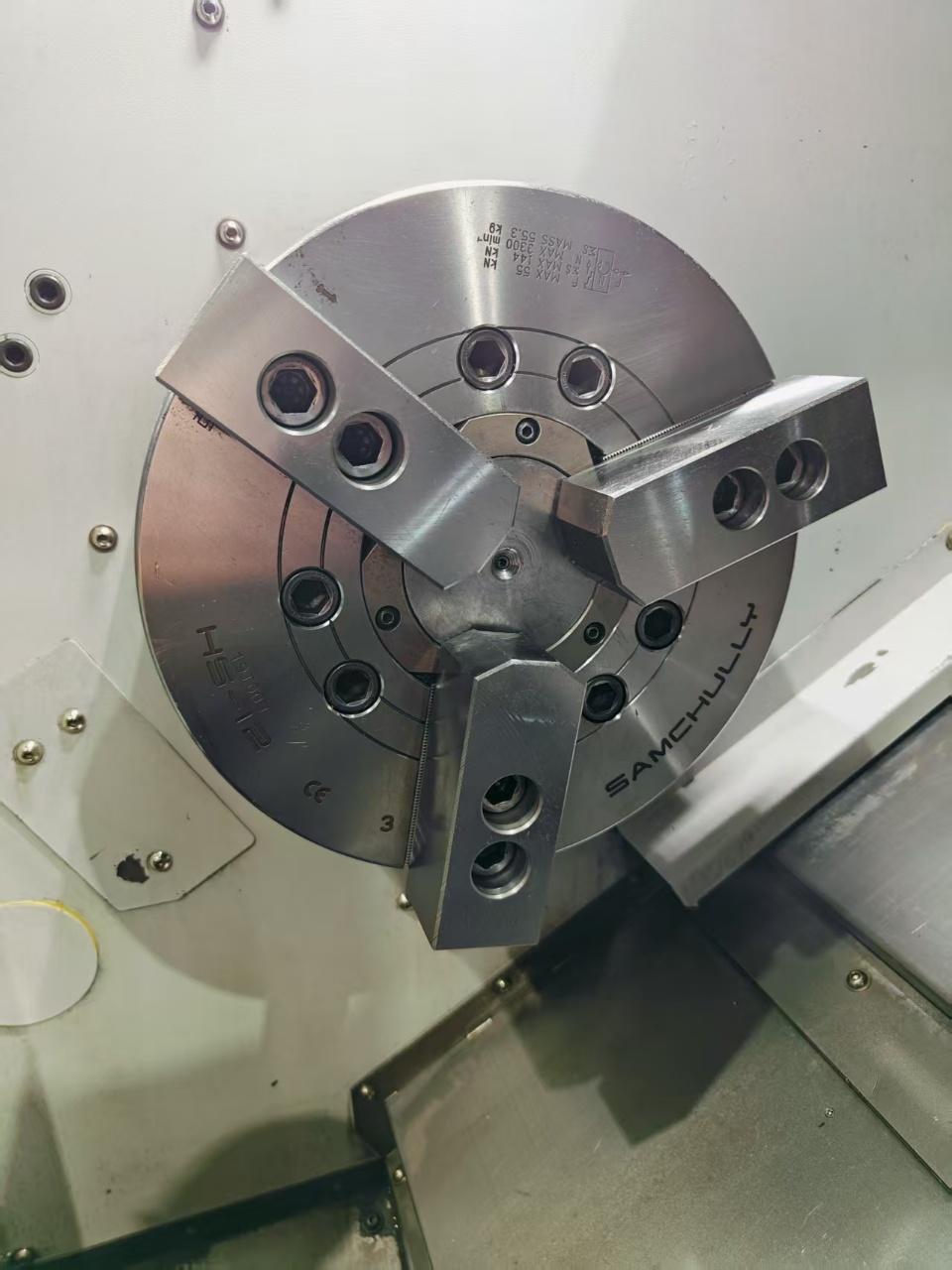

10-inch chuck

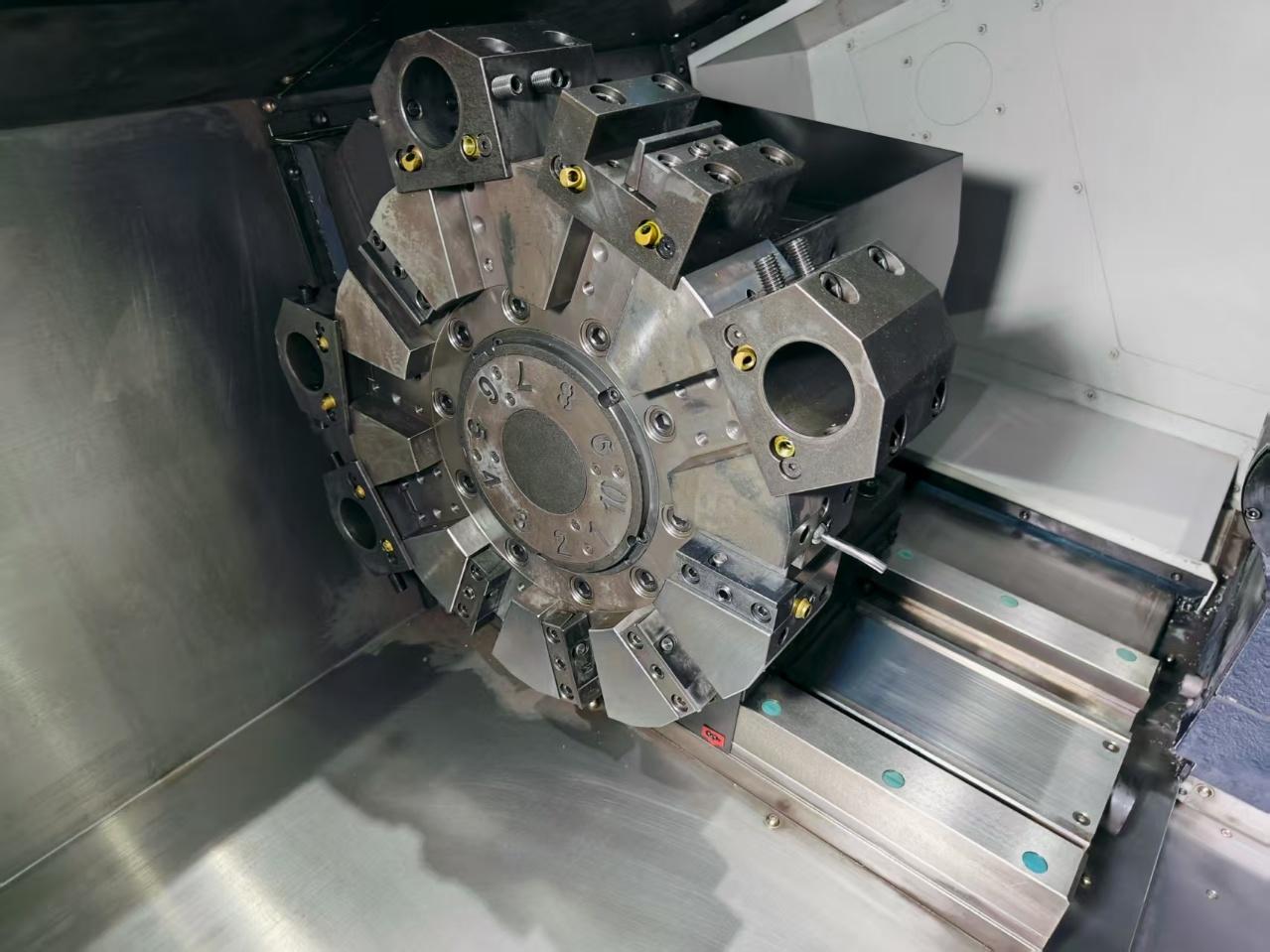

12-position servo tool turret

Overall Footage: 3396*1707*1779mm
