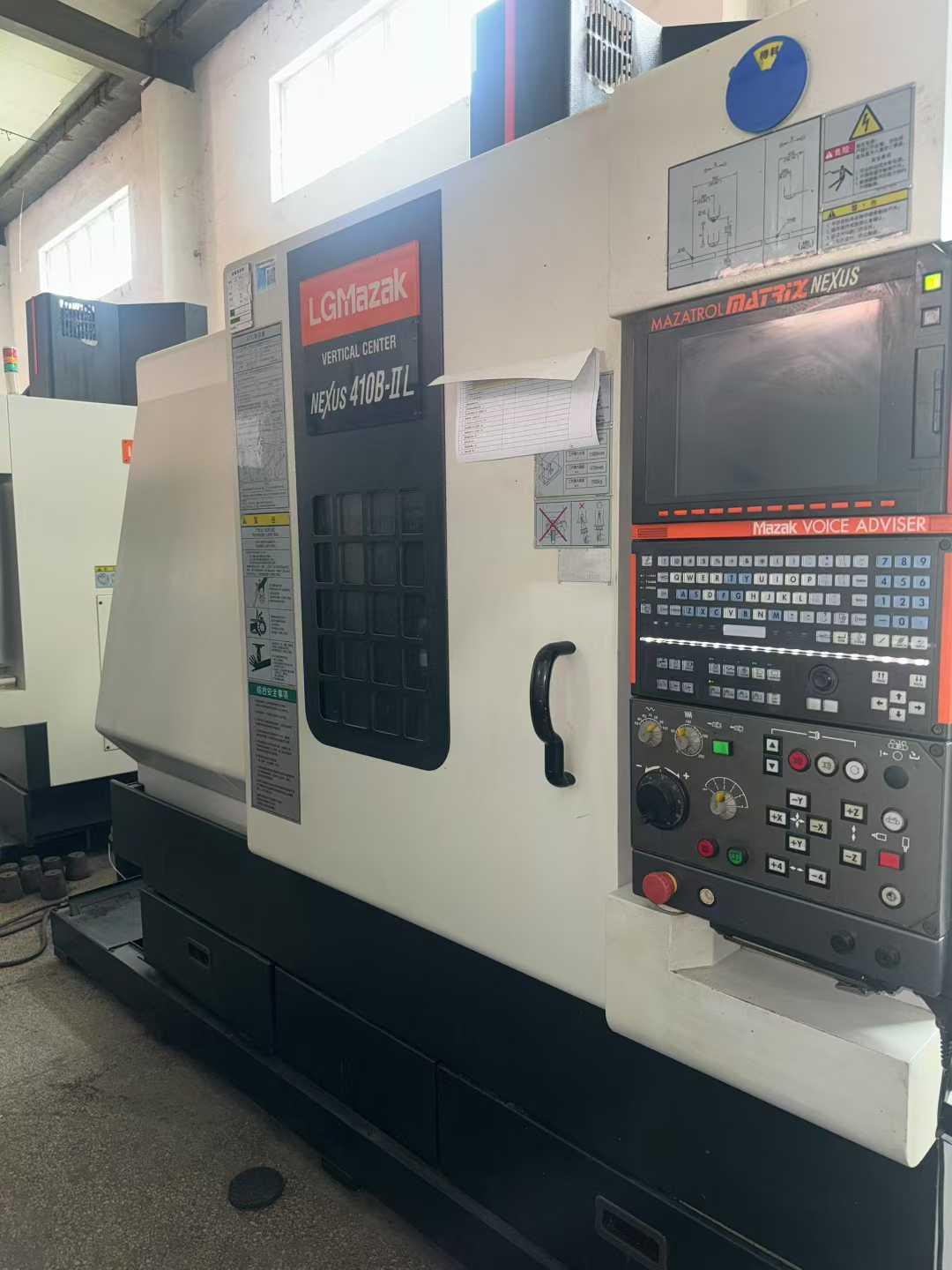

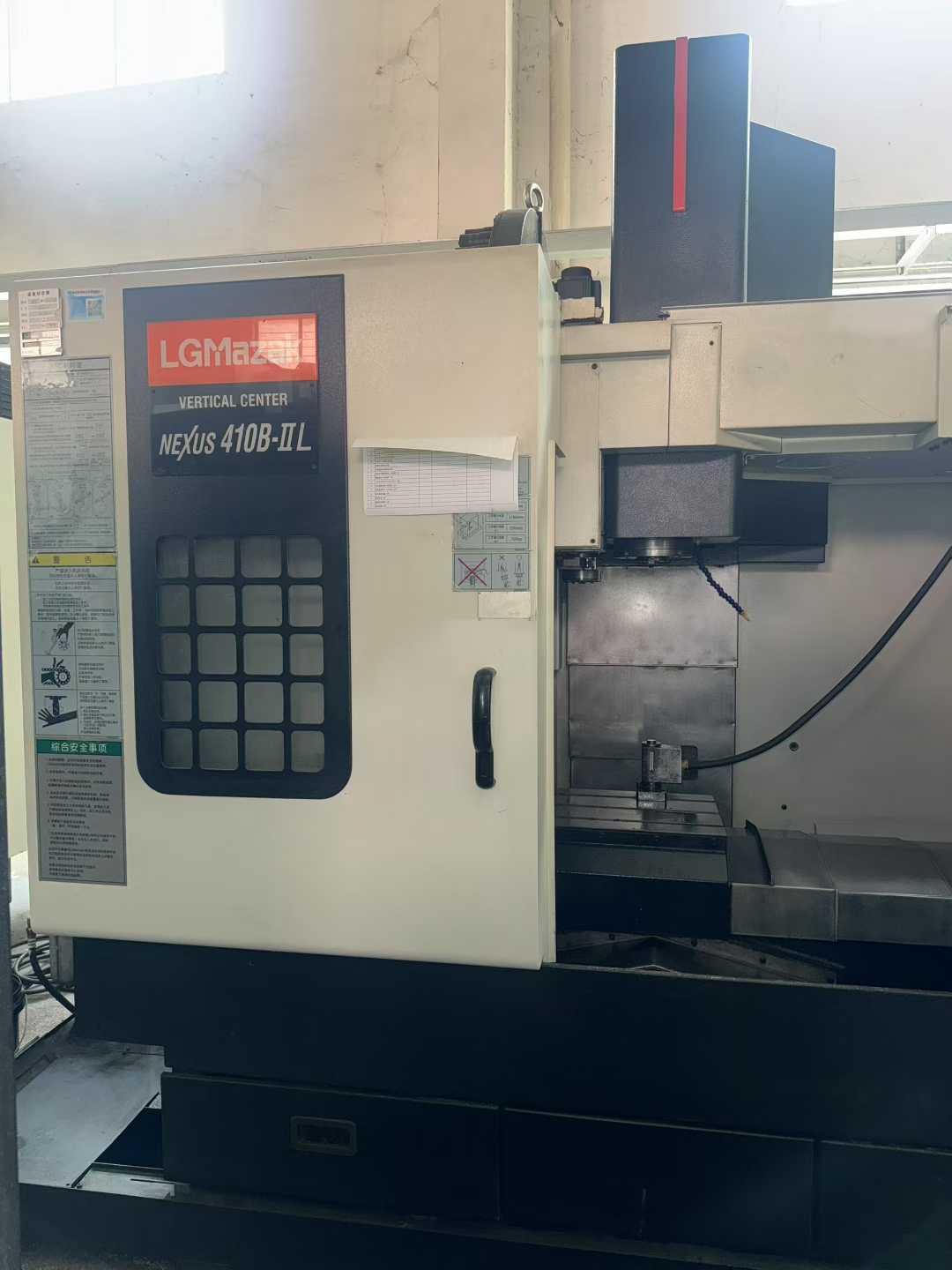

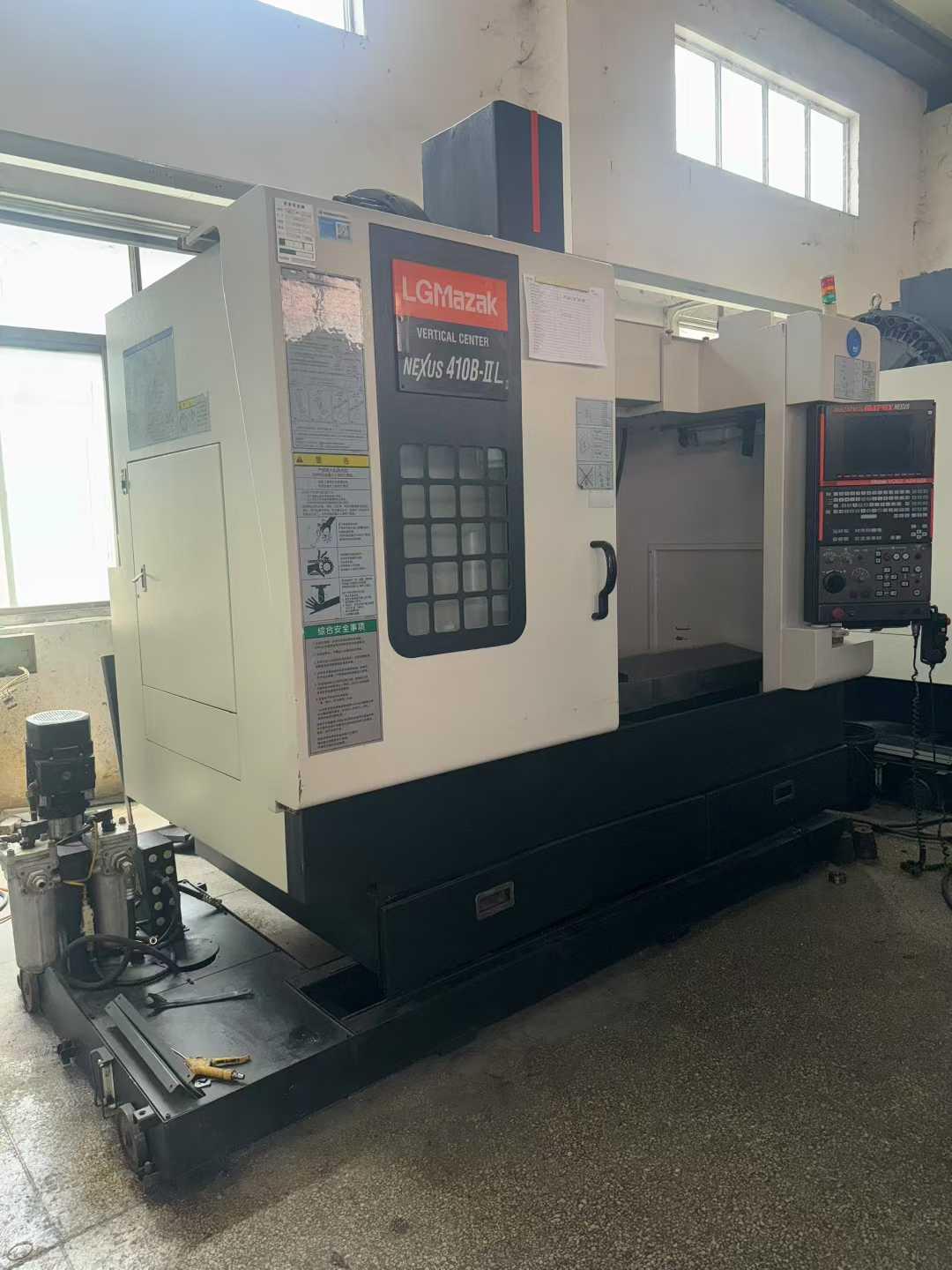

MAZAK NEXUS 410B-IIL Machining centre

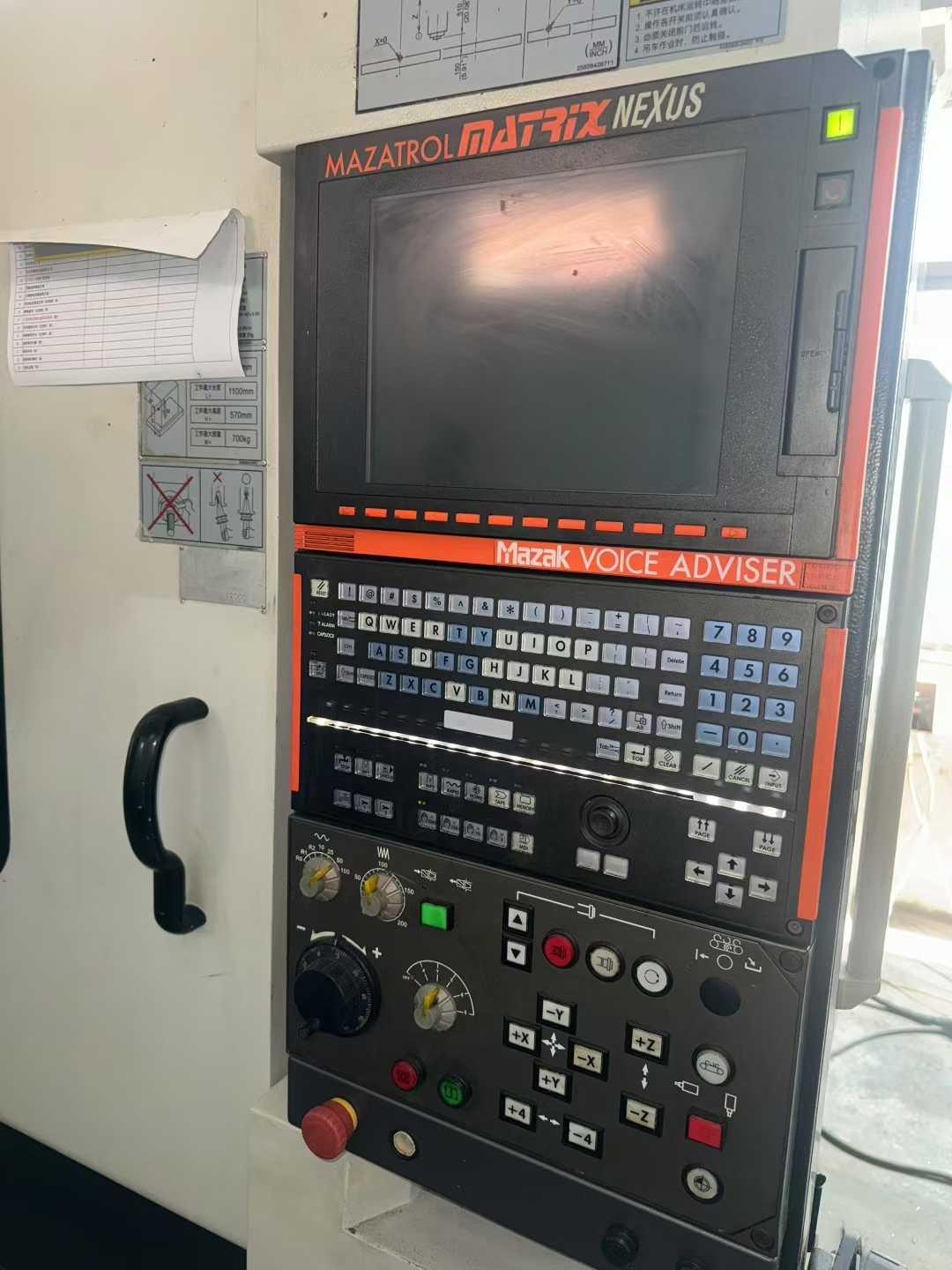

CNC CNC System: Mazatrol Matrix

three-axis travel: 762*410*510mm

Distance from workWorktable to spindle nose: 150-660mm

Distance from the front of the column to the center of spindle is 504mm

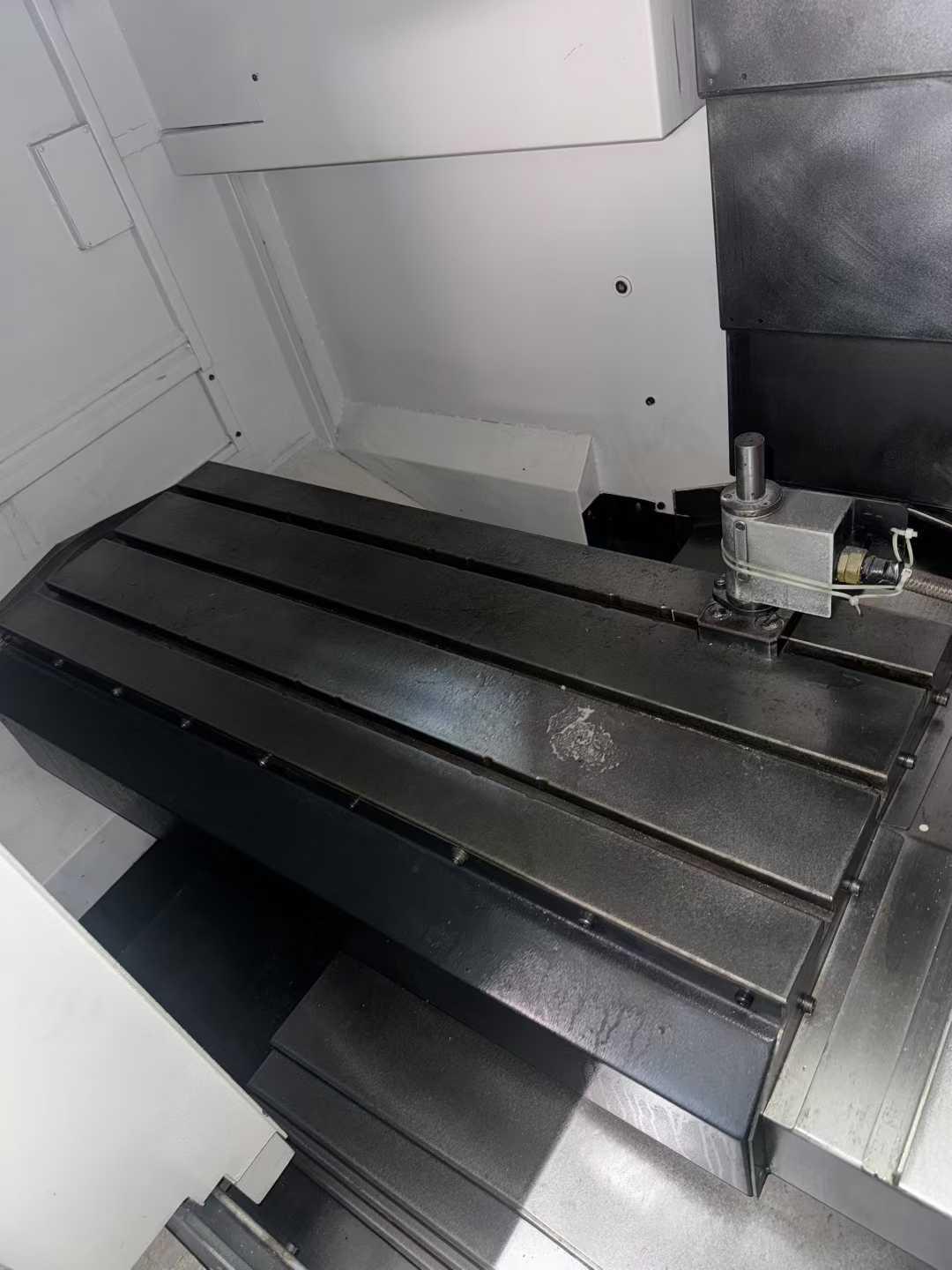

WorkWorktable size: 1100*410mm

WorkWorktable load: 700kg

WorkWorktable T-slot: 3*18-125mm

Spindle speed: 12,000 RPM

Rapid feed: 36/50m/min

Cutting feed: 8000mm/min

Tool changing time: 2.9 seconds

spindle power: 18.5kw

Overall Footage: 2800*2480*2600mm

magazine capacity: 30
