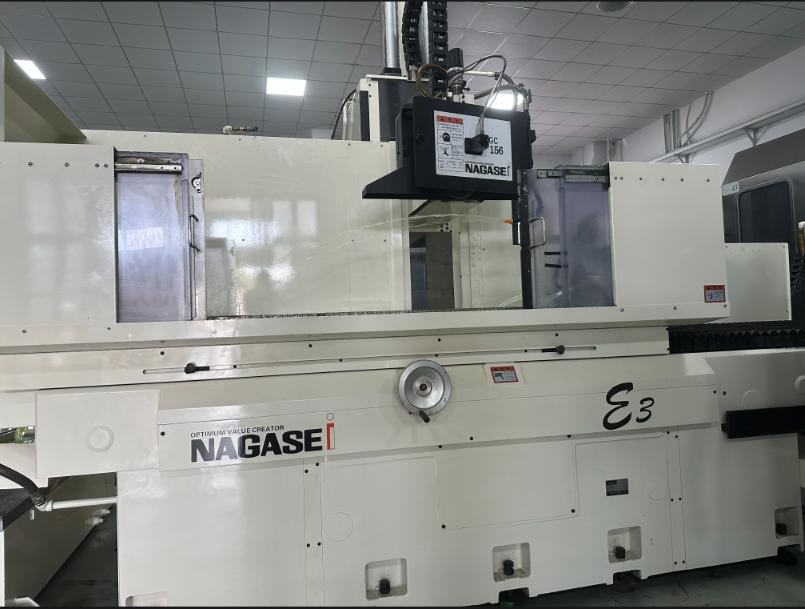

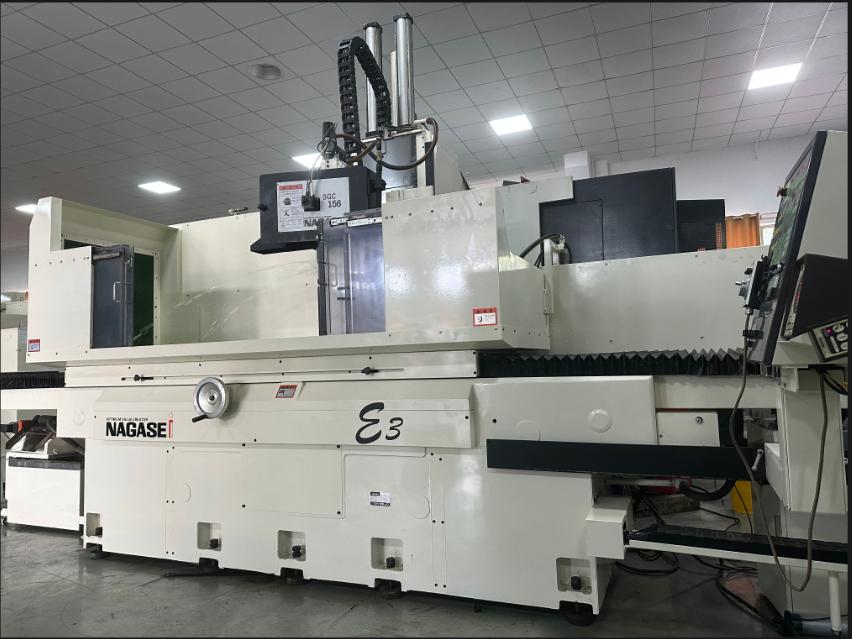

NAGASEi SGC-156 Surface grinder

three-axis travel :1500*600*600mm

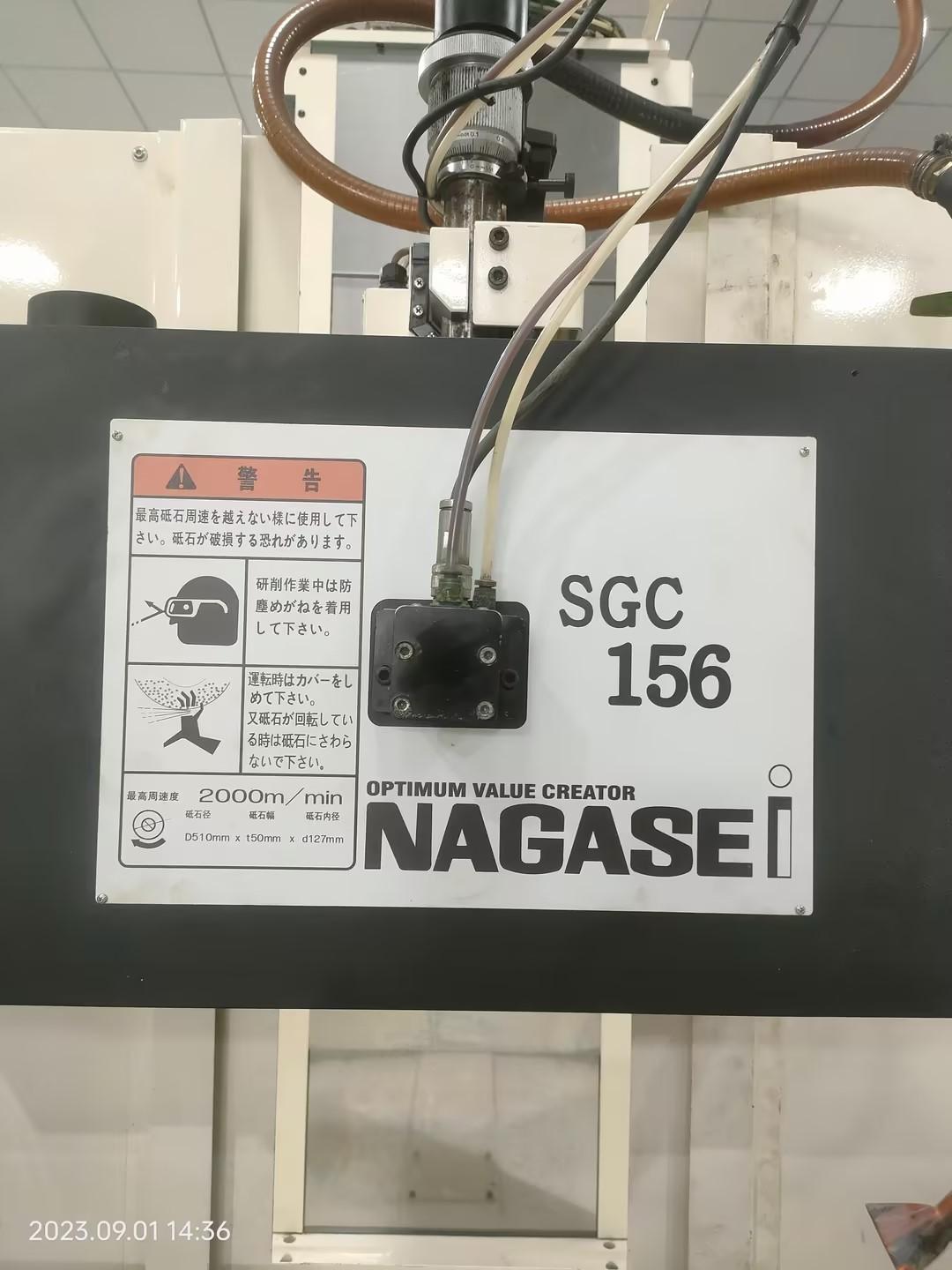

grinding wheel Footage (external diameter x width x Internal diameter) : φ510x50xφ127mm

Distance from workWorktabletop to spindle center: 800mm

travel (lateral and longitudinal) : 1800x660

Minimum feed rate :0.001mm

spindle drive method: Mechanical direct connection

WorkWorktable size :1500x600mm

Per-axis drive mode; YZ axis: Lead screw drive, X-axis hydraulic drive

Chip removal method: Magnetic tape filtration

guideway method; X-axis: Open static pressure, YZ-axis: linear guide

There is a glass scale.

machine tool structure: Horizontal

Overall Footage :6000mmx4000mmx3000mm
