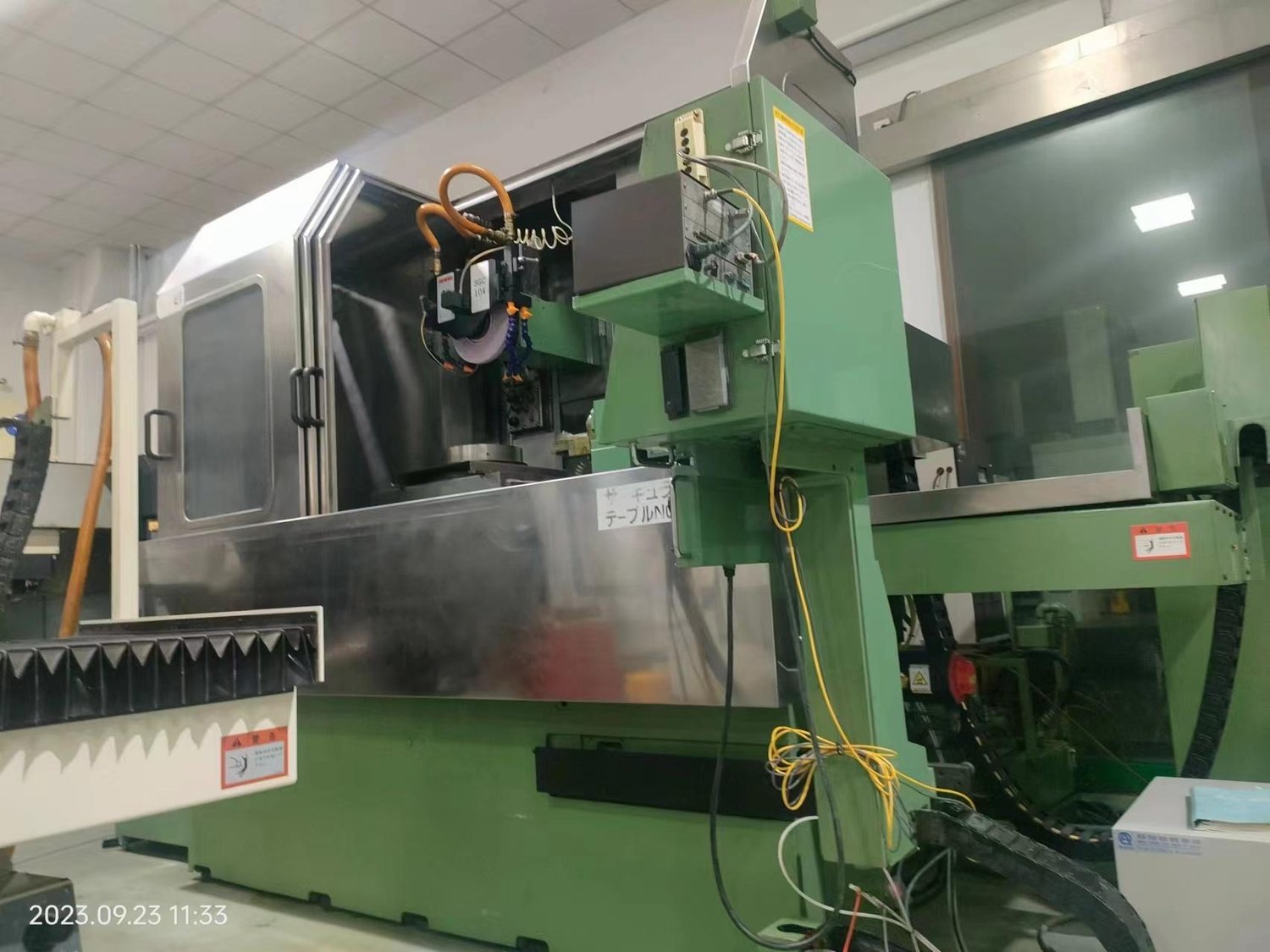

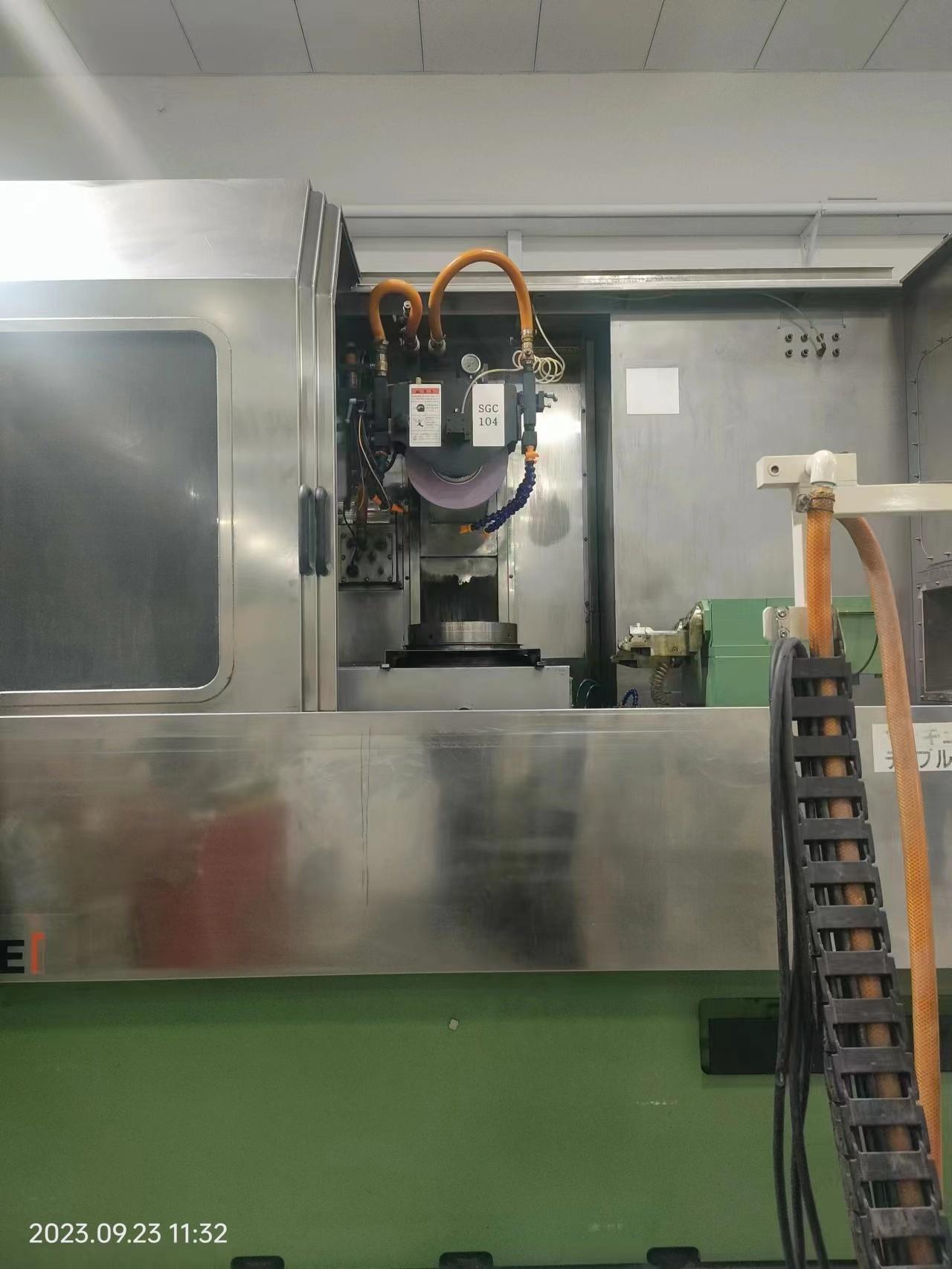

NAGASEi SGC104 Grinding machines

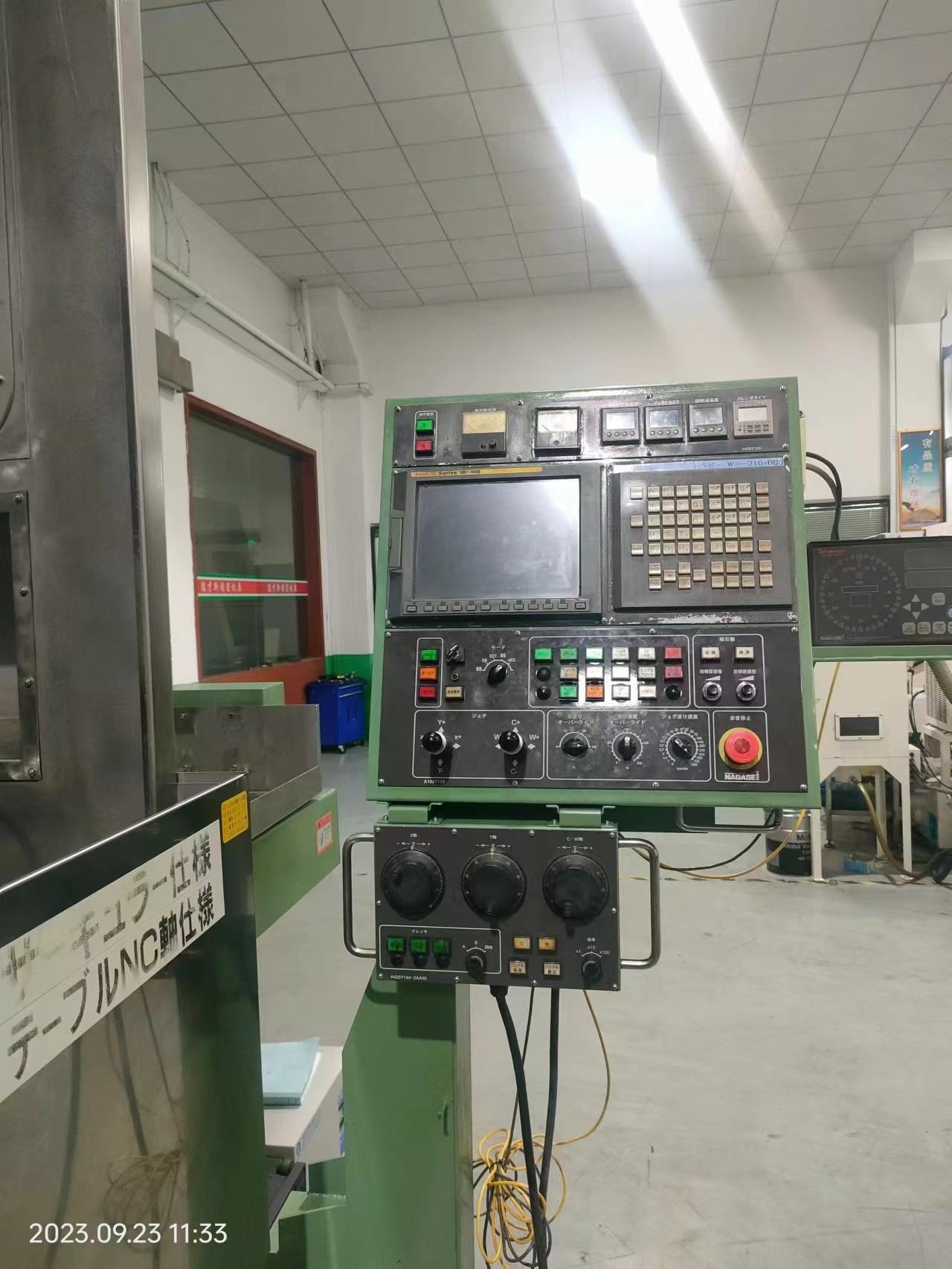

CNC CNC System: FANUC 18i-MB

travel of X*Y*Z axis: 950*340*850mm

Axis A: φ315mm

Segmentation precision: ±0.0005

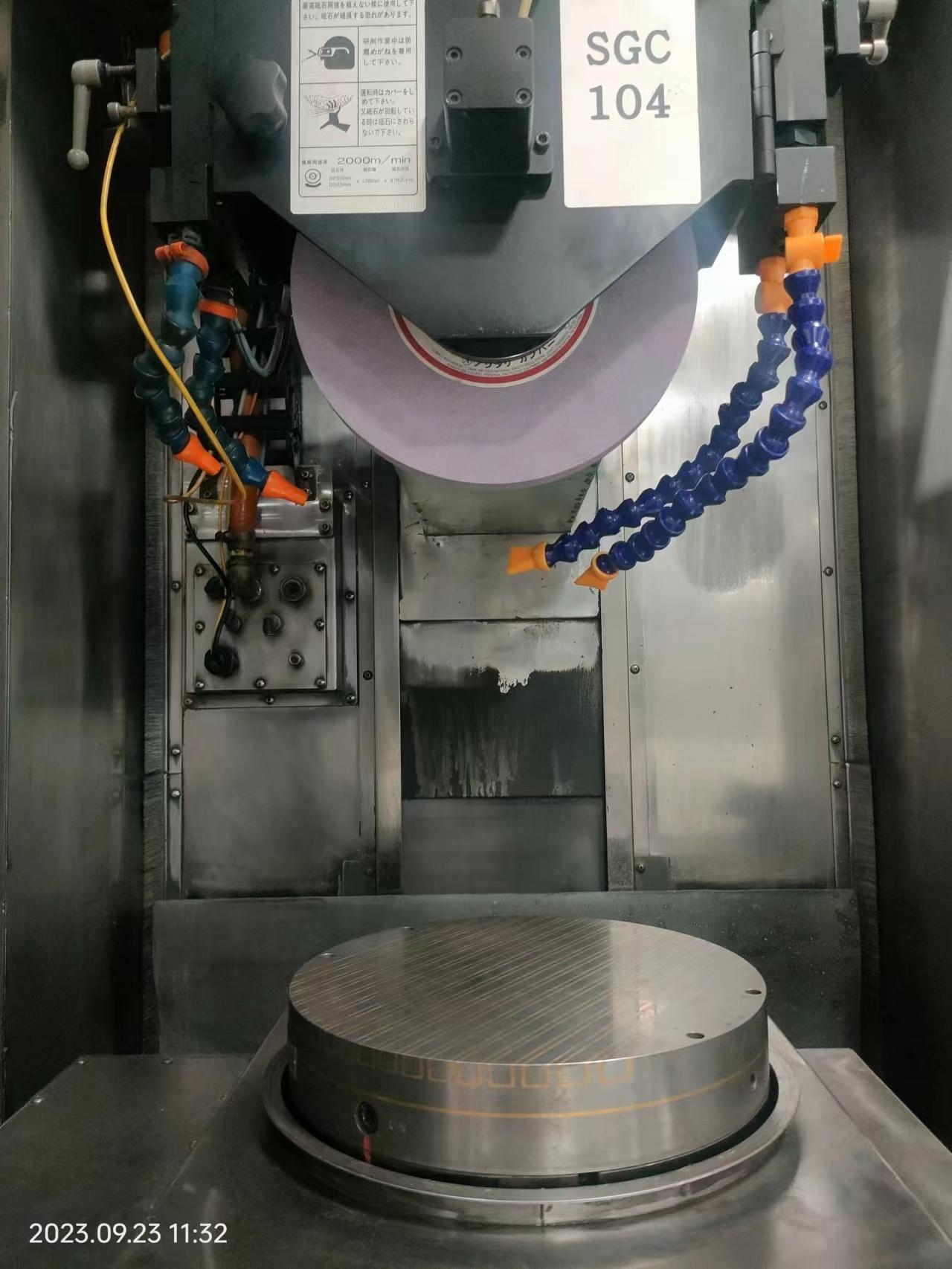

grinding wheel speed: 2000rpm

grinding wheel diameter * width * Internal diameter: φ305*30*φ76.2

Grinding travel: 950*340*400mm

Minimum feed rate: 0.0001mm

WorkWorktable size: 1000*400mm

WorkWorktable load: 500kg

guideway method: WA axis static pressure XY axis gauge

Chip removal method: Magnetic chip removal

Overall Footage: 5000*2500*2800mm
