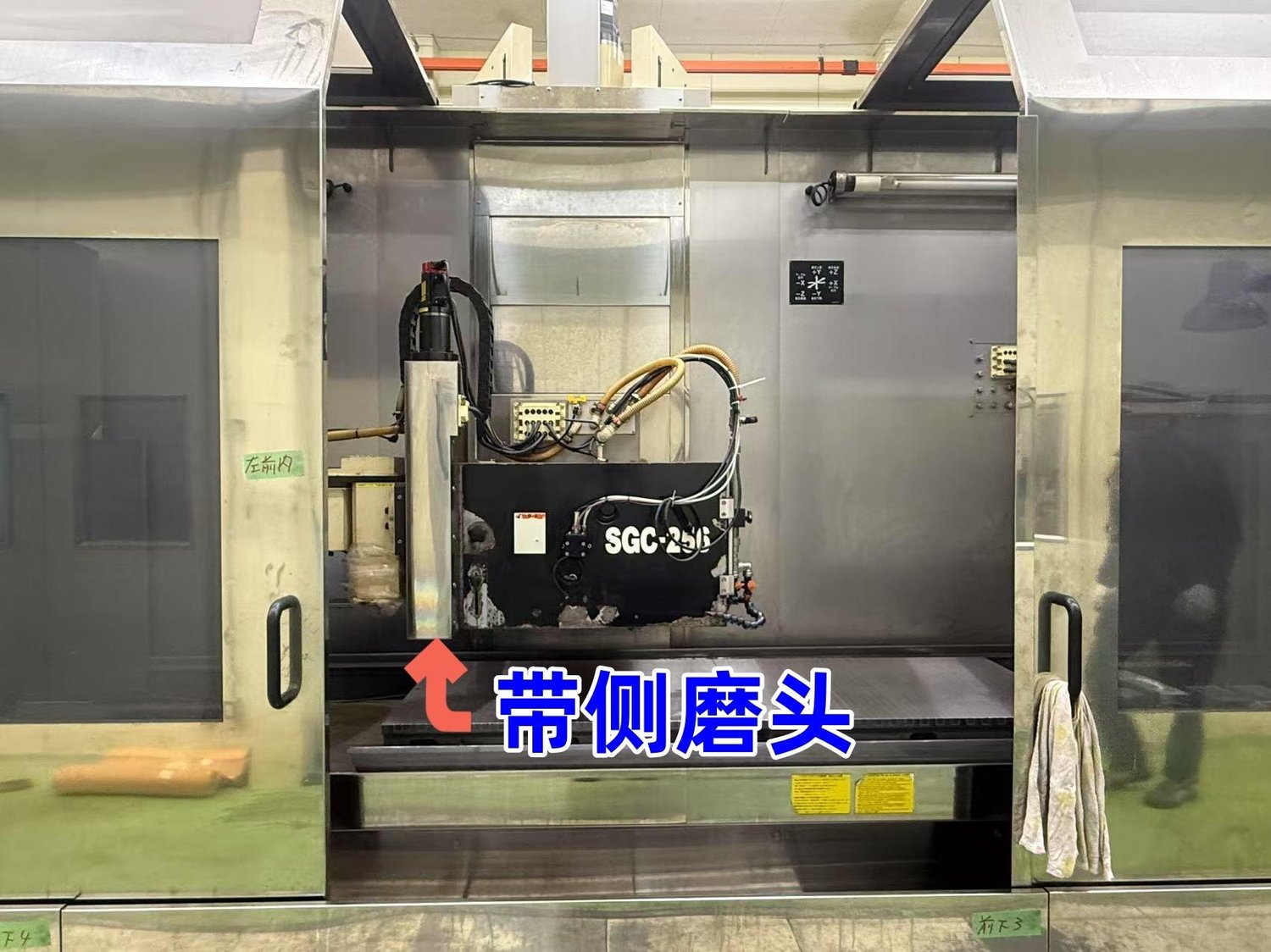

NAGASEi SGC256 Surface grinder
[Product Information]:
- Inventory number：65375
- Brand：NAGASEi
- Model：SGC256
- Origin："Japan
- Location：China
- Year：To be supplemented
- Create Time：2025-08-07
Specifications:
WorkWorktable :1800x600mm
Chuck size :1800x600mm
From the surface of workWorktable to the center of the whetstone :1070mm
From workWorktable surface to the lower surface of the whetstone (when using an o510 whetstone):655mm
From the upper surface of the chuck to the lower surface of the whetstone (when using an o400 whetstone):710mm
actuating motor
Maximum left-right travel (including chuck slider):2900mm
The effective machining range of workWorktable is 1800mm
T-slot (width x quantity):16mmx3
left-right feed rate :25m/min
Minimum setting unit :10μm
Manual hand-cranked feed :10/100μm
The inner surface of the hydrostatic bearing
AC actuating motor drive
Scale feed (minimum resolution 0.1μm)
Maximum forward and backward travel :660mm
Front and rear feed rate :600mm/min
Minimum setting unit :0.1μm
Manual hand-cranked feed :0.1/1.0/10μm/PULSE
