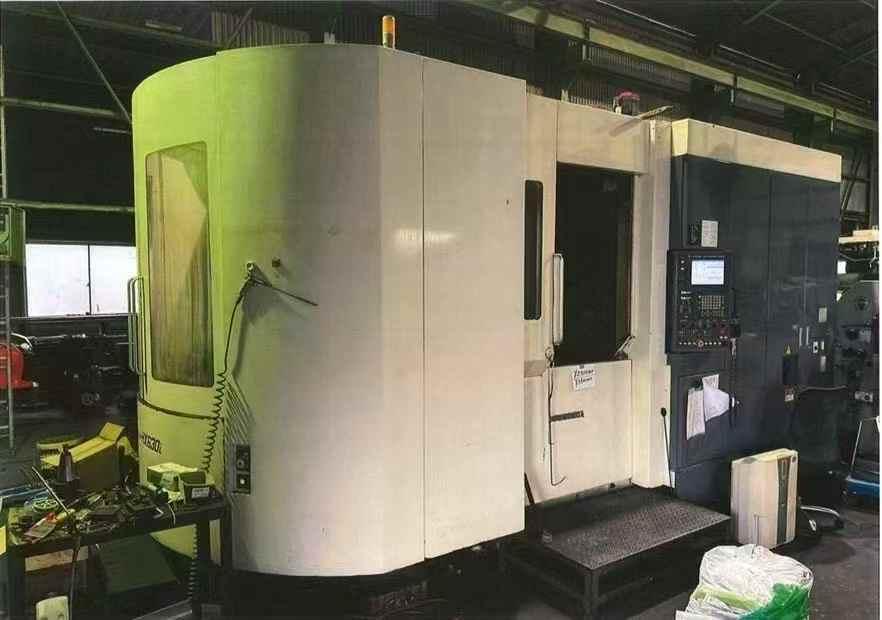

KITAMURA Mycenter-HX630i Horizontal Machining centre
[Product Information]:
- Inventory number：65365
- Brand：KITAMURA
- Model：Mycenter-HX630i
- Origin："Japan
- Location：China
- Year：2004
- Create Time：2025-08-07
Specifications:

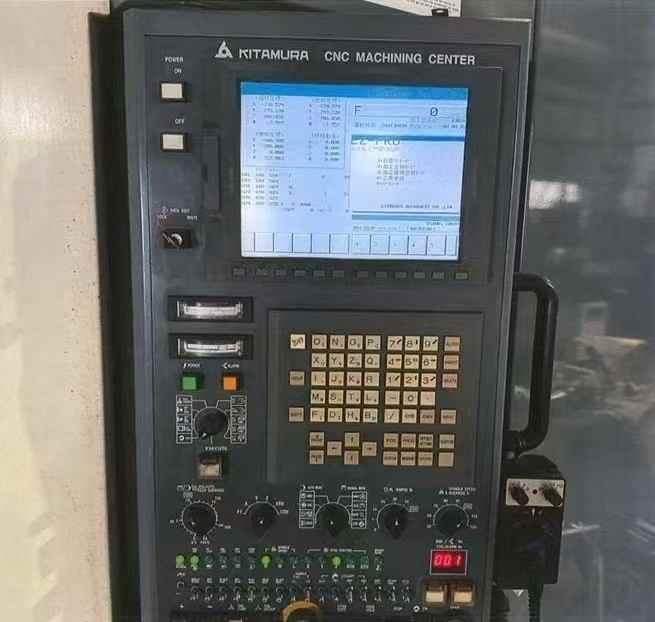

CNC CNC System: FANUC 16i-MB
WorkWorktable size :630*630mm
WorkWorktable load: 1200Kg
The maximum rotational footage of the workpiece: φ1000*1100mm
three-axis travel :1000*800*820mm
Distance from spindle nose to the center of workWorktable: 130-950mm
Distance from workWorktable to the center of spindle is 50-850mm
The indexing of the B-axis Rotary workWorktable is 0.001 degree
Spindle speed: 35- 12,000 resolutions
spindle power: AC26/22KW
Spindle type: BT50
tools magazine size: 100
3 axes fast movement rate: 50,000 mm/min
Feed rate: 50,000 mm/min
Machine weight: 20,500 kg
