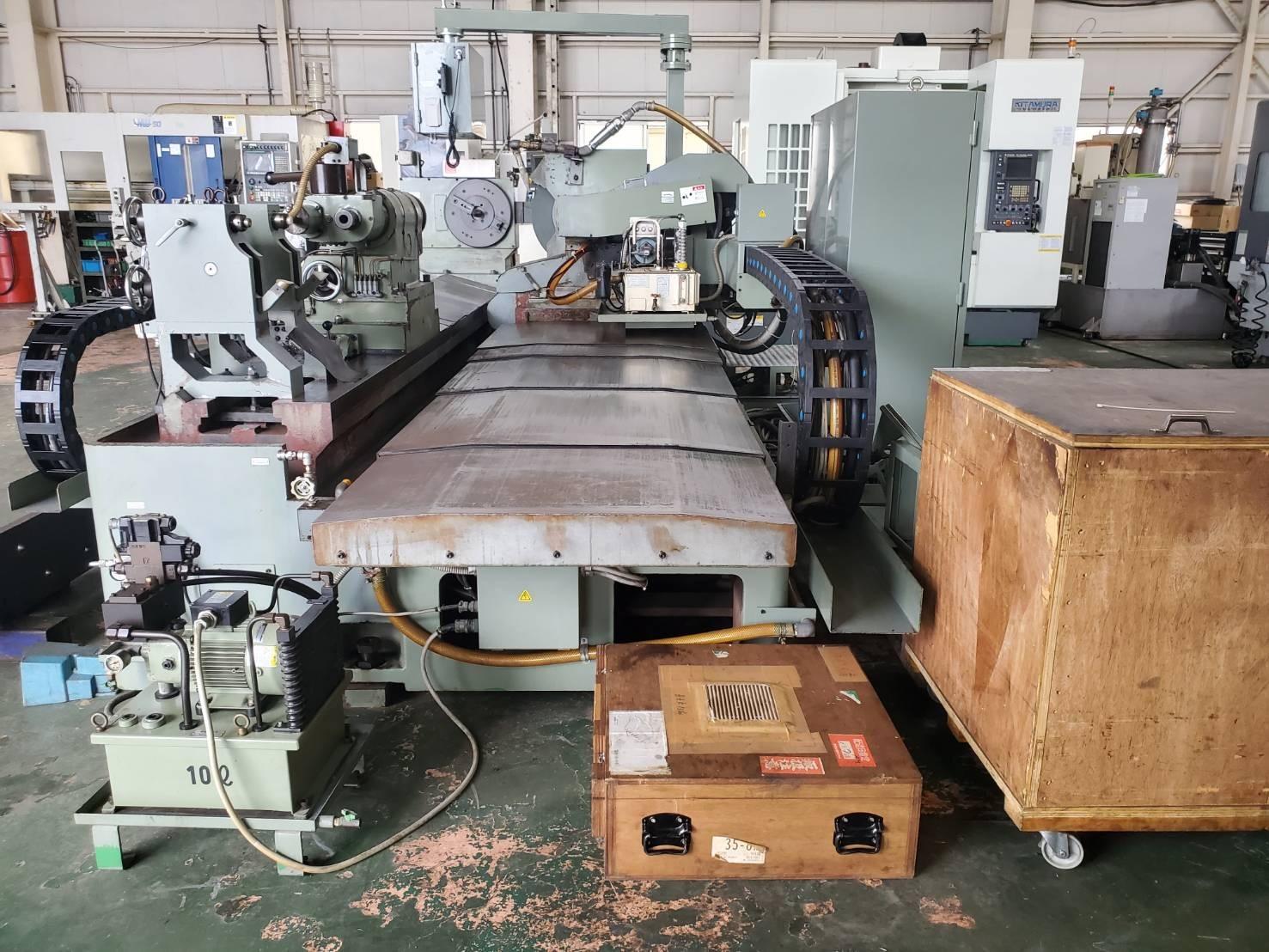

KONDO KRG-2500NC Grinding machines

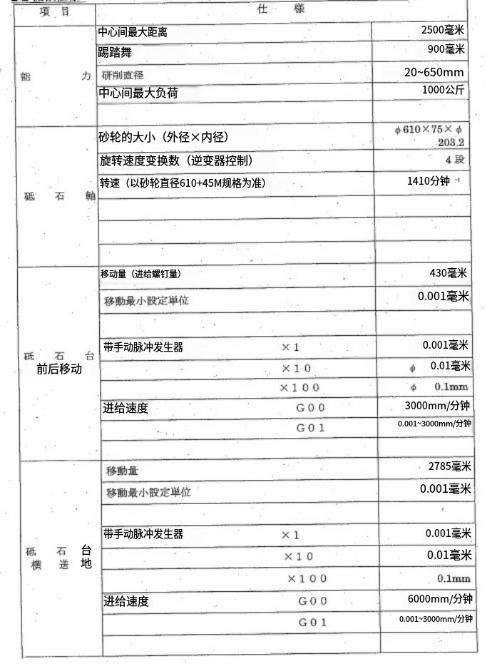

[Product Information]:

Maximum distance between centers: 2500mm

Tap dance: 900mm

Grinding diameter: 20-650mm

Maximum load between centers: 1000kg

The size of the grinding wheel (external diameter X Internal diameter) : 610x75x203.2mm

travel (feed screw amount) : 430mm

Minimum moving unit: 0.001mm

Feed rate: G00:3000m/min

G01:0.001-3000m/min

Movement: 2785mm
