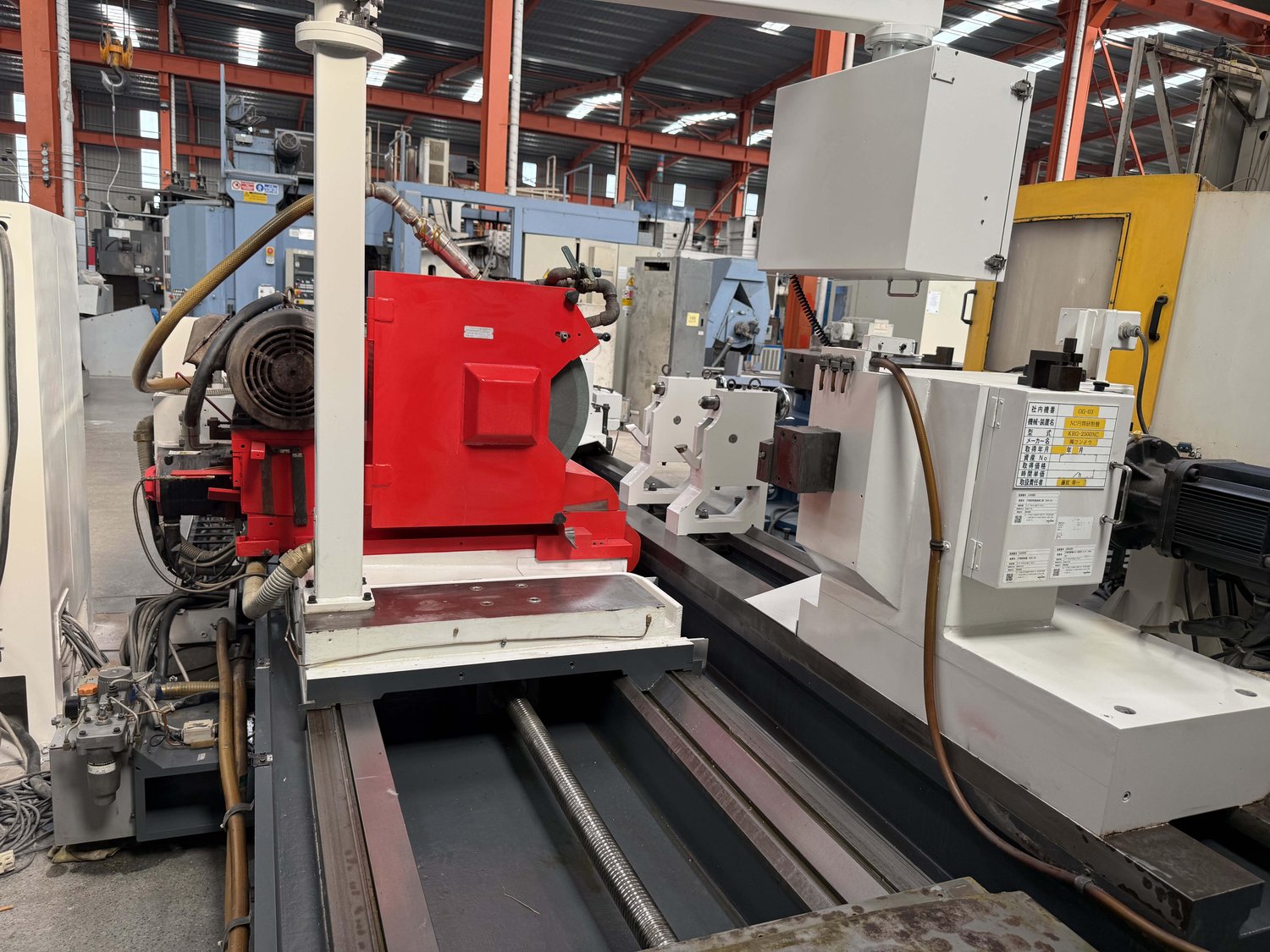

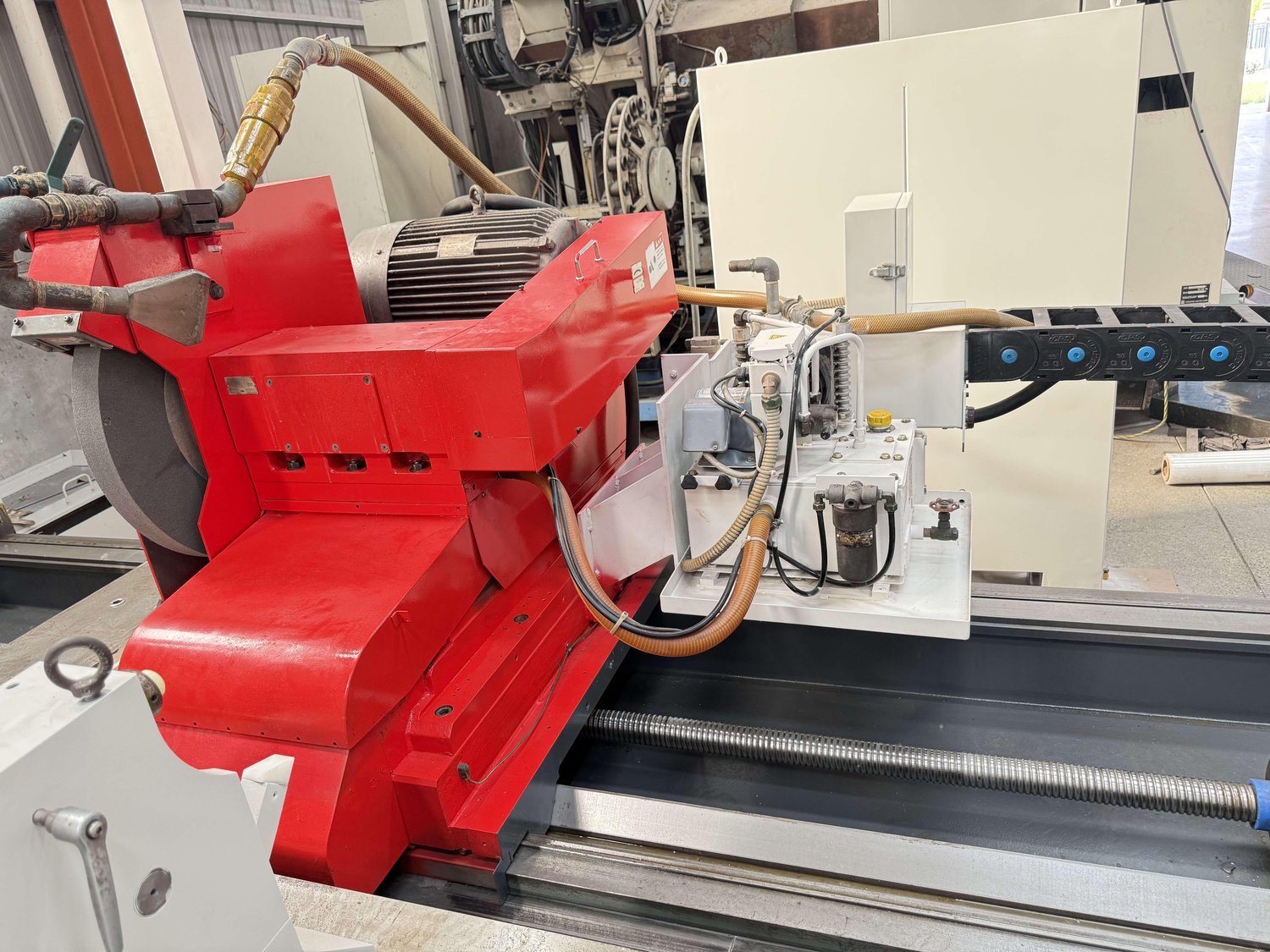

KONDO 2500 Cylindrical grinder

Maximum distance between centers :2500mm

The swing amplitude on workWorktable :φ900mm

Grinding diameter :p20-0650mm

Maximum load between centers :1000Kg

grinding wheel Footage (external diameter x width x Internal diameter):φ610x75x P203.2mm

Rotational speed (grinding wheel φ610-45M specification):1410min-1

travel (feed rate):430mm

travel :2785mm

Minimum setting unit for movement :0.001mm

Feed rate :G00:6000mm/min

G01:0.001-3000mm/min

spindle rotation: strap drive non-rotating type

taper (model):MT No.5

Through hole diameter :p40mm

Speed progression (CNC): Stepless speed change

Rotational speed (common rotational speed):10 to 150min ⁻ ¹
