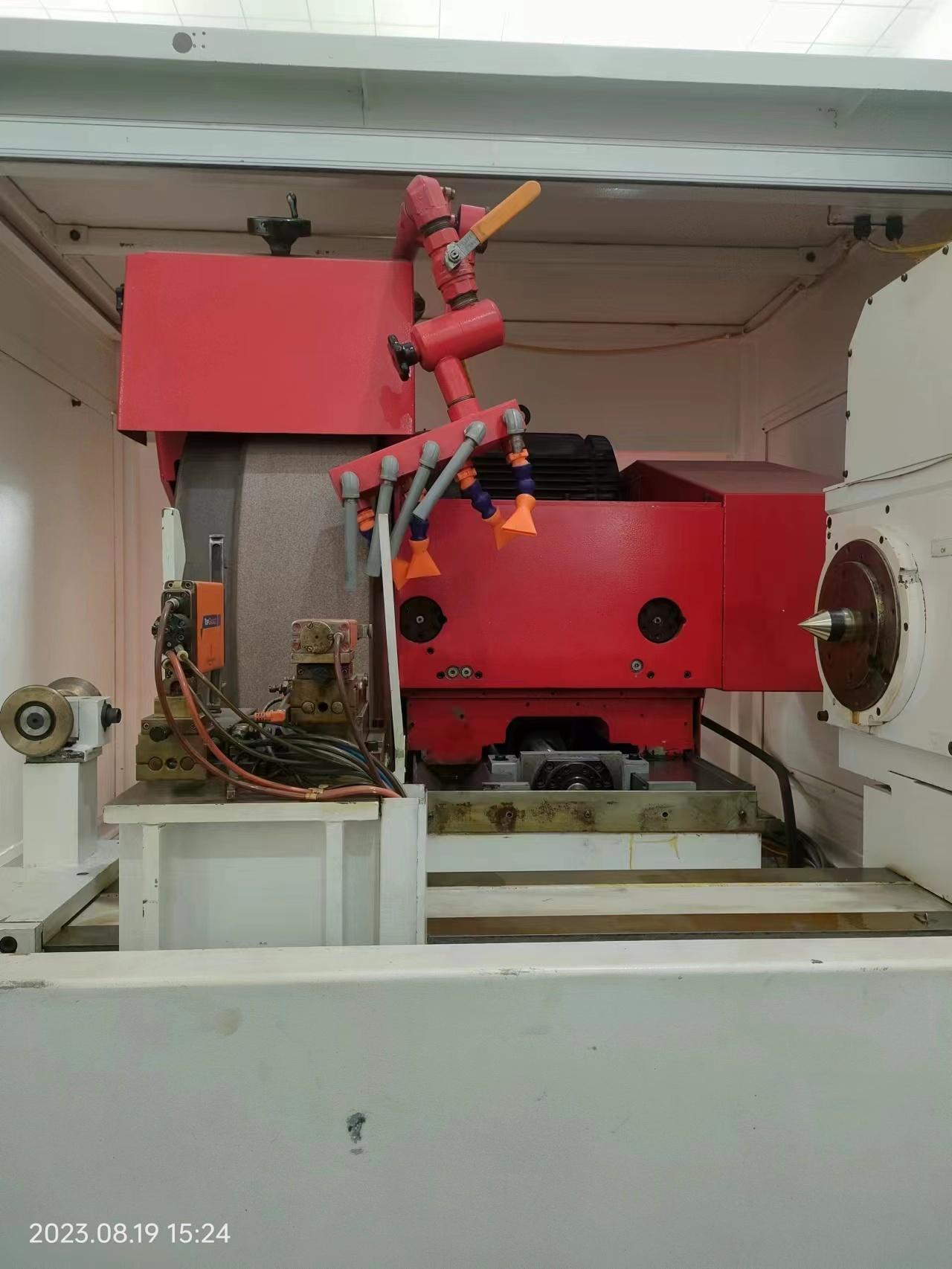

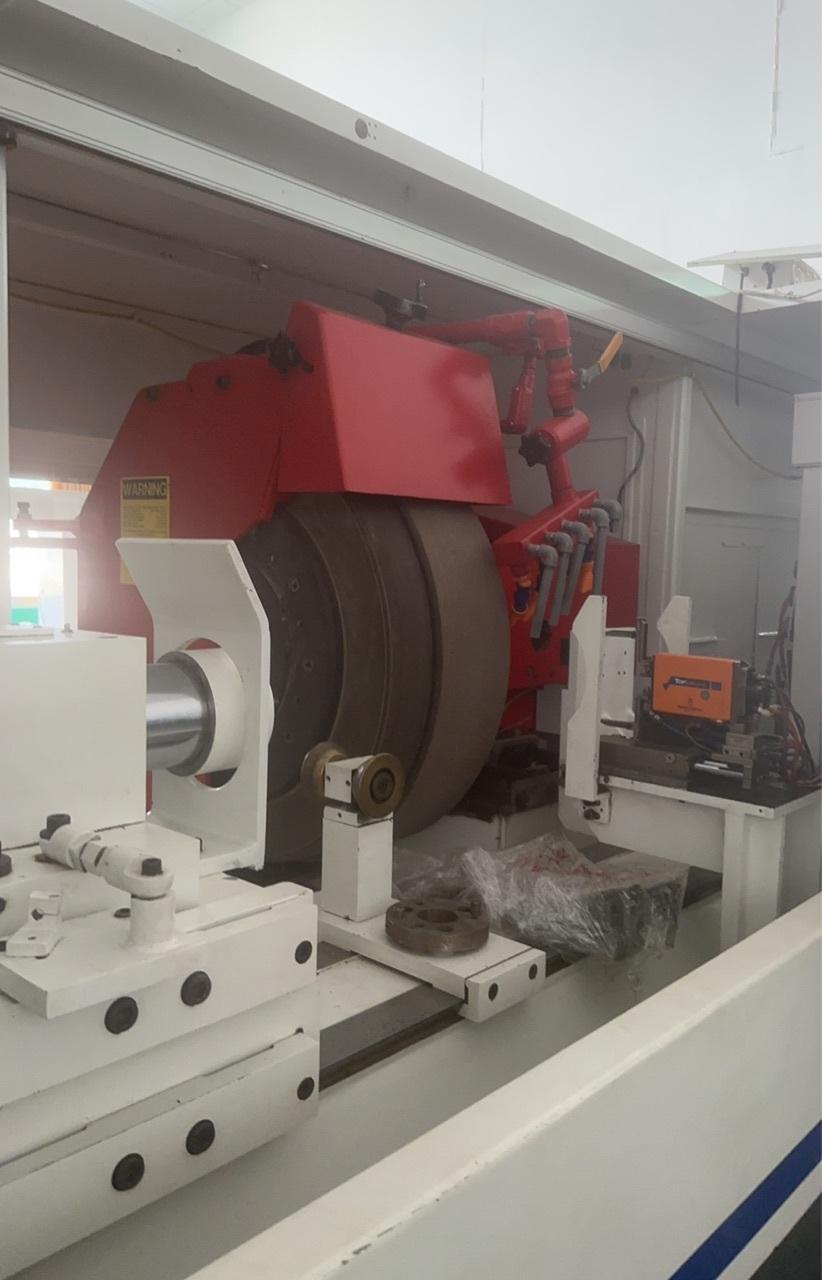

Niles Simmons 2500mm Cylindrical grinder

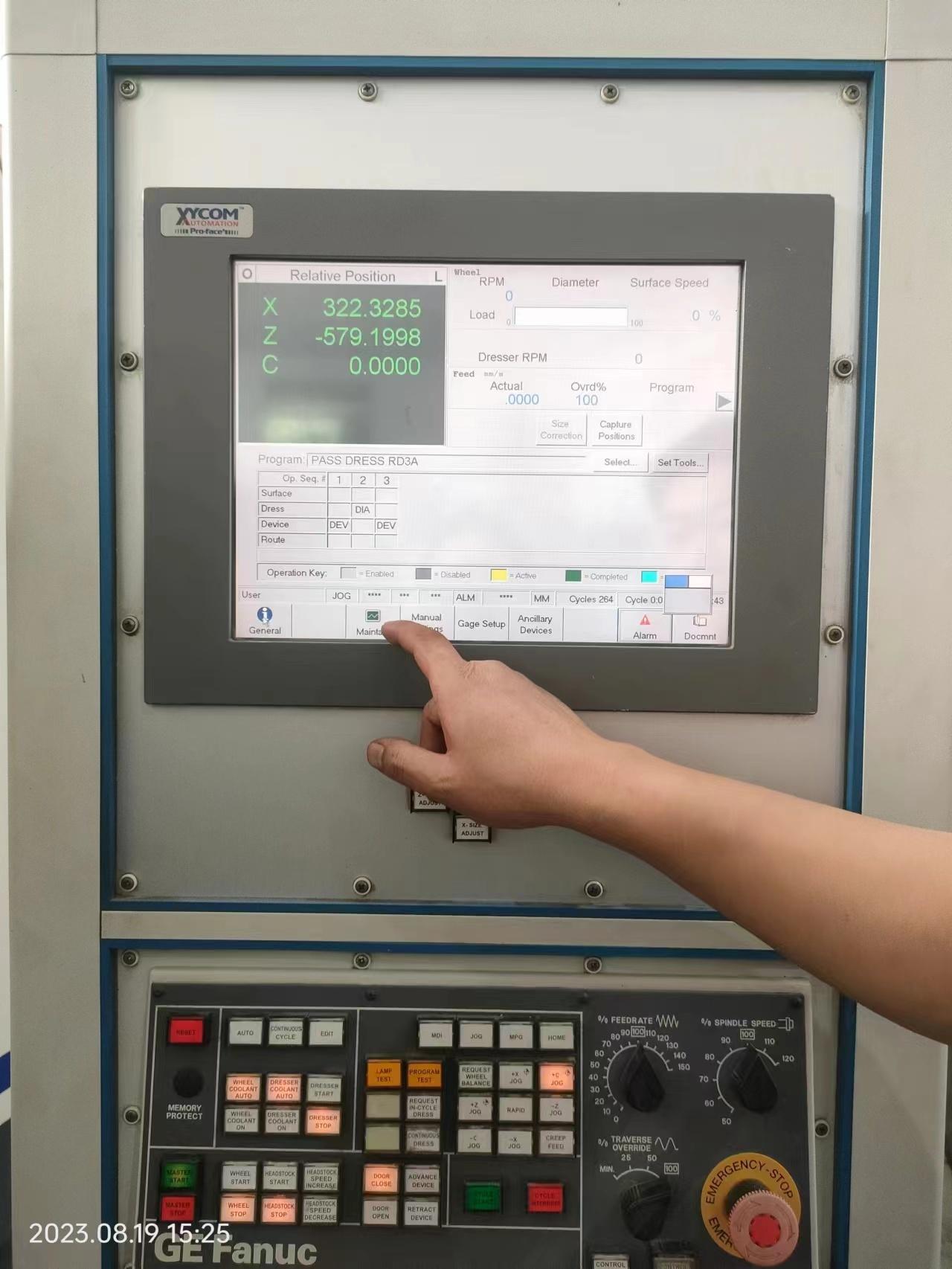

CNC System: FANUC

X-axis travel :2300mm

Z-axis travel :1000mm

grinding wheel diameter width Internal diameter :1000*320*160mm

WorkWorktable size :2800*400mm

WorkWorktable load :1000Kg

Grinding travel :2500mm

spindle drive method: fully hydrostatic mechanical electric

spindle grinding wheel speed: 1082rpm

Arrangement method: Magnetic attraction

machine tool structure: Horizontal grinder

Overall Footage :9500*3000*2900mm

Minimum feed rate :0.0001mm

machining  diameter: 650mm

Length: 2500mm

AppVertical machining centerble products: aero engine blades, impellers, rotor parts, precision drive: gear

Spline couplings, metal cutting  Tool, printing equipment and accessories, air compressors
