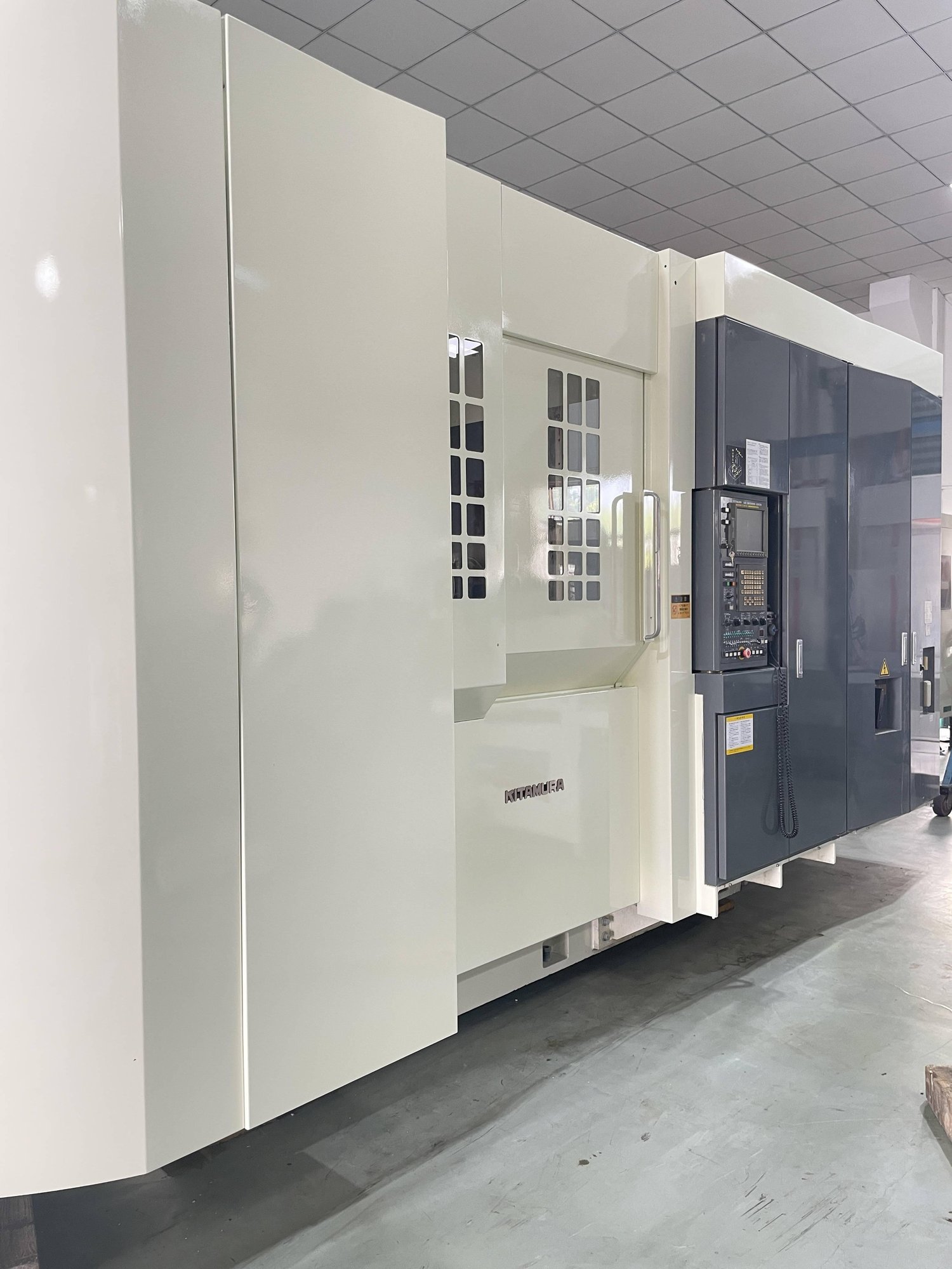

KITAMURA ycenter-Hx630i Horizontal Machining centre

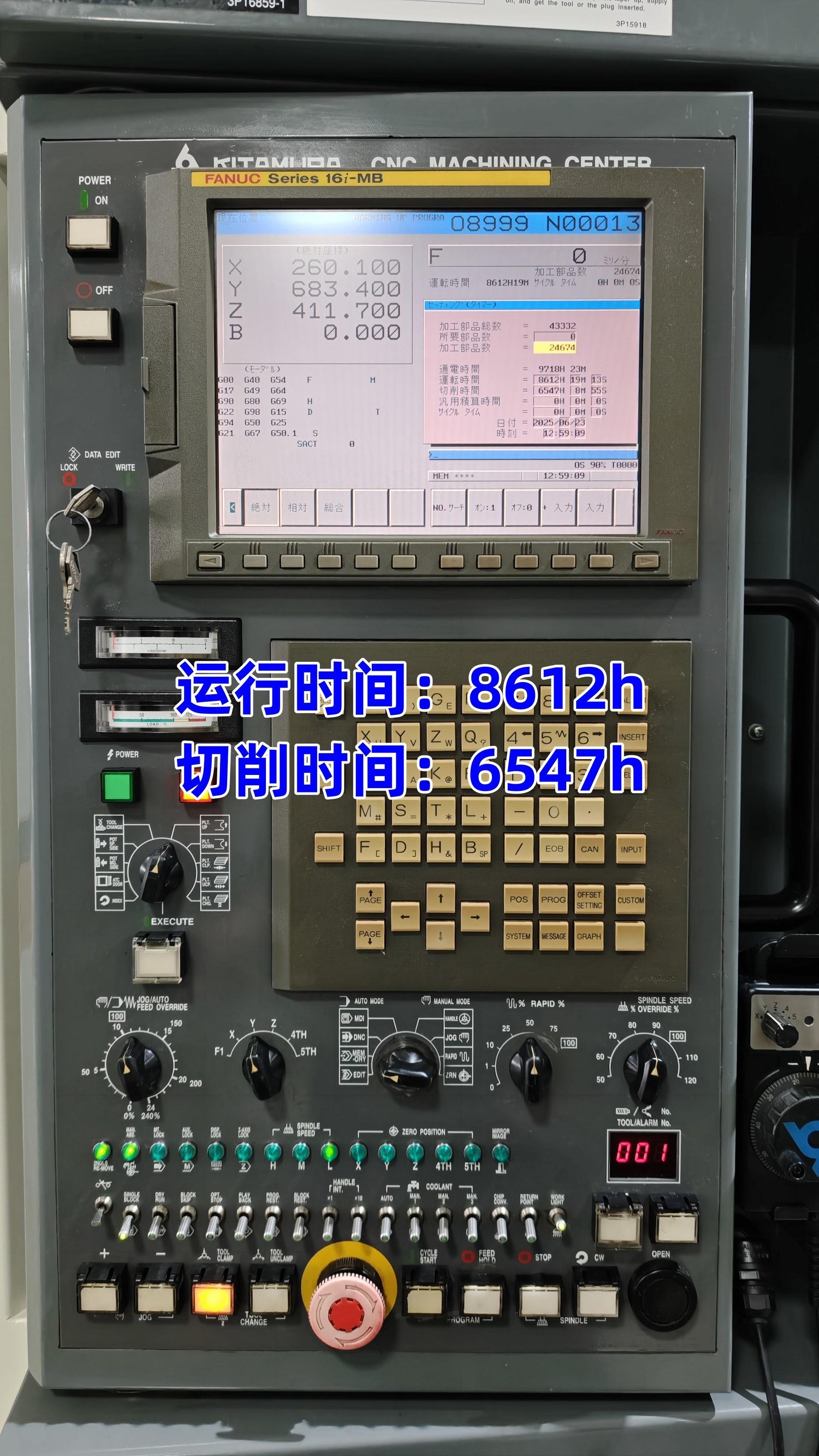

CNC System :FANUC 16i-MB

X-axis travel: 1100mm

Y-axis travel: 920mm

Z-axis travel: 1050mm

B-axis travel: 0 to 360°

WorkWorktable surface to spindle center: 100-1020mm

From the center of workWorktable to spindle nose: 100 to 1150mm

The indexing of the B-axis of workWorktable: indexing resolution of 0.001deg

Spindle speed: 35 to 12,000rpm

WorkWorktable size: 630 x 630mm

workpiece diameter: 01080mm

Maximum workpiece height: 1300mm

The maximum load of workWorktable is 1500kg

Rapid feed: X,Y,Z: 60m/min

Cutting feed rate: X, Y, Z:60m/min

Rapid feed B-axis :12,000°m/min

tool Tool Tool holder type: BT50

Tool: 100 pieces

Maximum Tool diameter: 0.125mm

Machine Footage (width X depth) : 413x 5760mm

Machine height: 3513mm

Net weight of machine: 21,000kg
