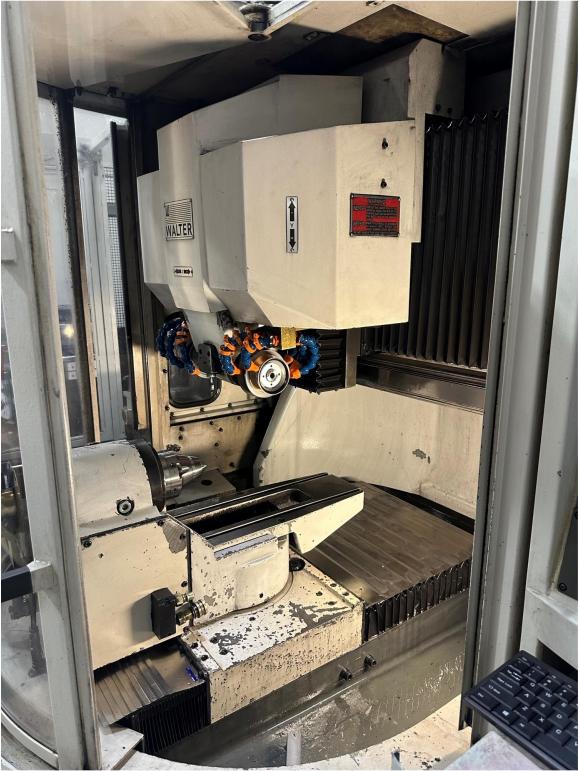

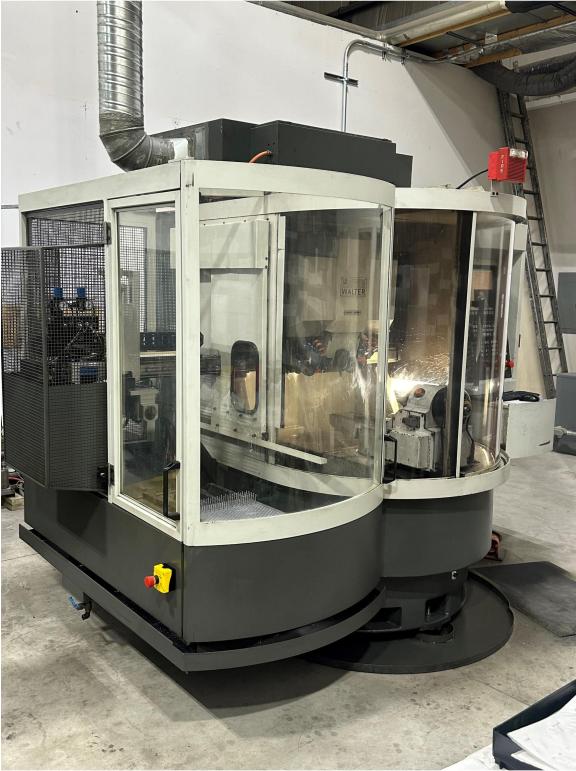

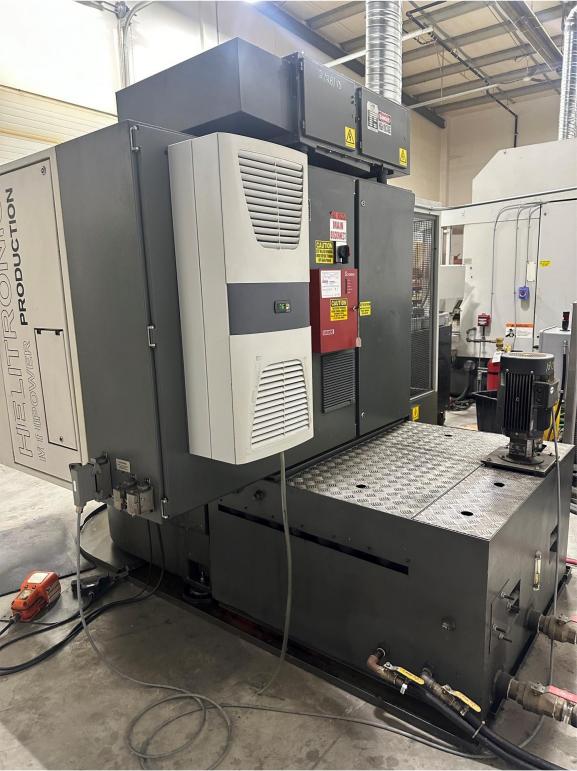

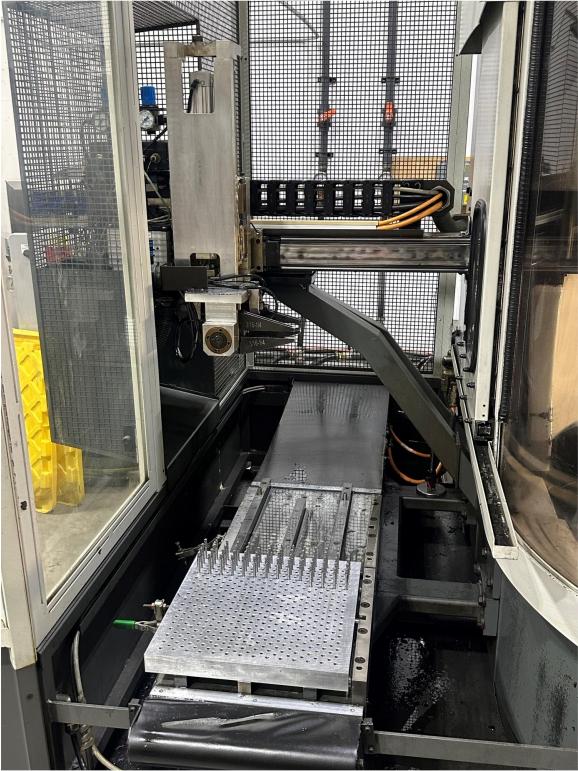

Walter Helitronic Mini Power Production Tool grinder

Longitudinal feed (X-axis) : 350mm

Vertical feed (Y-axis) : 200mm

Lateral travel (Z-axis) : 470mm

The swing range of the rotating Worktable (C-axis) : +/-200°

Work Head: ISO50

Center height (with/without WorkWorktable) : 145/190mm

Maximum workpiece diameter: 100mm

Maximum length of workpiece: 270mm

Maximum diameter of the grinding wheel: 150mm

Fengxin performance: 11.5kw

Grinding compensation spindle motor: 9kw

The connected load is approximately 25kw

Overall Footage: 2600x2550x1970mm

The weight of machine is approximately 3950kg
