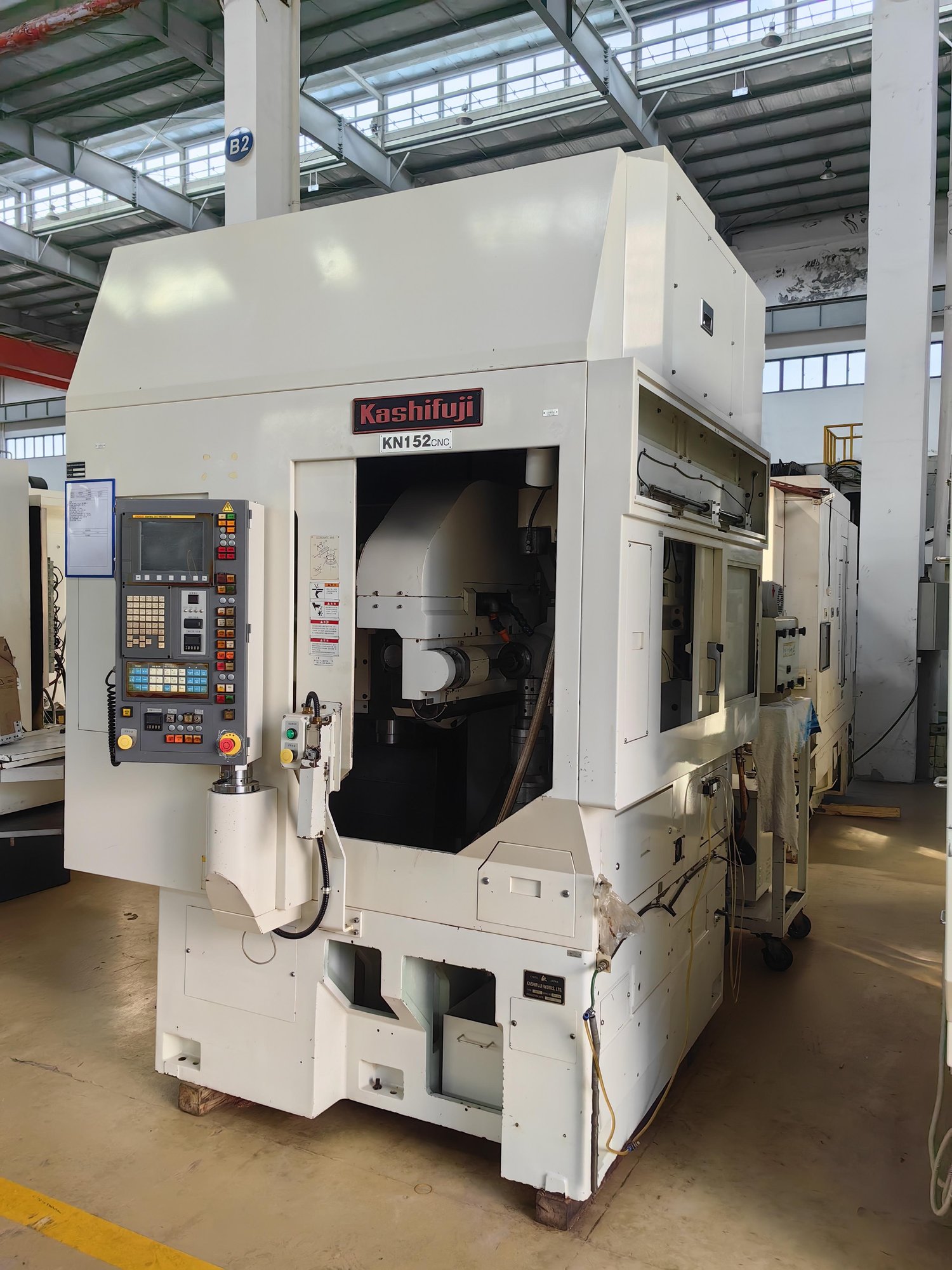

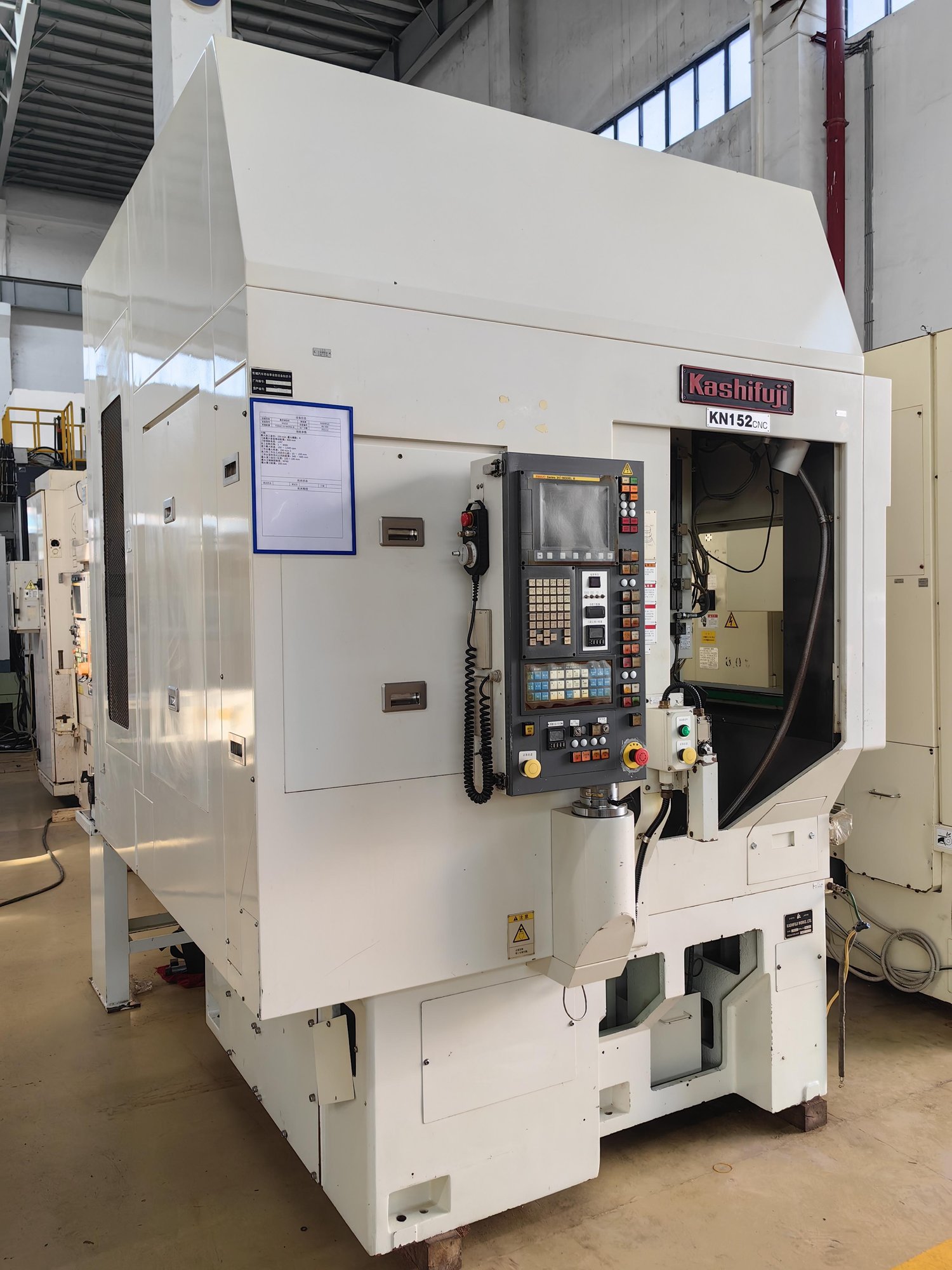

KASHIFUJI KN152 Hobbing machine

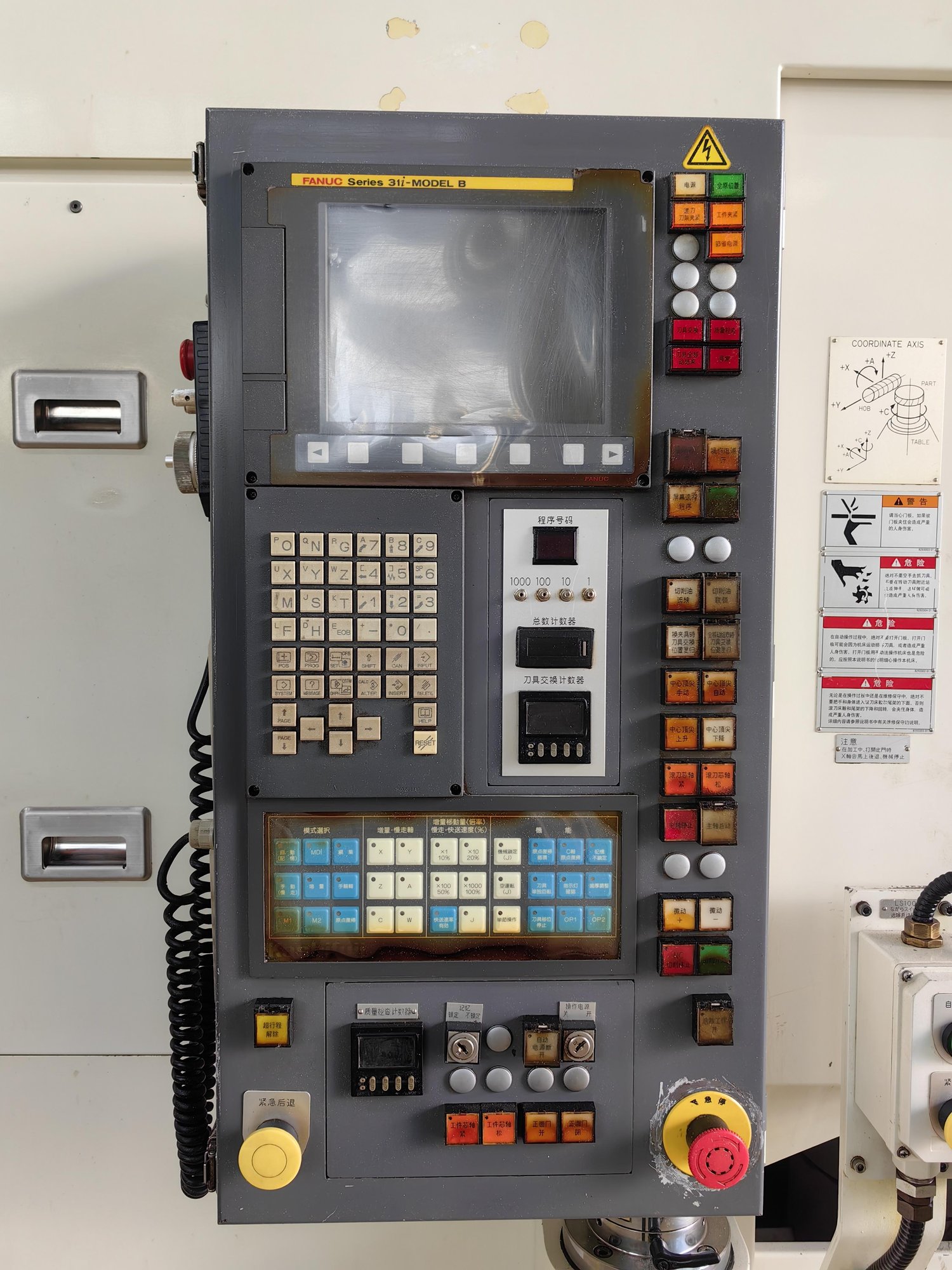

CNC CNC System: FANUC 31i MODEL B

Maximum machining  diameter: 150mm

Maximum modulus: 4

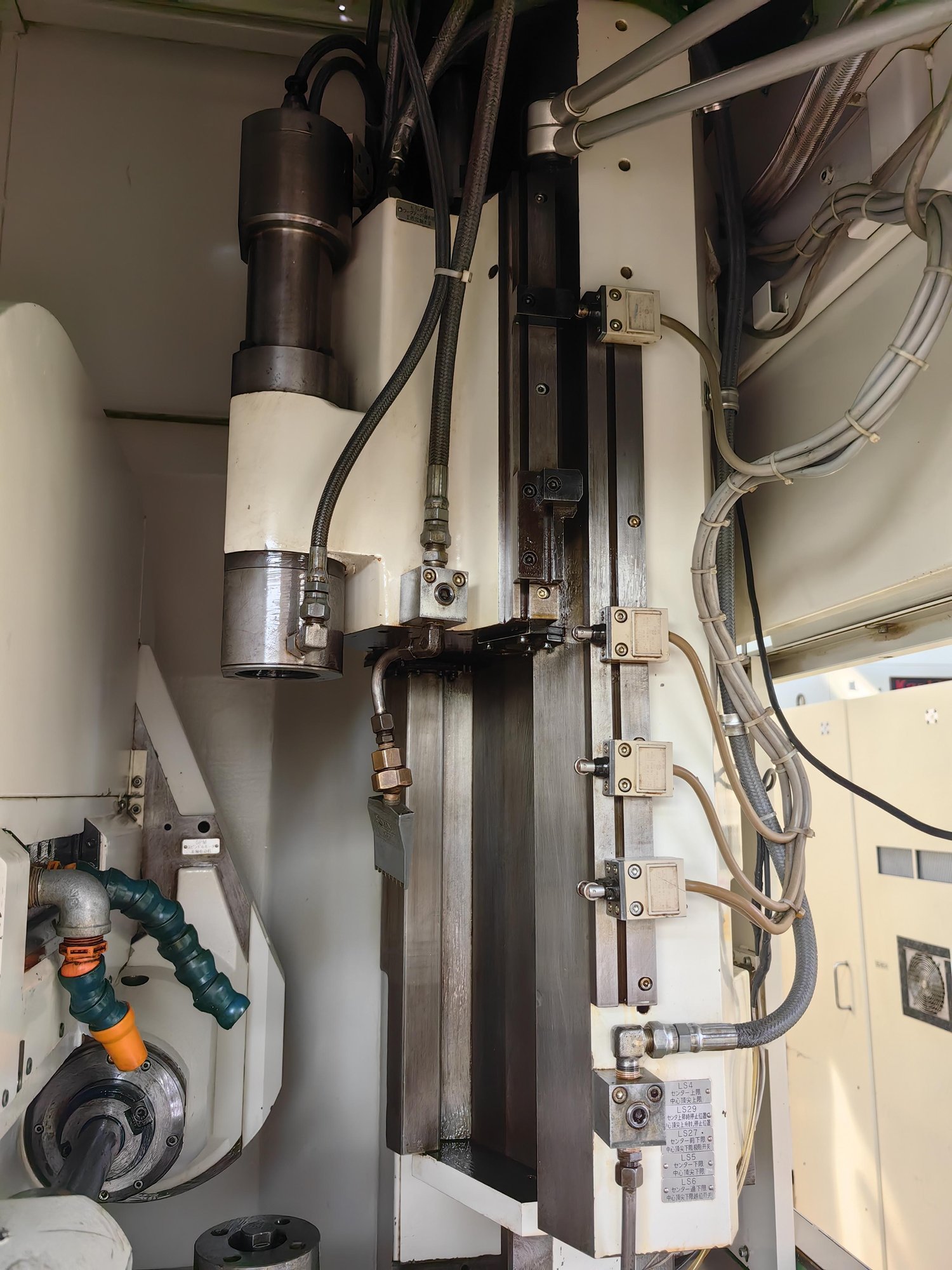

The maximum vertical movement distance of the tools holder is 400 mm

The inclination Angle of the tool holder: ±45°

machining  tooth count range: 1 to 3000

The maximum speed of the hob is 150 to 1,500 rpm

Maximum rotational speed of workWorktable: 150 min ⁻ ¹

Distance between centers between the hob and workWorktable: 15 to 150 mm

Distance between workWorktable surface and the center: 345 to 645 mm

Maximum diameter * length of the hob: 130 * 180 mm

Maximum spindle journal taper: NT40

Maximum cutting distance: 150mm
