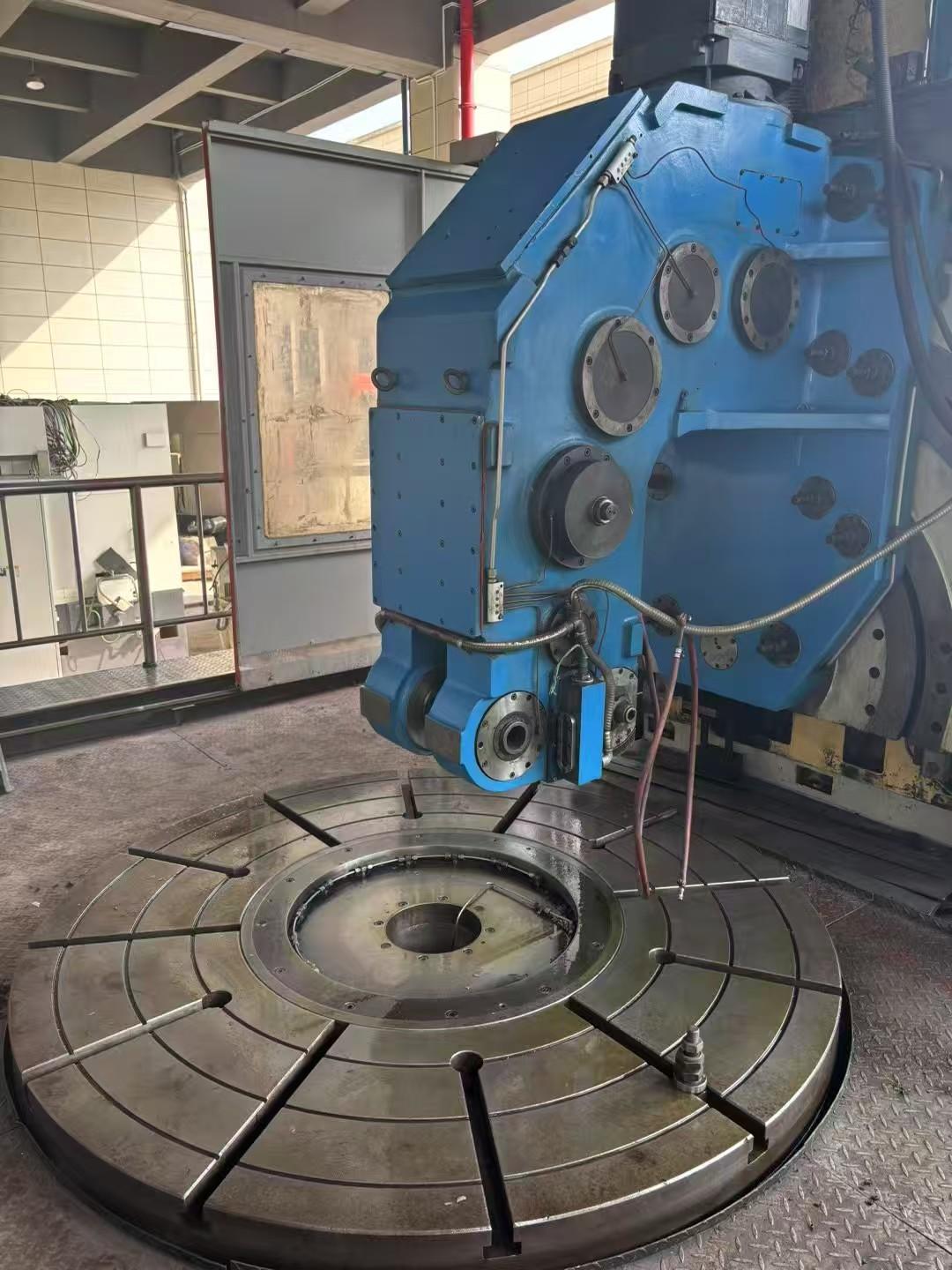

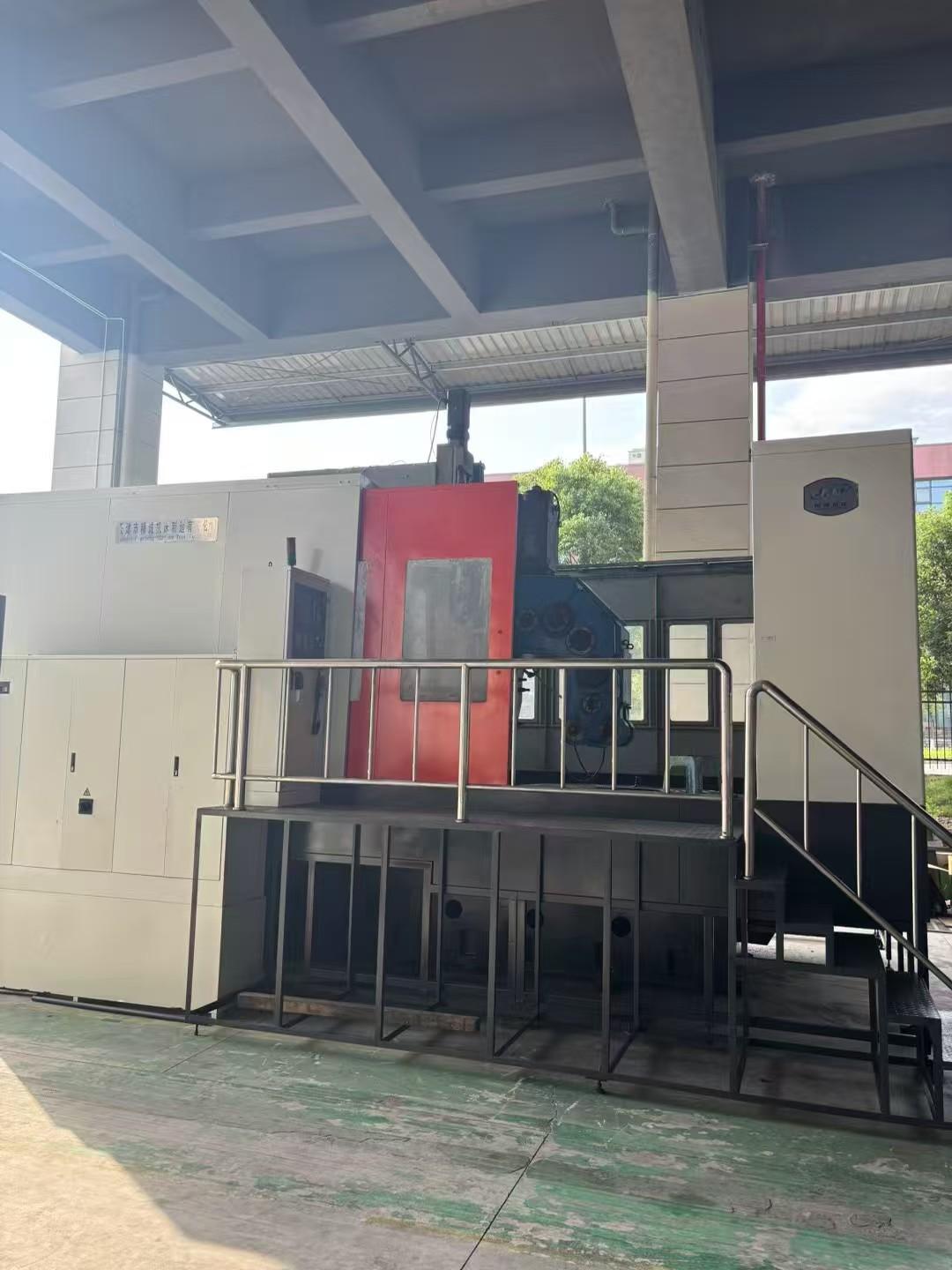

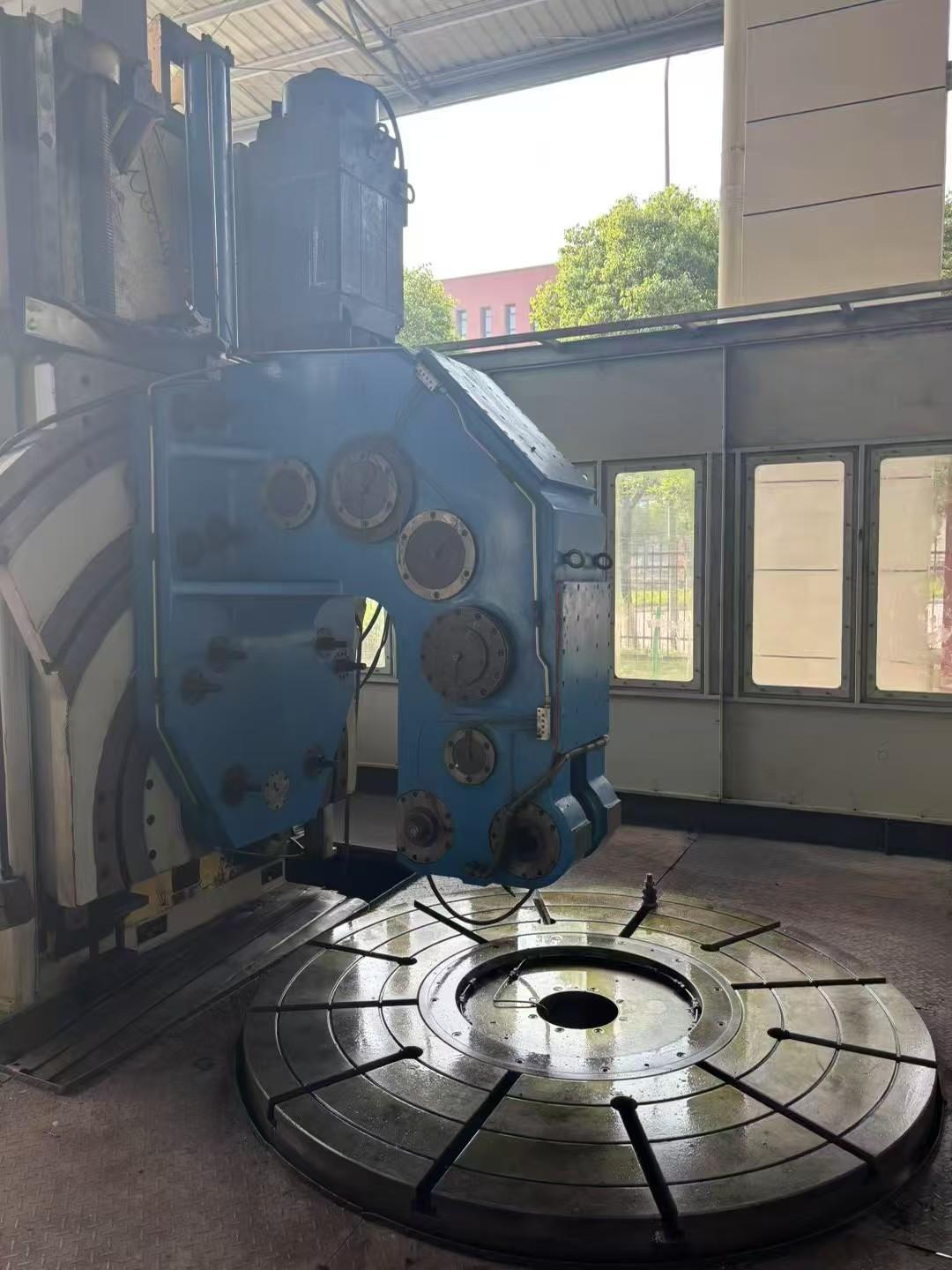

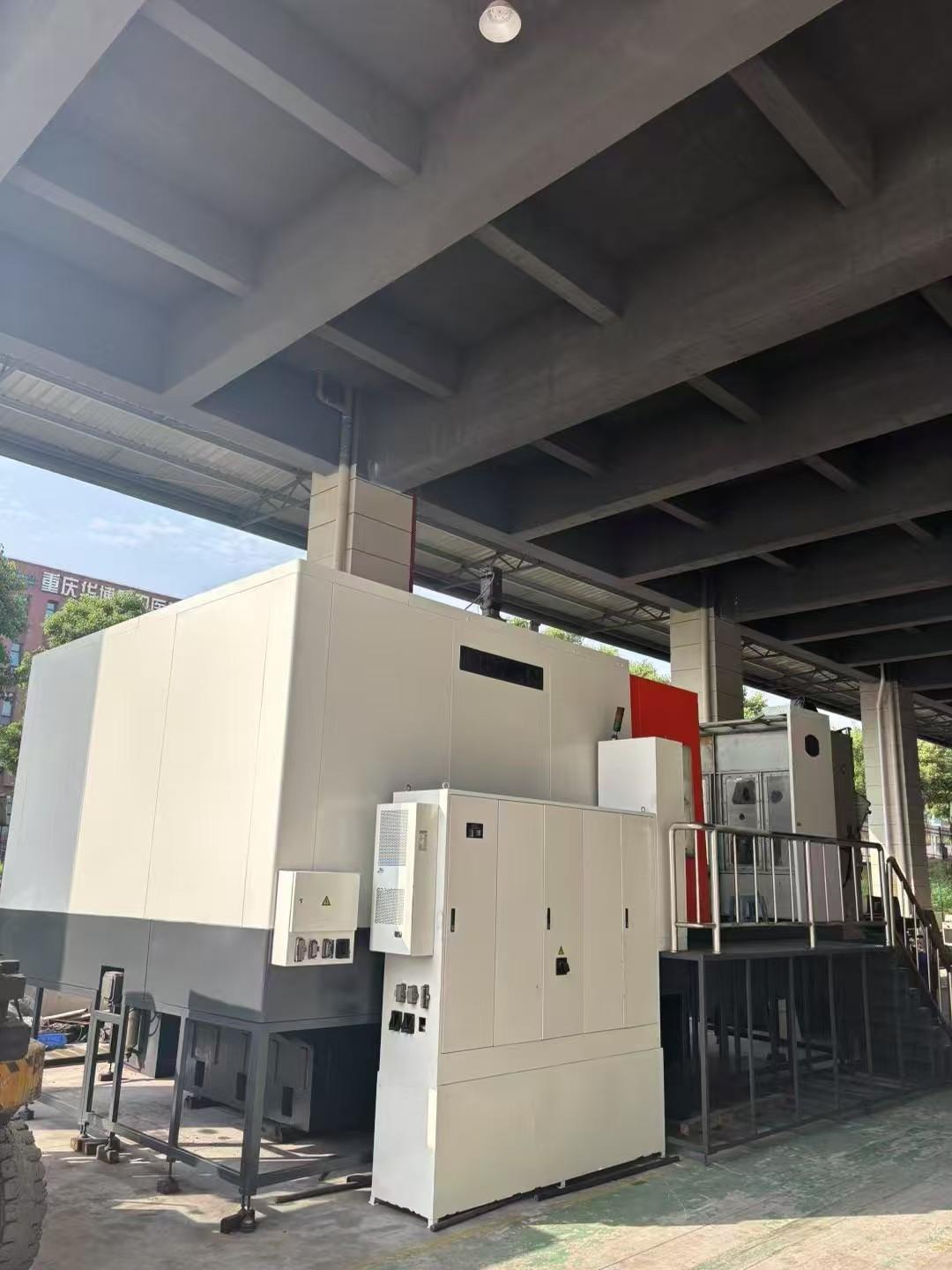

JCMT YH53250 other

[Product Information]:

Maximum machining diameter: 2500mm in diameter

The minimum machining diameter of the top circle for internal milling teeth: 900mm

Maximum module: 20mm(internal gear mill)

Maximum helix Angle: ±15°(internal teeth)

Maximum tooth width: 500mm(helix Angle 0°)

The maximum load of workWorktable is 20,000 kg

WorkWorktable diameter: 2000mm

The maximum rotational speed of workWorktable is 0.005-1rpm

Maximum size of the milling Tool disc: 420mm(diameter)

Maximum width of the Tool: 90mm
