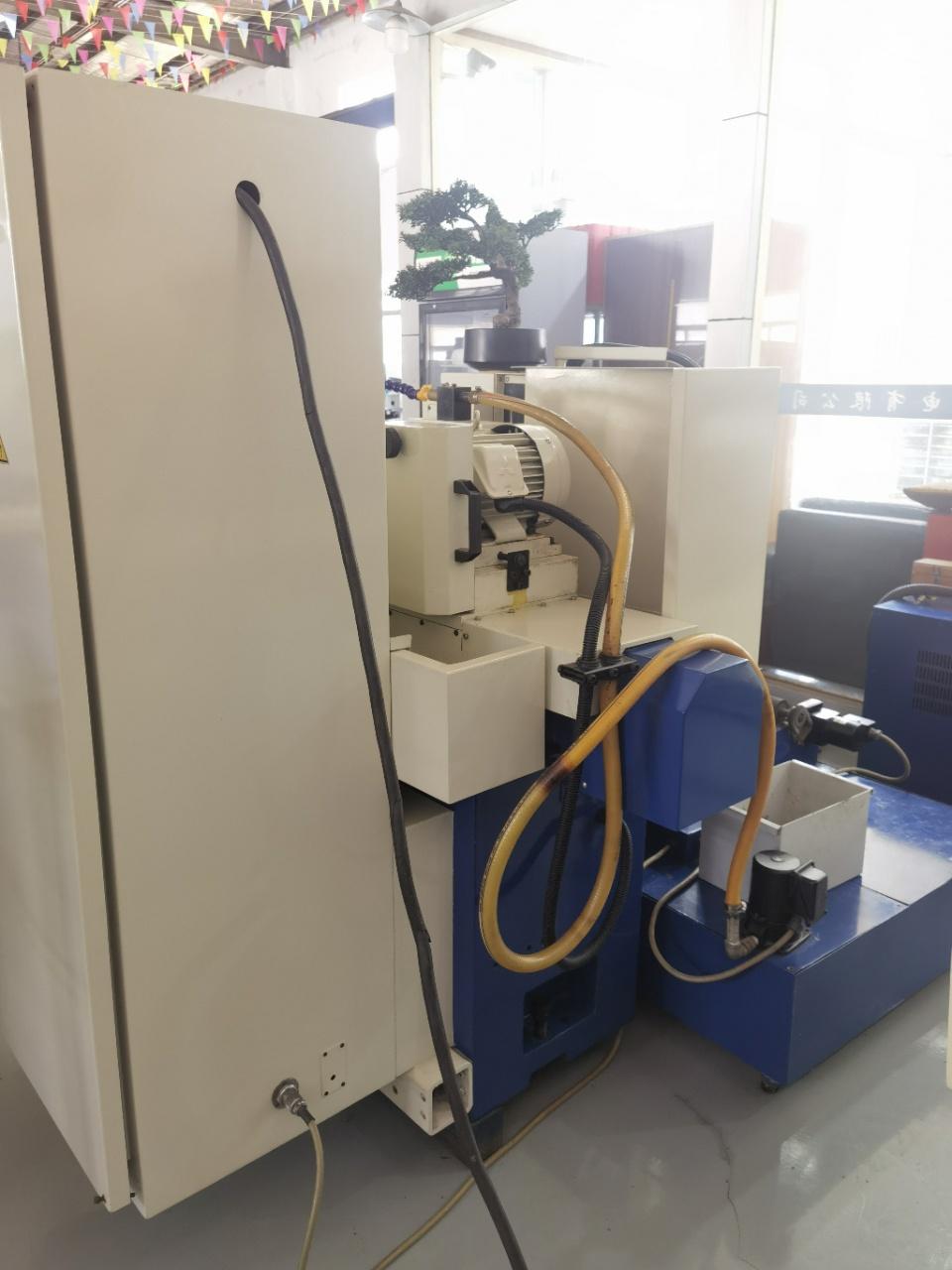

Okamoto OGM250EXIII CNC Cylindrical grinder

Intermediate distance: 500mm

Maximum machining  diameter: 200mm

Maximum travel of X and Z: 215*762mm

grinding wheel size: 355*38*127mm

speed: 1614-2247min ⁻ ¹

Maximum weekly speed: 30m/sec

WorkWorktable rotation Angle: 0° to -9°

spindle and tailstock through holes: MT3

Spindle through hole diameter: 18mm

speed: 10 to 500min ⁻ ¹

Rotation Angle: 30° to -90°

tailstock travel: 20mm

Overall Footage: 2920*2010*1950mm
