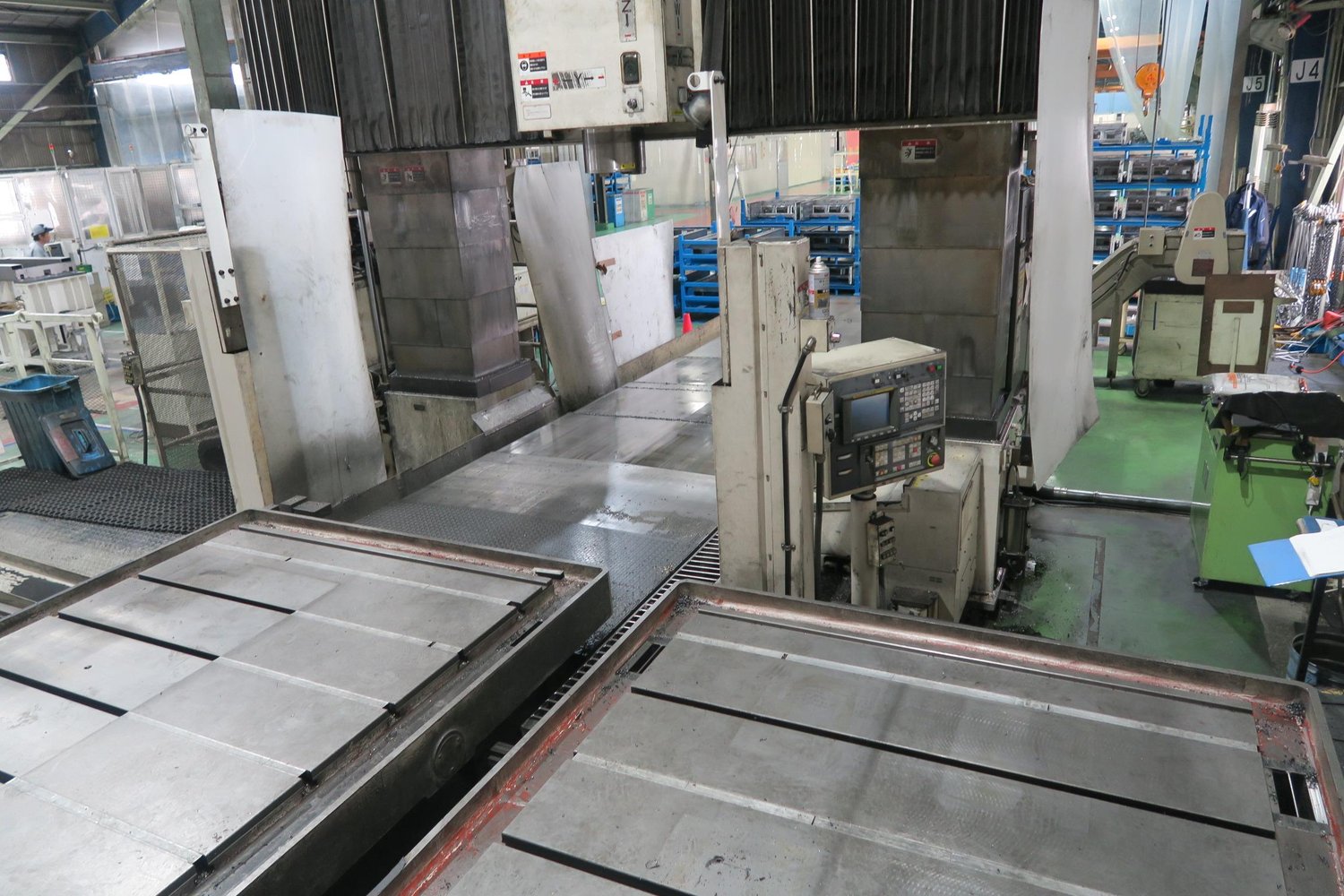

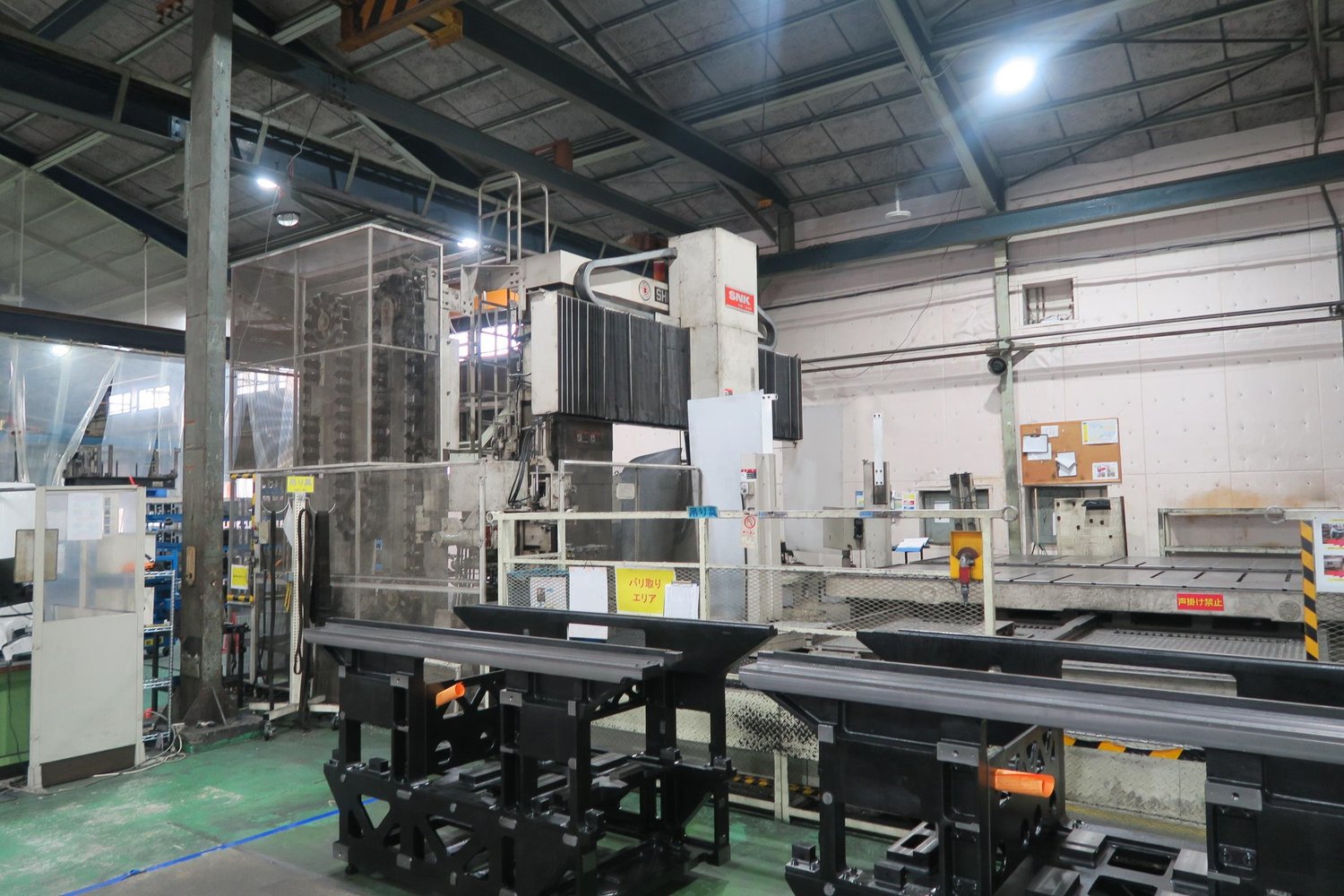

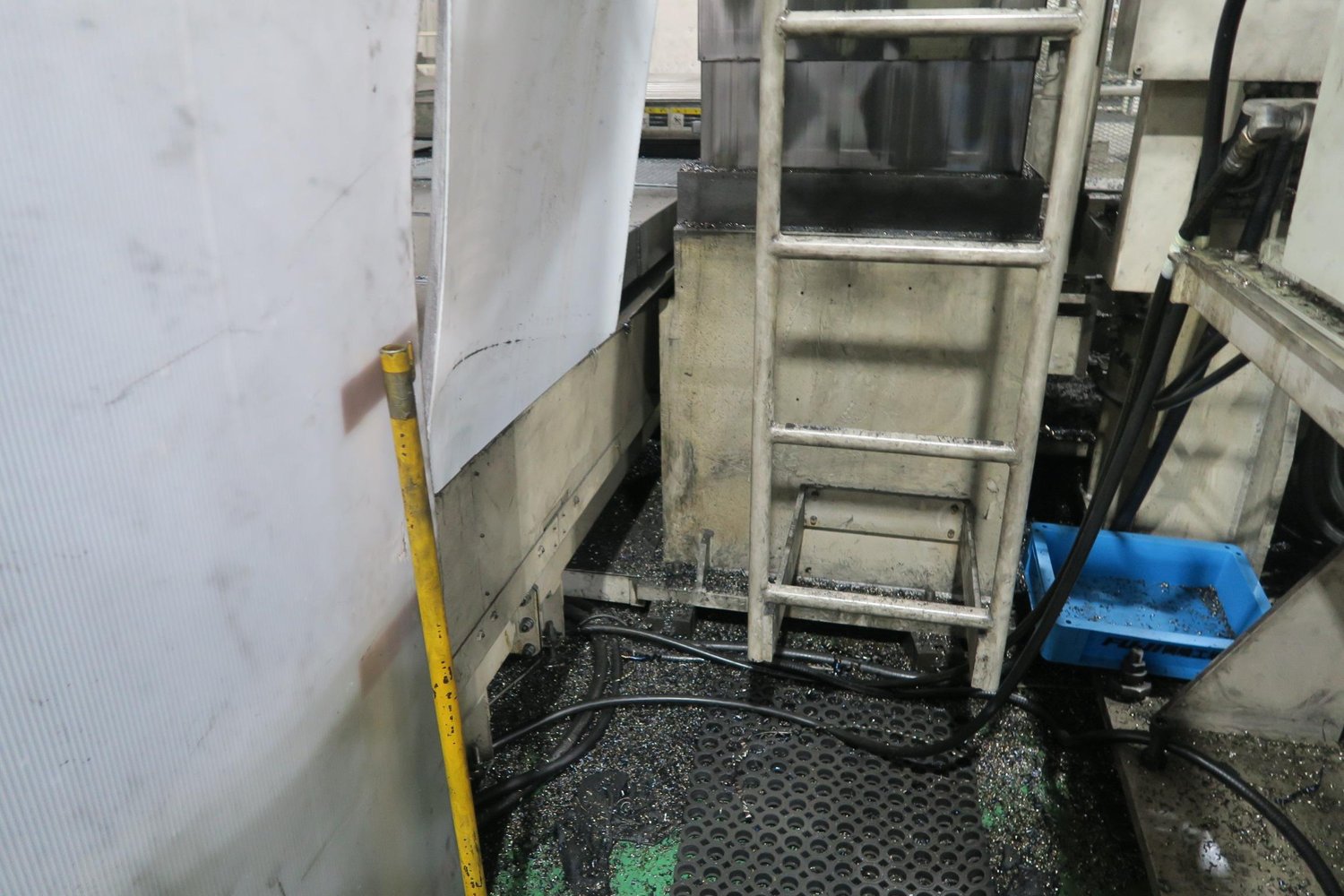

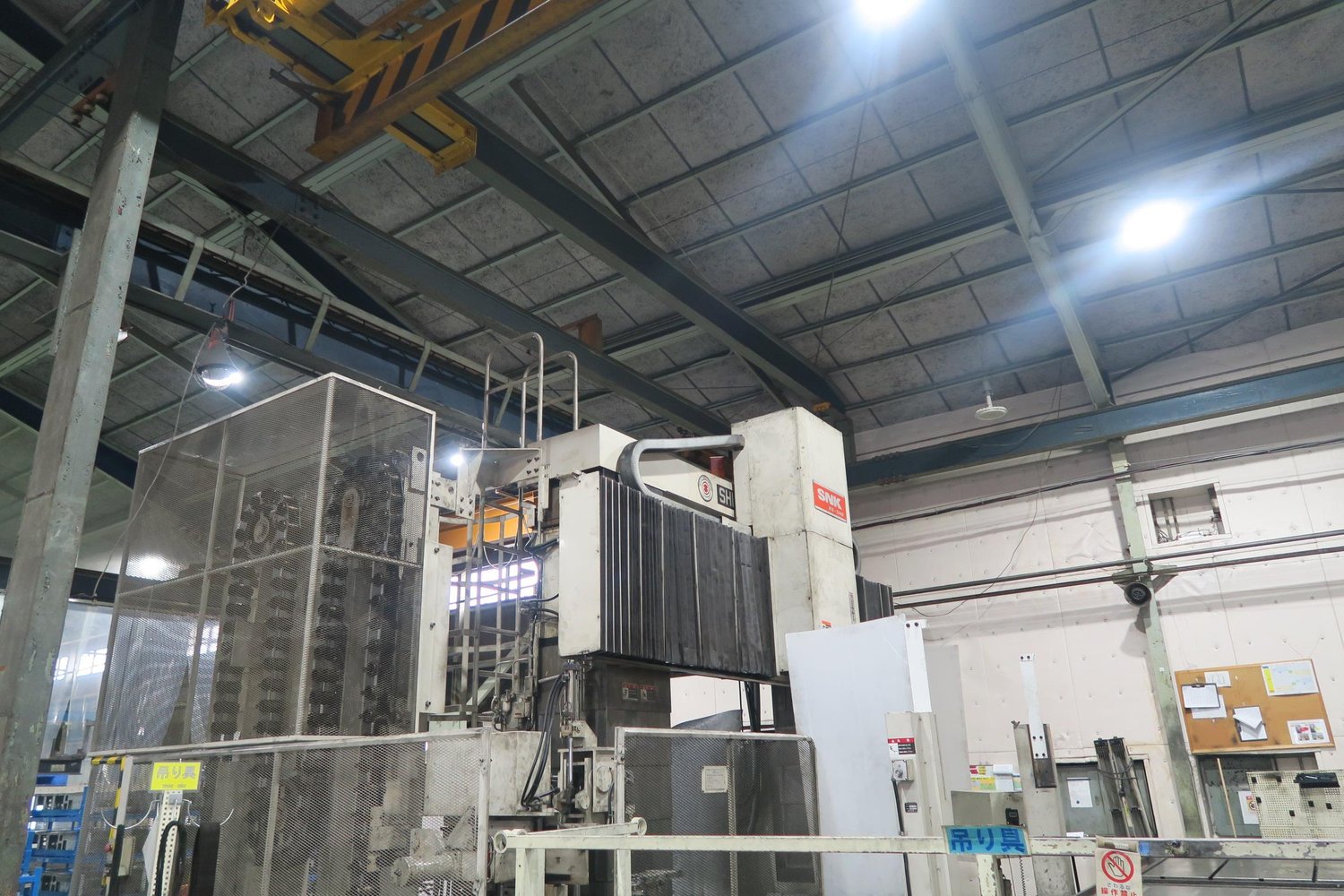

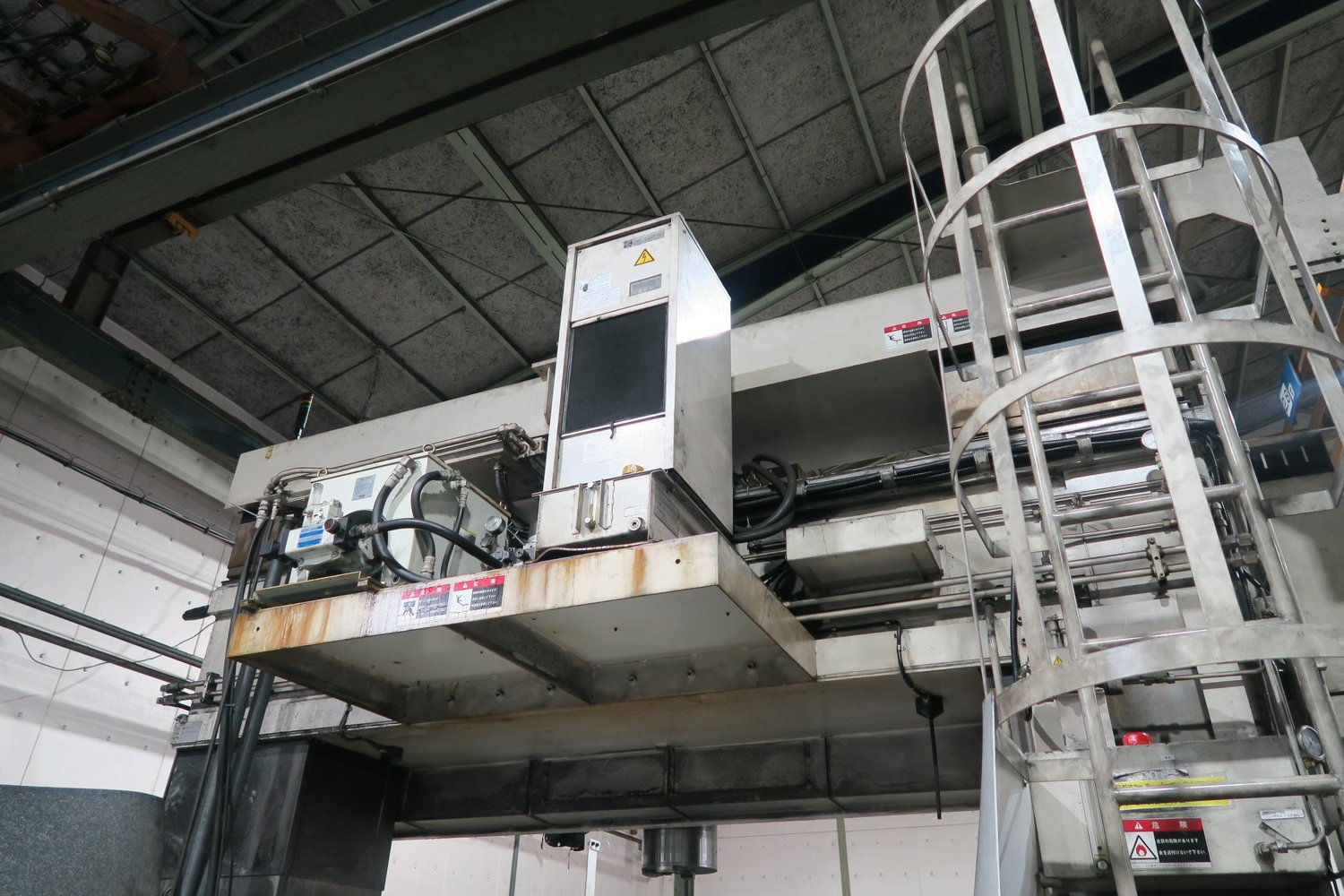

SNK RB-3NM Gantry machining centre

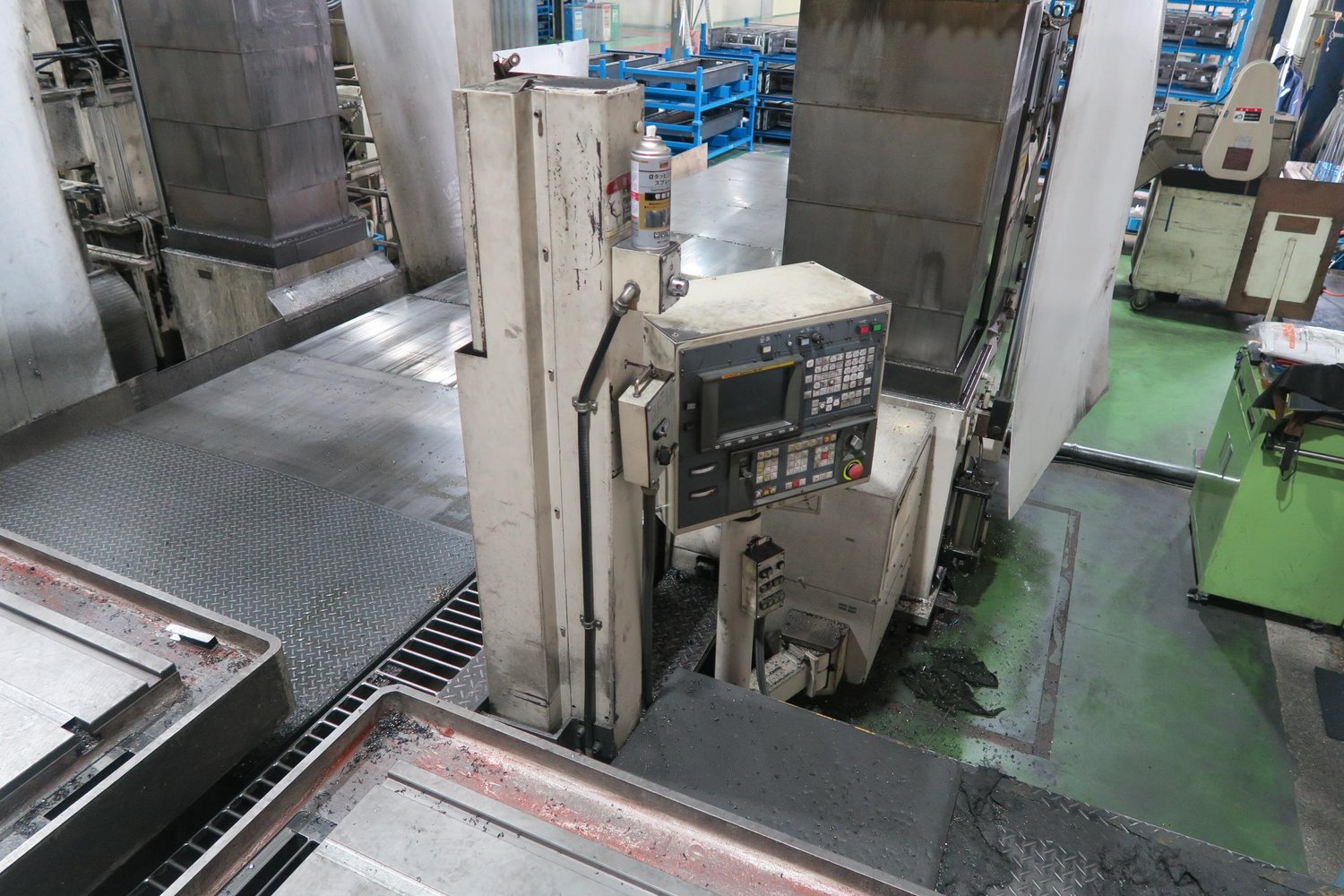

CNC CNC System: FANUC 18M

Gantry width: 2400mm

WorkWorktable surface size: 1500×4000 mm (width × length)

Distance range from workWorktable to spindle nose: 0 to 1250 mm

Maximum load of workWorktable: 10 tons

X-axis travel: 4250mm

Y-axis travel: 2400 mm

Z-axis travel: 600 mm

W-axis travel: 1100mm

Spindle speed range: 40 to 6000 rpm

spindle taper: BT50

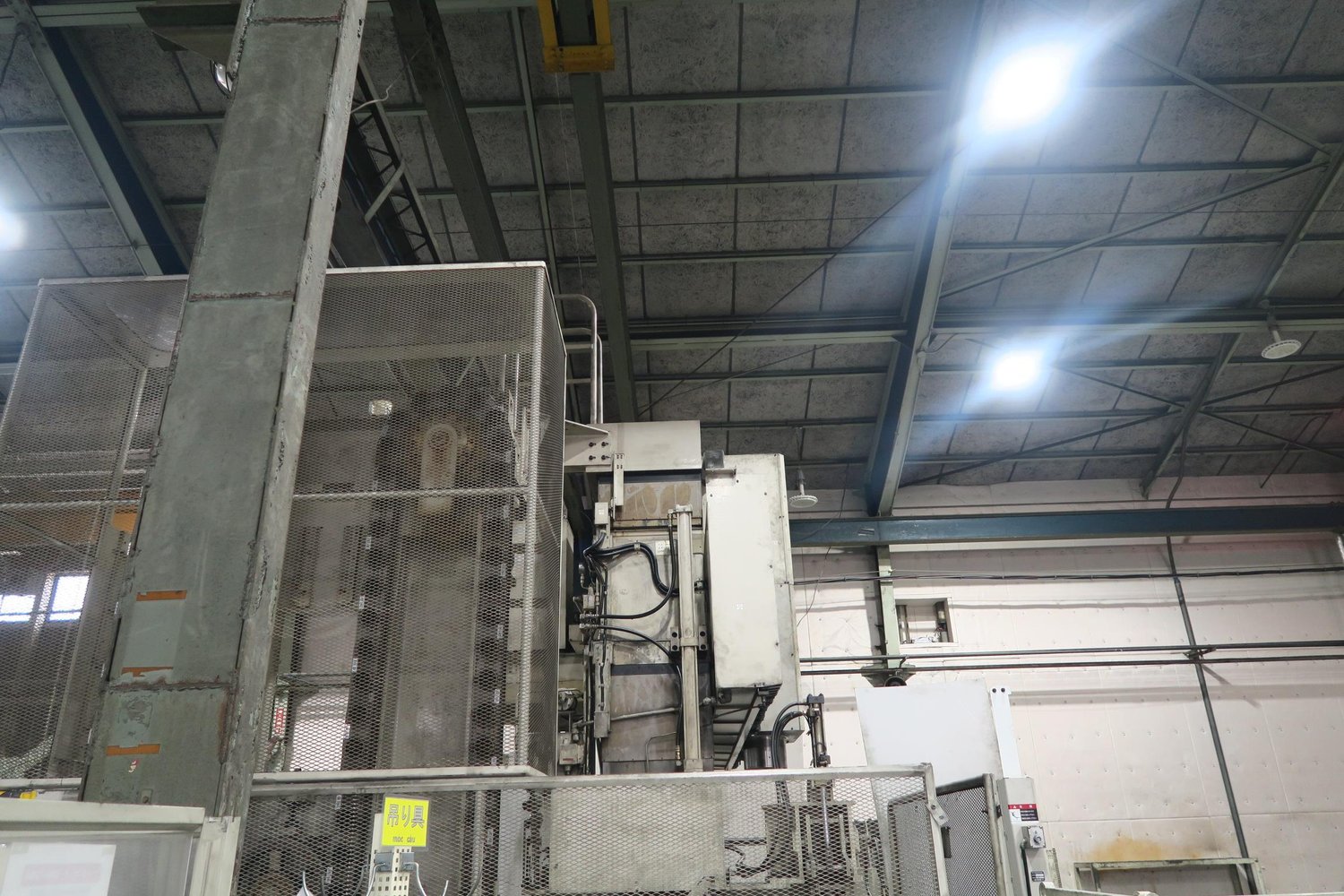

ATC magazine capacity: 100

WorkWorktable exchange CNC System: Dual workstations

Attachment: 90° Automatic Angle Milling head
