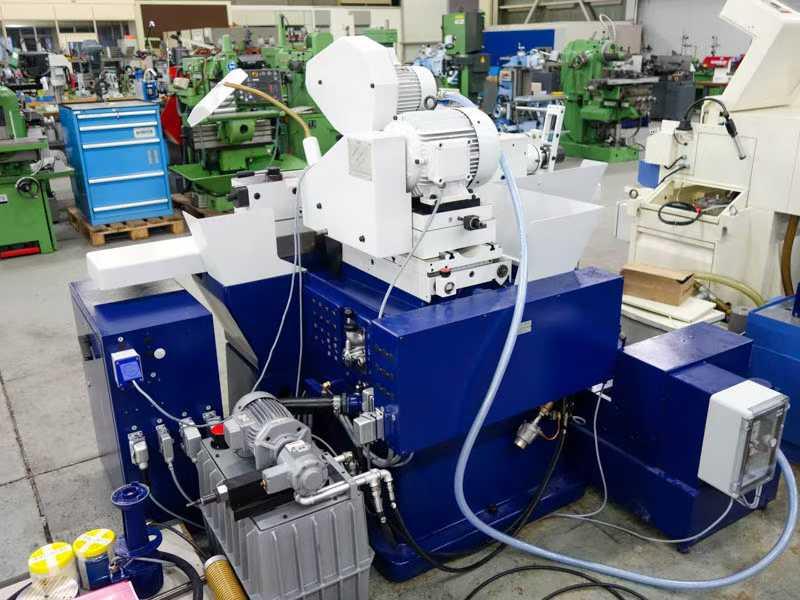

TSCHUDIN TSCHUDIN HTG 620 other
[Product Information]:
- Inventory number：487867
- Brand：TSCHUDIN
- Model：TSCHUDIN HTG 620
- Origin：Switzerland
- Location：China
- Year：To be supplemented
- Create Time：2025-07-12
Specifications:
Distance between centers: 680 mm
Center height: 100 mm

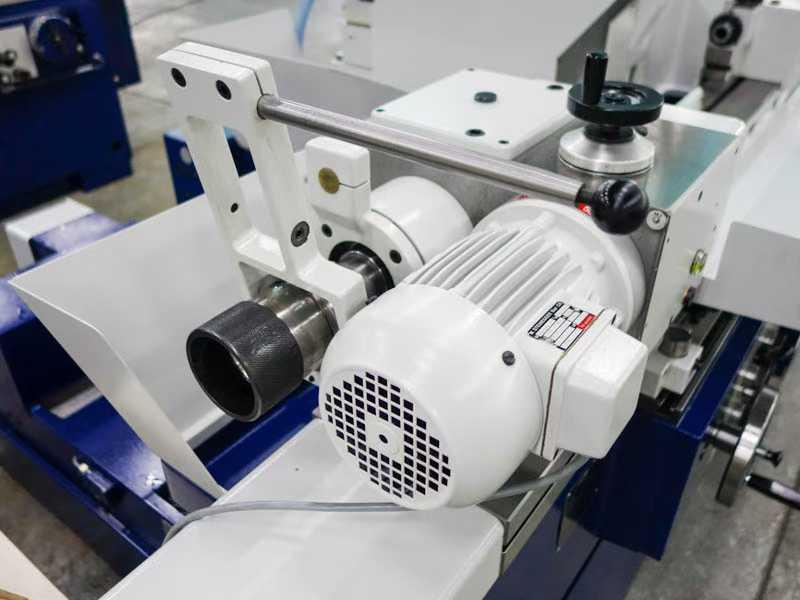

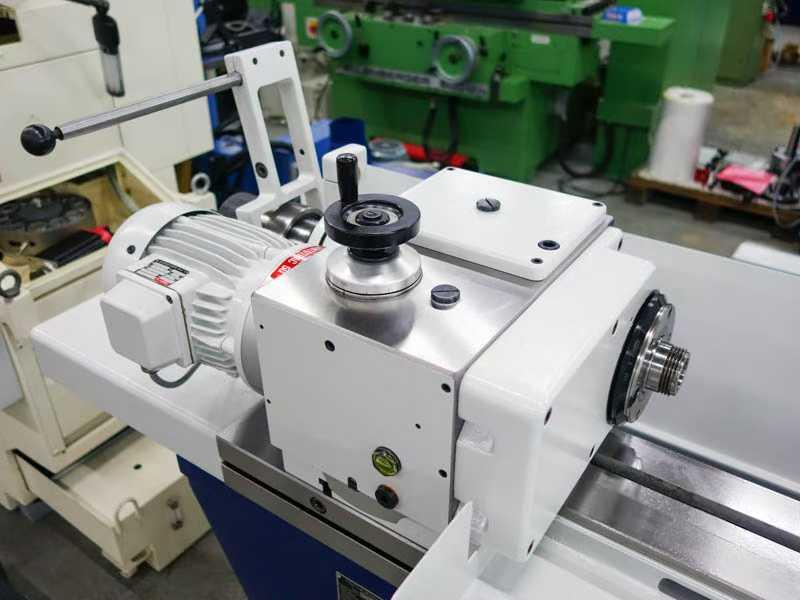

Workhead: "
spindle taper: CM4
spindle head: M48x3
Rotation: 360°
Spindle speed: 50-500 rpm

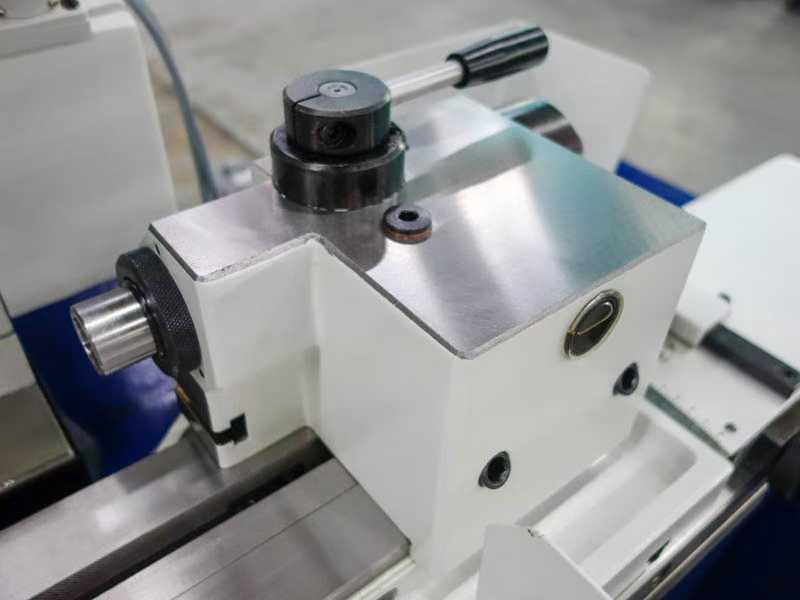

tailstock:
sleeve taper: CM3
Quill shaft Travel: 20 mm

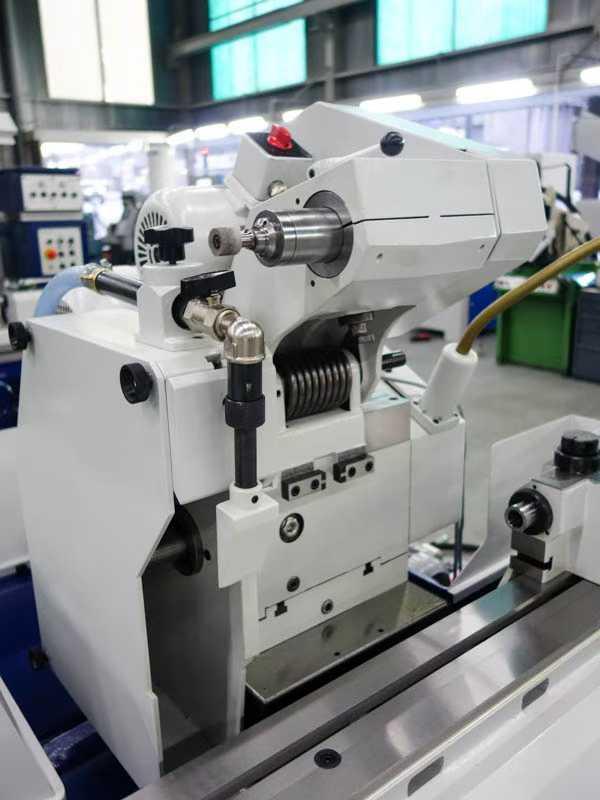

grinding wheel headstock:
grinding wheel diameter: 350 mm
gear width: Up to 50 mm
grinding wheel through hole: 127 mm
Motor power: 3 kW
Longitudinal slide seat:
travel: 620 mm
Speed: 0-5 m/min
Delay: 0-10 seconds
WorkWorktable rotation: ±8°
Horizontal slide seat:
Handwheel control travel: 45 mm
Automatic rapid feed: 38 mm
Automatic travel: 0- 1.2mm /t
Feed rate: 0-3 mm/min
Spark-free grinding time: 2-30 seconds
hydraulic device:
Capacity: 55 L
Cooling device:
Capacity: 200 L
Footage (excluding cooling device) : 2890×1445×1900 mm
Weight: 2600 kg
