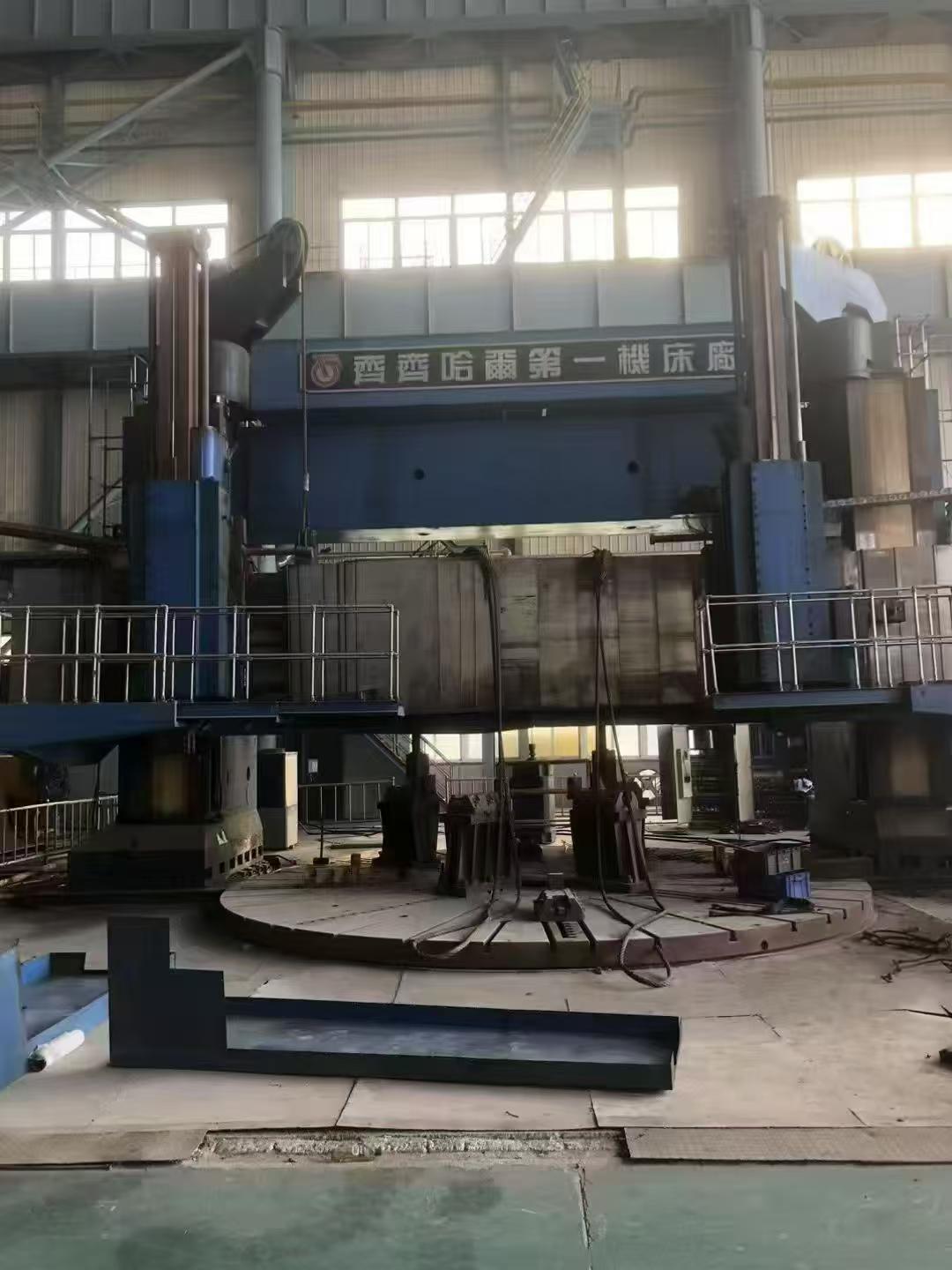

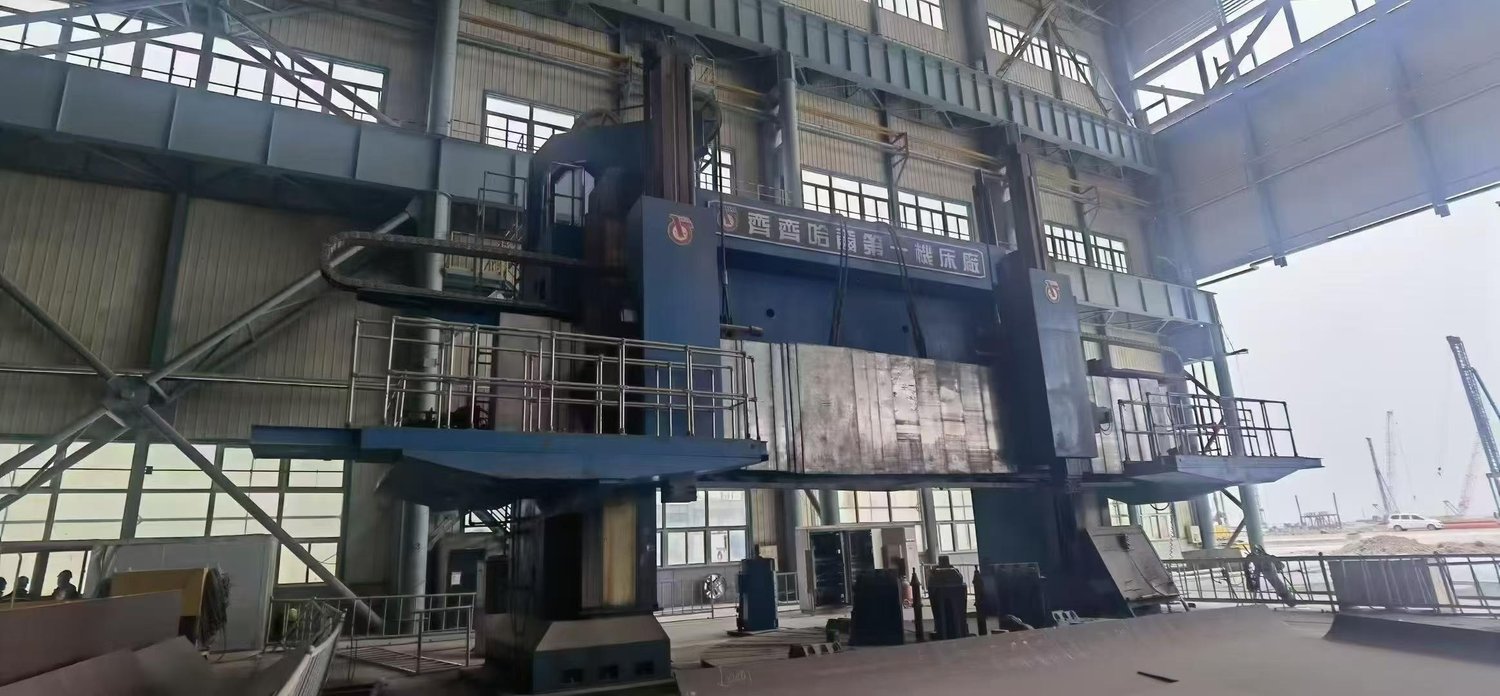

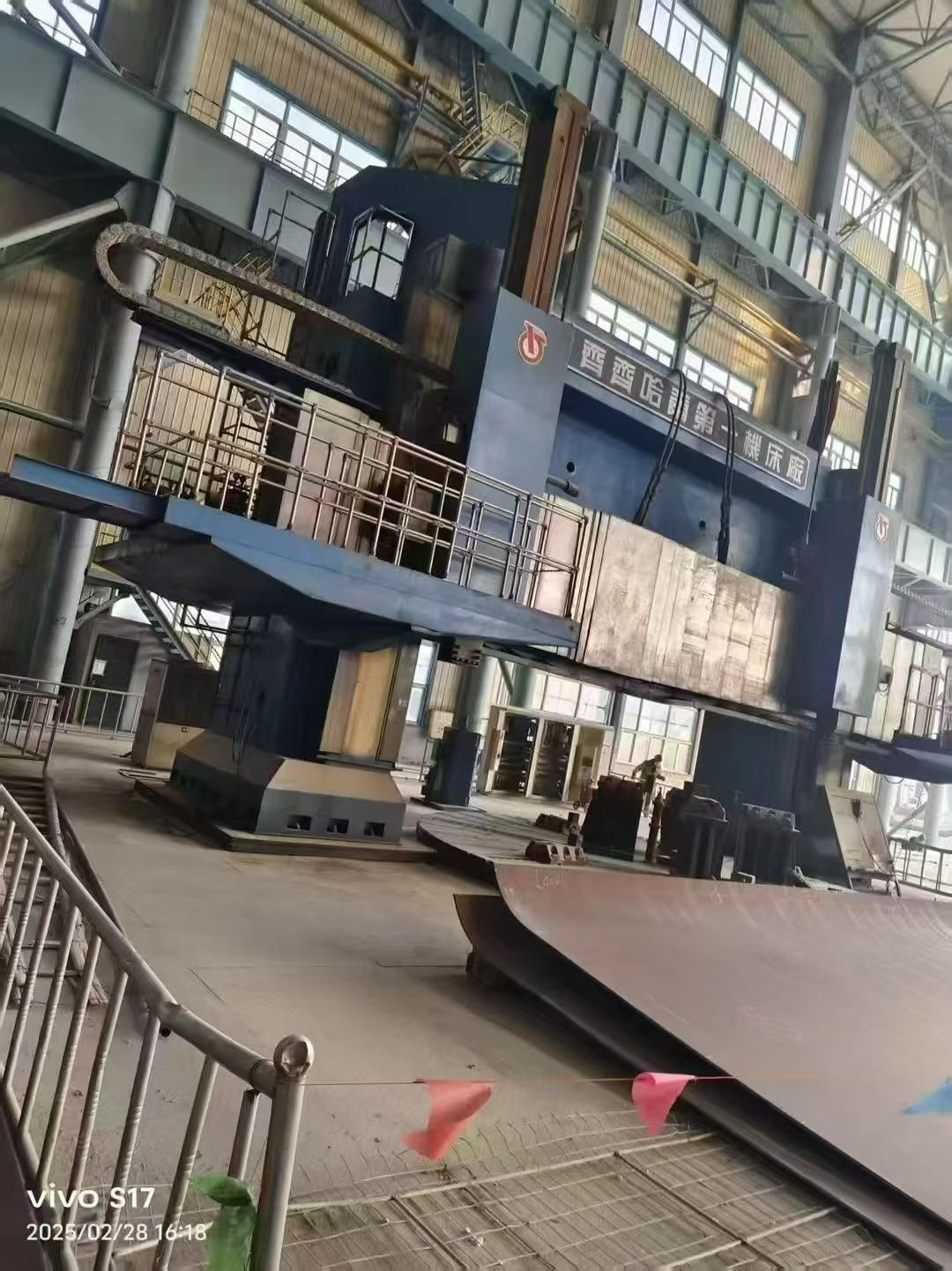

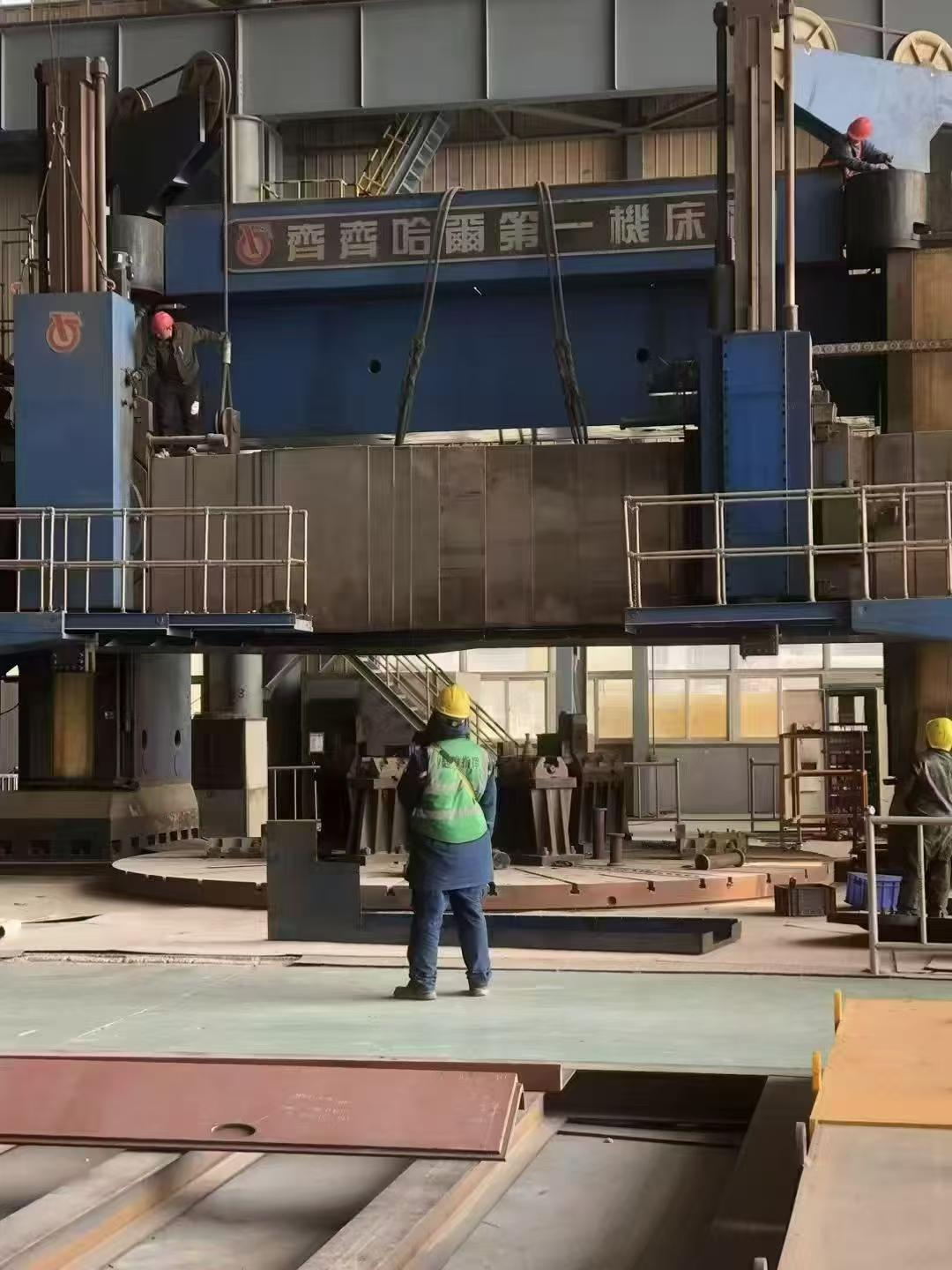

QIQIHAR DVT800x40/150Q-NC CNC vertical lathe

WorkWorktable diameter: 7100mm

Maximum turning diameter: 8000mm

Maximum workpiece height: 5000mm

Maximum weight of workpiece: 150tons

The cross-sectional Footage of the tools Tool holder: 80*80mm

The total cutting force of the vertical tool holder for the right tool holder is 100kN

Left tool holder: 80kN

Maximum torque of workWorktable: 640kN

workWorktable has a stepless speed range of 0.20 to 20rpm
