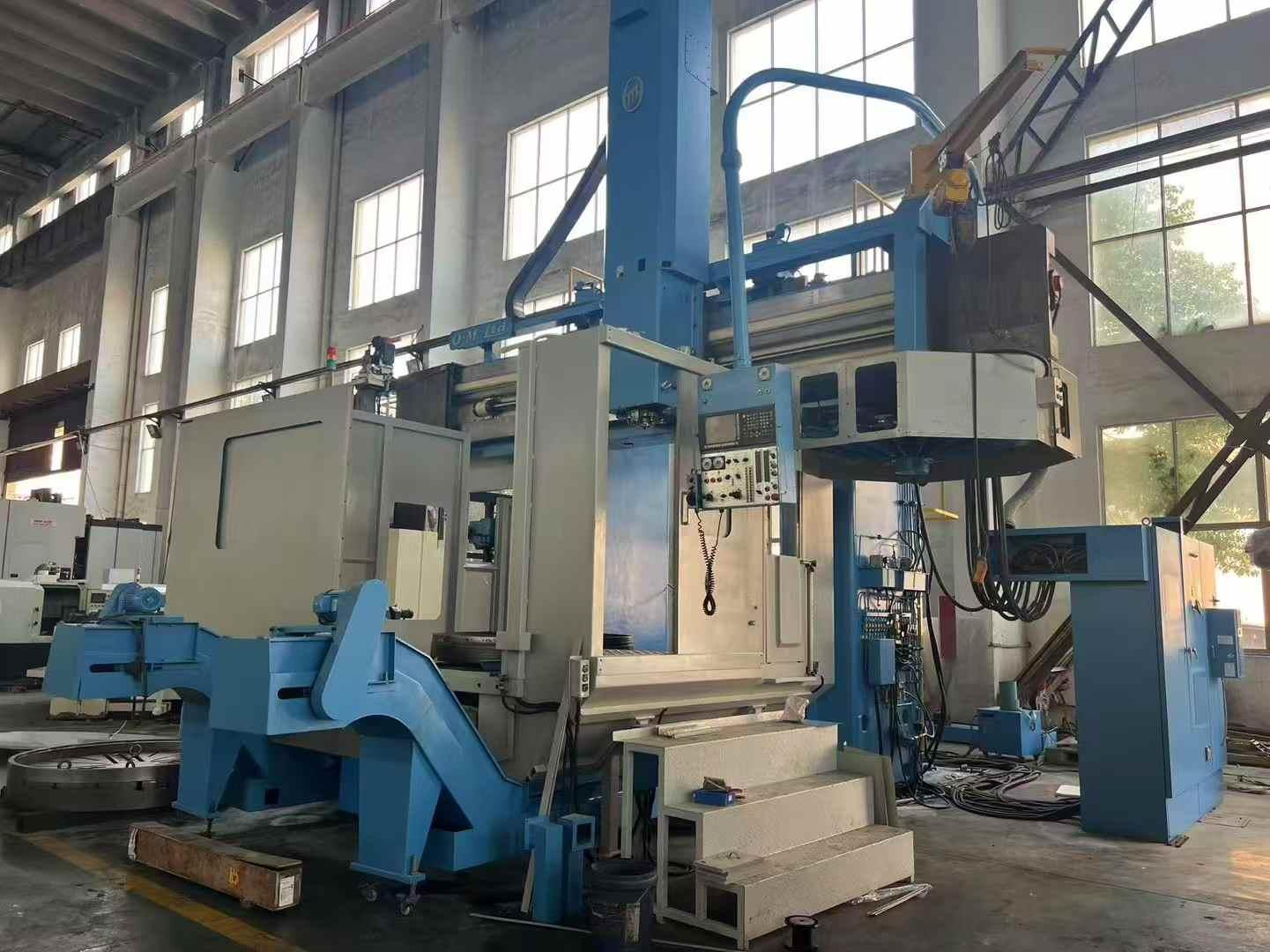

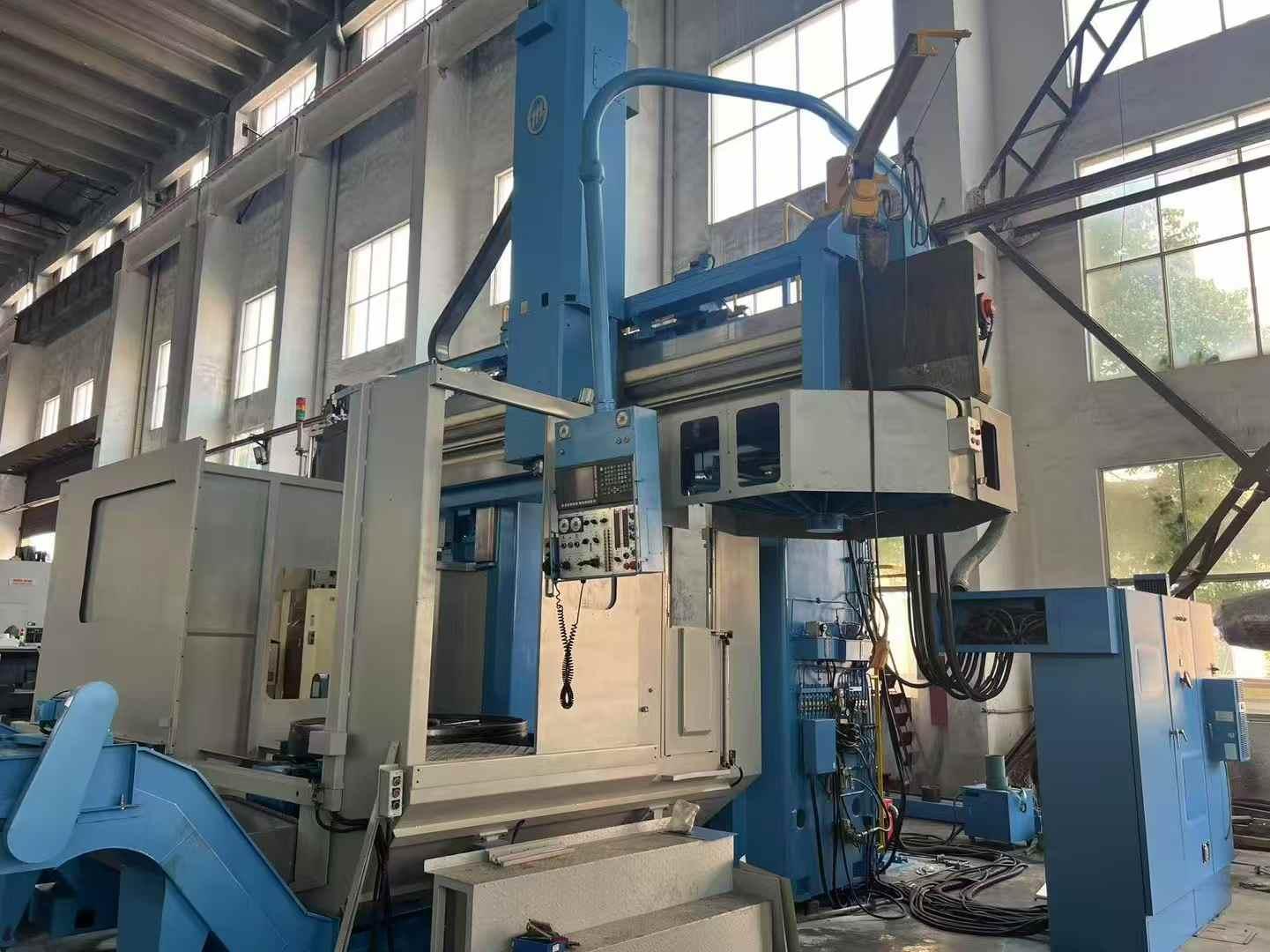

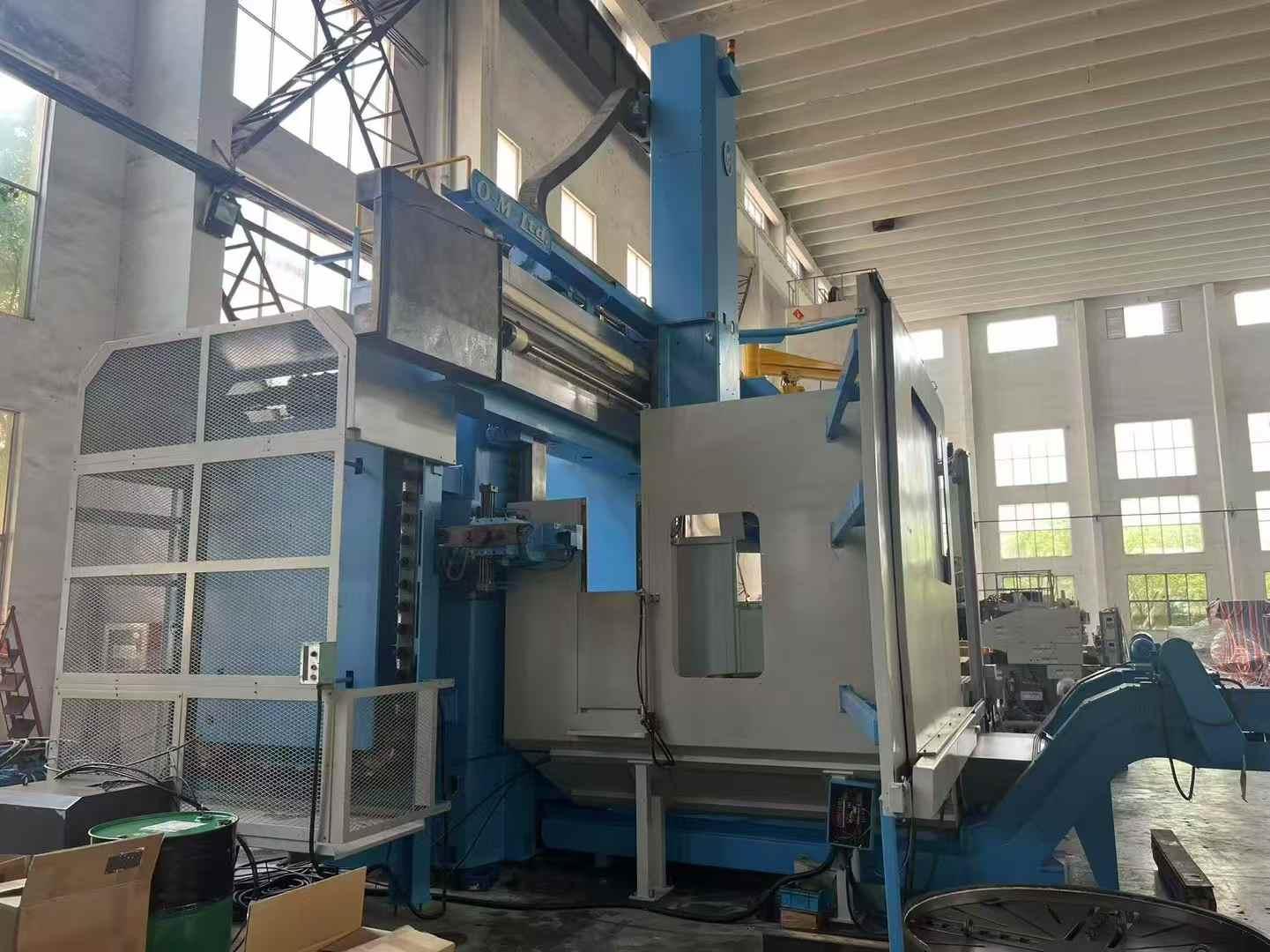

OM TMM-16N CNC vertical lathe

CNC CNC System: FANUC 31i-MB

6-axis 4-simultaneous movement with 3D conversion function

spindle speed: 1.6-250rpm

The chuck  can be freely indexing

chuck  diameter: 1600

Maximum turning diameter: 2000mm

Maximum machining  height: 1500mm

Square slide pillow travel: 800mm

Automatic lifting of crossbeam: 500mm

load: 8 tons

Gantry width: 2200mm

The vertical lathe is equipped with a gantry five-sided function

Double-tool magazine

lathe Tool magazine capacity: 16

milling Tool storage capacity: 60, ATC

Second spindle speed: 1200rpm
