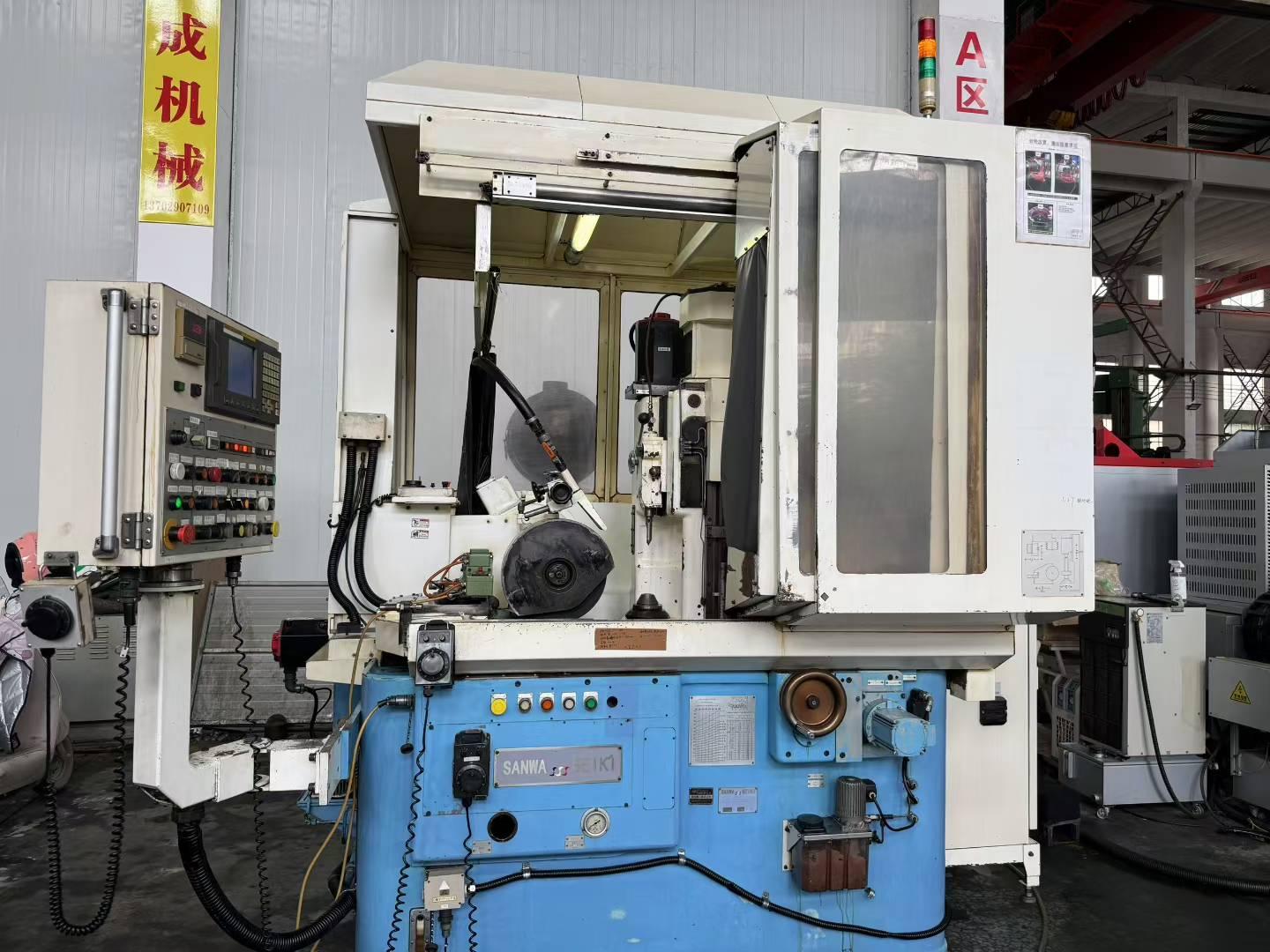

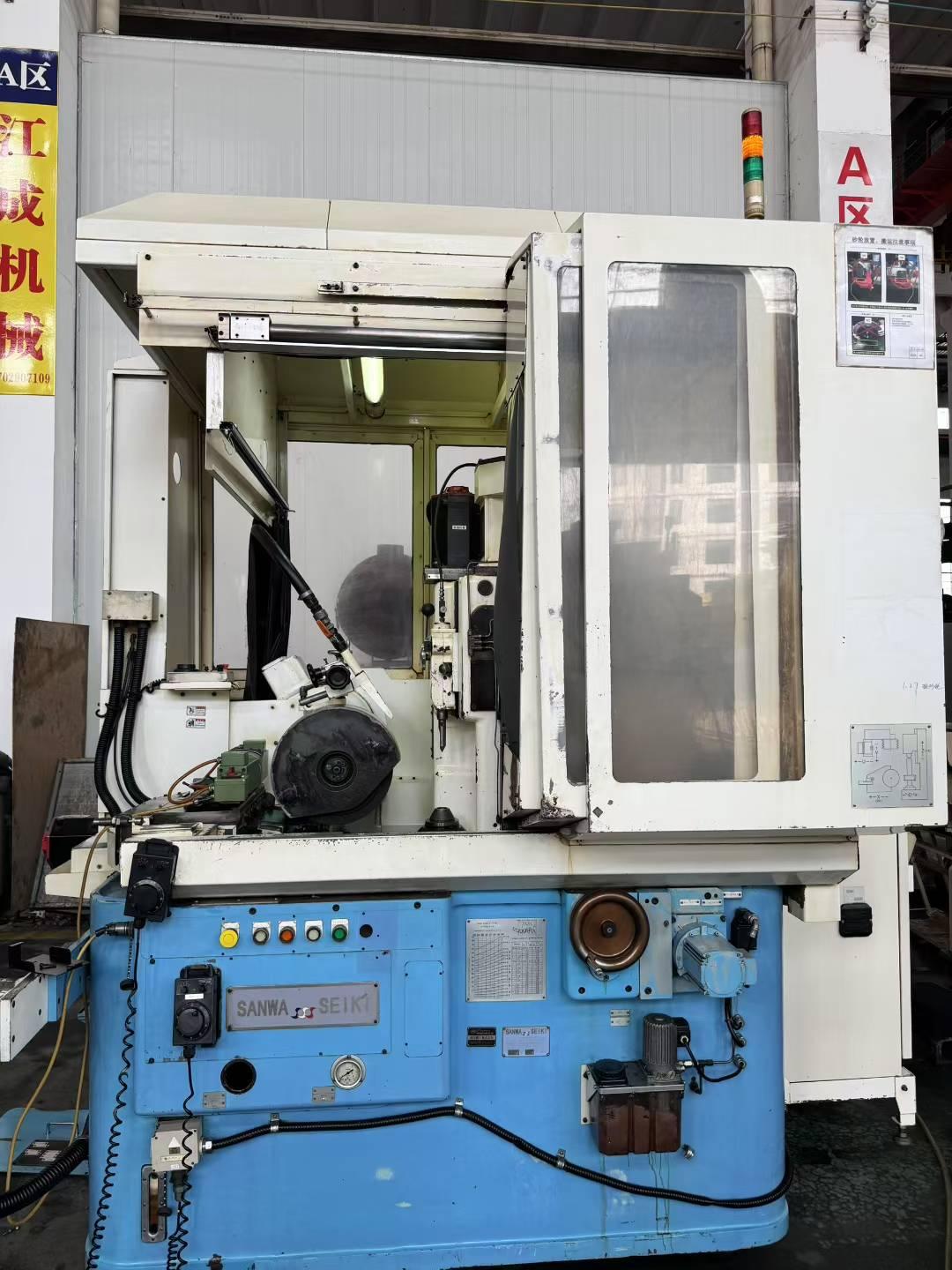

SANWA SEIKI SGR-300 Gear grinding machine
[Product Information]:
- Inventory number：87996
- Brand：SANWA SEIKI
- Model：SGR-300
- Origin："Japan
- Location：China
- Year：To be supplemented
- Create Time：2025-07-02

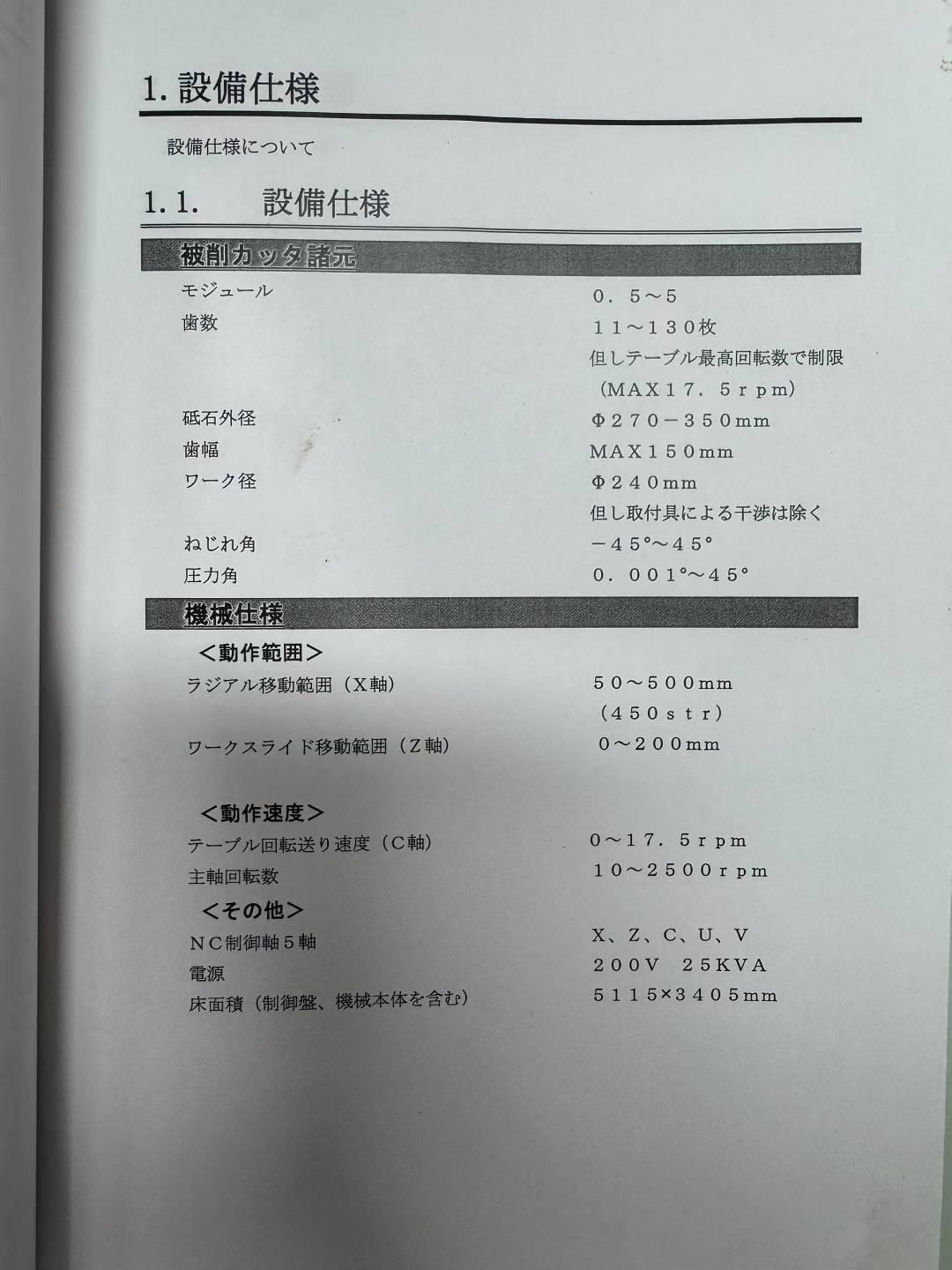

Specifications:
Modulus: 0.5 to 5
Number of teeth: 11 to 130
grinding wheel external diameter: φ270-350mm
Tooth width: MAX150mm
workpiece diameter: φ240mm
helix Angle: -45° to 45°
X-axis movement range: 50 to 500mm
Z-axis movement range: 0 to 200mm
WorkWorktable rotary feed rate (C-axis) : 0-17.5rpm
Spindle speed: 10-2500rpm

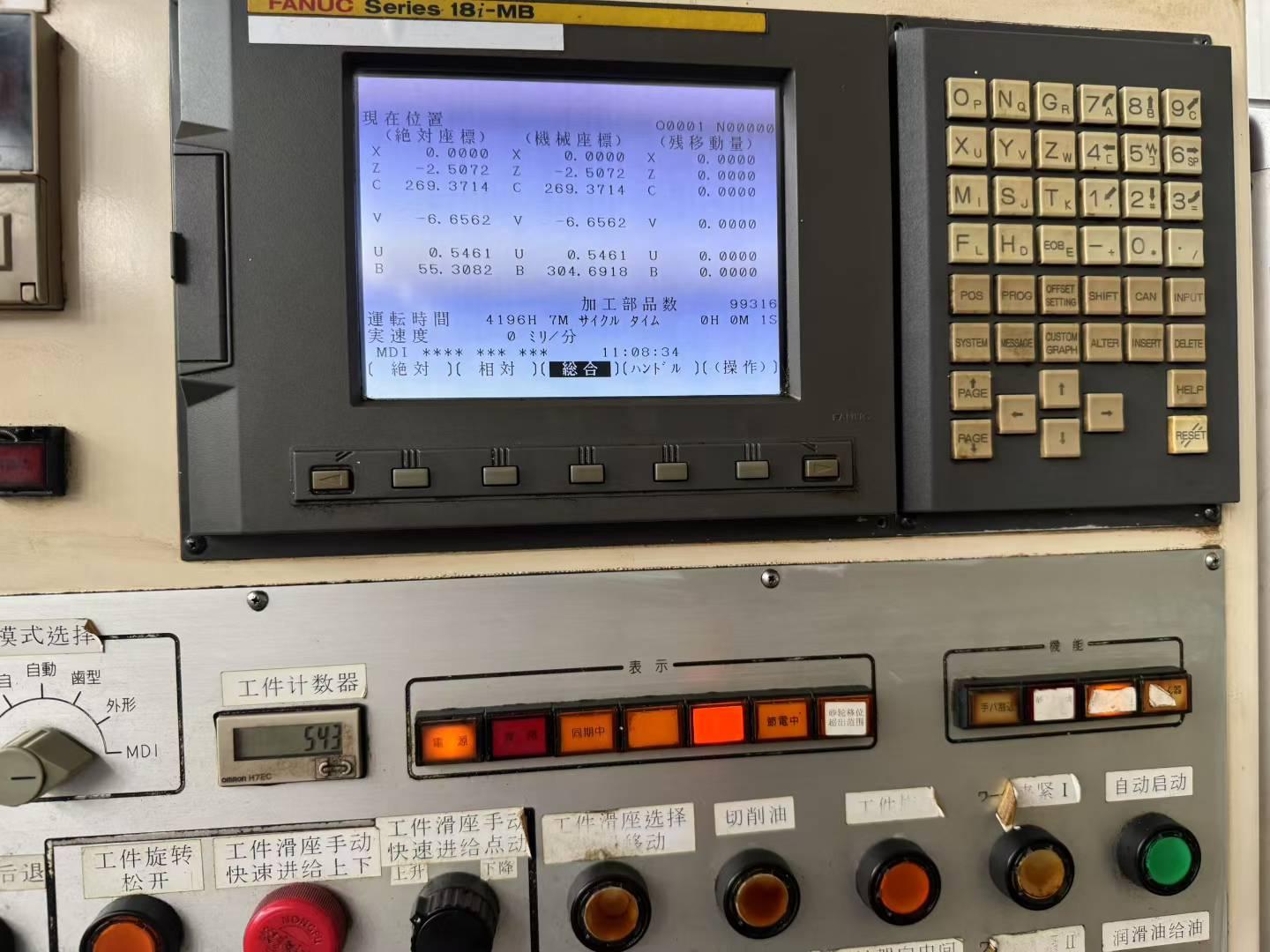

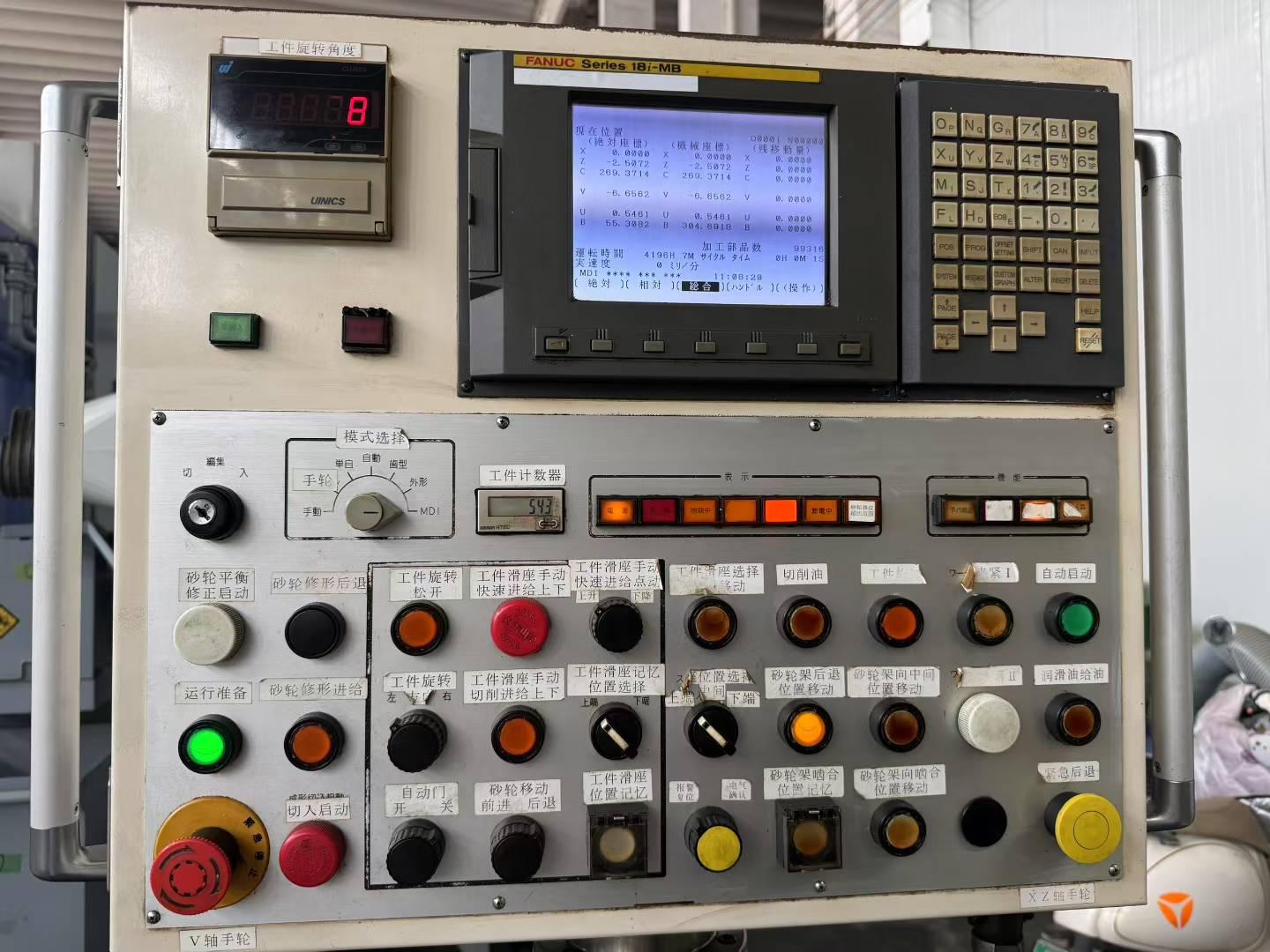

NC control axes: 5 axes: X, Z, C, U, V
