GOODWAY GCL-2L CNC turning lathe

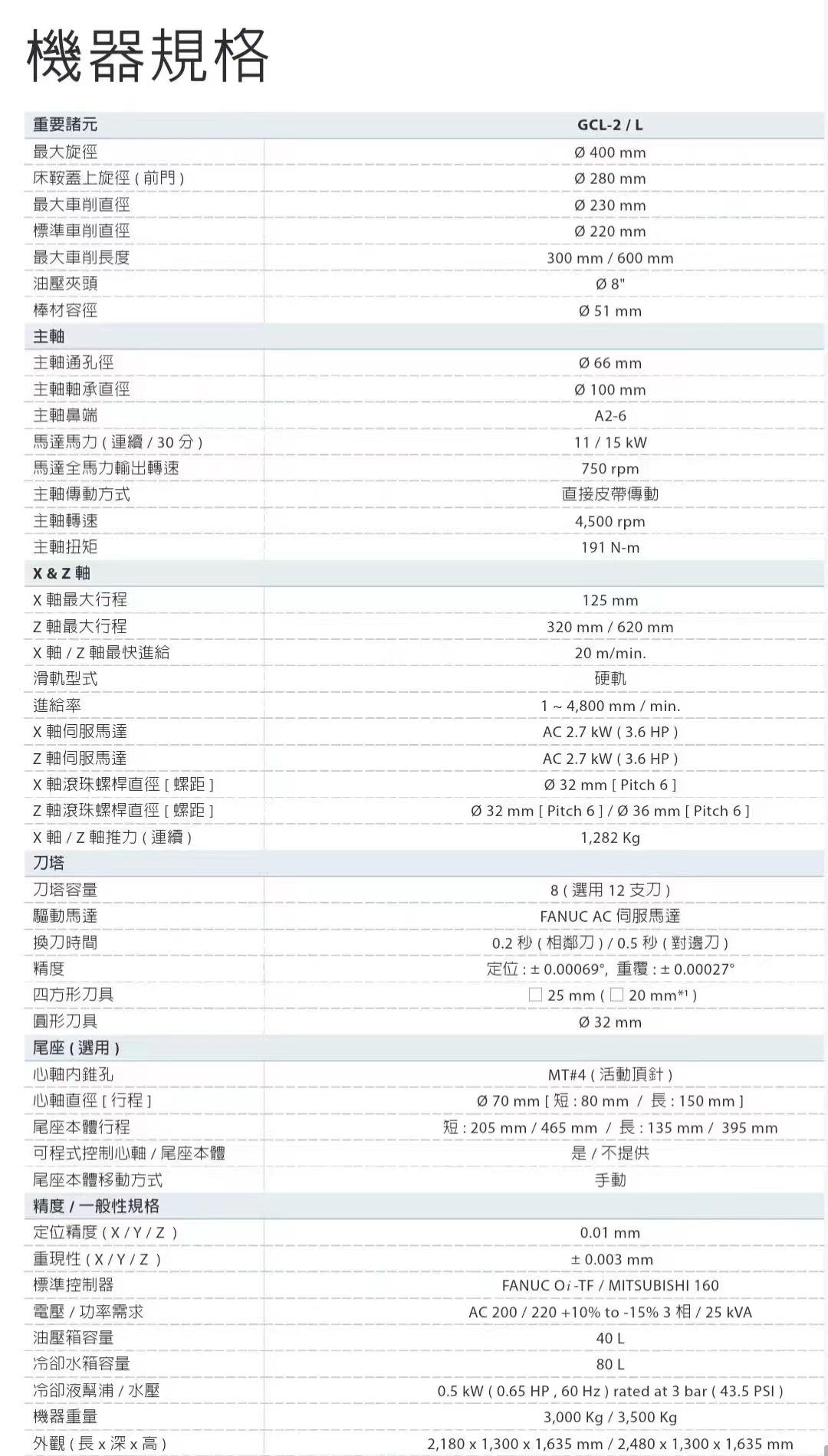

[Product Information]:

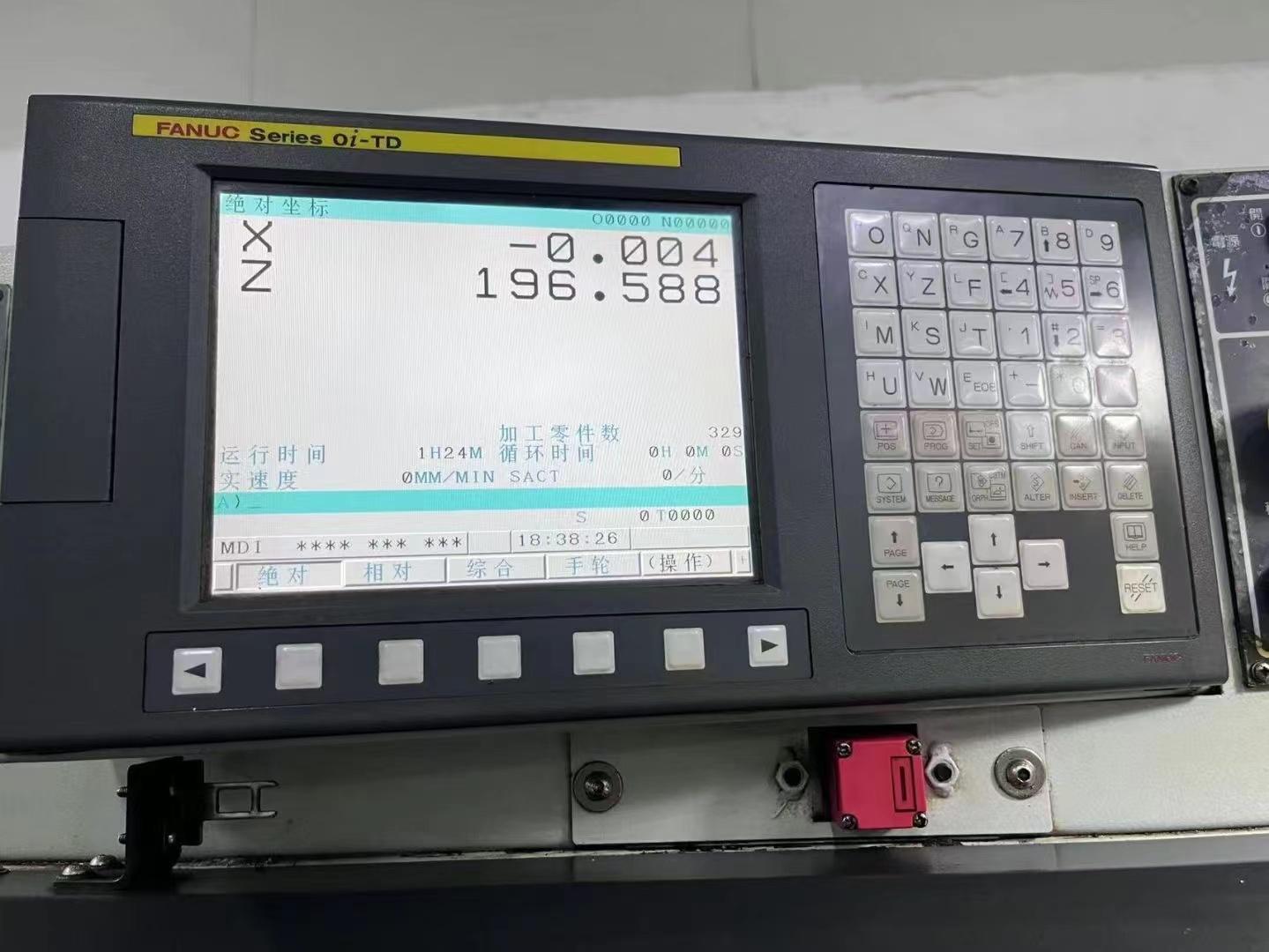

CNC CNC System: FANUC TD

turning diameter: 230mm

Machining length: 600mm

Spindle through hole diameter: 66mm

spindle bearing diameter: 100mm

spindle motor power: 11/15 KW

The full horsepower output speed of the motor is 750rpm

Spindle speed: 4500rpm

Xz-axis travel: 250*609mm

Weight: 3,500 kg

Overall Footage: 2480*1300*1635mm
