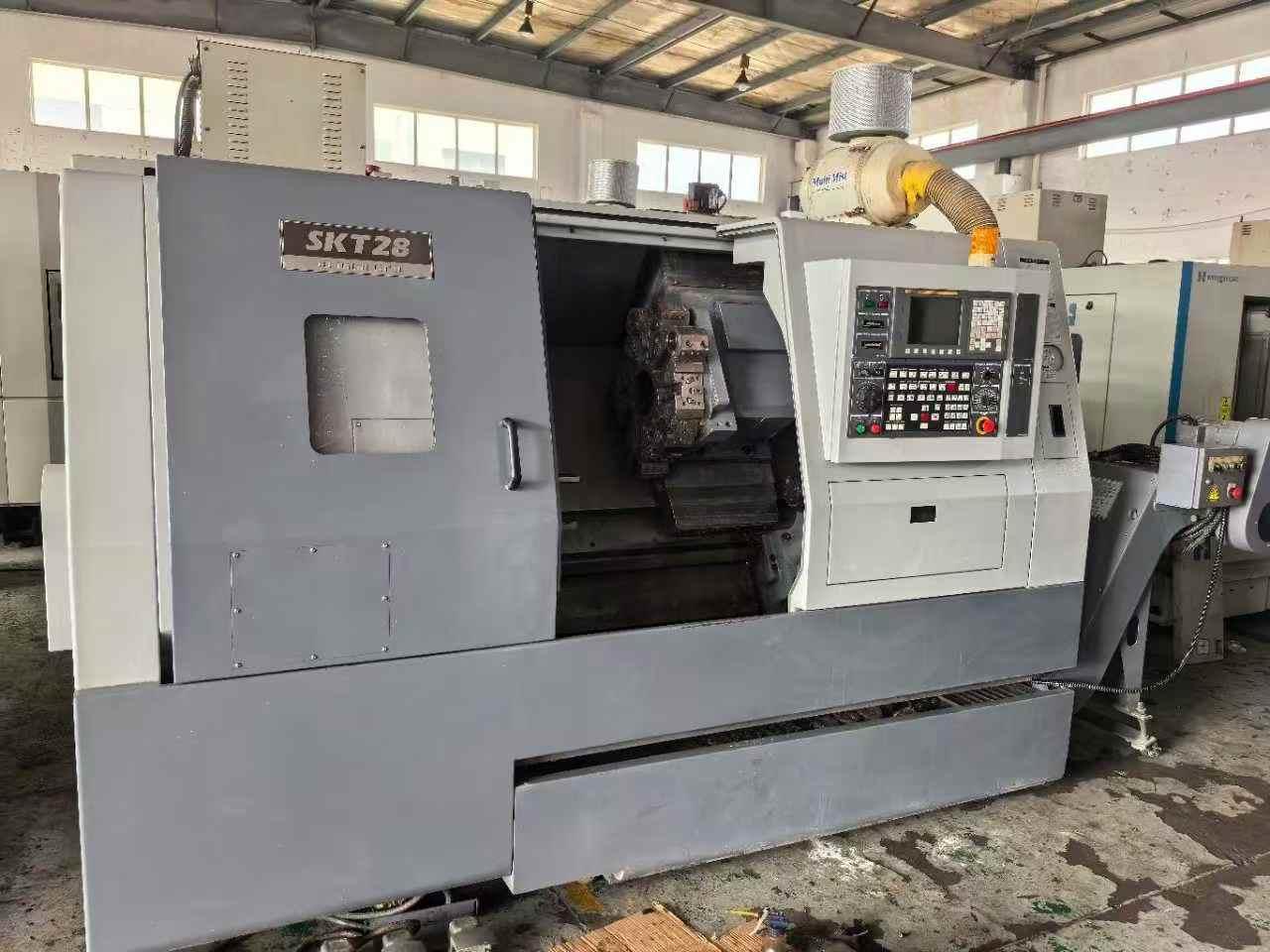

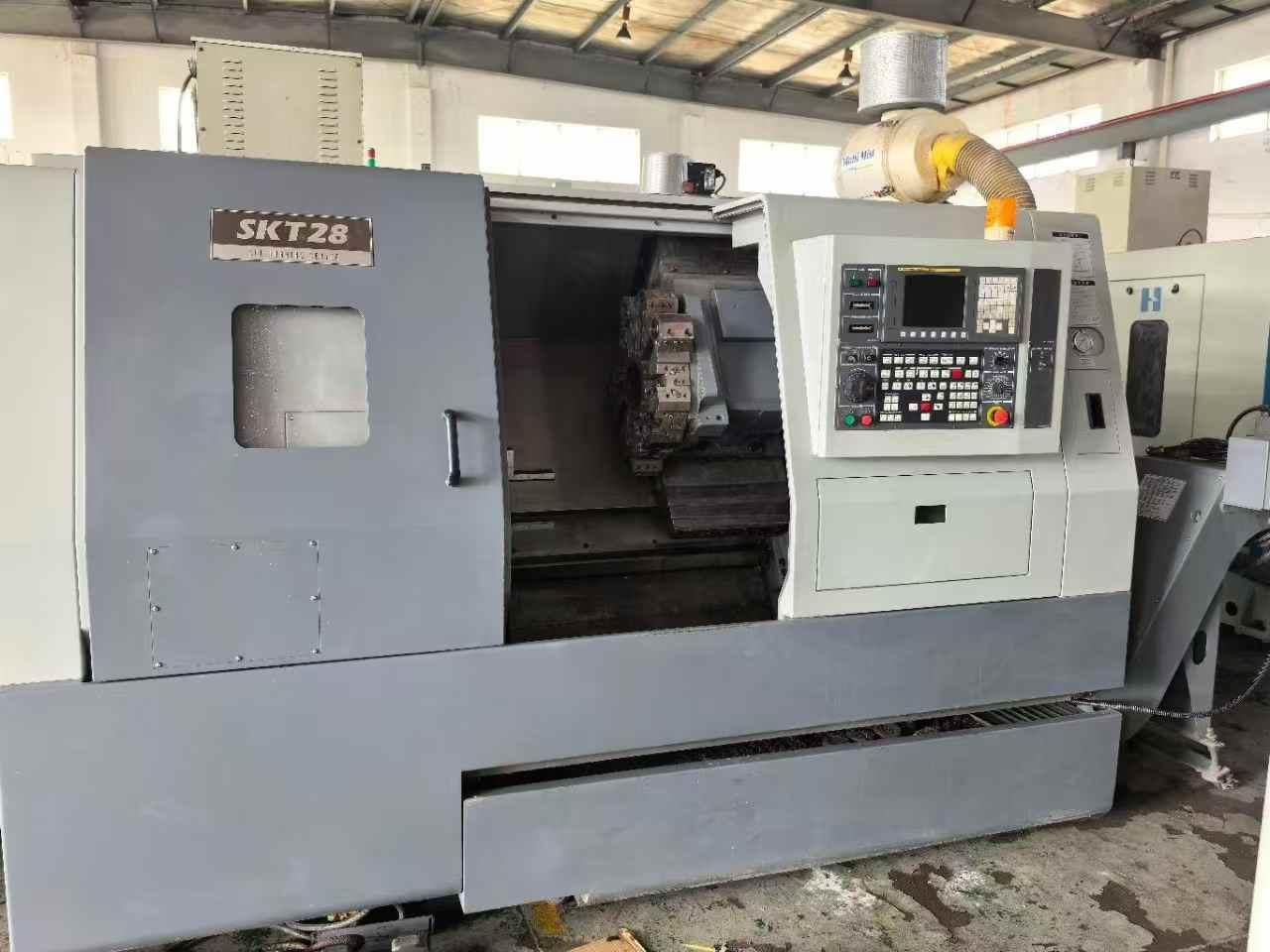

KIA SKT28 CNC turning lathe

[Product Information]:

Bed rotation diameter :590mm

Maximum Machining length :720mm

Maximum turning diameter :410mm

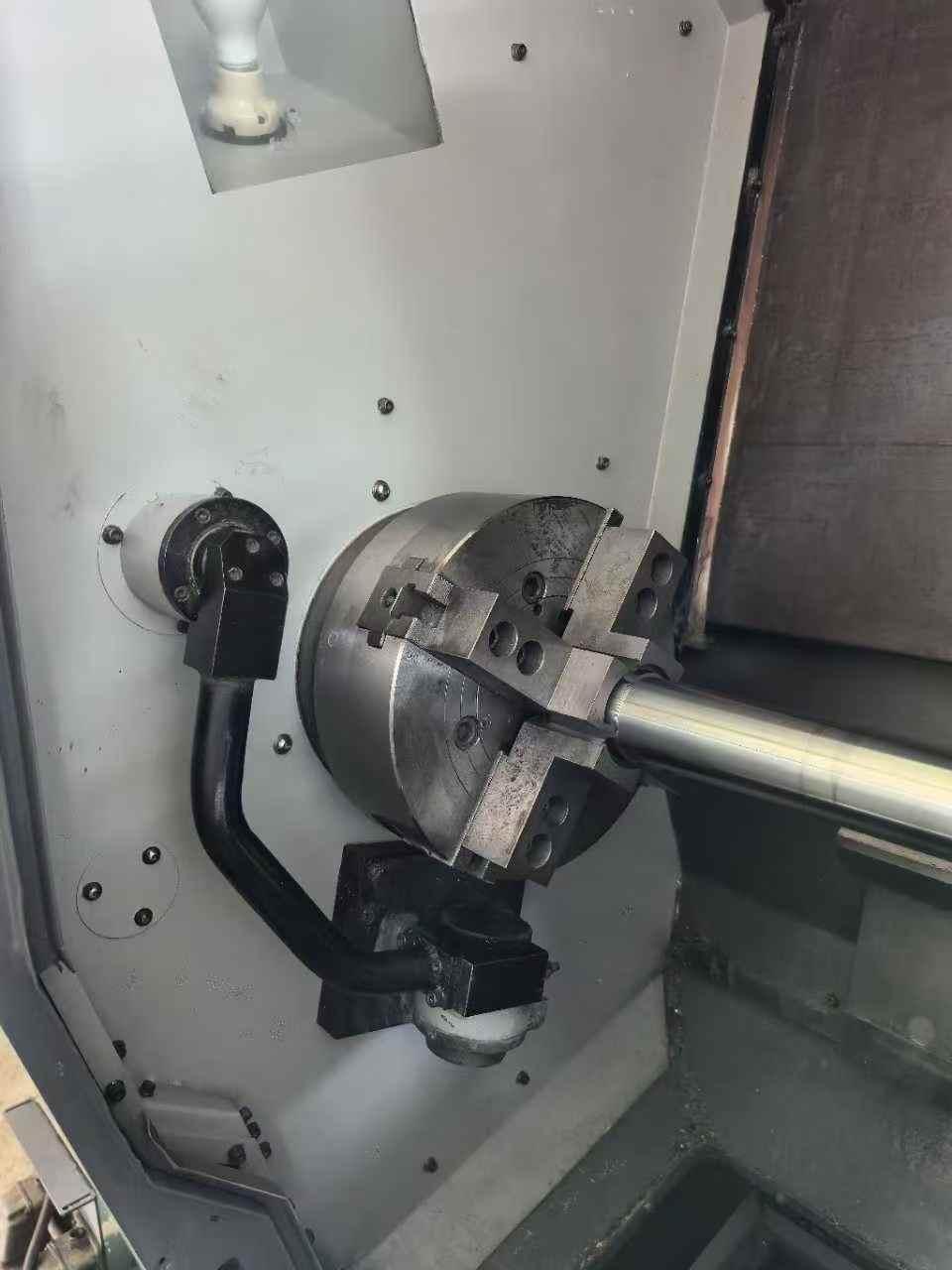

spindle Chuck size :254mm

The diameter of the bar stock workpiece is 65mm

Spindle speed :3000rpm

spindle bearing through hole :120mm

spindle nose: ASA/A2-8

Maximum torque of spindle :93.2kgfm

Number of tools travels :10

Tool size :25/50mm

The clamping force of the turret :5725kgf

Fast moving rate

X-axis: 20m/min

Z-axis: 24m/min

X*Z axis travel: 220*750mm

sleeve taper :MT5

sleeve diameter :100mm

Quill shaft Travel :120mm

spindle motor :22/18.5KW
