HAAS VF-8/50 Vertical Machining centre

three-axis travel: 1626*1016*762 mm

The maximum distance from spindle nose to workWorktable: 864 mm

Minimum distance from spindle nose to workWorktable: 102 mm‌

‌ Maximum power of spindle: 22.4kW

Maximum spindle speed: 8100 rpm

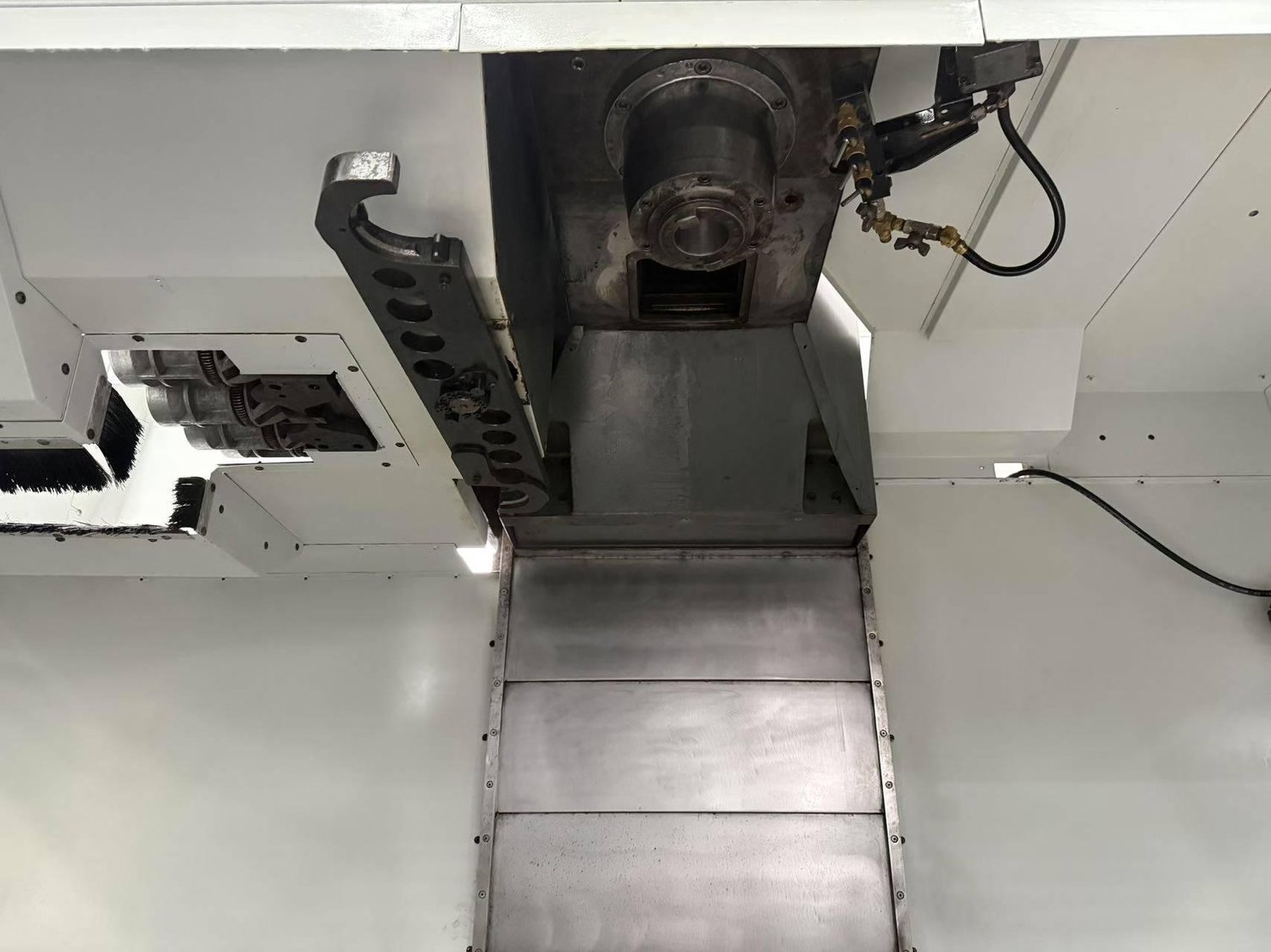

spindle: BT50

spindle cooling method: Liquid cooling

spindle torque: 122 Nm @ 2000 rpm‌

X-axis acceleration speed: 15.2 m/min

Y-axis rapid movement speed: 15.2 m/min

Z-axis fast-moving rate: 15.2 m/min‌

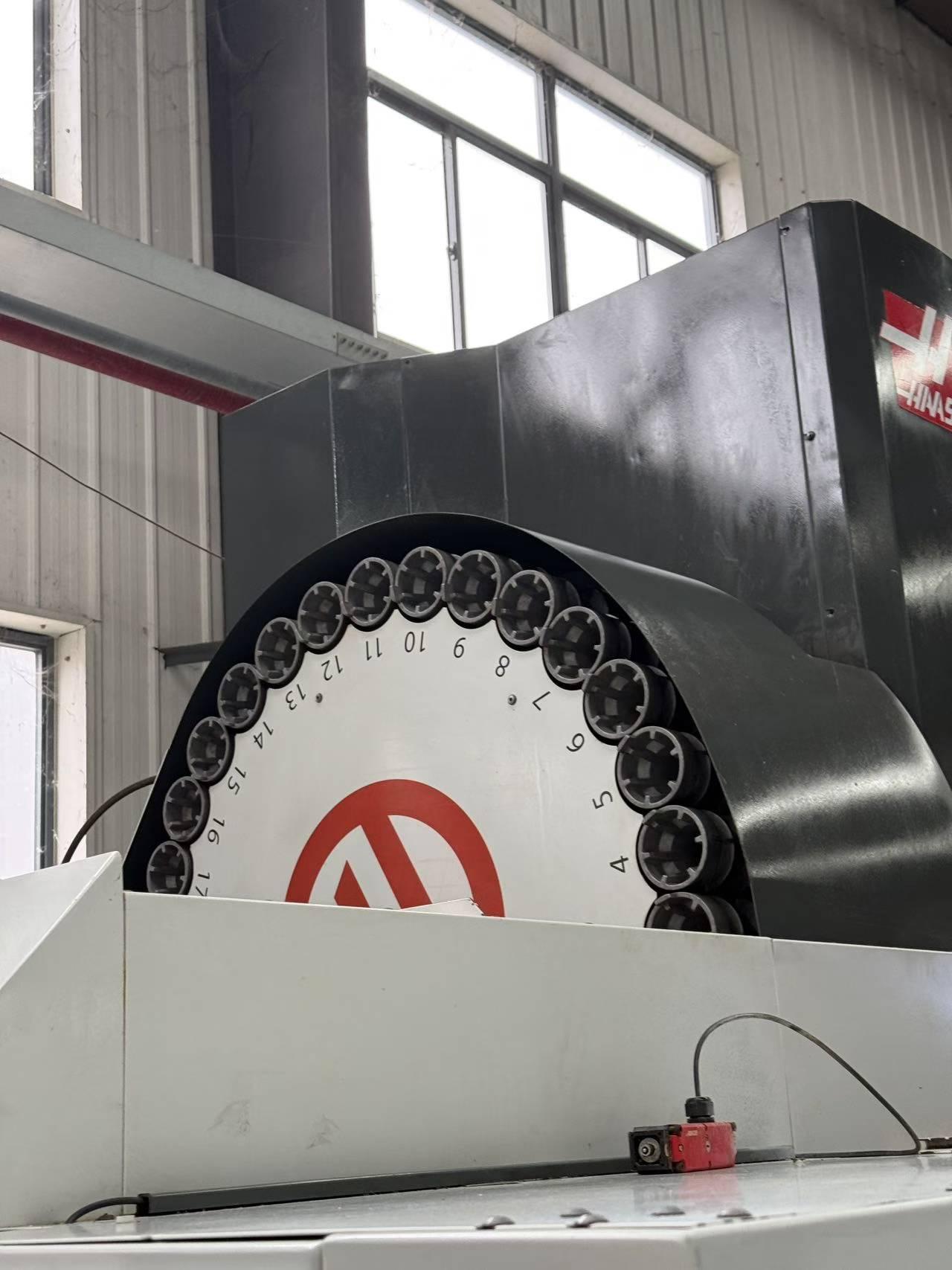

Number of Tool: 30+1

Maximum Tool diameter: 76 mm

Maximum Tool length: 406 mm

Maximum Tool weight: 5.4 kg‌

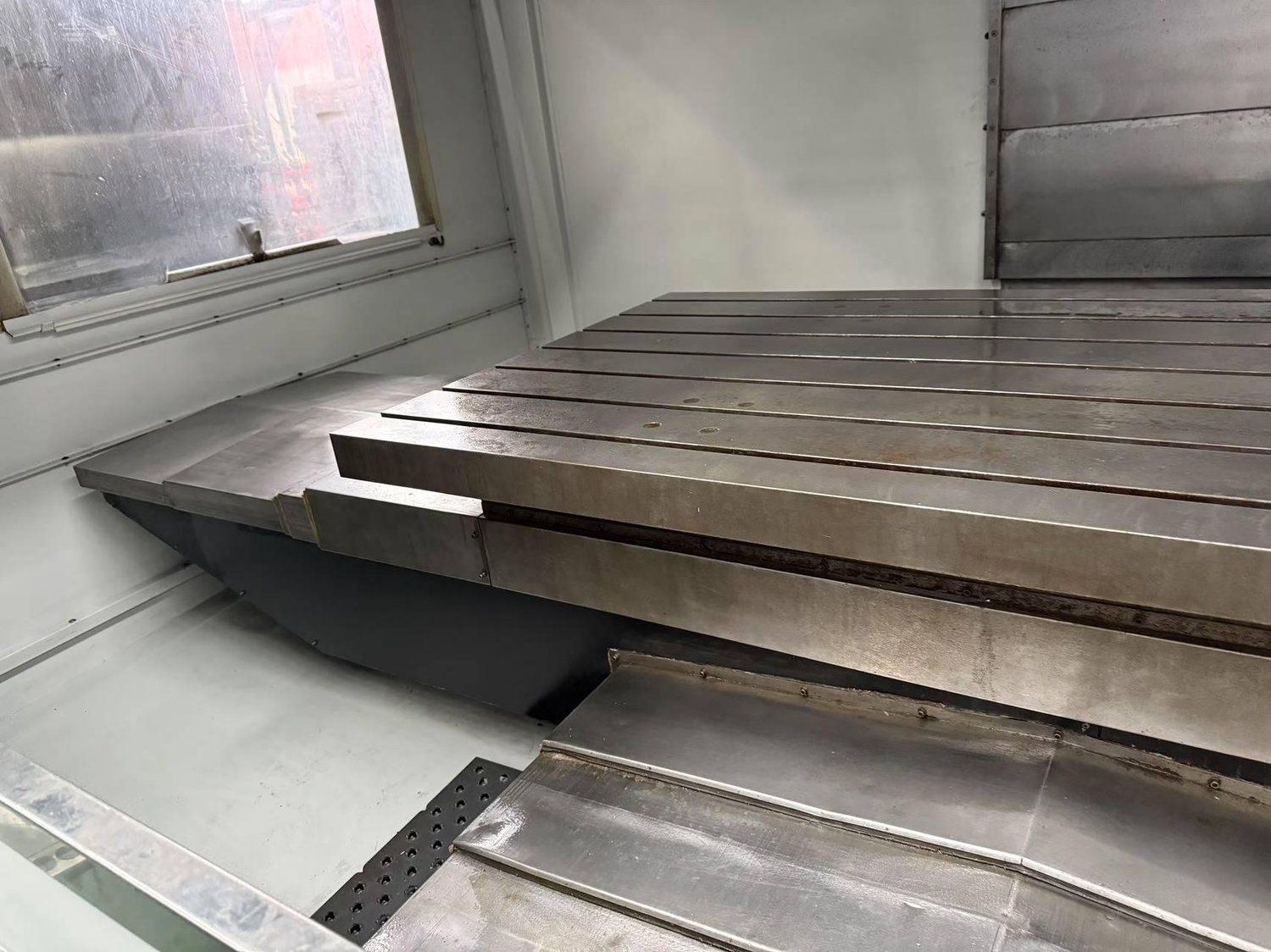

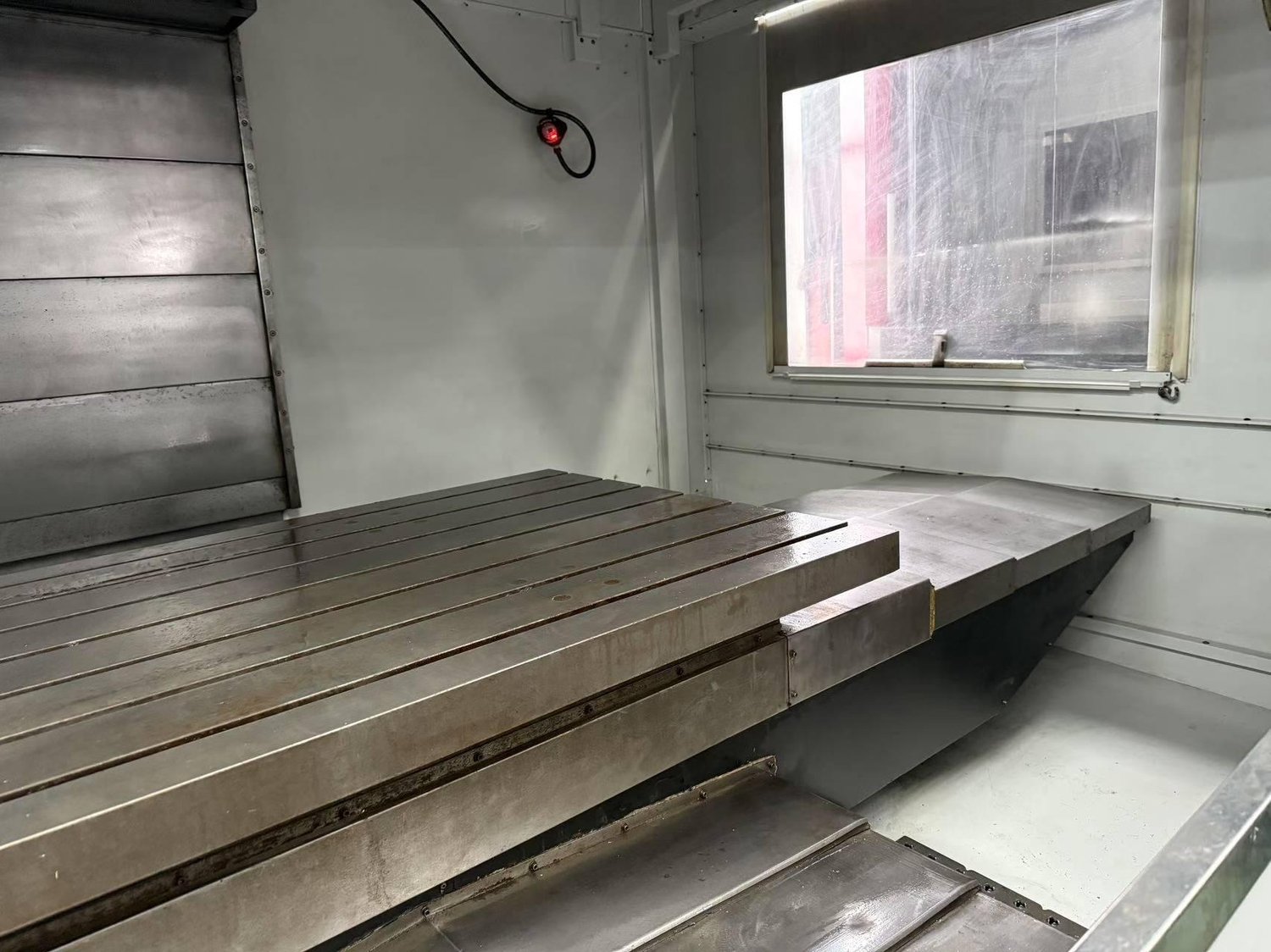

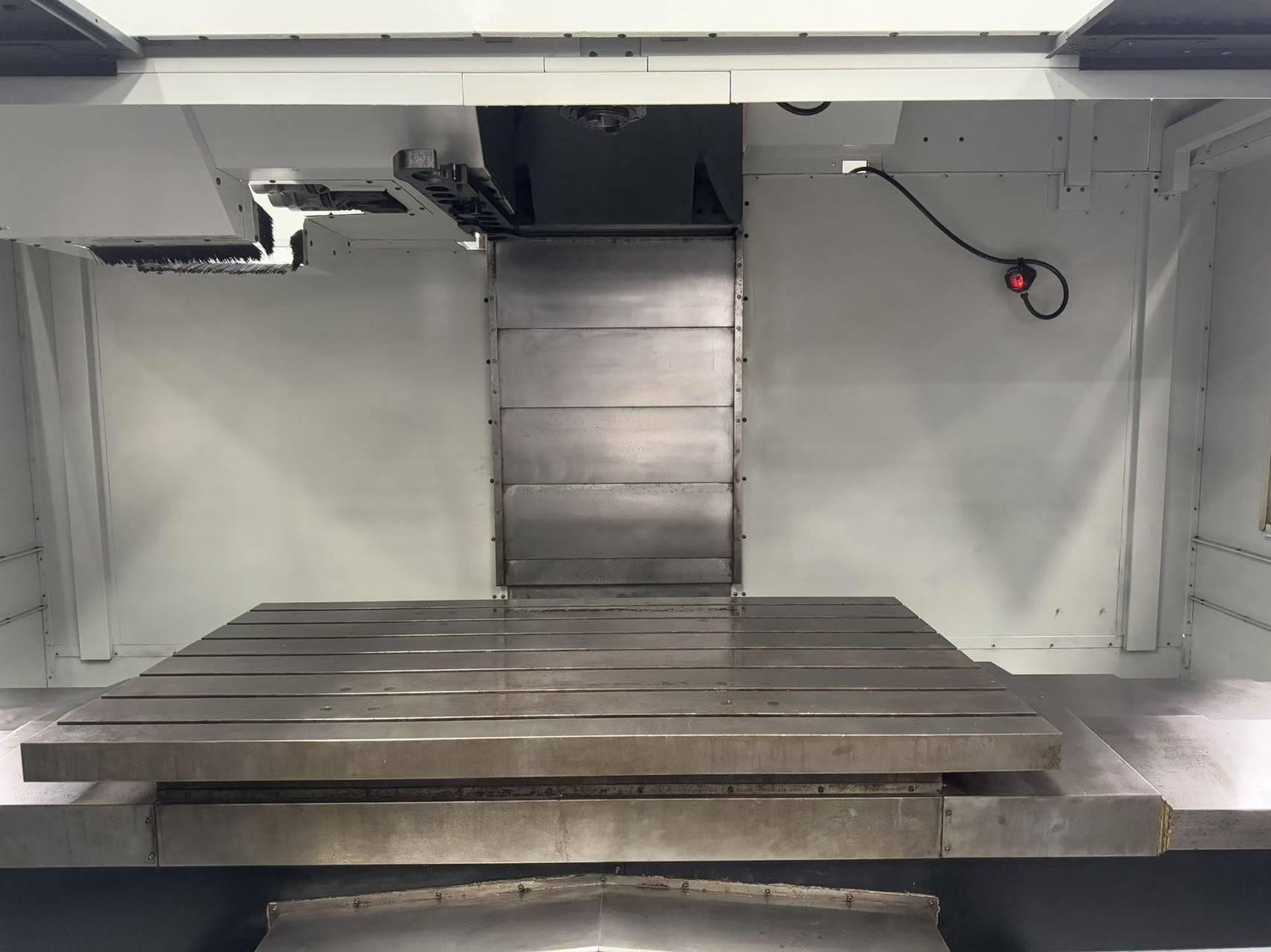

WorkWorktable length: 1626mm

WorkWorktable width: 914mm

T-slot size: 161257

WorkWorktable Maximum load: 1814 kg‌
