FAGIMA SPIN-FAST 5AX 5 axis machining centre

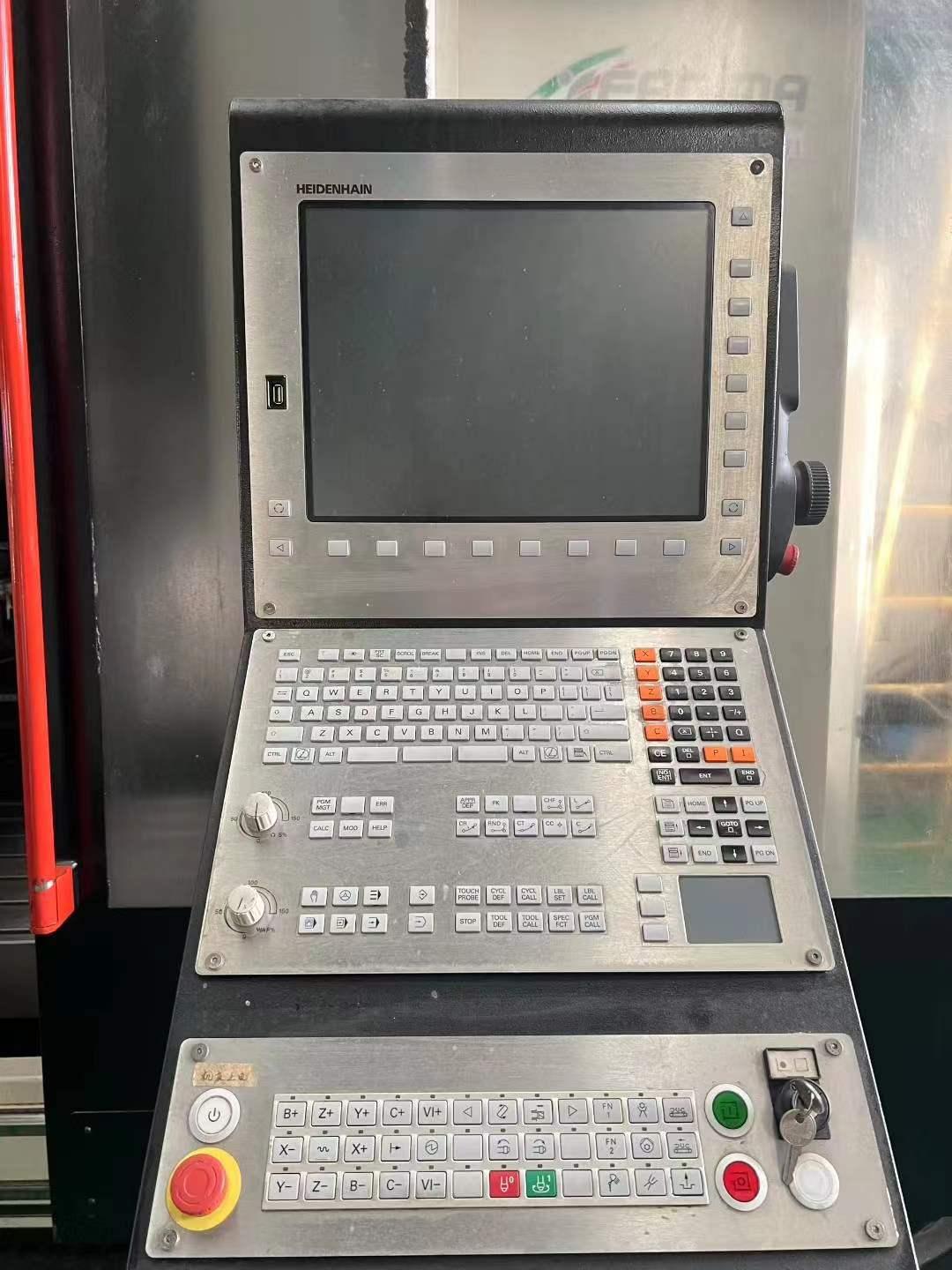

CNC CNC System: Heidenhain iTNC 640

three-axis travel: 2200*850*850mm

B-axis travel: + 16° to -120°

C-axis travel: 360°

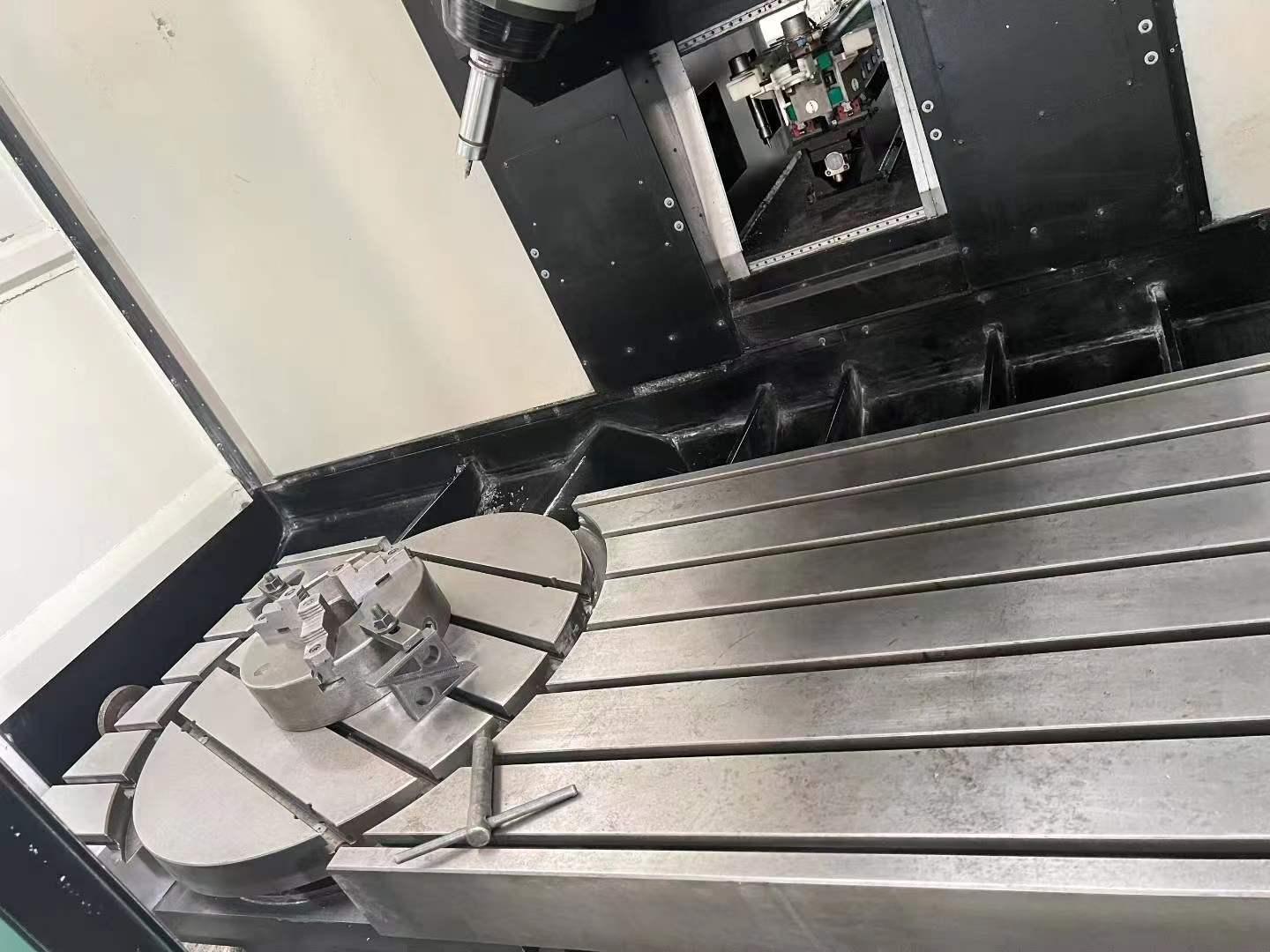

The diameter of the NC Rotary workWorktable is 1100mm

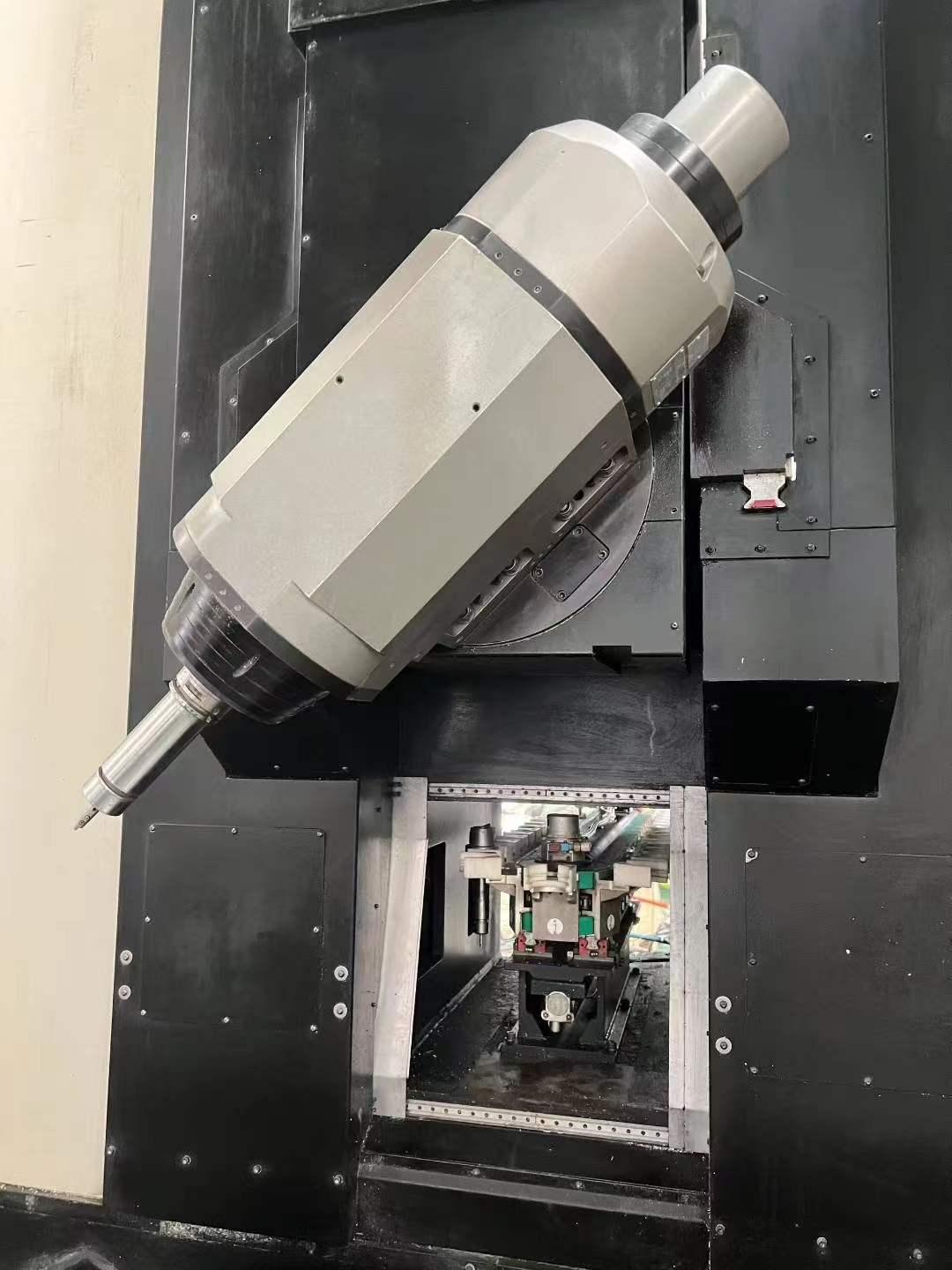

spindle motor: 38KW

Maximum Spindle speed: 15,000 RPM

spindle taper: HSK-63

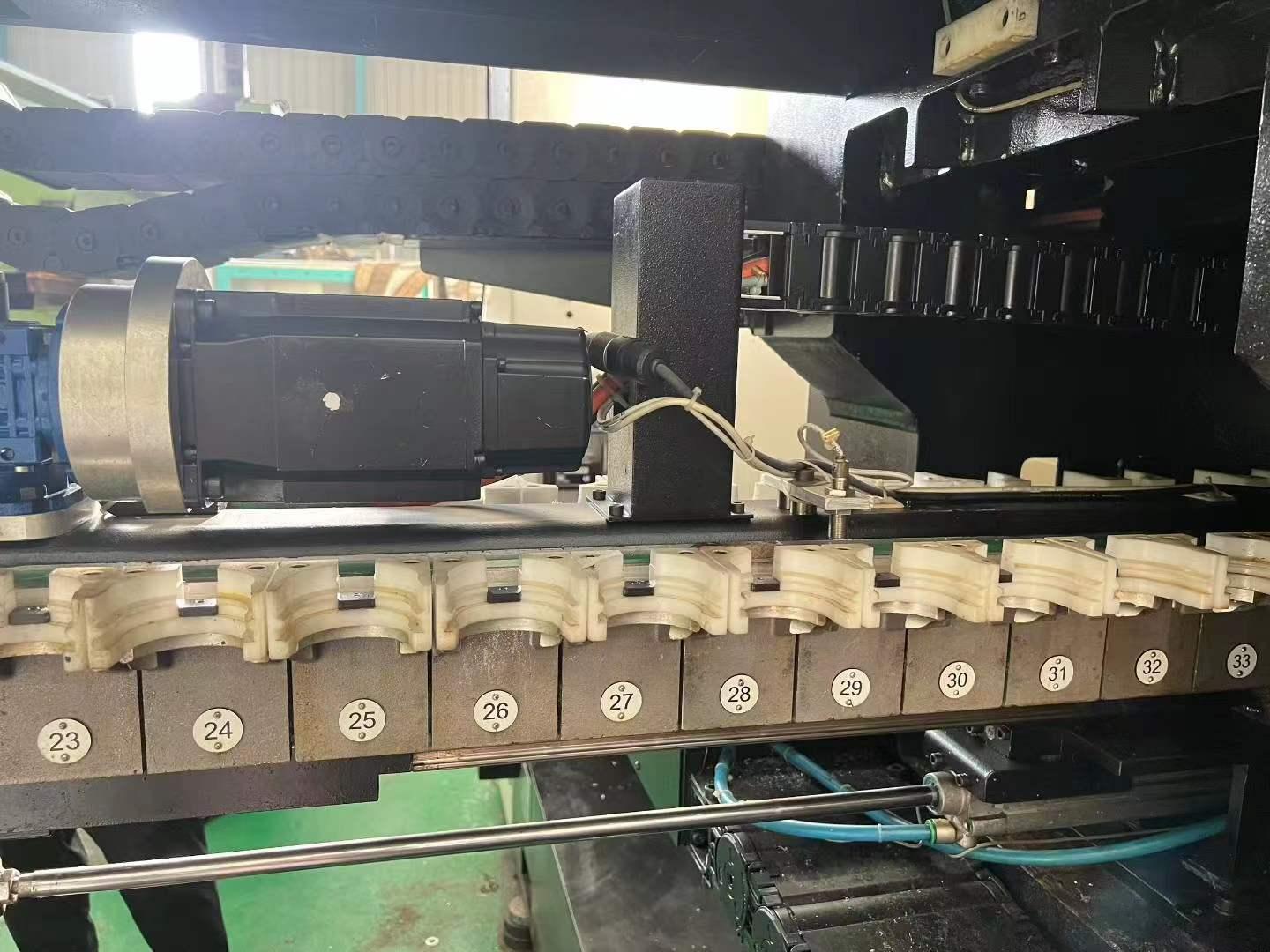

magazine capacity: 30, ATC

The Tool holder of the tools changes automatically

Infrared Renishaw OMP60

Measurement CNC System: Dual laser measurement

Rotating observation window

Handwheel operation
