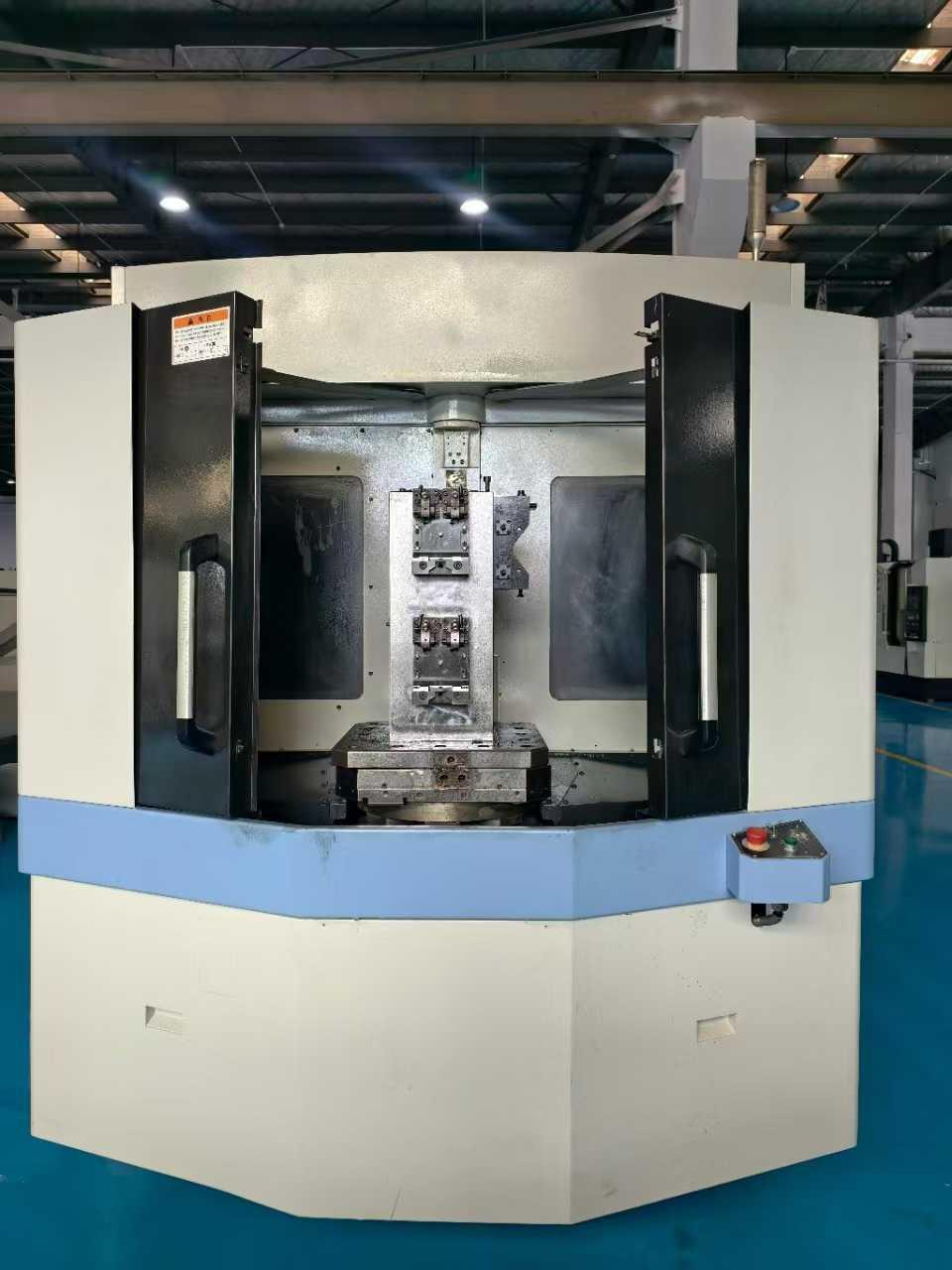

DOOSAN HC505 Horizontal Machining centre

three-axis travel: 850*700*750mm

Distance from the center of spindle to the top of the worktable: 50-750mm

Distance from the end of spindle to the center of workWorktable: 150-900mm

The size of workWorktable worktable is 500*500mm

The load-Load of workWorktable worktable is 500kg

Maximum spindle speed: 8000rpm

Maximum spindle torque: 353.4Nm

The X*Y*Z axis fast-moving rate: 40/40/40m/min

Tool Tool holder type: BT40

tools magazine: 40 (60)

Maximum diameter of the Tool: φ75mm

Maximum length of the Tool: 400mm

Maximum weight of the Tool: 10kg

spindle motor power: 18.5kw

Overall Footage: 5290*2680*3020mm
