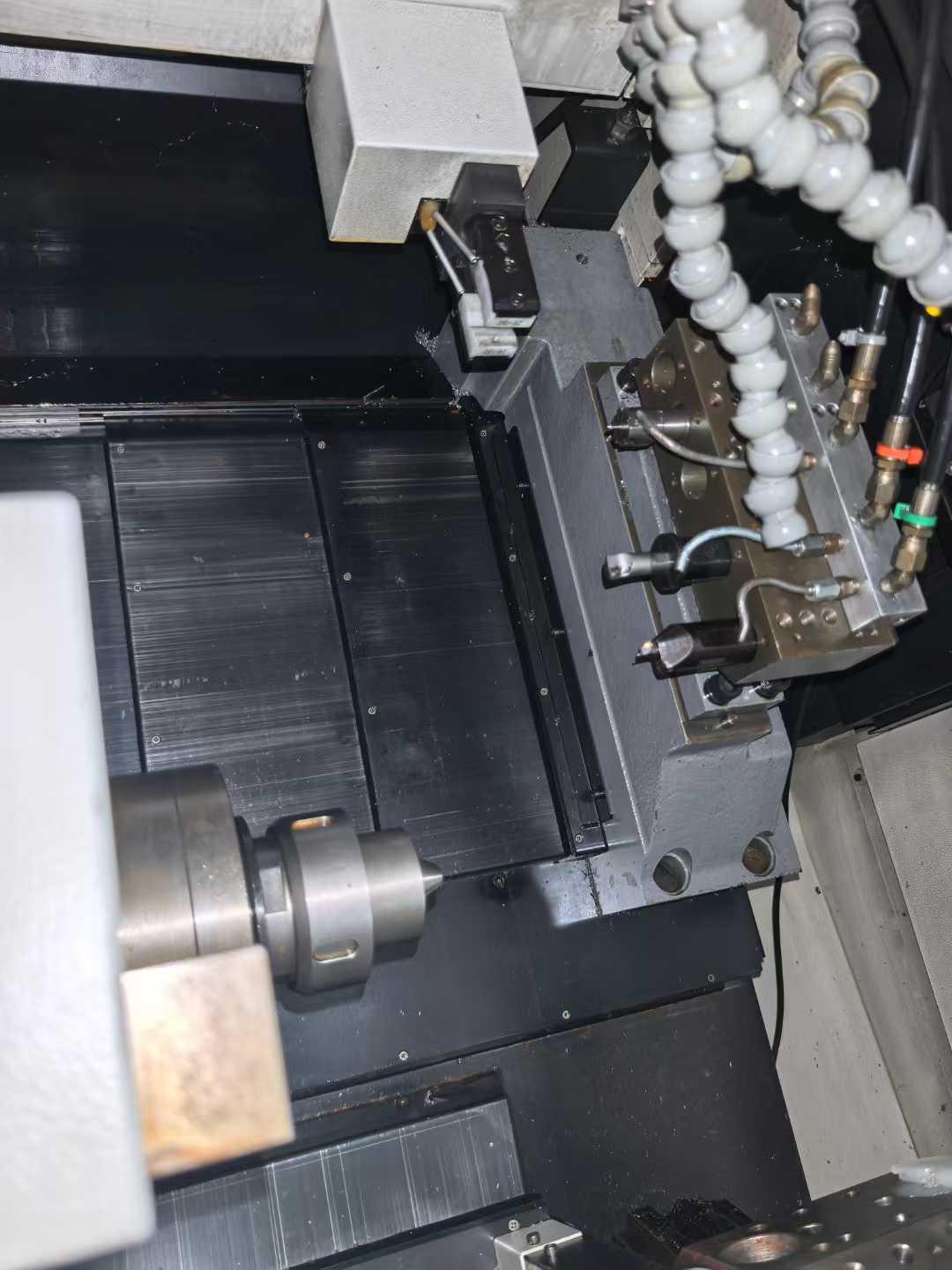

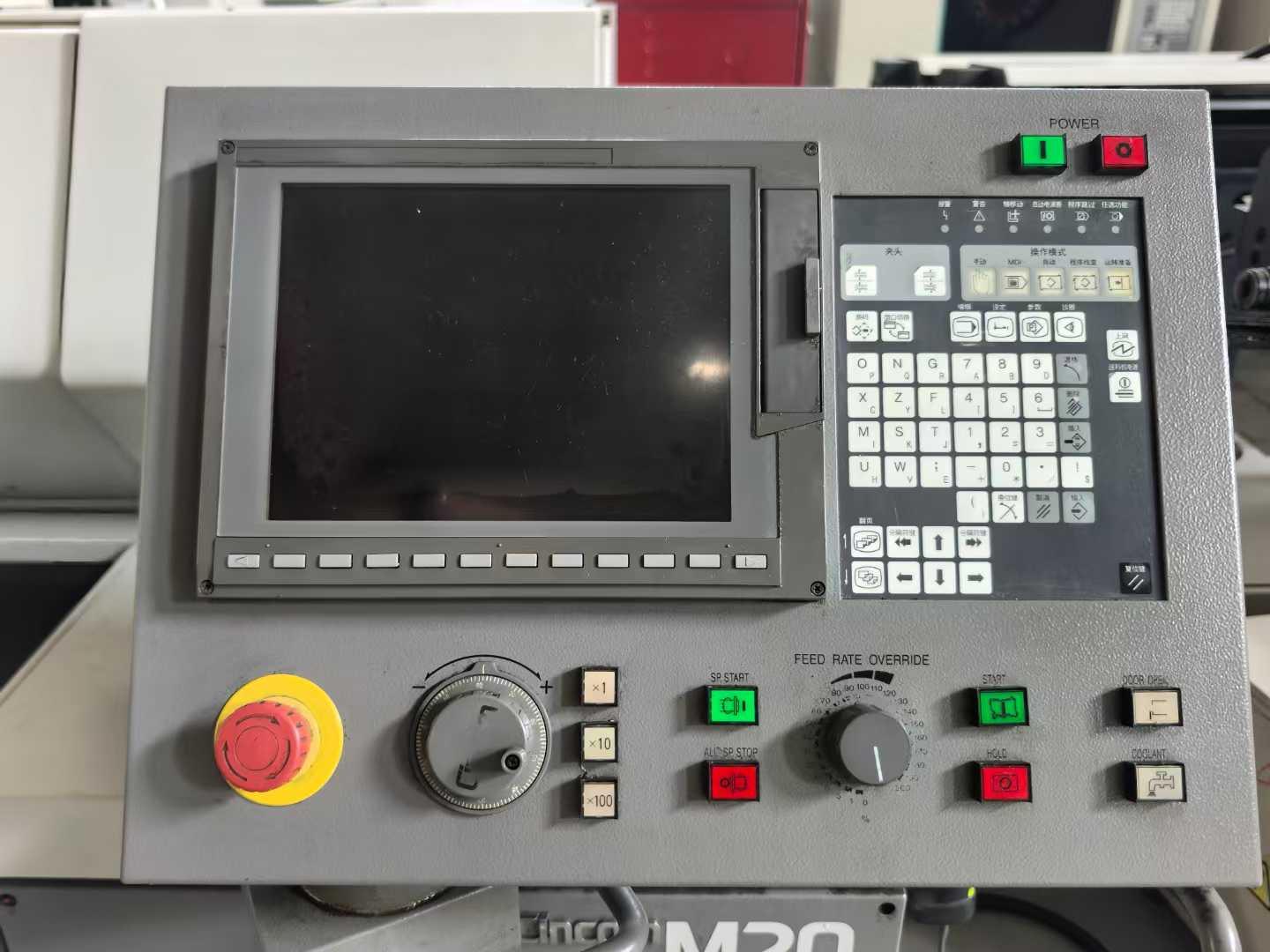

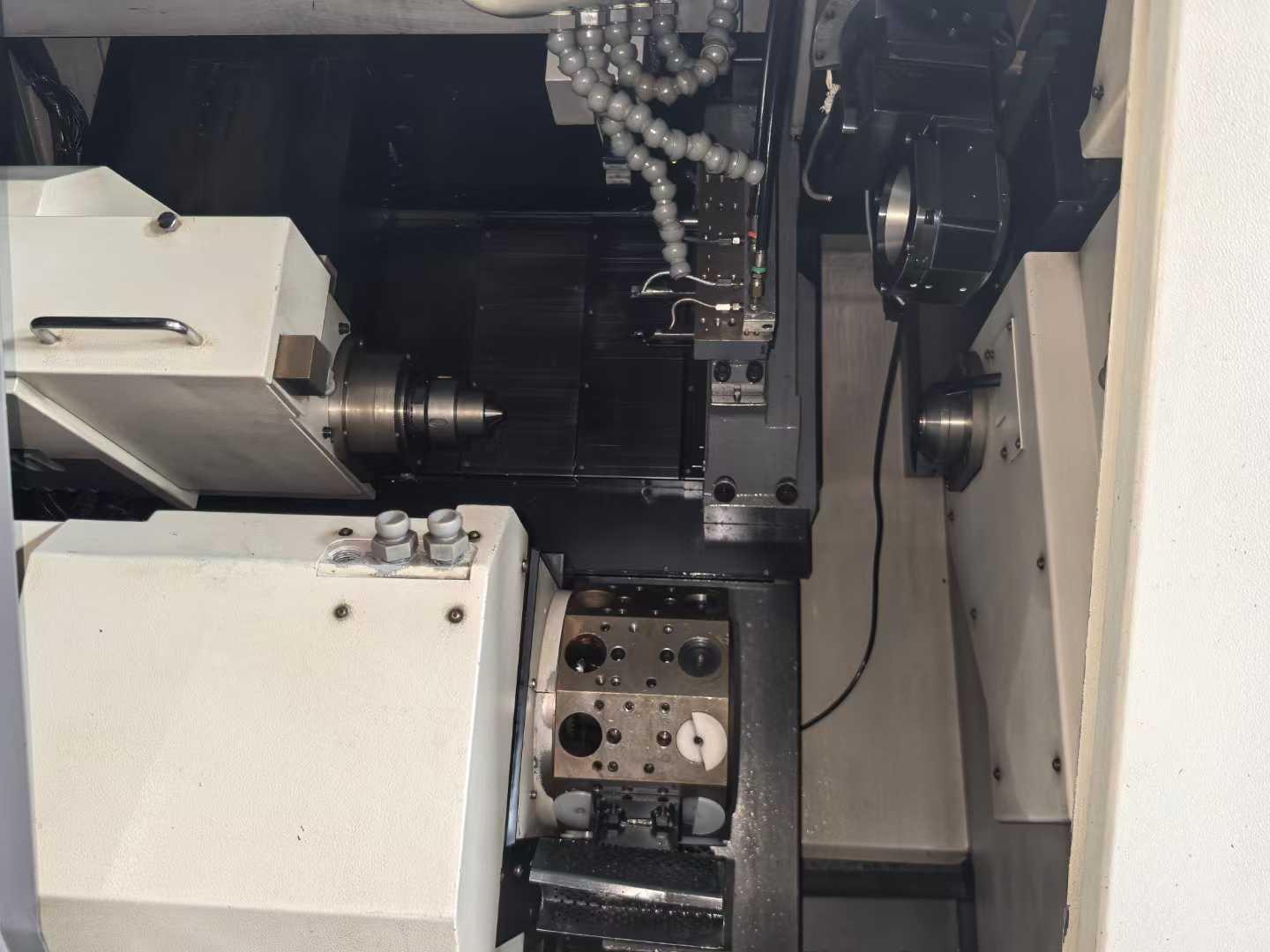

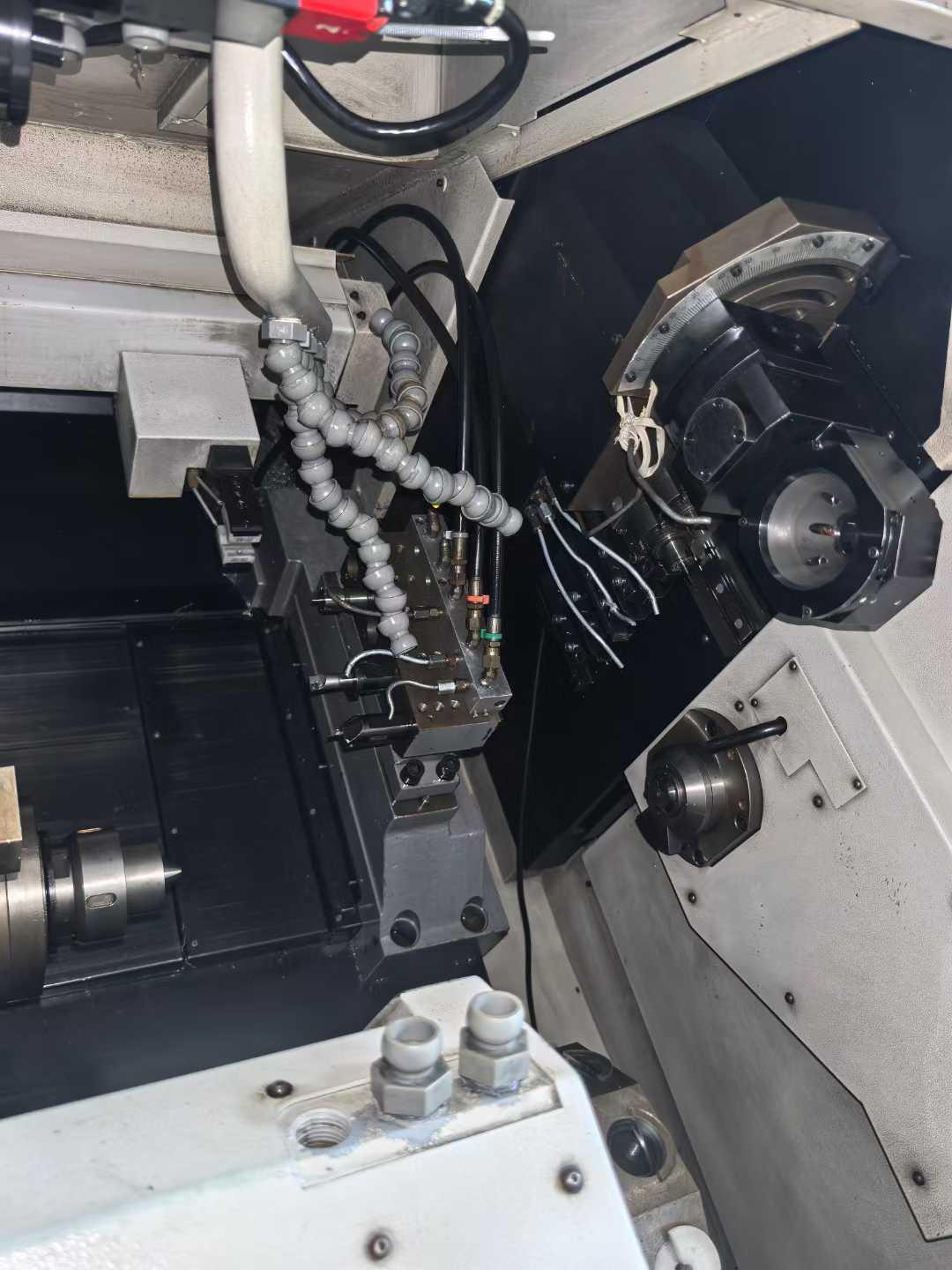

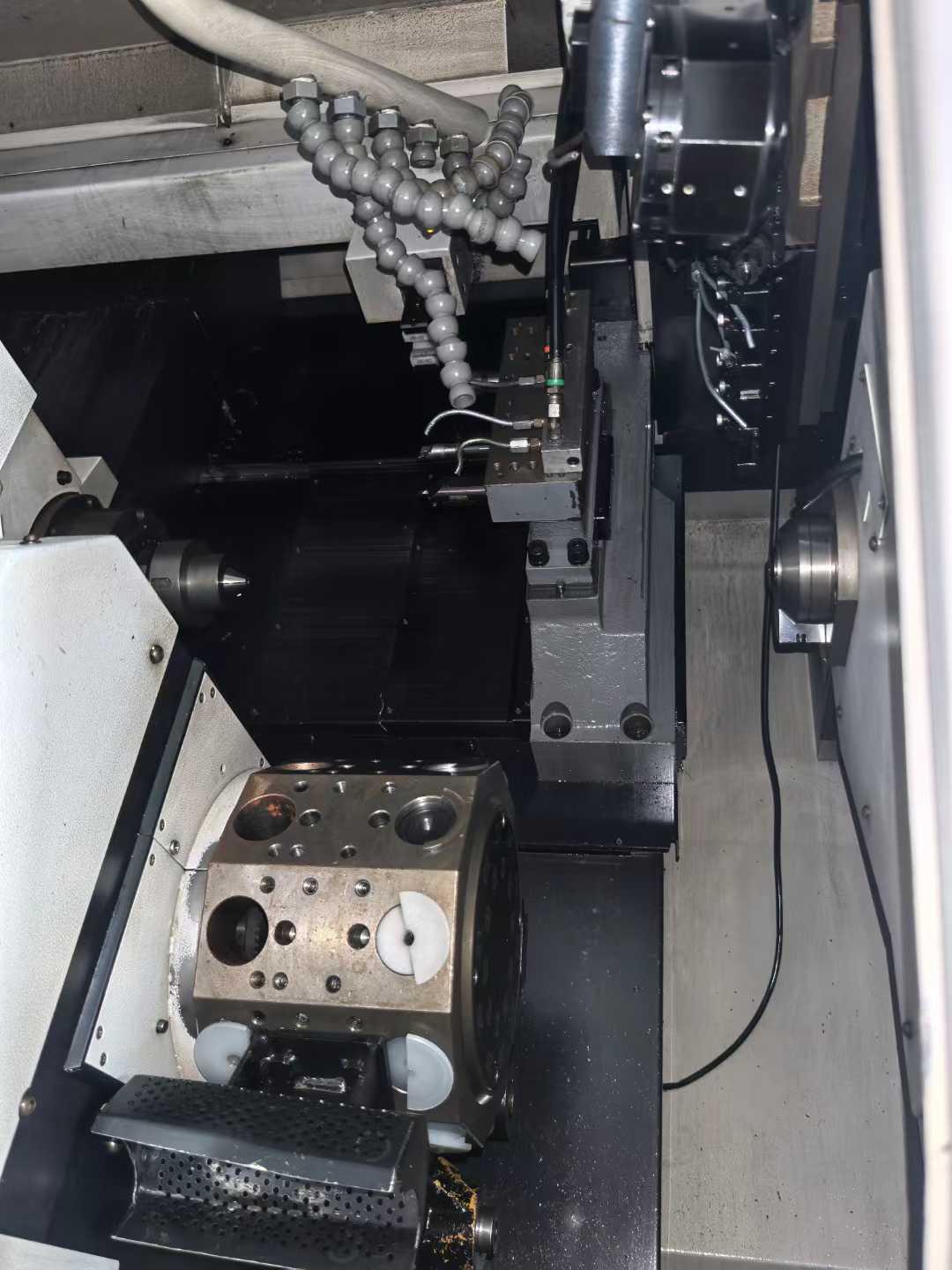

Citizen M20-4M5 Automatic lathe

Maximum machining  diameter: ø20mm

Maximum machining  length: 320mm

The diameter of spindle through hole: ø24mm

Spindle speed: 10,000 Rpm

headstock indexing: 1°

spindle C-axis: 0.001°

The maximum clamping diameter of the back spindle: ø20mm

The maximum drilling diameter for back machining : ø12mm

Maximum tapping diameter for backside machining : M12

The maximum protrusion of the workpiece on the back spindle: 145mm

The rotational speed of spindle on the back: 8,000 Rpm

The indexing of the back headstock: 1°

Back spindle C-axis: 0.001°

The maximum drilling diameter of the rotary Tool for chip conveyors is ø8mm

The maximum tapping diameter of the rotary Tool for bar Tools: M8

The rotational speed of the Tool spindle for the rotating tool is 9000 Rpm

The maximum drilling diameter of the rotating Tool in the tool turret is ø12mm

The maximum tapping diameter of the rotating Tool in the tool Turret positions: M12

The speed of the Tool spindle of the tool Turret positions: 6,000 Rpm

The maximum drilling diameter of the back-rotating Tool: ø8mm

Maximum tapping diameter of the back-rotating Tool: M6

The speed of spindle of the back-rotating Tool: 6,000 Rpm

The Footage of the mechanical main body: 2,770 * 1,370 * 1,820mm

The weight of machine tool: 3,500kg
