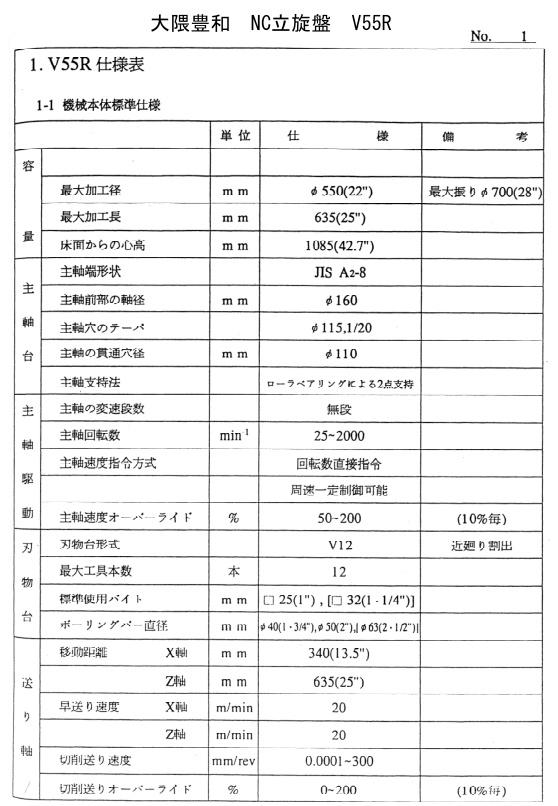

OKUMA&HOWA V55R CNC vertical lathe

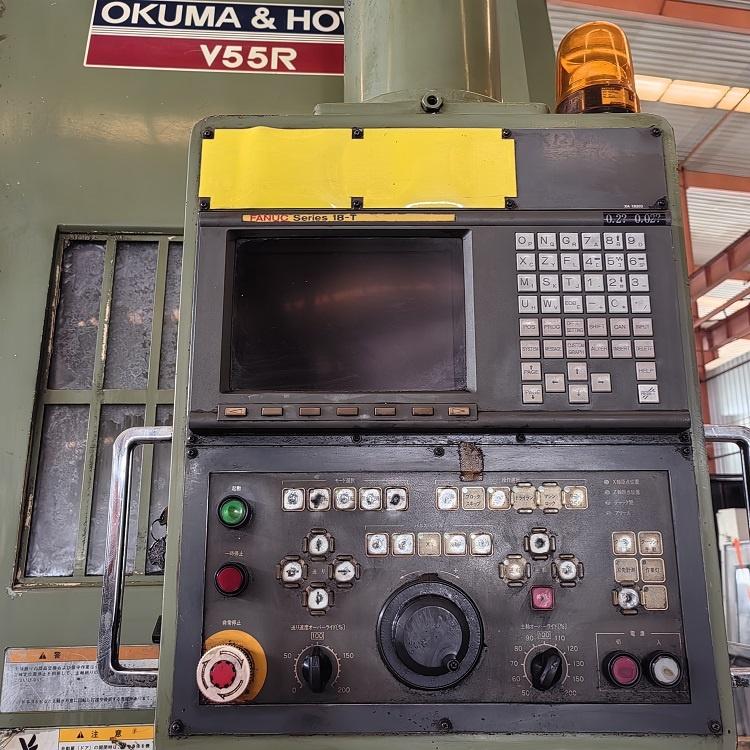

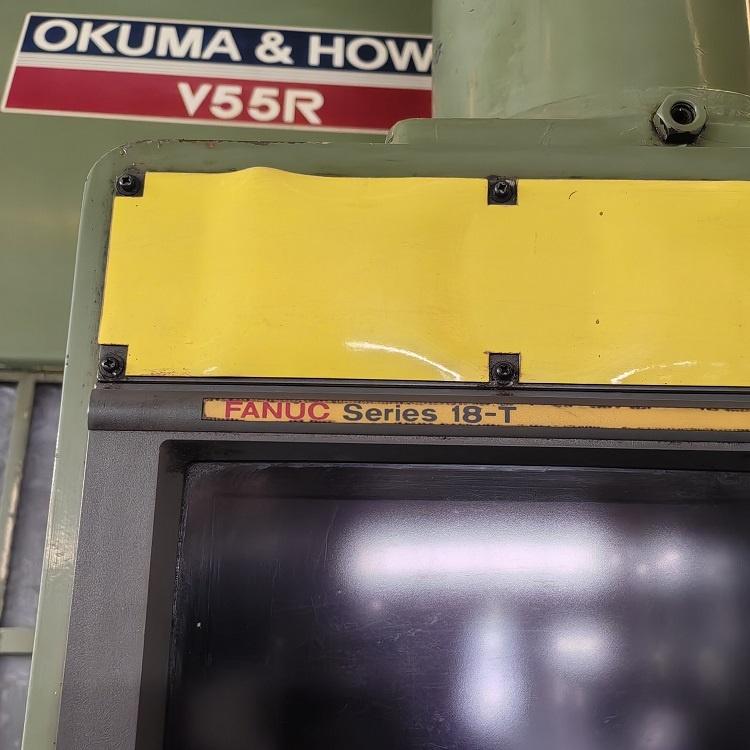

CNC CNC System: FANUC 18T

Maximum rotation diameter: 700mm

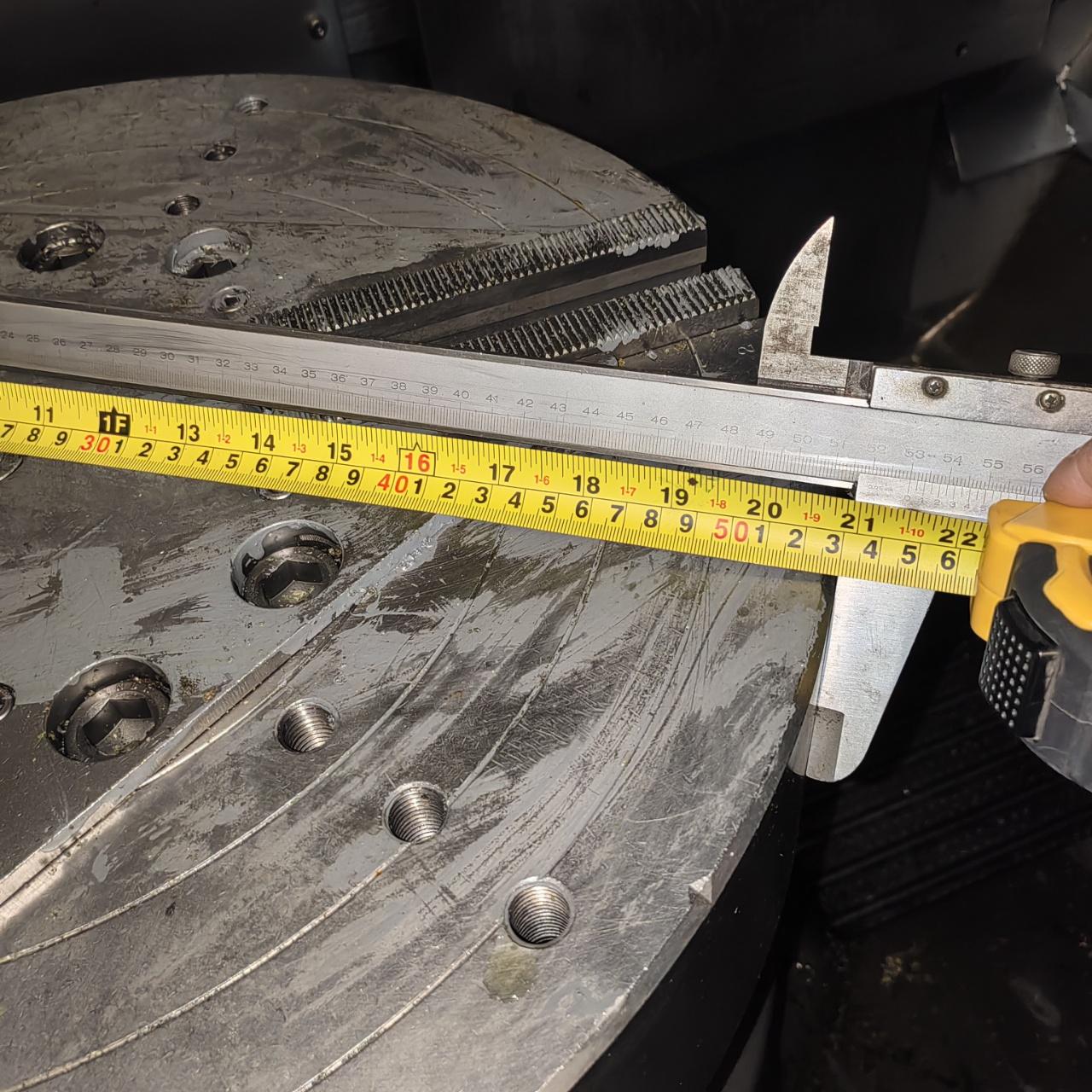

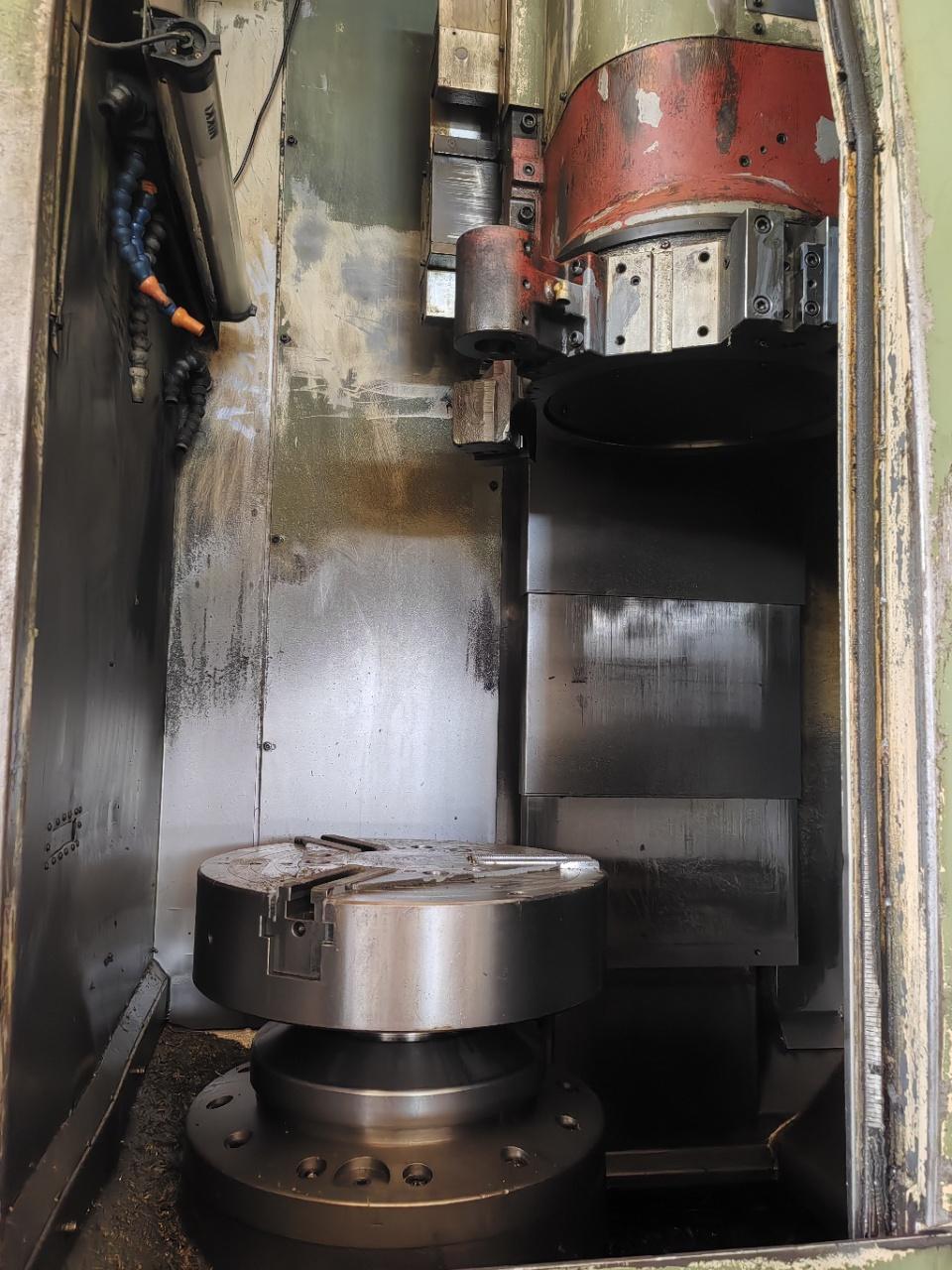

chuck  diameter: 530mm

Maximum machining  diameter: 550mm

Maximum machining  length: 635mm

spindle nose shape: JIS A2-8

The diameter of spindle through hole: 110mm

spindle rotational speed: 25 to 2000rpm

Blade stage form: V12

Number of tools: 12

X*Z travel: 340*635mm

Fast moving rate: 20m/min

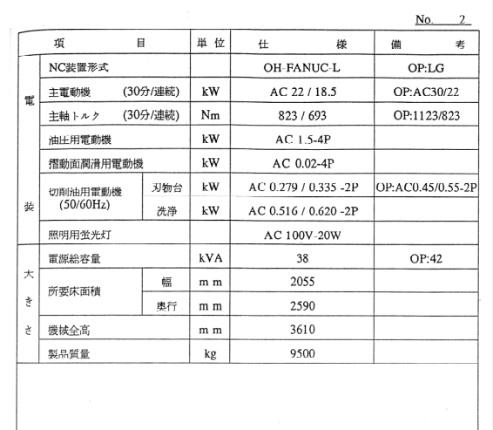

spindle motor power: AC22/18.5KW

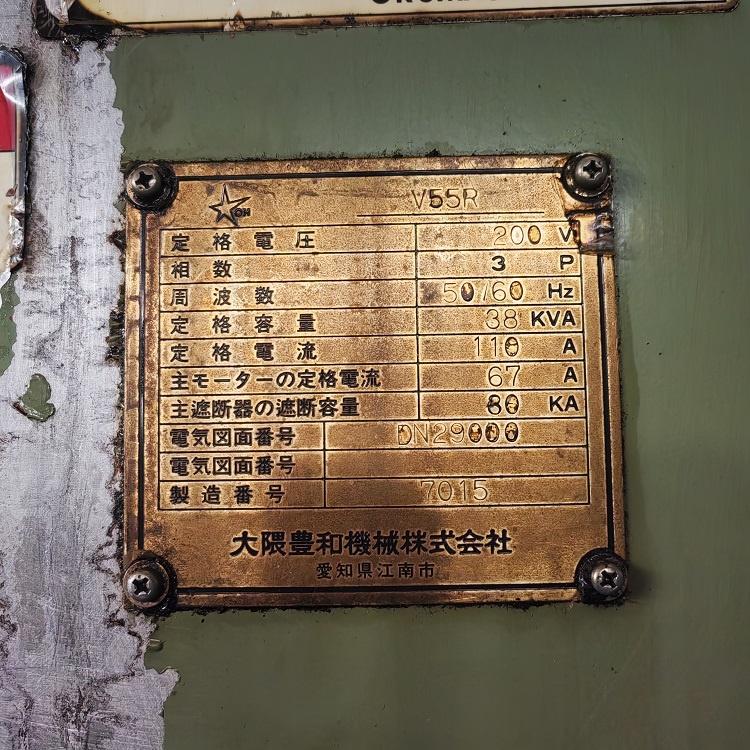

Electrical capacity: 38kVA

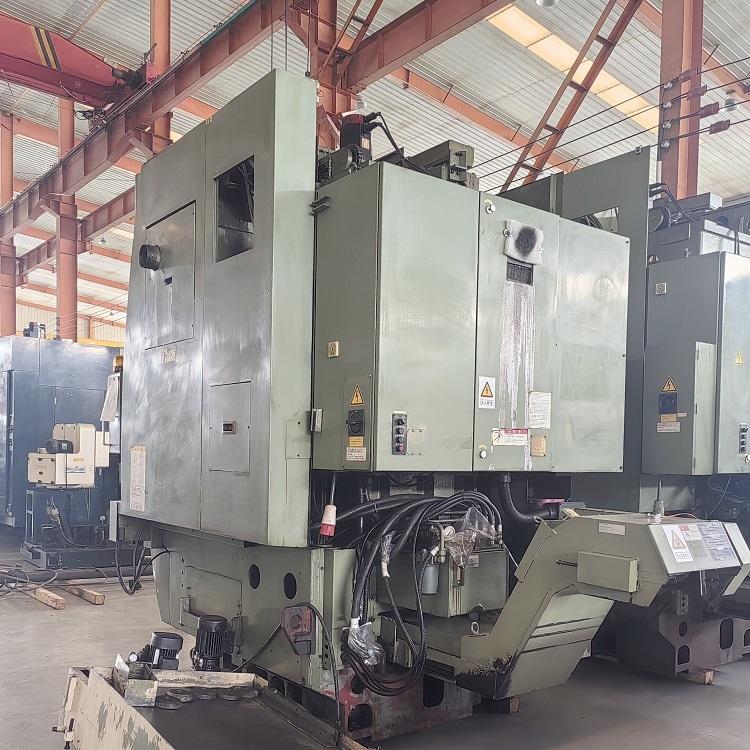

Overall Footage: 2055*2590*3610mm

Mechanical mass: 9,500 kg
