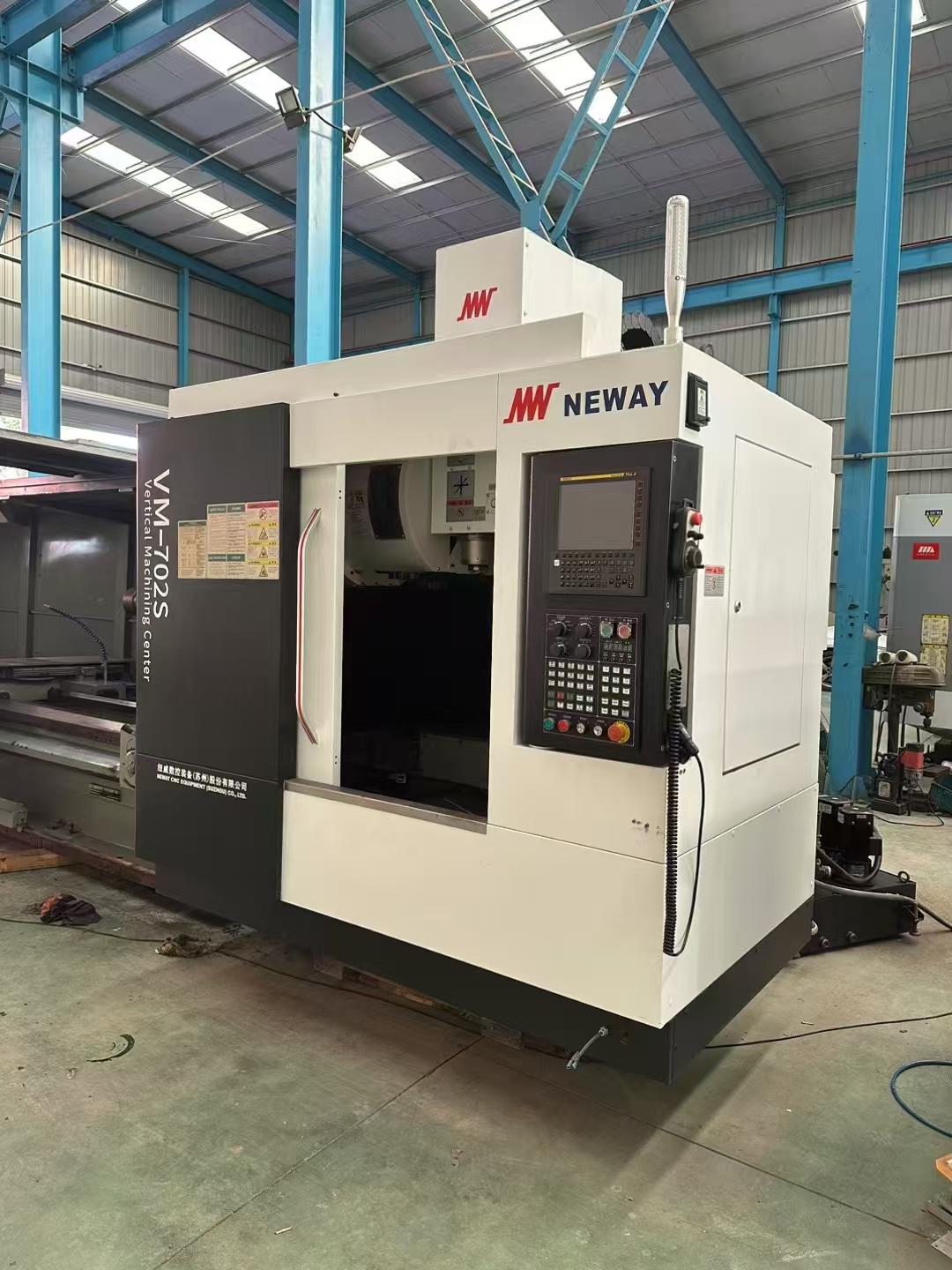

NEWAY VM702S Vertical Machining centre

[Product Information]:

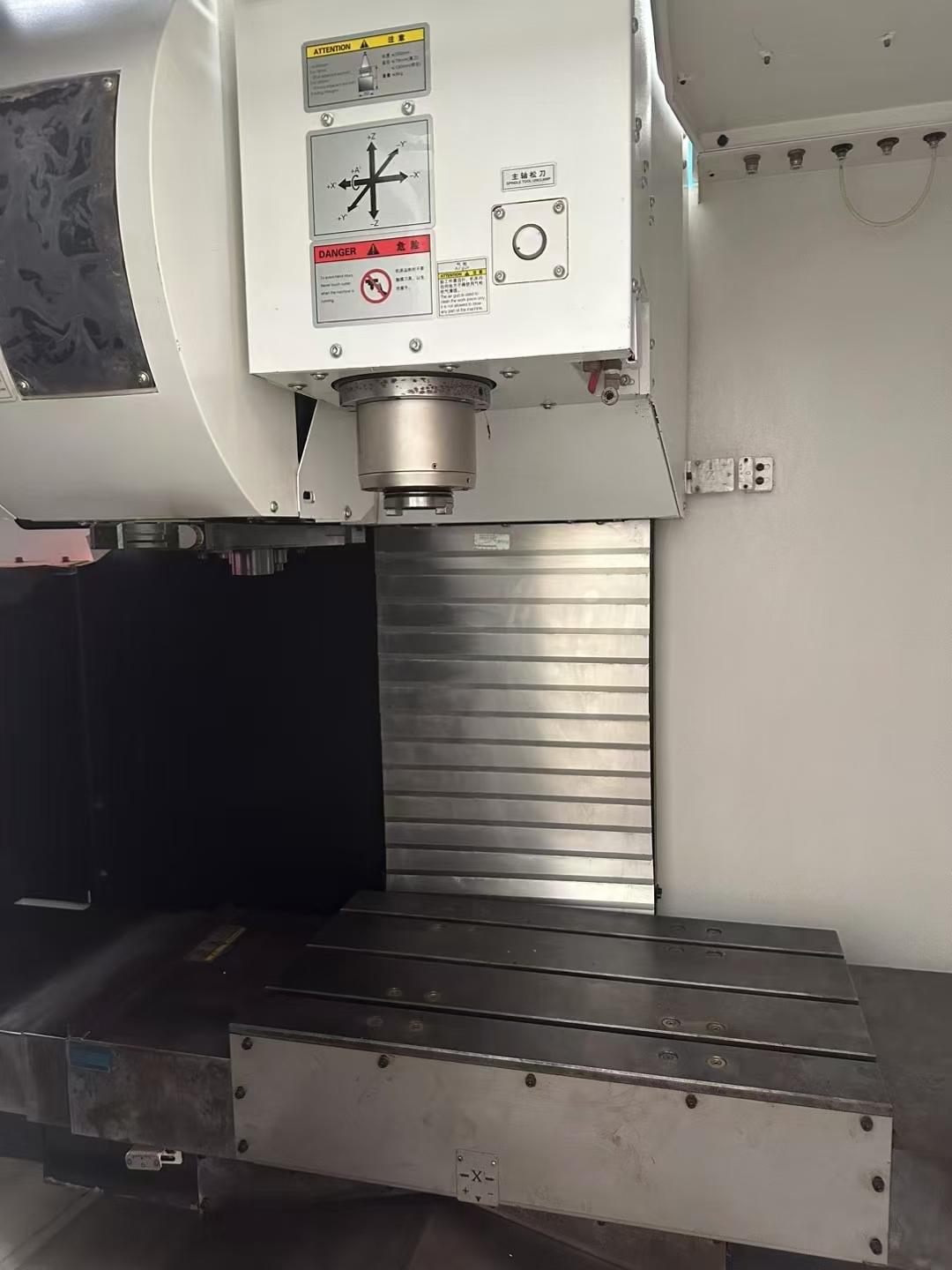

WorkWorktable size :750x420mm

WorkWorktable load :350kg

three-axis travel :650x420x500mm

Distance from spindle nose to workWorktable :120-620mm

From the center of spindle to the guideway surface of the column :470mm

Main motor power :5.5-7.5kw

Spindle speed: 10,000 RPM

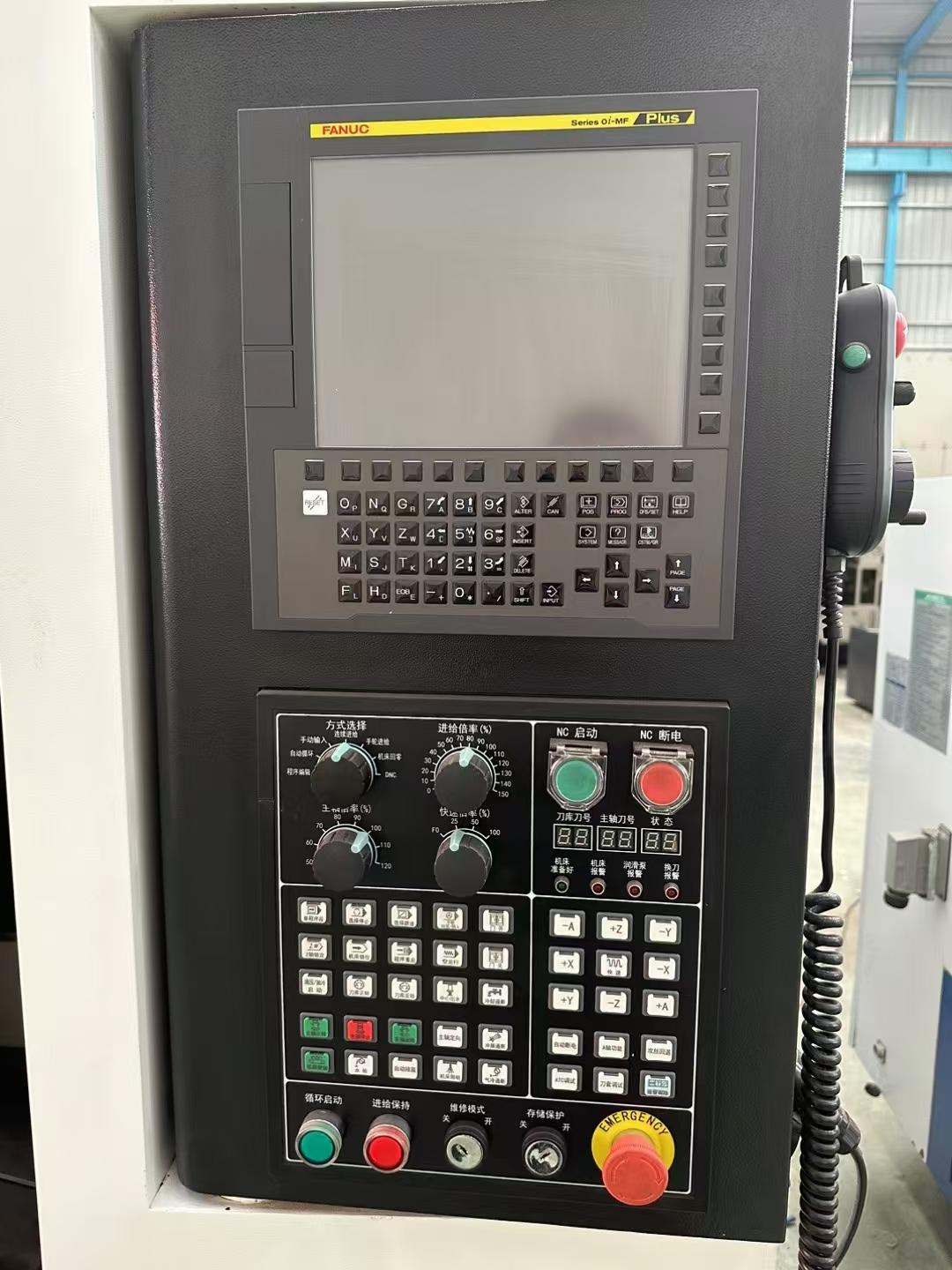

CNC CNC System: FANUC MF
