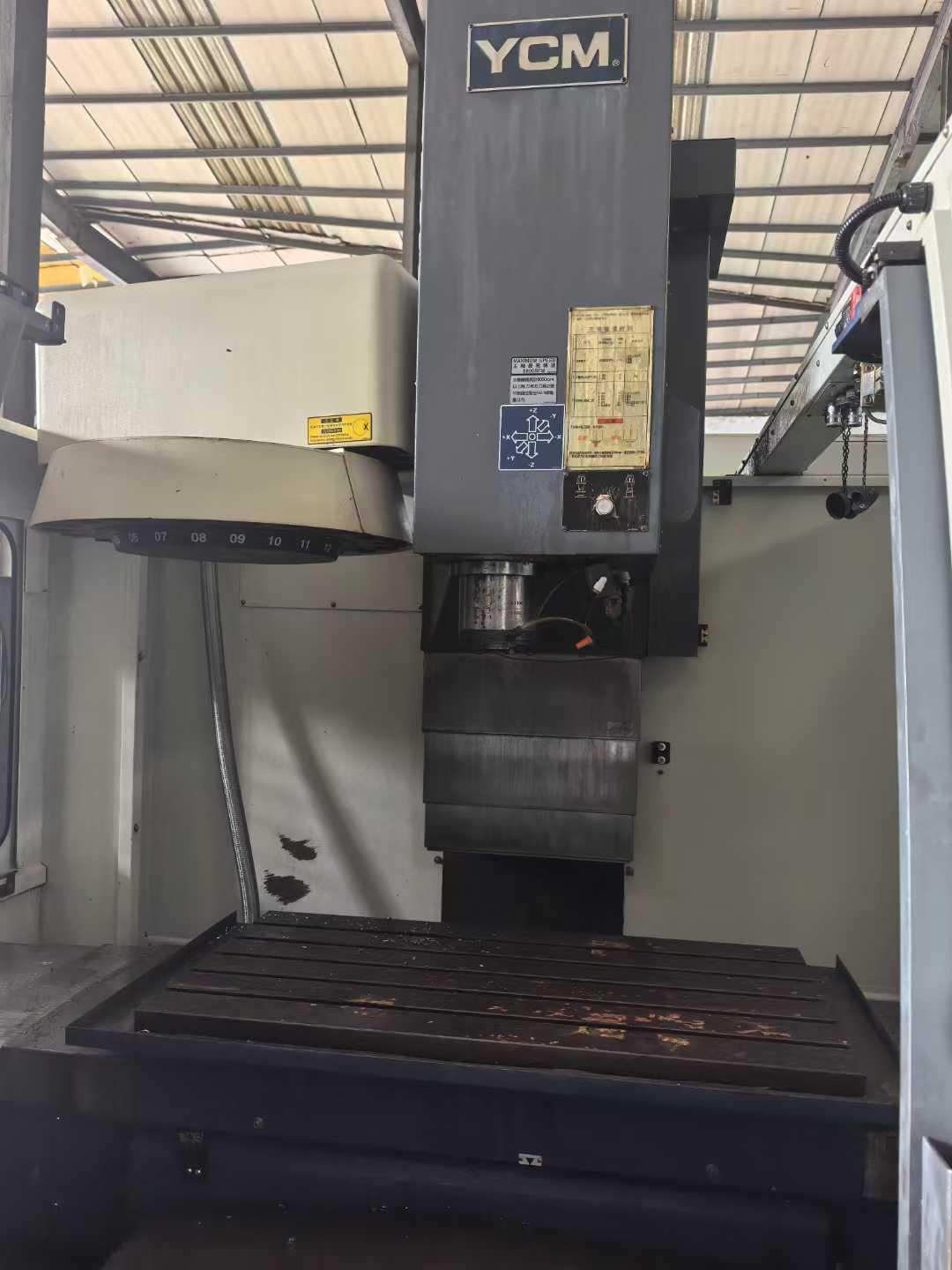

YCM MV106A Vertical Machining centre

[Product Information]:

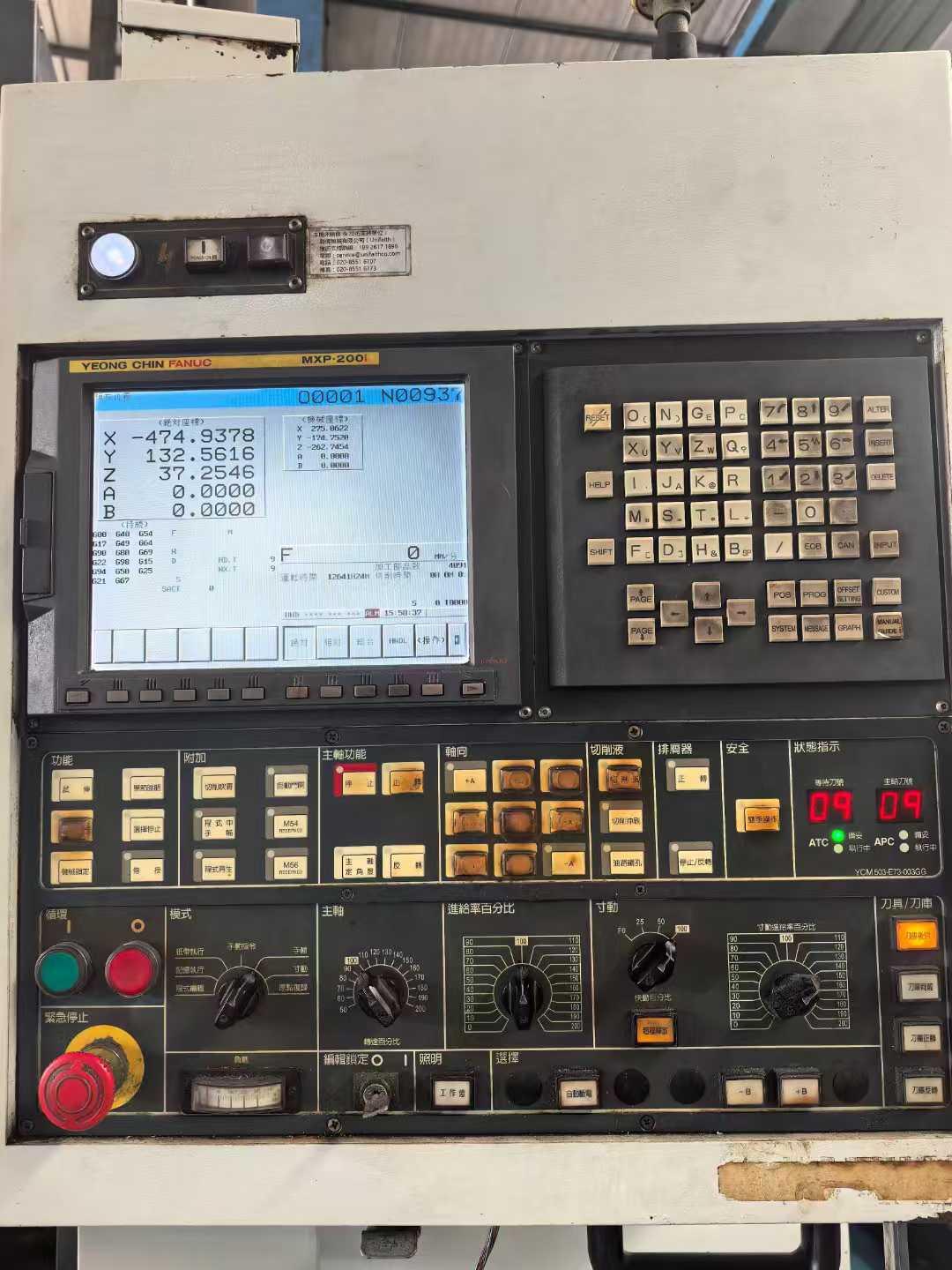

CNC CNC System: FANUC mxp 200i

Spindle speed: 8000rpm

magazine capacity: 20

Maximum spindle power: 11kW

spindle taper: BT40

three-axis travel: 1000*600*600mm

Overall Footage: 2630* 3000* 3300mm

Distance from spindle nose to workWorktable surface: 80-680mm

WorkWorktable size: 1120*600mm

Machine weight: 6,500 kg
